821 Low Back Pressure
Plastic chains
Description
Basic features
| Series: | 821-882-8257 |
|---|---|
| Pitch: | 38.1 mm |
| Thickness: | 4.8 mm |
| Surface Type: | LBP - Low Back Pressure |
| Functionality: | Straight |
| Unit of measure: | Meter |
821 Low Back Pressure
| Width | Material | Part | Back flex radius | Mass | Pin material | Box | Max working load | ||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||

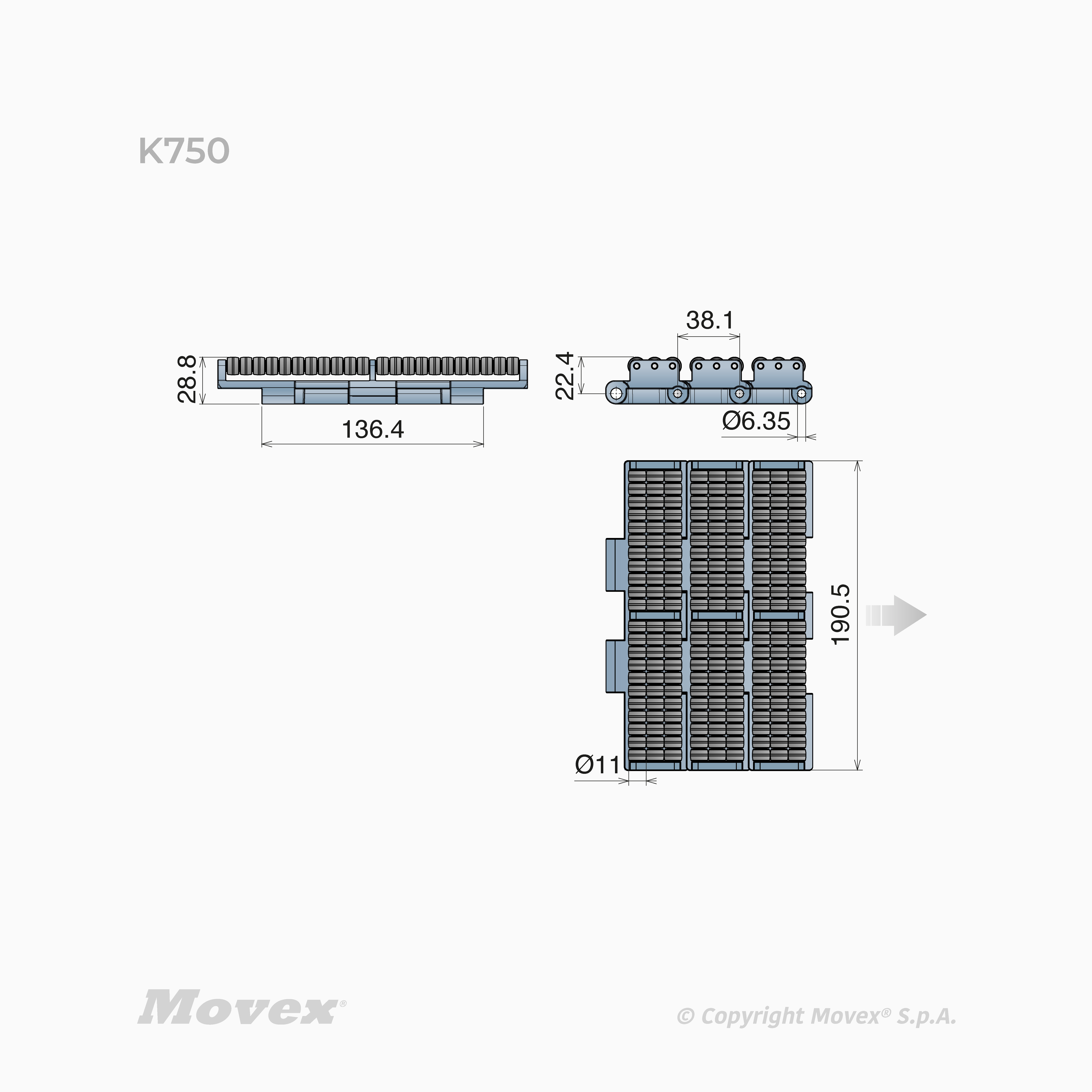

| P11060107 | K 750 - 190,5 mm | LFA - Low Friction Acetal (01) | P1106 | 150 mm | 5.7 kg/m | Stainless steel | 5 ft - 1,524 m | 2770 N |
|
| P11060108 | K1000 - 254,0 mm | LFA - Low Friction Acetal (01) | P1106 | 150 mm | 7.05 kg/m | Stainless steel | 5 ft - 1,524 m | 2770 N |
|

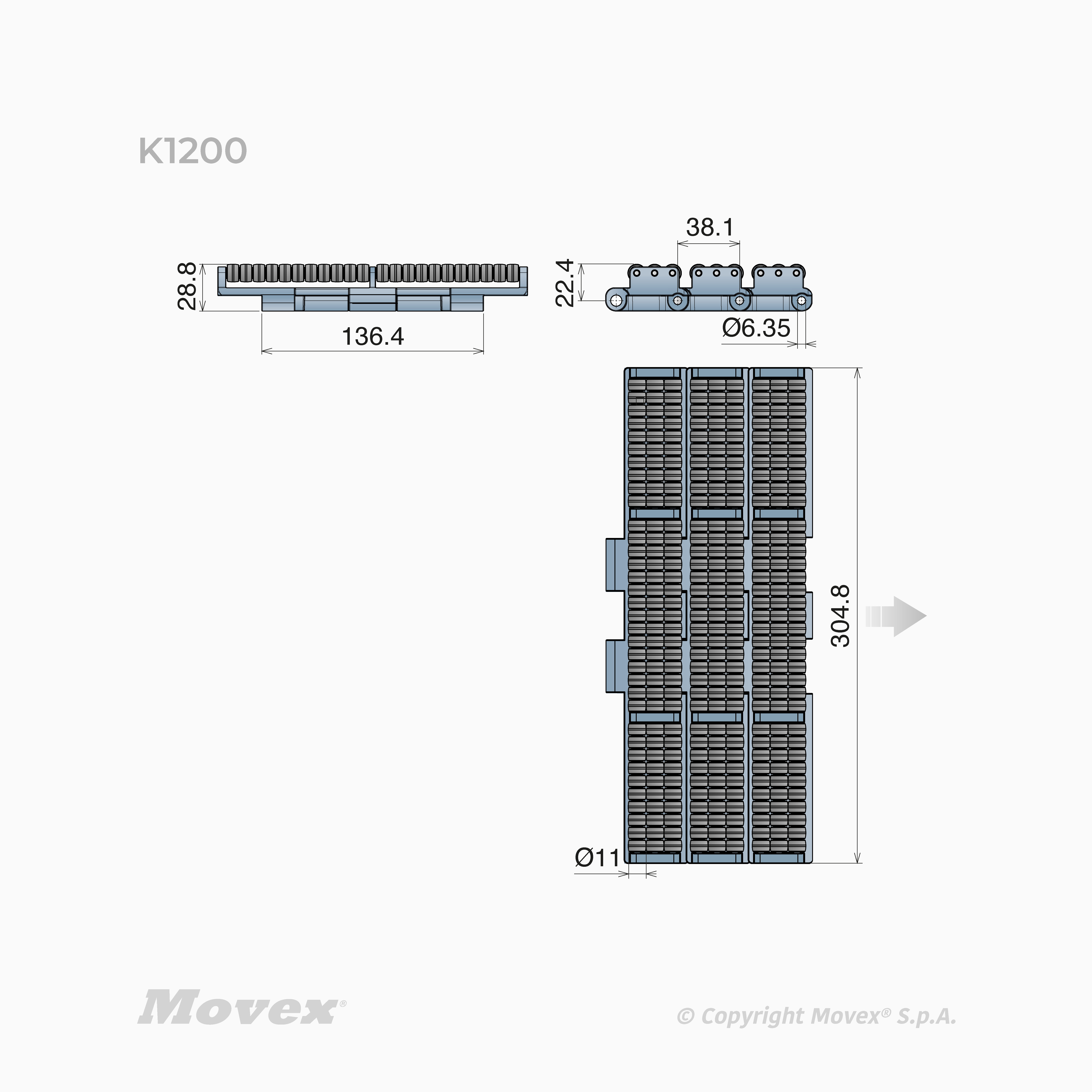

| P11060109 | K1200 - 304,8 mm | LFA - Low Friction Acetal (01) | P1106 | 150 mm | 8.21 kg/m | Stainless steel | 5 ft - 1,524 m | 2770 N |
|
