821 Grip Top
Plastic chains
Description
Basic features
| Series: | 821-882-8257 |
|---|---|
| Pitch: | 38.1 mm |
| Thickness: | 4.8 mm |
| Surface Type: | GT - Grip Top |
| Functionality: | Straight |
| Unit of measure: | Meter |

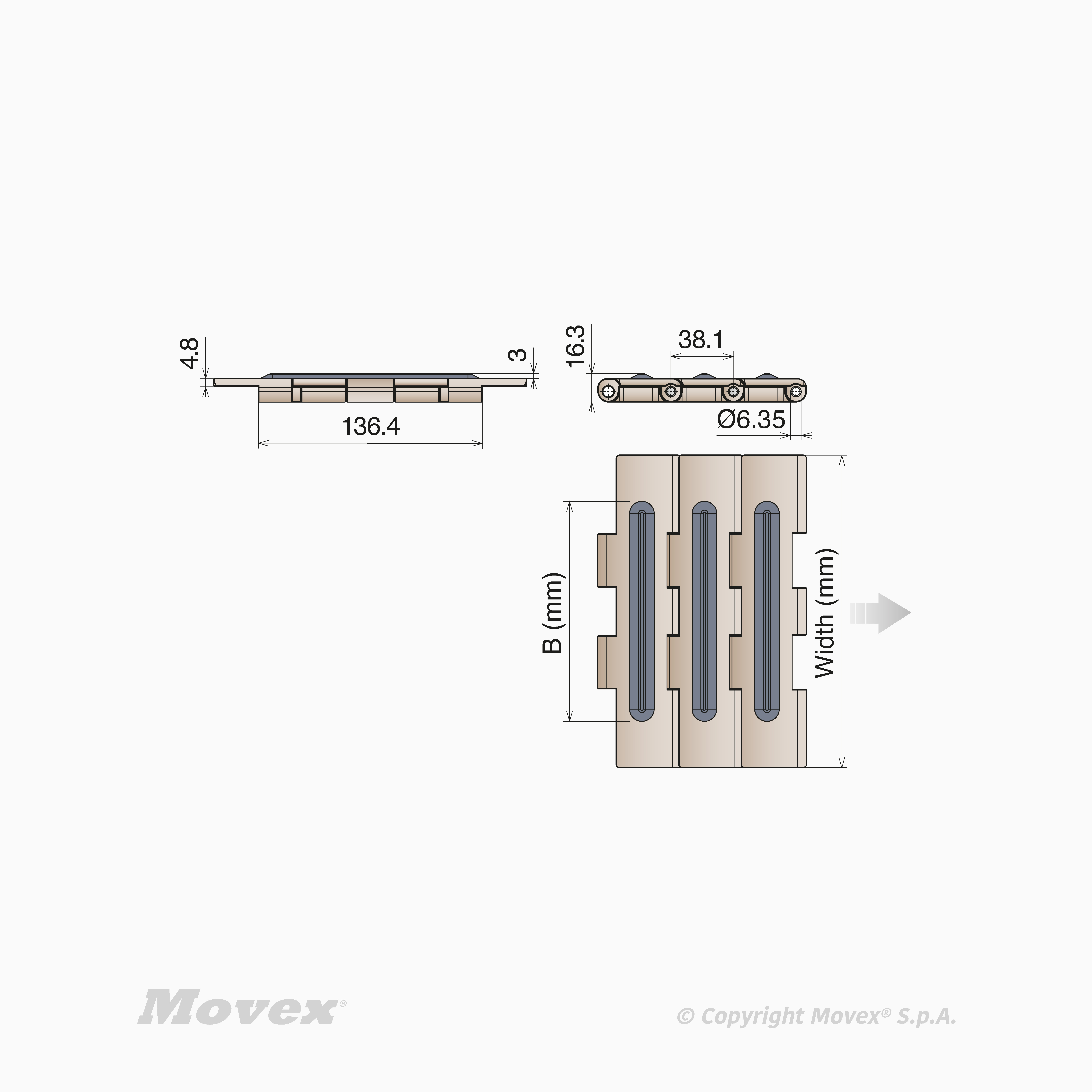

821 Grip Top
| Width | Material | Part | Back flex radius | Mass | Rubber width (B) | Rubber type | Rubber hardness ShA | Pin material | Box | Max working load | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| P11050107 | K 750 - 190,5 mm | LF - Low friction acetal (01) | P1105 | 50 mm | 2.55 kg/m | 134 mm | TPE Rubber | 50 | Stainless steel | 5 ft - 1,524 m | 2770 N |
|
| P11050108 | K1000 - 254,0 mm | LF - Low friction acetal (01) | P1105 | 50 mm | 3.05 kg/m | 192 mm | TPE Rubber | 50 | Stainless steel | 5 ft - 1,524 m | 2770 N |
|
| P11050109 | K1200 - 304,8 mm | LF - Low friction acetal (01) | P1105 | 50 mm | 3.35 kg/m | 252 mm | TPE Rubber | 50 | Stainless steel | 5 ft - 1,524 m | 2770 N |
|
| P11050307 | K 750 - 190,5 mm | MX - Performance PBT (03) | P1105 | 50 mm | 2.55 kg/m | 134 mm | TPE Rubber | 50 | Stainless steel | 5 ft - 1,524 m | 2200 N |
|
| P11050308 | K1000 - 254,0 mm | MX - Performance PBT (03) | P1105 | 50 mm | 3.05 kg/m | 192 mm | TPE Rubber | 50 | Stainless steel | 5 ft - 1,524 m | 2200 N |
|
| P11050309 | K1200 - 304,8 mm | MX - Performance PBT (03) | P1105 | 50 mm | 3.35 kg/m | 252 mm | TPE Rubber | 50 | Stainless steel | 5 ft - 1,524 m | 2200 N |
|
