820 split molded sprocket

820 split molded sprocket

	Z-	Bore	Version	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code	All 21 23 25	All 25 mm 30 mm 35 mm 40 mm	All Drive Idler	All Split	All Molded	All 129.3 mm 141.2 mm 153.2 mm	All 129 mm 142 mm 154 mm	All 67.8 mm 73.8 mm 79.8 mm	All PA - Polyamide reinforced	All -20÷120 °C	All -20÷120 °C	Actions

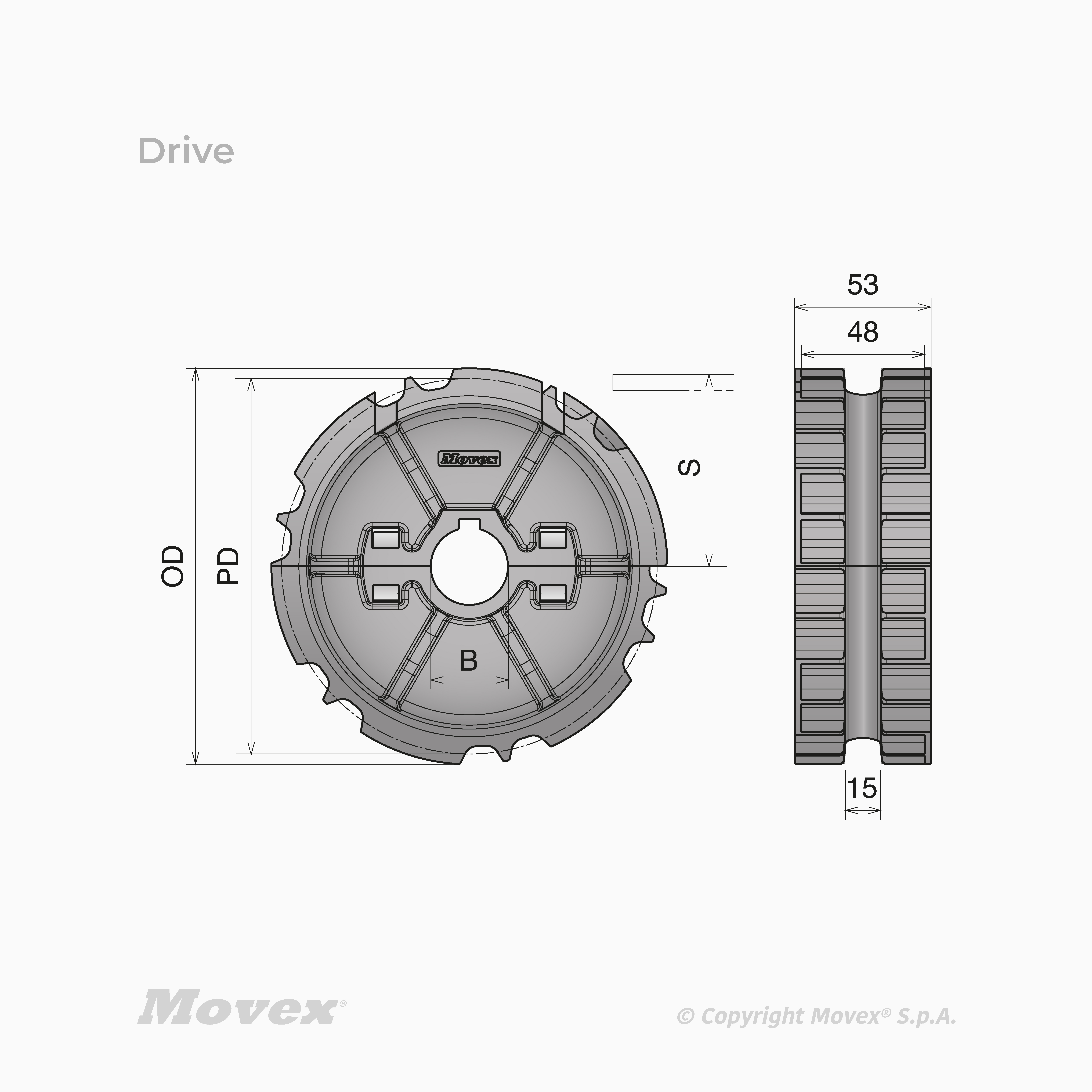

P54201	21	25 mm	Drive	Split	Molded	129.3 mm	129 mm	67.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54202	21	30 mm	Drive	Split	Molded	129.3 mm	129 mm	67.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54203	21	35 mm	Drive	Split	Molded	129.3 mm	129 mm	67.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54204	21	40 mm	Drive	Split	Molded	129.3 mm	129 mm	67.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C

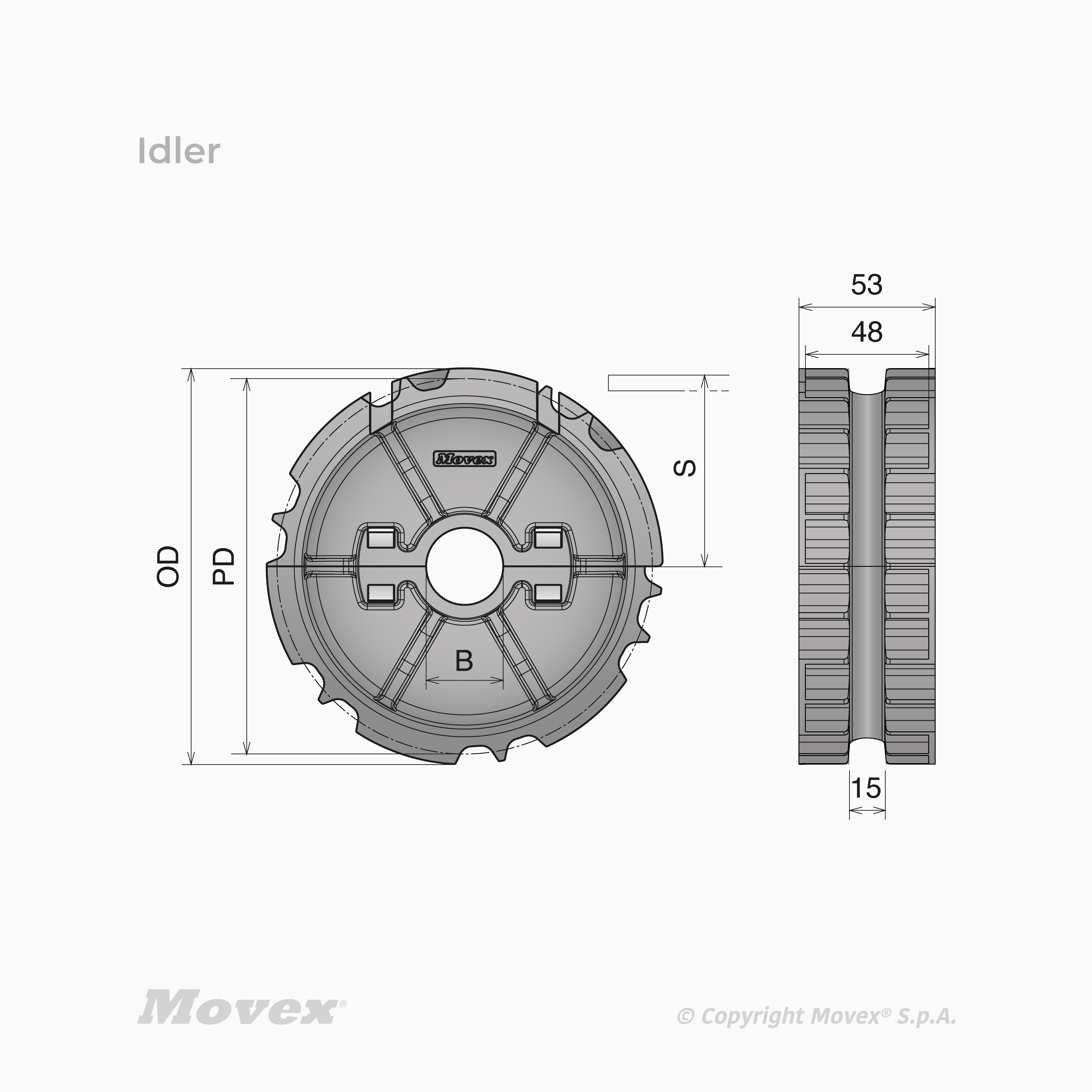

P54251	21	25 mm	Idler	Split	Molded	129.3 mm	129 mm	67.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54252	21	30 mm	Idler	Split	Molded	129.3 mm	129 mm	67.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54253	21	35 mm	Idler	Split	Molded	129.3 mm	129 mm	67.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54254	21	40 mm	Idler	Split	Molded	129.3 mm	129 mm	67.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54301	23	25 mm	Drive	Split	Molded	141.2 mm	142 mm	73.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54302	23	30 mm	Drive	Split	Molded	141.2 mm	142 mm	73.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54303	23	35 mm	Drive	Split	Molded	141.2 mm	142 mm	73.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54304	23	40 mm	Drive	Split	Molded	141.2 mm	142 mm	73.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54351	23	25 mm	Idler	Split	Molded	141.2 mm	142 mm	73.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54352	23	30 mm	Idler	Split	Molded	141.2 mm	142 mm	73.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54353	23	35 mm	Idler	Split	Molded	141.2 mm	142 mm	73.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54354	23	40 mm	Idler	Split	Molded	141.2 mm	142 mm	73.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54401	25	25 mm	Drive	Split	Molded	153.2 mm	154 mm	79.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54402	25	30 mm	Drive	Split	Molded	153.2 mm	154 mm	79.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54403	25	35 mm	Drive	Split	Molded	153.2 mm	154 mm	79.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54404	25	40 mm	Drive	Split	Molded	153.2 mm	154 mm	79.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54451	25	25 mm	Idler	Split	Molded	153.2 mm	154 mm	79.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54452	25	30 mm	Idler	Split	Molded	153.2 mm	154 mm	79.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54453	25	35 mm	Idler	Split	Molded	153.2 mm	154 mm	79.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54454	25	40 mm	Idler	Split	Molded	153.2 mm	154 mm	79.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C

•
