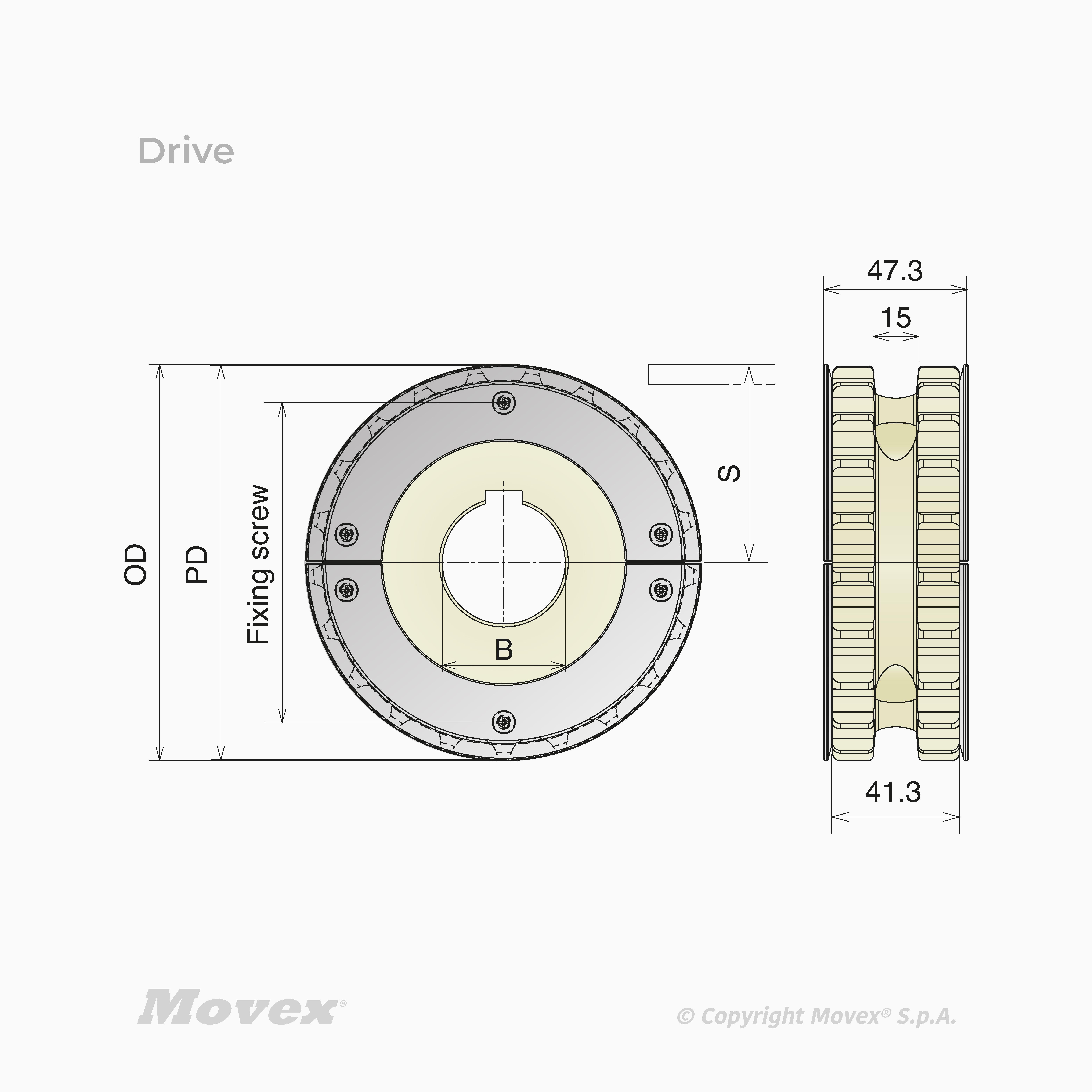

820 split machined sprocket + SS Guide rings

820 split machined sprocket + SS Guide rings

	Z-	Bore	Version	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code	All 17 21 23 25	All 25 mm 30 mm 35 mm 40 mm	All Drive + Guide rings	All Split	All Machined	All 105.5 mm 129.3 mm 141.2 mm 153.2 mm	All 103.9 mm 129 mm 142 mm 154 mm	All 55.9 mm 67.8 mm 73.8 mm 79.8 mm	All PA - Polyamide composite	All -40÷80 °C	All -20÷120 °C	Actions
P53501G	17	25 mm	Drive + Guide rings	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53502G	17	30 mm	Drive + Guide rings	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53503G	17	35 mm	Drive + Guide rings	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53504G	17	40 mm	Drive + Guide rings	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53701G	21	25 mm	Drive + Guide rings	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53702G	21	30 mm	Drive + Guide rings	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53703G	21	35 mm	Drive + Guide rings	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53704G	21	40 mm	Drive + Guide rings	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53801G	23	25 mm	Drive + Guide rings	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53802G	23	30 mm	Drive + Guide rings	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53803G	23	35 mm	Drive + Guide rings	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53804G	23	40 mm	Drive + Guide rings	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53901G	25	25 mm	Drive + Guide rings	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53902G	25	30 mm	Drive + Guide rings	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53903G	25	35 mm	Drive + Guide rings	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53904G	25	40 mm	Drive + Guide rings	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C

•
