8157 split machined sprocket

Chain sprockets

Enquire Now

Description

Also suitable for 8857M

Basic features

Series:	8157-8857M
Pitch:	38.1 mm
Unit of measure:	Ea

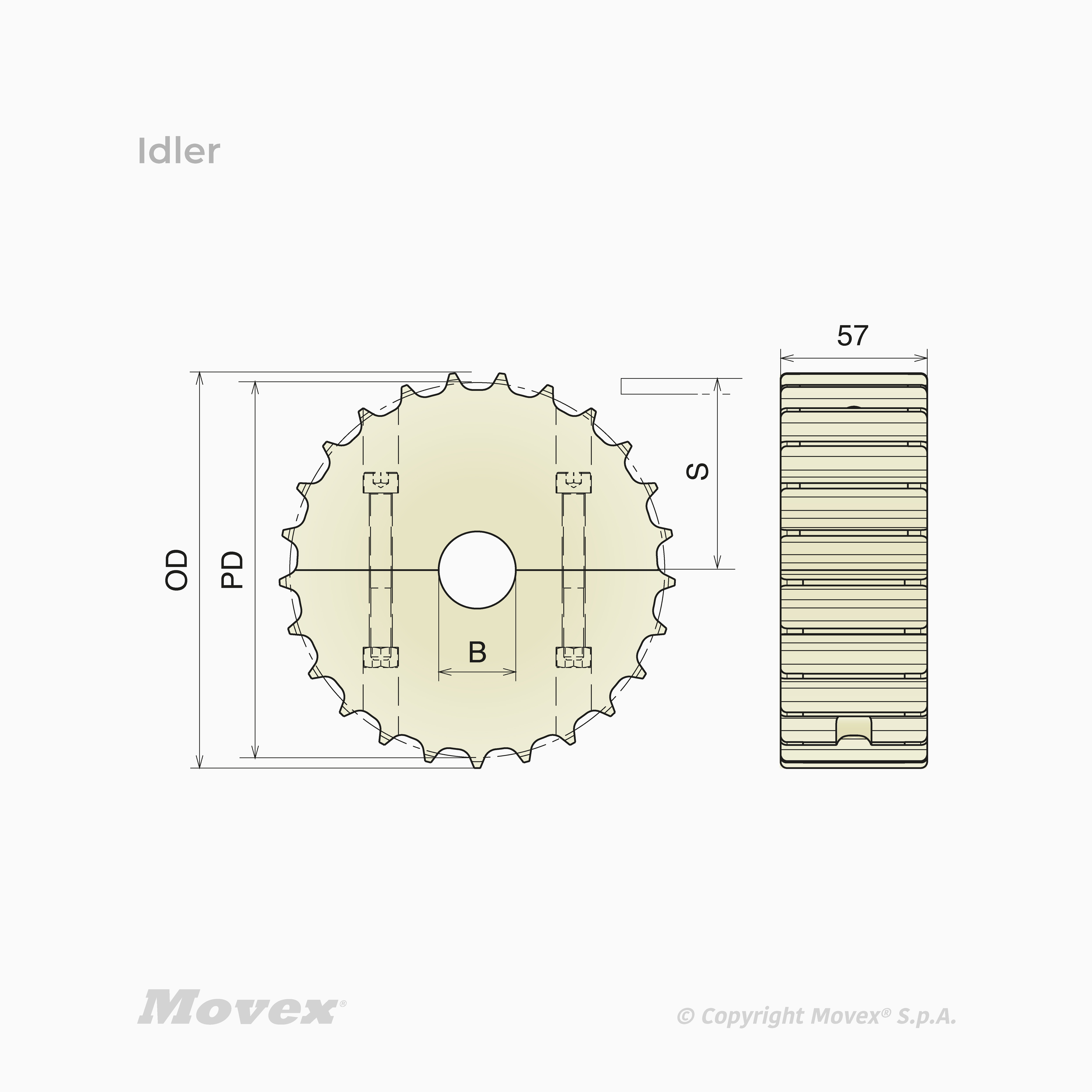

8157 split machined sprocket

	Z-	Bore	Version	Box	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet	Supplementary informations
Code														Actions
P52801	17	○ 25 mm	Drive	3	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P52802	17	○ 30 mm	Drive	3	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P52803	17	○ 35 mm	Drive	3	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P52804	17	○ 40 mm	Drive	3	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P52850	17	○ 18 mm	Idler	3	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P52851	17	○ 25 mm	Idler	3	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P52852	17	○ 30 mm	Idler	3	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P52853	17	○ 35 mm	Idler	3	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P52854	17	○ 40 mm	Idler	3	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P52901	19	○ 25 mm	Drive	3	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P52902	19	○ 30 mm	Drive	3	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P52903	19	○ 35 mm	Drive	3	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P52904	19	○ 40 mm	Drive	3	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P52950	19	○ 18 mm	Idler	3	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P52951	19	○ 25 mm	Idler	3	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P52952	19	○ 30 mm	Idler	3	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P52953	19	○ 35 mm	Idler	3	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P52954	19	○ 40 mm	Idler	3	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53001	21	○ 25 mm	Drive	3	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53002	21	○ 30 mm	Drive	3	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53003	21	○ 35 mm	Drive	3	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53004	21	○ 40 mm	Drive	3	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53050	21	○ 18 mm	Idler	3	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53051	21	○ 25 mm	Idler	3	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53052	21	○ 30 mm	Idler	3	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53053	21	○ 35 mm	Idler	3	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53054	21	○ 40 mm	Idler	3	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53101	23	○ 25 mm	Drive	3	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53102	23	○ 30 mm	Drive	3	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53103	23	○ 35 mm	Drive	3	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53104	23	○ 40 mm	Drive	3	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53150	23	○ 18 mm	Idler	3	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53151	23	○ 25 mm	Idler	3	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53152	23	○ 30 mm	Idler	3	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	a MOQ may be applied
P53153	23	○ 35 mm	Idler	3	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	a MOQ may be applied
P53154	23	○ 40 mm	Idler	3	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53201	25	○ 25 mm	Drive	3	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53202	25	○ 30 mm	Drive	3	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53203	25	○ 35 mm	Drive	3	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53204	25	○ 40 mm	Drive	3	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53250	25	○ 18 mm	Idler	3	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53251	25	○ 25 mm	Idler	3	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53252	25	○ 30 mm	Idler	3	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53253	25	○ 35 mm	Idler	3	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	a MOQ may be applied
P53254	25	○ 40 mm	Idler	3	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53301	27	○ 25 mm	Drive	3	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53302	27	○ 30 mm	Drive	3	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53303	27	○ 35 mm	Drive	3	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53304	27	○ 40 mm	Drive	3	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53350	27	○ 18 mm	Idler	3	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53351	27	○ 25 mm	Idler	3	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53352	27	○ 30 mm	Idler	3	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53353	27	○ 35 mm	Idler	3	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	a MOQ may be applied
P53354	27	○ 40 mm	Idler	3	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	a MOQ may be applied
P53401	29	○ 25 mm	Drive	3	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53402	29	○ 30 mm	Drive	3	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53403	29	○ 35 mm	Drive	3	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53404	29	○ 40 mm	Drive	3	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53450	29	○ 18 mm	Idler	3	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	a MOQ may be applied
P53451	29	○ 25 mm	Idler	3	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	a MOQ may be applied
P53452	29	○ 30 mm	Idler	3	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P53453	29	○ 35 mm	Idler	3	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	a MOQ may be applied
P53454	29	○ 40 mm	Idler	3	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
