815 Transfer wing
Steel chains
Description
Basic features
| Series: | 512-812-815-881-8811 |
|---|---|
| Pitch: | 38.1 mm |
| Thickness: | 3.1 mm |
| Surface Type: | FT - Flat Top |
| Functionality: | Straight |
| Unit of measure: | Meter |

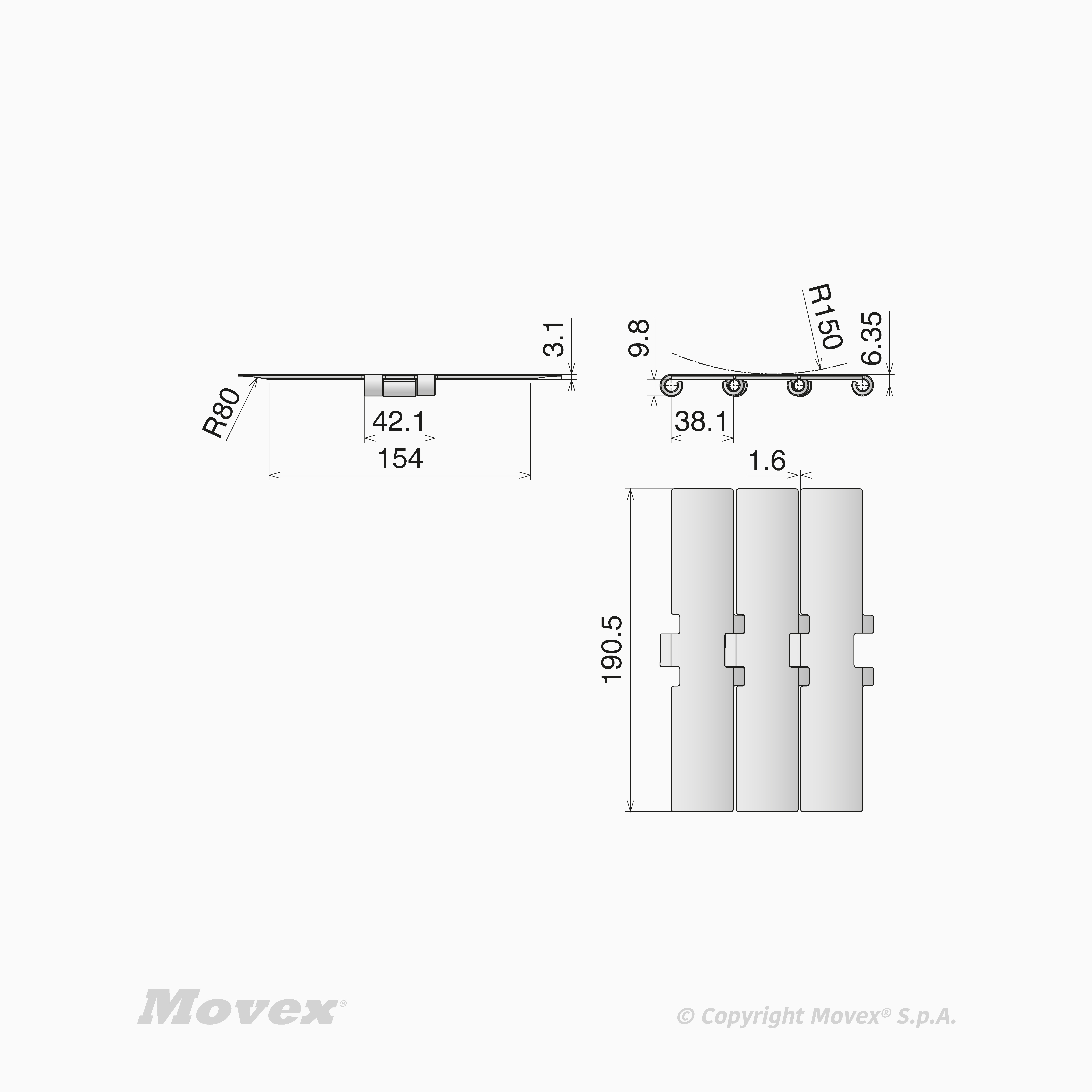

815 Transfer wing
| Width | Material | Part | Back flex radius | Mass | Surface finish | Surface Flatness | Polished Hinge | Pin material | Box | Max working load | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| P10250107 | K 750 - 190,5 mm | SSE - Specially treated Ferritic Stainless Steel 1.4589 | P1025 | 70 mm | 4.67 kg/m | 0.3 mm | 0.3 mm | No | Martensitic 1,4057 | 10 ft - 3,048 m | 6000 N | Hardened Pins |
|
