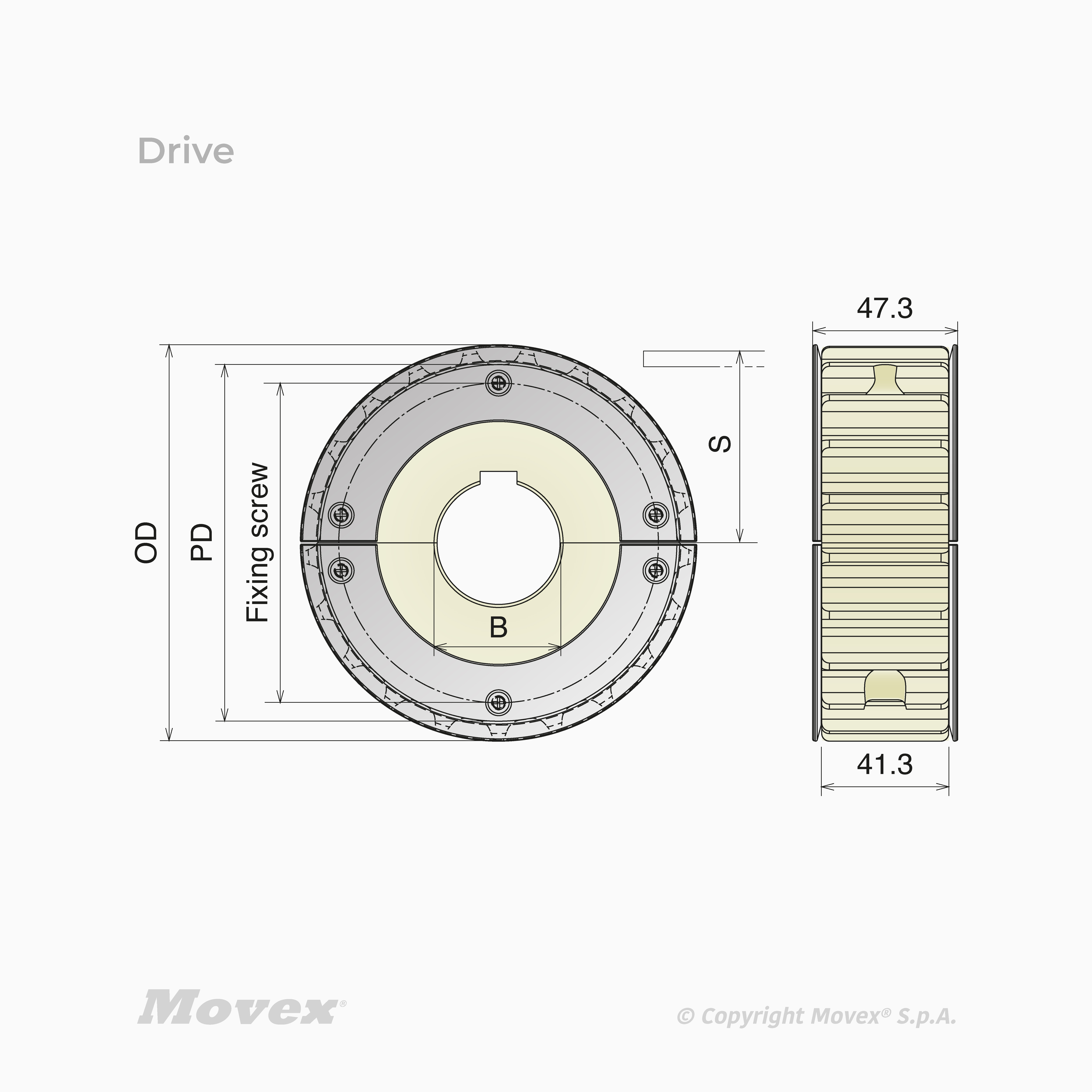

815 split machined sprocket + SS Guide rings

815 split machined sprocket + SS Guide rings

	Z-	Bore	Version	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet	Supplementary informations
Code	All 17 21 23 25	All 25 mm 30 mm 35 mm 40 mm	All Drive + Guide rings	All Split	All Machined	All 105.5 mm 129.3 mm 141.2 mm 153.2 mm	All 103.9 mm 129 mm 142 mm 154 mm	All 55.9 mm 67.8 mm 73.8 mm 79.8 mm	All PA - Polyamide composite	All -40÷80 °C	All -20÷120 °C	All - Fixing screw diameter: 104,0 mm SS Guide-rings Fixing screw diameter: 116,0 mm SS Guide-rings Fixing screw diameter: 80,0 mm SS Guide-rings	Actions
P50101G	17	25 mm	Drive + Guide rings	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	Fixing screw diameter: 116,0 mm SS Guide-rings
P50102G	17	30 mm	Drive + Guide rings	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P50103G	17	35 mm	Drive + Guide rings	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P50104G	17	40 mm	Drive + Guide rings	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P50301G	21	25 mm	Drive + Guide rings	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P50302G	21	30 mm	Drive + Guide rings	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P50303G	21	35 mm	Drive + Guide rings	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P50304G	21	40 mm	Drive + Guide rings	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P50401G	23	25 mm	Drive + Guide rings	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	Fixing screw diameter: 80,0 mm SS Guide-rings
P50402G	23	30 mm	Drive + Guide rings	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	Fixing screw diameter: 80,0 mm SS Guide-rings
P50403G	23	35 mm	Drive + Guide rings	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	Fixing screw diameter: 80,0 mm SS Guide-rings
P50404G	23	40 mm	Drive + Guide rings	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	Fixing screw diameter: 104,0 mm SS Guide-rings
P50501G	25	25 mm	Drive + Guide rings	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	Fixing screw diameter: 116,0 mm SS Guide-rings
P50502G	25	30 mm	Drive + Guide rings	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	Fixing screw diameter: 116,0 mm SS Guide-rings
P50503G	25	35 mm	Drive + Guide rings	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	Fixing screw diameter: 116,0 mm SS Guide-rings
P50504G	25	40 mm	Drive + Guide rings	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	Fixing screw diameter: 116,0 mm SS Guide-rings

•
