815 Mini split machined sprocket

815 Mini split machined sprocket

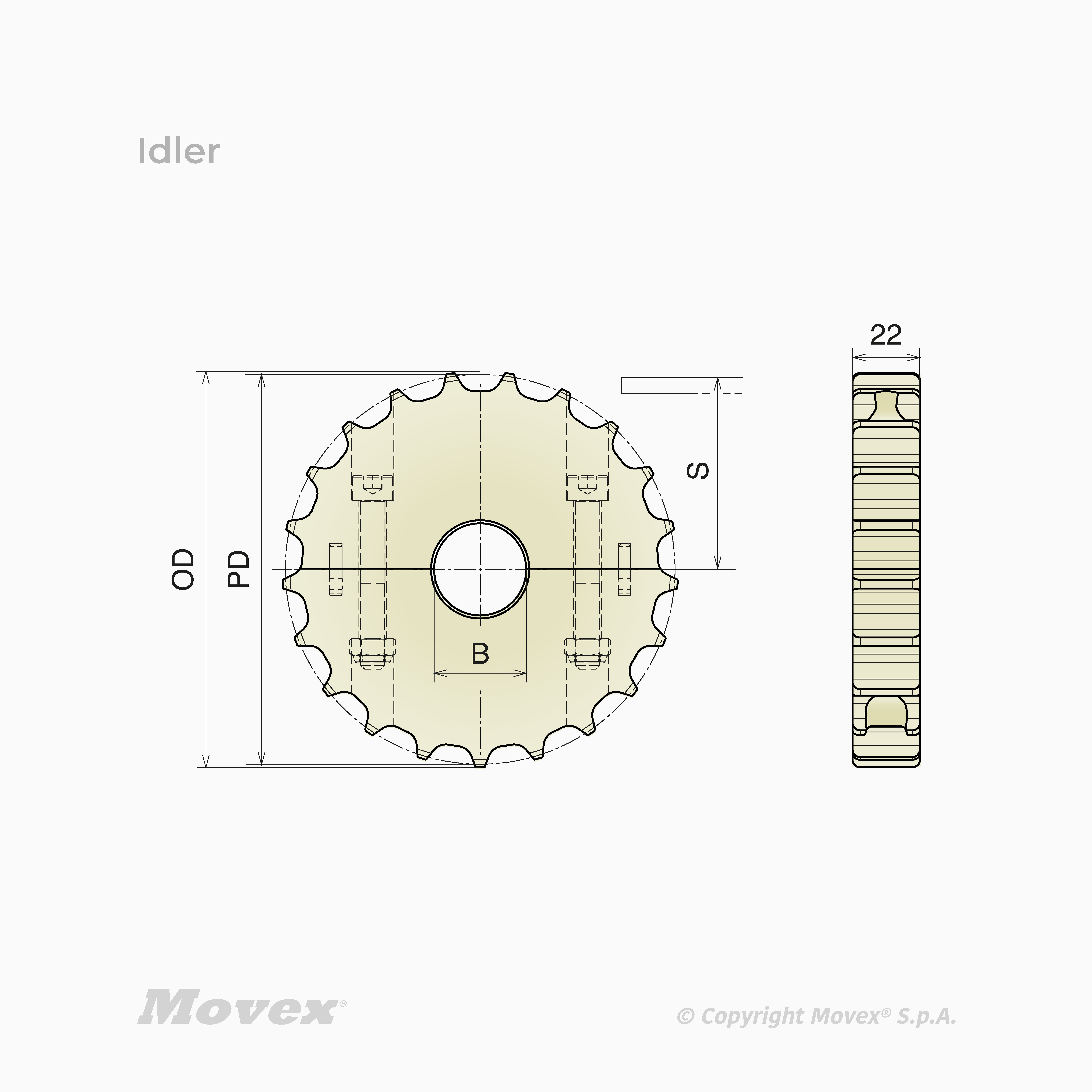

	Z-	Bore	Version	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code	All 19 21 23 25	All 18 mm 25 mm 30 mm 35 mm 40 mm	All Drive Idler	All Split	All Machined	All 117.3 mm 129.3 mm 141.2 mm 153.2 mm	All 117 mm 129 mm 142 mm 154 mm	All 61.9 mm 67.8 mm 73.8 mm 79.8 mm	All PA - Polyamide composite	All -40÷80 °C	All -20÷120 °C	Actions
P58001	19	25 mm	Drive	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58002	19	30 mm	Drive	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58003	19	35 mm	Drive	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58004	19	40 mm	Drive	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58050	19	18 mm	Idler	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58051	19	25 mm	Idler	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58052	19	30 mm	Idler	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58053	19	35 mm	Idler	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58054	19	40 mm	Idler	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58101	21	25 mm	Drive	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58102	21	30 mm	Drive	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58103	21	35 mm	Drive	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58104	21	40 mm	Drive	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58150	21	18 mm	Idler	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58151	21	25 mm	Idler	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58152	21	30 mm	Idler	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58153	21	35 mm	Idler	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58154	21	40 mm	Idler	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58201	23	25 mm	Drive	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58202	23	30 mm	Drive	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58203	23	35 mm	Drive	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58204	23	40 mm	Drive	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58250	23	18 mm	Idler	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58251	23	25 mm	Idler	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58252	23	30 mm	Idler	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58253	23	35 mm	Idler	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58254	23	40 mm	Idler	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58301	25	25 mm	Drive	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58302	25	30 mm	Drive	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58303	25	35 mm	Drive	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58304	25	40 mm	Drive	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58350	25	18 mm	Idler	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58351	25	25 mm	Idler	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58352	25	30 mm	Idler	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58353	25	35 mm	Idler	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P58354	25	40 mm	Idler	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C

•
