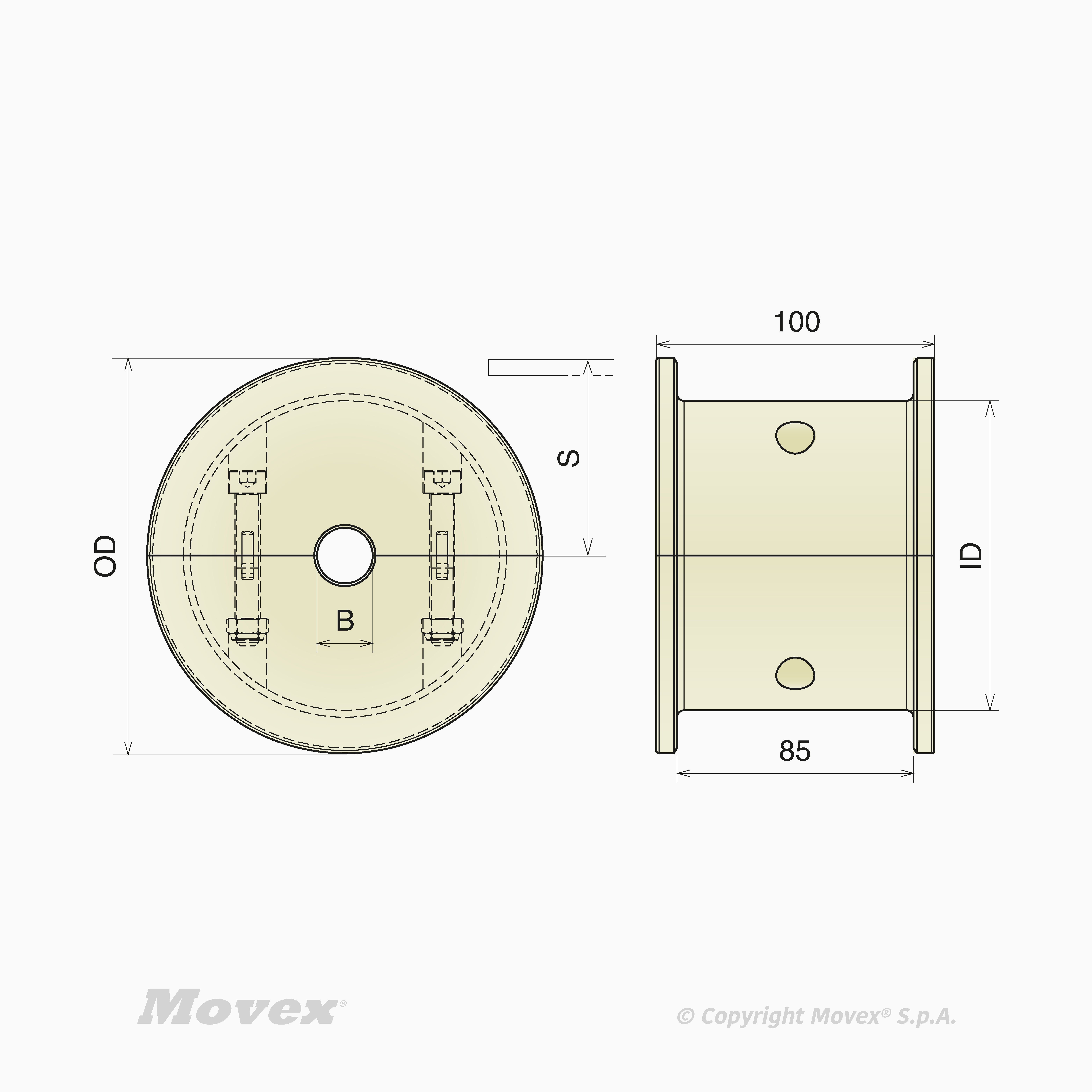

805 split machined idler wheel

805 split machined idler wheel

	Z-	Bore	Version	Type	Execution	Outer diameter	Inner diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code	All 17 19 21 23 25 27 29	All 20 mm 25 mm 30 mm 35 mm 40 mm	All Idler wheel	All Split	All Machined	All 104 mm 117 mm 129.8 mm 142.2 mm 154.7 mm 167.2 mm 179.3 mm	All 105 mm 111.3 mm 124.7 mm 135 mm 140 mm 76.2 mm 92.2 mm	All 56.2 mm 62.6 mm 68.6 mm 74.6 mm 80.5 mm 88.5 mm 92.8 mm	All PA - Polyamide composite	All -40÷80 °C	All -20÷120 °C	Actions
P61100	17	20 mm	Idler wheel	Split	Machined	104 mm	76.2 mm	56.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61101	17	25 mm	Idler wheel	Split	Machined	104 mm	76.2 mm	56.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61102	17	30 mm	Idler wheel	Split	Machined	104 mm	76.2 mm	56.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61103	17	35 mm	Idler wheel	Split	Machined	104 mm	76.2 mm	56.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61104	17	40 mm	Idler wheel	Split	Machined	104 mm	76.2 mm	56.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61200	19	20 mm	Idler wheel	Split	Machined	117 mm	92.2 mm	62.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61201	19	25 mm	Idler wheel	Split	Machined	117 mm	92.2 mm	62.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61202	19	30 mm	Idler wheel	Split	Machined	117 mm	92.2 mm	62.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61203	19	35 mm	Idler wheel	Split	Machined	117 mm	92.2 mm	62.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61204	19	40 mm	Idler wheel	Split	Machined	117 mm	92.2 mm	62.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61300	21	20 mm	Idler wheel	Split	Machined	129.8 mm	105 mm	68.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61301	21	25 mm	Idler wheel	Split	Machined	129.8 mm	105 mm	68.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61302	21	30 mm	Idler wheel	Split	Machined	129.8 mm	105 mm	68.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61303	21	35 mm	Idler wheel	Split	Machined	129.8 mm	105 mm	68.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61304	21	40 mm	Idler wheel	Split	Machined	129.8 mm	105 mm	68.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61400	23	20 mm	Idler wheel	Split	Machined	142.2 mm	111.3 mm	74.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61401	23	25 mm	Idler wheel	Split	Machined	142.2 mm	111.3 mm	74.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61402	23	30 mm	Idler wheel	Split	Machined	142.2 mm	111.3 mm	74.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61403	23	35 mm	Idler wheel	Split	Machined	142.2 mm	111.3 mm	74.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61404	23	40 mm	Idler wheel	Split	Machined	142.2 mm	111.3 mm	74.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61500	25	20 mm	Idler wheel	Split	Machined	154.7 mm	124.7 mm	80.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61501	25	25 mm	Idler wheel	Split	Machined	154.7 mm	124.7 mm	80.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61502	25	30 mm	Idler wheel	Split	Machined	154.7 mm	124.7 mm	80.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61503	25	35 mm	Idler wheel	Split	Machined	154.7 mm	124.7 mm	80.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61504	25	40 mm	Idler wheel	Split	Machined	154.7 mm	124.7 mm	80.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61600	27	20 mm	Idler wheel	Split	Machined	167.2 mm	135 mm	88.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61601	27	25 mm	Idler wheel	Split	Machined	167.2 mm	135 mm	88.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61602	27	30 mm	Idler wheel	Split	Machined	167.2 mm	135 mm	88.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61603	27	35 mm	Idler wheel	Split	Machined	167.2 mm	135 mm	88.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61604	27	40 mm	Idler wheel	Split	Machined	167.2 mm	135 mm	88.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61700	29	20 mm	Idler wheel	Split	Machined	179.3 mm	140 mm	92.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61701	29	25 mm	Idler wheel	Split	Machined	179.3 mm	140 mm	92.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61702	29	30 mm	Idler wheel	Split	Machined	179.3 mm	140 mm	92.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61703	29	35 mm	Idler wheel	Split	Machined	179.3 mm	140 mm	92.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61704	29	40 mm	Idler wheel	Split	Machined	179.3 mm	140 mm	92.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C

•
