805-821 split machined sprocket

805-821 split machined sprocket

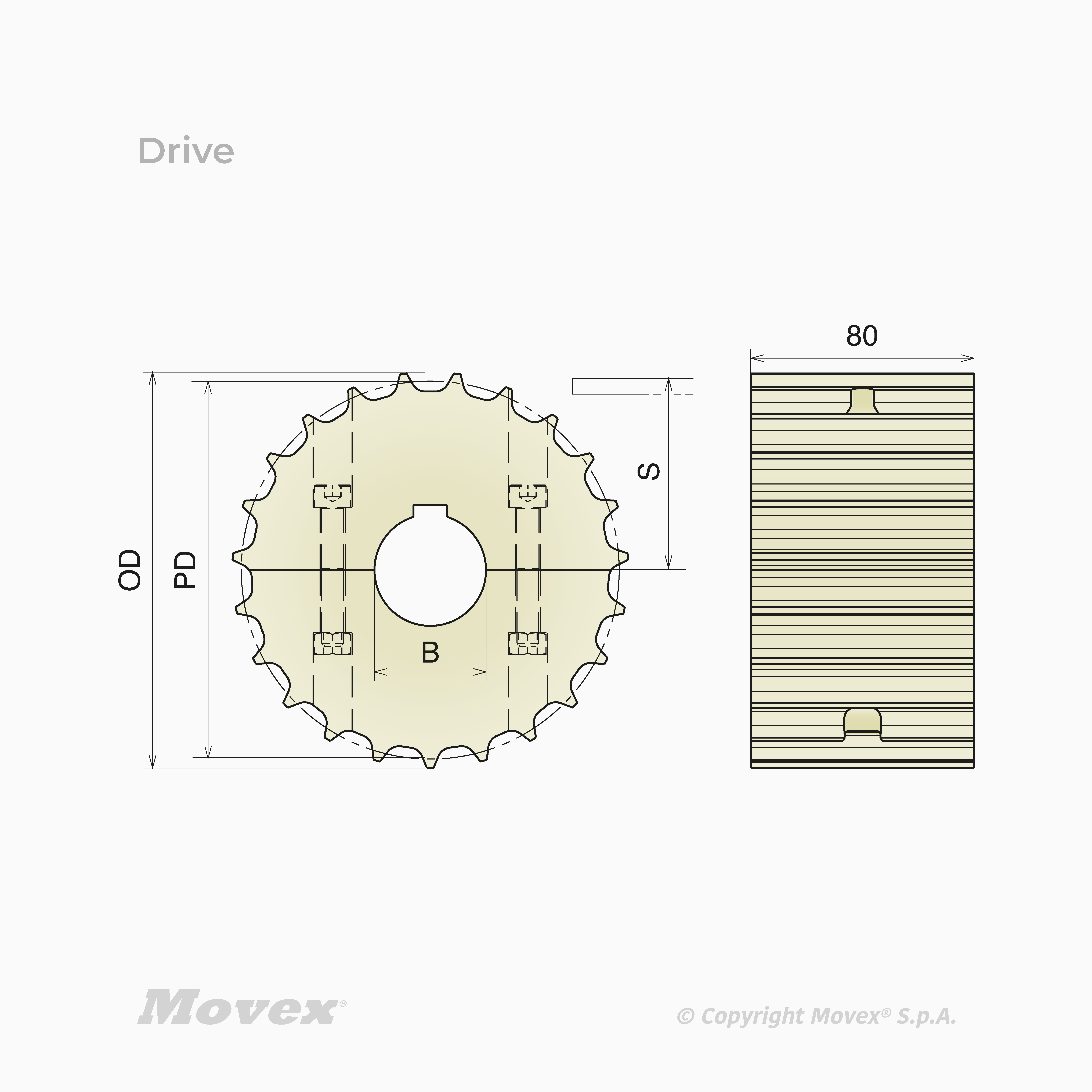

	Z-	Bore	Version	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code	All 17 19 21 23 25 27 29	All 18 mm 25 mm 30 mm 35 mm 40 mm	All Drive Idler	All Split	All Machined	All 105.5 mm 117.3 mm 129.3 mm 141.2 mm 153.2 mm 165.2 mm 177.2 mm	All 103.9 mm 117 mm 129 mm 142 mm 154 mm 166.8 mm 178.5 mm	All 55.9 mm 61.9 mm 67.8 mm 73.8 mm 79.8 mm 85.8 mm 91.8 mm	All PA - Polyamide composite	All -40÷80 °C	All -20÷120 °C	Actions
P52101	17	25 mm	Drive	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52102	17	30 mm	Drive	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52103	17	35 mm	Drive	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52104	17	40 mm	Drive	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52150	17	18 mm	Idler	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52151	17	25 mm	Idler	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52152	17	30 mm	Idler	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52153	17	35 mm	Idler	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52154	17	40 mm	Idler	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52201	19	25 mm	Drive	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52202	19	30 mm	Drive	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52203	19	35 mm	Drive	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52204	19	40 mm	Drive	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52250	19	18 mm	Idler	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52251	19	25 mm	Idler	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52252	19	30 mm	Idler	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52253	19	35 mm	Idler	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52254	19	40 mm	Idler	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52301	21	25 mm	Drive	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52302	21	30 mm	Drive	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52303	21	35 mm	Drive	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52304	21	40 mm	Drive	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52350	21	18 mm	Idler	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52351	21	25 mm	Idler	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52352	21	30 mm	Idler	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52353	21	35 mm	Idler	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52354	21	40 mm	Idler	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52401	23	25 mm	Drive	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52402	23	30 mm	Drive	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52403	23	35 mm	Drive	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52404	23	40 mm	Drive	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52450	23	18 mm	Idler	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52451	23	25 mm	Idler	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52452	23	30 mm	Idler	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52453	23	35 mm	Idler	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52454	23	40 mm	Idler	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52501	25	25 mm	Drive	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52502	25	30 mm	Drive	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52503	25	35 mm	Drive	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52504	25	40 mm	Drive	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52550	25	18 mm	Idler	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52551	25	25 mm	Idler	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52552	25	30 mm	Idler	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52553	25	35 mm	Idler	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52554	25	40 mm	Idler	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52601	27	25 mm	Drive	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52602	27	30 mm	Drive	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52603	27	35 mm	Drive	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52604	27	40 mm	Drive	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52650	27	18 mm	Idler	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52651	27	25 mm	Idler	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52652	27	30 mm	Idler	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52653	27	35 mm	Idler	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52654	27	40 mm	Idler	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52701	29	25 mm	Drive	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52702	29	30 mm	Drive	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52703	29	35 mm	Drive	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52704	29	40 mm	Drive	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52750	29	18 mm	Idler	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52751	29	25 mm	Idler	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52752	29	30 mm	Idler	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52753	29	35 mm	Idler	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P52754	29	40 mm	Idler	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C

•
