7510-7520-7540-7544 one-piece molded sprocket

7510-7520-7540-7544 one-piece molded sprocket

	Z-	Bore	Version	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range wet
Code	All 7 8 10 12 15 16 18 20	All 25 mm 25 x 25 mm 30 mm 40 mm 40 x 40 mm 60 x 60 mm	All Drive Idler	All One-piece	All Molded	All 122.2 mm 130.2 mm 146.3 mm 162.4 mm 58.5 mm 66.4 mm 82.2 mm 98.1 mm	All 124.2 mm 132.4 mm 148.6 mm 165 mm 58.4 mm 67.8 mm 83.3 mm 99.7 mm	All 23.5 mm 28.2 mm 35.6 mm 43.5 mm 56 mm 60 mm 68 mm 76 mm	All PA - Natural POM - Natural	All - -20÷120 °C	Actions

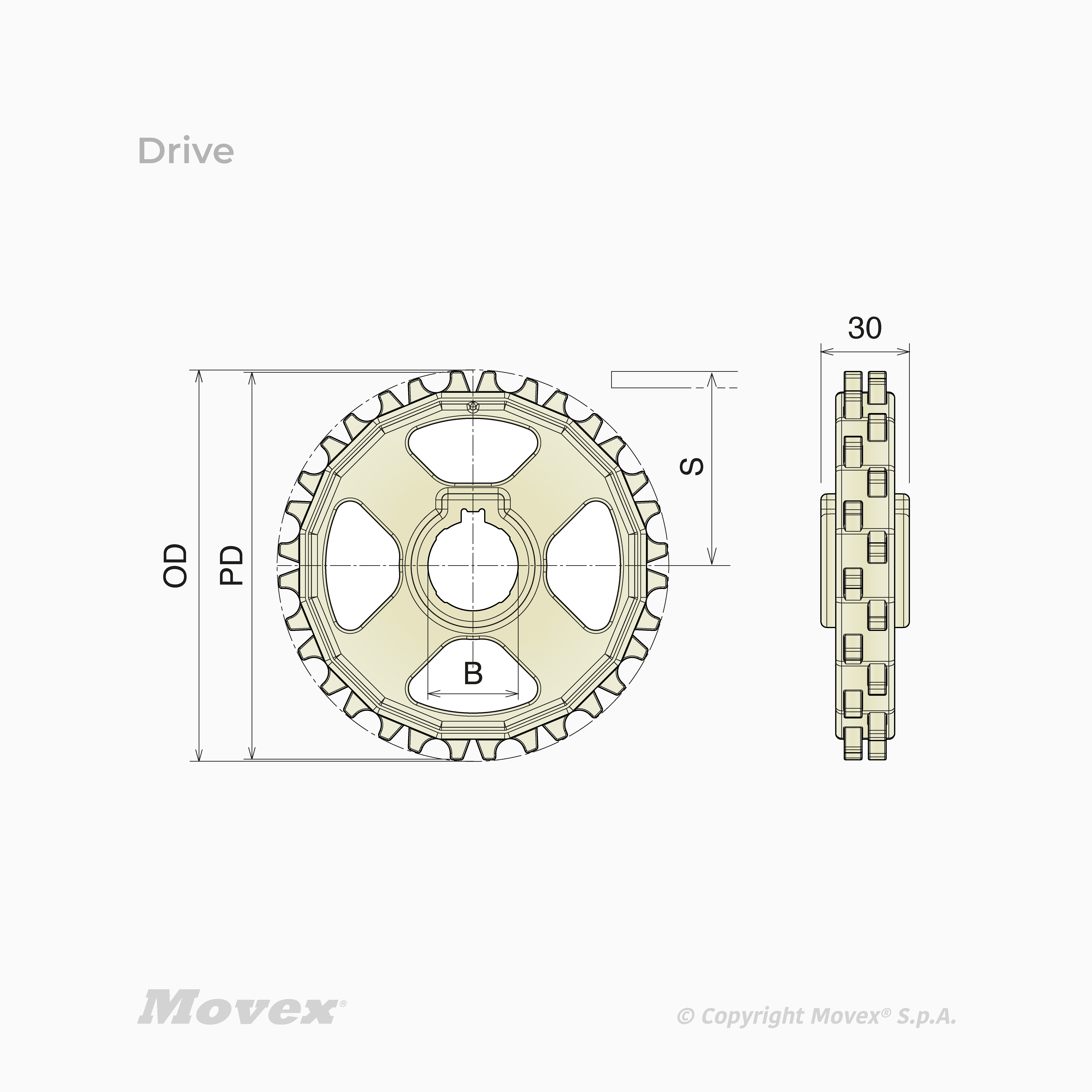

P240006	7	25 x 25 mm	Drive	One-piece	Molded	58.5 mm	58.4 mm	23.5 mm	POM - Natural	-
P240006PA	7	25 x 25 mm	Drive	One-piece	Molded	58.5 mm	58.4 mm	23.5 mm	PA - Natural	-20÷120 °C
P240102	8	30 mm	Drive	One-piece	Molded	66.4 mm	67.8 mm	28.2 mm	POM - Natural	-
P240102PA	8	30 mm	Drive	One-piece	Molded	66.4 mm	67.8 mm	28.2 mm	PA - Natural	-20÷120 °C
P240106	8	25 x 25 mm	Drive	One-piece	Molded	66.4 mm	67.8 mm	28.2 mm	POM - Natural	-
P240106PA	8	25 x 25 mm	Drive	One-piece	Molded	66.4 mm	67.8 mm	28.2 mm	PA - Natural	-20÷120 °C

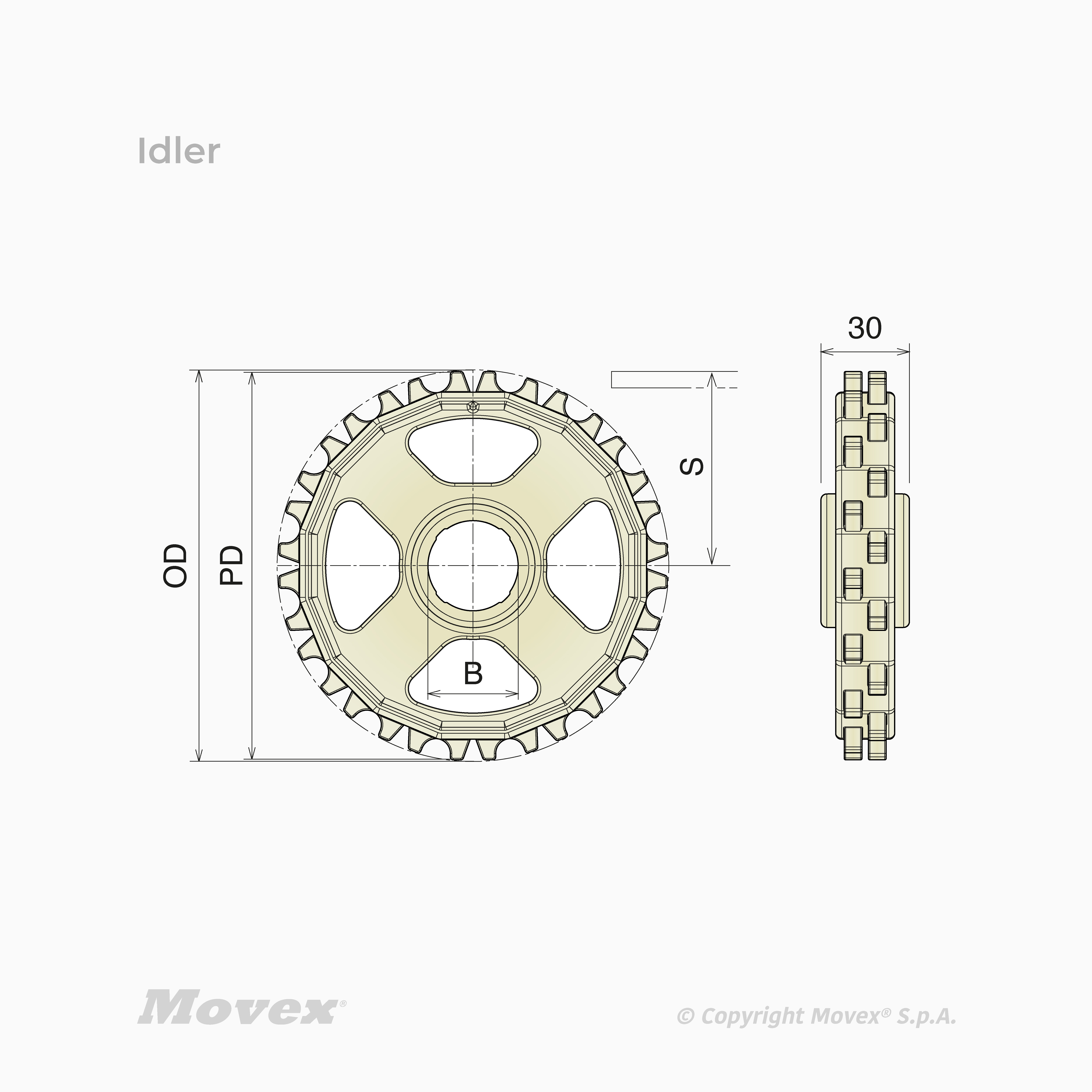

P240152	8	30 mm	Idler	One-piece	Molded	66.4 mm	67.8 mm	28.2 mm	POM - Natural	-
P240152PA	8	30 mm	Idler	One-piece	Molded	66.4 mm	67.8 mm	28.2 mm	PA - Natural	-20÷120 °C
P240202	10	30 mm	Drive	One-piece	Molded	82.2 mm	83.3 mm	35.6 mm	POM - Natural	-
P240202PA	10	30 mm	Drive	One-piece	Molded	82.2 mm	83.3 mm	35.6 mm	PA - Natural	-20÷120 °C
P240204	10	40 mm	Drive	One-piece	Molded	82.2 mm	83.3 mm	35.6 mm	POM - Natural	-
P240204PA	10	40 mm	Drive	One-piece	Molded	82.2 mm	83.3 mm	35.6 mm	PA - Natural	-20÷120 °C
P240208	10	40 x 40 mm	Drive	One-piece	Molded	82.2 mm	83.3 mm	35.6 mm	POM - Natural	-
P240208PA	10	40 x 40 mm	Drive	One-piece	Molded	82.2 mm	83.3 mm	35.6 mm	PA - Natural	-20÷120 °C
P240252	10	30 mm	Idler	One-piece	Molded	82.2 mm	83.3 mm	35.6 mm	POM - Natural	-
P240252PA	10	30 mm	Idler	One-piece	Molded	82.2 mm	83.3 mm	35.6 mm	PA - Natural	-20÷120 °C
P240254	10	40 mm	Idler	One-piece	Molded	82.2 mm	83.3 mm	35.6 mm	POM - Natural	-
P240254PA	10	40 mm	Idler	One-piece	Molded	82.2 mm	83.3 mm	35.6 mm	PA - Natural	-20÷120 °C
P240301	12	25 mm	Drive	One-piece	Molded	98.1 mm	99.7 mm	43.5 mm	POM - Natural	-
P240301PA	12	25 mm	Drive	One-piece	Molded	98.1 mm	99.7 mm	43.5 mm	PA - Natural	-20÷120 °C
P240302	12	30 mm	Drive	One-piece	Molded	98.1 mm	99.7 mm	43.5 mm	POM - Natural	-
P240302PA	12	30 mm	Drive	One-piece	Molded	98.1 mm	99.7 mm	43.5 mm	PA - Natural	-20÷120 °C
P240304	12	40 mm	Drive	One-piece	Molded	98.1 mm	99.7 mm	43.5 mm	POM - Natural	-
P240304PA	12	40 mm	Drive	One-piece	Molded	98.1 mm	99.7 mm	43.5 mm	PA - Natural	-20÷120 °C
P240308	12	40 x 40 mm	Drive	One-piece	Molded	98.1 mm	99.7 mm	43.5 mm	POM - Natural	-
P240308PA	12	40 x 40 mm	Drive	One-piece	Molded	98.1 mm	99.7 mm	43.5 mm	PA - Natural	-20÷120 °C
P240351	12	25 mm	Idler	One-piece	Molded	98.1 mm	99.7 mm	43.5 mm	POM - Natural	-
P240351PA	12	25 mm	Idler	One-piece	Molded	98.1 mm	99.7 mm	43.5 mm	PA - Natural	-20÷120 °C
P240352	12	30 mm	Idler	One-piece	Molded	98.1 mm	99.7 mm	43.5 mm	POM - Natural	-
P240352PA	12	30 mm	Idler	One-piece	Molded	98.1 mm	99.7 mm	43.5 mm	PA - Natural	-20÷120 °C
P240354	12	40 mm	Idler	One-piece	Molded	98.1 mm	99.7 mm	43.5 mm	POM - Natural	-
P240354PA	12	40 mm	Idler	One-piece	Molded	98.1 mm	99.7 mm	43.5 mm	PA - Natural	-20÷120 °C
P240402	15	30 mm	Drive	One-piece	Molded	122.2 mm	124.2 mm	56 mm	POM - Natural	-
P240402PA	15	30 mm	Drive	One-piece	Molded	122.2 mm	124.2 mm	56 mm	PA - Natural	-20÷120 °C
P240404	15	40 mm	Drive	One-piece	Molded	122.2 mm	124.2 mm	56 mm	POM - Natural	-
P240404PA	15	40 mm	Drive	One-piece	Molded	122.2 mm	124.2 mm	56 mm	PA - Natural	-20÷120 °C
P240408	15	40 x 40 mm	Drive	One-piece	Molded	122.2 mm	124.2 mm	56 mm	POM - Natural	-
P240408PA	15	40 x 40 mm	Drive	One-piece	Molded	122.2 mm	124.2 mm	56 mm	PA - Natural	-20÷120 °C
P240410	15	60 x 60 mm	Drive	One-piece	Molded	122.2 mm	124.2 mm	56 mm	POM - Natural	-
P240410PA	15	60 x 60 mm	Drive	One-piece	Molded	122.2 mm	124.2 mm	56 mm	PA - Natural	-20÷120 °C
P240452	15	30 mm	Idler	One-piece	Molded	122.2 mm	124.2 mm	56 mm	POM - Natural	-
P240452PA	15	30 mm	Idler	One-piece	Molded	122.2 mm	124.2 mm	56 mm	PA - Natural	-20÷120 °C
P240454	15	40 mm	Idler	One-piece	Molded	122.2 mm	124.2 mm	56 mm	POM - Natural	-
P240454PA	15	40 mm	Idler	One-piece	Molded	122.2 mm	124.2 mm	56 mm	PA - Natural	-20÷120 °C
P240502	16	30 mm	Drive	One-piece	Molded	130.2 mm	132.4 mm	60 mm	POM - Natural	-
P240502PA	16	30 mm	Drive	One-piece	Molded	130.2 mm	132.4 mm	60 mm	PA - Natural	-20÷120 °C
P240504	16	40 mm	Drive	One-piece	Molded	130.2 mm	132.4 mm	60 mm	POM - Natural	-
P240504PA	16	40 mm	Drive	One-piece	Molded	130.2 mm	132.4 mm	60 mm	PA - Natural	-20÷120 °C
P240508	16	40 x 40 mm	Drive	One-piece	Molded	130.2 mm	132.4 mm	60 mm	POM - Natural	-
P240508PA	16	40 x 40 mm	Drive	One-piece	Molded	130.2 mm	132.4 mm	60 mm	PA - Natural	-20÷120 °C
P240510	16	60 x 60 mm	Drive	One-piece	Molded	130.2 mm	132.4 mm	60 mm	POM - Natural	-
P240510PA	16	60 x 60 mm	Drive	One-piece	Molded	130.2 mm	132.4 mm	60 mm	PA - Natural	-20÷120 °C
P240552	16	30 mm	Idler	One-piece	Molded	130.2 mm	132.4 mm	60 mm	POM - Natural	-
P240552PA	16	30 mm	Idler	One-piece	Molded	130.2 mm	132.4 mm	60 mm	PA - Natural	-20÷120 °C
P240554	16	40 mm	Idler	One-piece	Molded	130.2 mm	132.4 mm	60 mm	POM - Natural	-
P240554PA	16	40 mm	Idler	One-piece	Molded	130.2 mm	132.4 mm	60 mm	PA - Natural	-20÷120 °C
P240602	18	30 mm	Drive	One-piece	Molded	146.3 mm	148.6 mm	68 mm	POM - Natural	-
P240602PA	18	30 mm	Drive	One-piece	Molded	146.3 mm	148.6 mm	68 mm	PA - Natural	-20÷120 °C
P240604	18	40 mm	Drive	One-piece	Molded	146.3 mm	148.6 mm	68 mm	POM - Natural	-
P240604PA	18	40 mm	Drive	One-piece	Molded	146.3 mm	148.6 mm	68 mm	PA - Natural	-20÷120 °C
P240608	18	40 x 40 mm	Drive	One-piece	Molded	146.3 mm	148.6 mm	68 mm	POM - Natural	-
P240608PA	18	40 x 40 mm	Drive	One-piece	Molded	146.3 mm	148.6 mm	68 mm	PA - Natural	-20÷120 °C
P240610	18	60 x 60 mm	Drive	One-piece	Molded	146.3 mm	148.6 mm	68 mm	POM - Natural	-
P240610PA	18	60 x 60 mm	Drive	One-piece	Molded	146.3 mm	148.6 mm	68 mm	PA - Natural	-20÷120 °C
P240652	18	30 mm	Idler	One-piece	Molded	146.3 mm	148.6 mm	68 mm	POM - Natural	-
P240652PA	18	30 mm	Idler	One-piece	Molded	146.3 mm	148.6 mm	68 mm	PA - Natural	-20÷120 °C
P240654	18	40 mm	Idler	One-piece	Molded	146.3 mm	148.6 mm	68 mm	POM - Natural	-
P240654PA	18	40 mm	Idler	One-piece	Molded	146.3 mm	148.6 mm	68 mm	PA - Natural	-20÷120 °C
P240702	20	30 mm	Drive	One-piece	Molded	162.4 mm	165 mm	76 mm	POM - Natural	-
P240702PA	20	30 mm	Drive	One-piece	Molded	162.4 mm	165 mm	76 mm	PA - Natural	-20÷120 °C
P240704	20	40 mm	Drive	One-piece	Molded	162.4 mm	165 mm	76 mm	POM - Natural	-
P240704PA	20	40 mm	Drive	One-piece	Molded	162.4 mm	165 mm	76 mm	PA - Natural	-20÷120 °C
P240708	20	40 x 40 mm	Drive	One-piece	Molded	162.4 mm	165 mm	76 mm	POM - Natural	-
P240708PA	20	40 x 40 mm	Drive	One-piece	Molded	162.4 mm	165 mm	76 mm	PA - Natural	-20÷120 °C
P240710	20	60 x 60 mm	Drive	One-piece	Molded	162.4 mm	165 mm	76 mm	POM - Natural	-
P240710PA	20	60 x 60 mm	Drive	One-piece	Molded	162.4 mm	165 mm	76 mm	PA - Natural	-20÷120 °C
P240752	20	30 mm	Idler	One-piece	Molded	162.4 mm	165 mm	76 mm	POM - Natural	-
P240752PA	20	30 mm	Idler	One-piece	Molded	162.4 mm	165 mm	76 mm	PA - Natural	-20÷120 °C
P240754	20	40 mm	Idler	One-piece	Molded	162.4 mm	165 mm	76 mm	POM - Natural	-
P240754PA	20	40 mm	Idler	One-piece	Molded	162.4 mm	165 mm	76 mm	PA - Natural	-20÷120 °C

•
