7234 Nub Top
Modular Belts
Description
Description
*Belts wider than standard are available with 50 mm increments.
The nominal tensile strength and the nominal width tolerance are valid for a temperature of 23°C (73 °F).
The actual width of the belt typically falls below the nominal value by 0.1% to 0.3%.
For PE belts up to 750 mm (30”) in width, the reduction ranges from -3 mm to 1 mm, and for widths beyond that, from -0.4% to 0.1%.
For POM belts up to 750 mm (30”) in width, the shrinkage ranges from -2 mm to 1 mm, and for those wider, from -0.25% to -0.25%.
For PP belts up to 750 mm (30”) in width, the decrease is between -1 mm and 2 mm, with the reduction for wider belts ranging from 0% to -0.45%.
Non-Standard belt widths are incremented by 16.65 mm (0.66”). The minimum width is 50 mm (2”).
Non-bricklayed belts are available in widths of 50 mm (2”), 100 mm (4”) and 200 mm (8”).

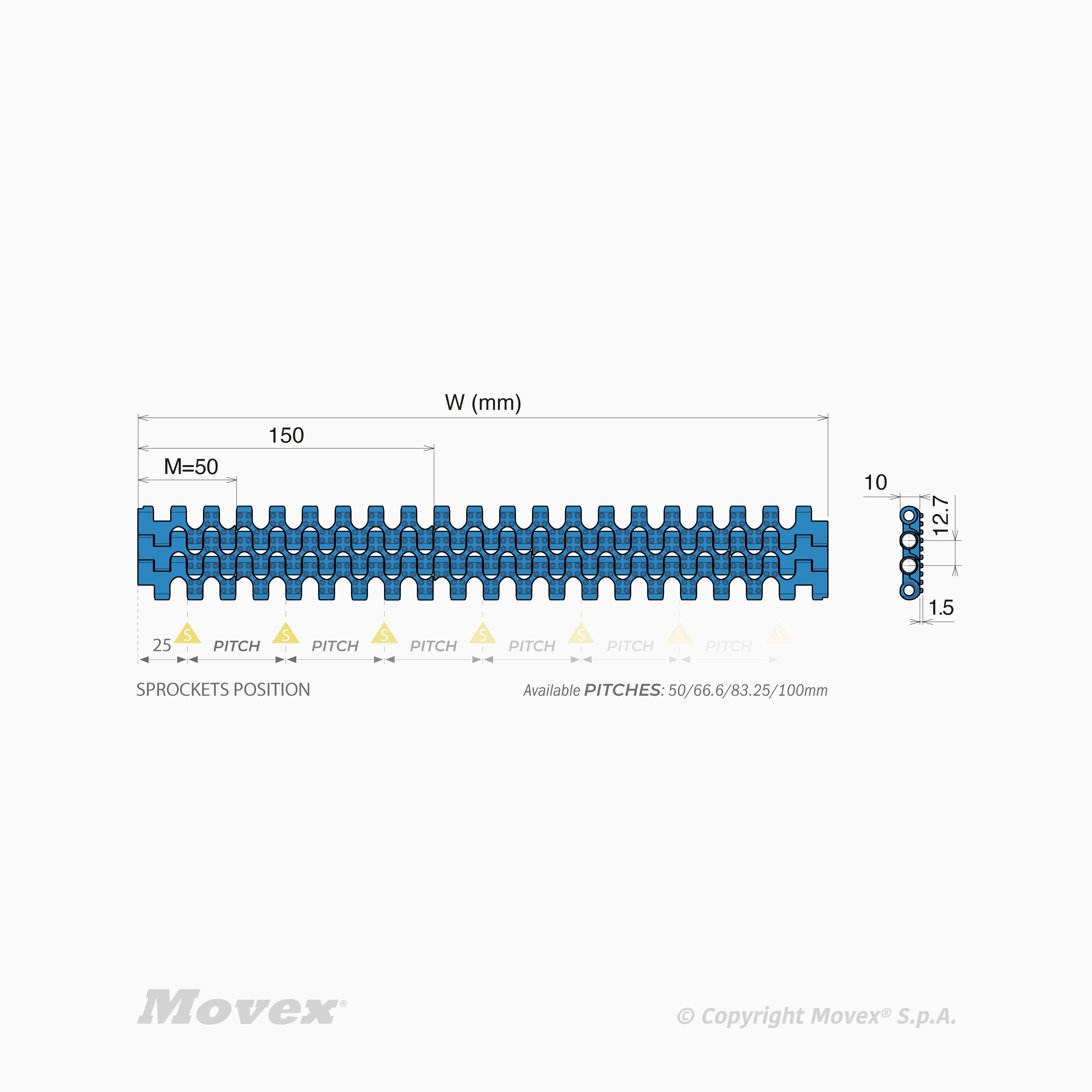

Basic features
| Series: | 7234 |
|---|---|
| Pitch: | 12.7 mm |
| Thickness: | 10 mm |
| Increments: | 50 mm - 1,97" |
| Surface Type: | NT - Nub Top |
| Functionality: | Straight |
| Unit of measure: | Ea |
7234 Nub Top
| Width | Material | Pin material | Version | Part | Back flex radius | Max working load | Mass | Fixation | Temperature range dry | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| F7234NTLFB0050-PBT | 50 mm (1,97'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0050-PP | 50 mm (1,97'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0100-PBT | 100 mm (3,94'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0100-PP | 100 mm (3,94'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0150-PBT | 150 mm (5,90") | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0150-PP | 150 mm (5,90") | LFB - Low friction acetal (Blue) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0200-PBT | 200 mm (7,87'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0200-PP | 200 mm (7,87'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0250-PBT | 250 mm (9,84'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0250-PP | 250 mm (9,84'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0300-PBT | 300 mm (11,81'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0300-PP | 300 mm (11,81'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0350-PBT | 350 mm (13,78'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0350-PP | 350 mm (13,78'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0400-PBT | 400 mm (15,75'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0400-PP | 400 mm (15,75'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0450-PBT | 450 mm (17,72'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0450-PP | 450 mm (17,72'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0500-PBT | 500 mm (19,69'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0500-PP | 500 mm (19,69'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0550-PBT | 550 mm (21,65'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0550-PP | 550 mm (21,65'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0600-PBT | 600 mm (23,62'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0600-PP | 600 mm (23,62'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0650-PBT | 650 mm (25,59'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0650-PP | 650 mm (25,59'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0700-PBT | 700 mm (27,56'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0700-PP | 700 mm (27,56'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0750-PBT | 750 mm (29,53'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0750-PP | 750 mm (29,53'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0800-PBT | 800 mm (31,5'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0800-PP | 800 mm (31,5'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0850-PBT | 850 mm (33,46'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0850-PP | 850 mm (33,46'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0900-PBT | 900 mm (35,43'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFB0900-PP | 900 mm (35,43'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0050-PP | 50 mm (1,97'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0100-PBT | 100 mm (3,94'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0100-PP | 100 mm (3,94'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0150-PBT | 150 mm (5,90") | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0150-PP | 150 mm (5,90") | LFC - Low friction acetal (cyan) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0200-PBT | 200 mm (7,87'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0200-PP | 200 mm (7,87'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0250-PBT | 250 mm (9,84'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0250-PP | 250 mm (9,84'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0300-PBT | 300 mm (11,81'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0300-PP | 300 mm (11,81'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0350-PBT | 350 mm (13,78'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0350-PP | 350 mm (13,78'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0400-PBT | 400 mm (15,75'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0400-PP | 400 mm (15,75'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0450-PBT | 450 mm (17,72'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0450-PP | 450 mm (17,72'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0500-PBT | 500 mm (19,69'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0500-PP | 500 mm (19,69'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0550-PBT | 550 mm (21,65'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0550-PP | 550 mm (21,65'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0600-PBT | 600 mm (23,62'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0600-PP | 600 mm (23,62'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0650-PBT | 650 mm (25,59'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0650-PP | 650 mm (25,59'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0700-PBT | 700 mm (27,56'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0700-PP | 700 mm (27,56'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0750-PBT | 750 mm (29,53'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0750-PP | 750 mm (29,53'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0800-PBT | 800 mm (31,5'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0800-PP | 800 mm (31,5'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0850-PBT | 850 mm (33,46'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0850-PP | 850 mm (33,46'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0900-PBT | 900 mm (35,43'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFC0900-PP | 900 mm (35,43'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0050-PP | 50 mm (1,97'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0100-PBT | 100 mm (3,94'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0100-PP | 100 mm (3,94'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0150-PBT | 150 mm (5,90") | LFW - Low Friction acetal (White) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0150-PP | 150 mm (5,90") | LFW - Low Friction acetal (White) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0200-PBT | 200 mm (7,87'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0200-PP | 200 mm (7,87'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0250-PBT | 250 mm (9,84'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0250-PP | 250 mm (9,84'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0300-PBT | 300 mm (11,81'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0300-PP | 300 mm (11,81'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0350-PBT | 350 mm (13,78'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0350-PP | 350 mm (13,78'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0400-PBT | 400 mm (15,75'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0400-PP | 400 mm (15,75'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0450-PBT | 450 mm (17,72'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0450-PP | 450 mm (17,72'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0500-PBT | 500 mm (19,69'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0500-PP | 500 mm (19,69'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0550-PBT | 550 mm (21,65'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0550-PP | 550 mm (21,65'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0600-PBT | 600 mm (23,62'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0600-PP | 600 mm (23,62'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0650-PBT | 650 mm (25,59'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0650-PP | 650 mm (25,59'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0700-PBT | 700 mm (27,56'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0700-PP | 700 mm (27,56'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0750-PBT | 750 mm (29,53'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0750-PP | 750 mm (29,53'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0800-PBT | 800 mm (31,5'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0800-PP | 800 mm (31,5'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0850-PBT | 850 mm (33,46'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0850-PP | 850 mm (33,46'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0900-PBT | 900 mm (35,43'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7234 | 25 mm | 18000 N/m | 8.8 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTLFW0900-PP | 900 mm (35,43'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7234 | 25 mm | 16000 N/m | 8.2 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEB0050-PE | 50 mm (1,97'') | PEB - Polyethylene (blue) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEB0100-PE | 100 mm (3,94'') | PEB - Polyethylene (blue) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | - |
|
| F7234NTPEB0150-PE | 150 mm (5,90") | PEB - Polyethylene (blue) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | - |
|
| F7234NTPEB0200-PE | 200 mm (7,87'') | PEB - Polyethylene (blue) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | - |
|
| F7234NTPEB0250-PE | 250 mm (9,84'') | PEB - Polyethylene (blue) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | - |
|
| F7234NTPEB0300-PE | 300 mm (11,81'') | PEB - Polyethylene (blue) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | - |
|
| F7234NTPEB0350-PE | 350 mm (13,78'') | PEB - Polyethylene (blue) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | - |
|
| F7234NTPEB0400-PE | 400 mm (15,75'') | PEB - Polyethylene (blue) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | - |
|
| F7234NTPEB0450-PE | 450 mm (17,72'') | PEB - Polyethylene (blue) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEB0500-PE | 500 mm (19,69'') | PEB - Polyethylene (blue) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEB0550-PE | 550 mm (21,65'') | PEB - Polyethylene (blue) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEB0600-PE | 600 mm (23,62'') | PEB - Polyethylene (blue) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEB0650-PE | 650 mm (25,59'') | PEB - Polyethylene (blue) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEB0700-PE | 700 mm (27,56'') | PEB - Polyethylene (blue) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEB0750-PE | 750 mm (29,53'') | PEB - Polyethylene (blue) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEB0800-PE | 800 mm (31,5'') | PEB - Polyethylene (blue) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEB0850-PE | 850 mm (33,46'') | PEB - Polyethylene (blue) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEB0900-PE | 900 mm (35,43'') | PEB - Polyethylene (blue) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEC0050-PE | 50 mm (1,97'') | PEC - Polyethylene (cyan) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEC0100-PE | 100 mm (3,94'') | PEC - Polyethylene (cyan) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEC0150-PE | 150 mm (5,90") | PEC - Polyethylene (cyan) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEC0200-PE | 200 mm (7,87'') | PEC - Polyethylene (cyan) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEC0250-PE | 250 mm (9,84'') | PEC - Polyethylene (cyan) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEC0300-PE | 300 mm (11,81'') | PEC - Polyethylene (cyan) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEC0350-PE | 350 mm (13,78'') | PEC - Polyethylene (cyan) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEC0400-PE | 400 mm (15,75'') | PEC - Polyethylene (cyan) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEC0450-PE | 450 mm (17,72'') | PEC - Polyethylene (cyan) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEC0500-PE | 500 mm (19,69'') | PEC - Polyethylene (cyan) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEC0550-PE | 550 mm (21,65'') | PEC - Polyethylene (cyan) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEC0600-PE | 600 mm (23,62'') | PEC - Polyethylene (cyan) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEC0650-PE | 650 mm (25,59'') | PEC - Polyethylene (cyan) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEC0700-PE | 700 mm (27,56'') | PEC - Polyethylene (cyan) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEC0750-PE | 750 mm (29,53'') | PEC - Polyethylene (cyan) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEC0800-PE | 800 mm (31,5'') | PEC - Polyethylene (cyan) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEC0850-PE | 850 mm (33,46'') | PEC - Polyethylene (cyan) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEC0900-PE | 900 mm (35,43'') | PEC - Polyethylene (cyan) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEN0050-PE | 50 mm (1,97'') | PEN - Polyethylene (natural) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEN0100-PE | 100 mm (3,94'') | PEN - Polyethylene (natural) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEN0150-PE | 150 mm (5,90") | PEN - Polyethylene (natural) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEN0200-PE | 200 mm (7,87'') | PEN - Polyethylene (natural) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEN0250-PE | 250 mm (9,84'') | PEN - Polyethylene (natural) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEN0300-PE | 300 mm (11,81'') | PEN - Polyethylene (natural) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEN0350-PE | 350 mm (13,78'') | PEN - Polyethylene (natural) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEN0400-PE | 400 mm (15,75'') | PEN - Polyethylene (natural) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEN0450-PE | 450 mm (17,72'') | PEN - Polyethylene (natural) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEN0500-PE | 500 mm (19,69'') | PEN - Polyethylene (natural) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEN0550-PE | 550 mm (21,65'') | PEN - Polyethylene (natural) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEN0600-PE | 600 mm (23,62'') | PEN - Polyethylene (natural) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEN0650-PE | 650 mm (25,59'') | PEN - Polyethylene (natural) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEN0700-PE | 700 mm (27,56'') | PEN - Polyethylene (natural) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEN0750-PE | 750 mm (29,53'') | PEN - Polyethylene (natural) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEN0800-PE | 800 mm (31,5'') | PEN - Polyethylene (natural) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEN0850-PE | 850 mm (33,46'') | PEN - Polyethylene (natural) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEN0900-PE | 900 mm (35,43'') | PEN - Polyethylene (natural) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEW0050-PE | 50 mm (1,97'') | PEW - Polyethylene (white) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEW0100-PE | 100 mm (3,94'') | PEW - Polyethylene (white) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEW0150-PE | 150 mm (5,90") | PEW - Polyethylene (white) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEW0200-PE | 200 mm (7,87'') | PEW - Polyethylene (white) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEW0250-PE | 250 mm (9,84'') | PEW - Polyethylene (white) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEW0300-PE | 300 mm (11,81'') | PEW - Polyethylene (white) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEW0350-PE | 350 mm (13,78'') | PEW - Polyethylene (white) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEW0400-PE | 400 mm (15,75'') | PEW - Polyethylene (white) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEW0450-PE | 450 mm (17,72'') | PEW - Polyethylene (white) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEW0500-PE | 500 mm (19,69'') | PEW - Polyethylene (white) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEW0550-PE | 550 mm (21,65'') | PEW - Polyethylene (white) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEW0600-PE | 600 mm (23,62'') | PEW - Polyethylene (white) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEW0650-PE | 650 mm (25,59'') | PEW - Polyethylene (white) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEW0700-PE | 700 mm (27,56'') | PEW - Polyethylene (white) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEW0750-PE | 750 mm (29,53'') | PEW - Polyethylene (white) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEW0800-PE | 800 mm (31,5'') | PEW - Polyethylene (white) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEW0850-PE | 850 mm (33,46'') | PEW - Polyethylene (white) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPEW0900-PE | 900 mm (35,43'') | PEW - Polyethylene (white) | PE - White | No positioners | F7234 | 25 mm | 7000 N/m | 5.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPB0050-PP | 50 mm (1,97'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPB0100-PP | 100 mm (3,94'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPB0150-PP | 150 mm (5,90") | PPB - Polypropylene (Blue) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPB0200-PP | 200 mm (7,87'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPB0250-PP | 250 mm (9,84'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPB0300-PP | 300 mm (11,81'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPB0350-PP | 350 mm (13,78'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPB0400-PP | 400 mm (15,75'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPB0450-PP | 450 mm (17,72'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPB0500-PP | 500 mm (19,69'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPB0550-PP | 550 mm (21,65'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPB0600-PP | 600 mm (23,62'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPB0650-PP | 650 mm (25,59'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPB0700-PP | 700 mm (27,56'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPB0750-PP | 750 mm (29,53'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPB0800-PP | 800 mm (31,5'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPB0850-PP | 850 mm (33,46'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPB0900-PP | 900 mm (35,43'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPC0050-PP | 50 mm (1,97'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPC0100-PP | 100 mm (3,94'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPC0150-PP | 150 mm (5,90") | PPC - Polypropylene (cyan) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPC0200-PP | 200 mm (7,87'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPC0250-PP | 250 mm (9,84'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPC0300-PP | 300 mm (11,81'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPC0350-PP | 350 mm (13,78'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPC0400-PP | 400 mm (15,75'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPC0450-PP | 450 mm (17,72'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPC0500-PP | 500 mm (19,69'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPC0550-PP | 550 mm (21,65'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPC0600-PP | 600 mm (23,62'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPC0650-PP | 650 mm (25,59'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPC0700-PP | 700 mm (27,56'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPC0750-PP | 750 mm (29,53'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPC0800-PP | 800 mm (31,5'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPC0850-PP | 850 mm (33,46'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPC0900-PP | 900 mm (35,43'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPW0050-PP | 50 mm (1,97'') | PPW - Polypropylene (white) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPW0100-PP | 100 mm (3,94'') | PPW - Polypropylene (white) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPW0150-PP | 150 mm (5,90") | PPW - Polypropylene (white) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPW0200-PP | 200 mm (7,87'') | PPW - Polypropylene (white) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPW0250-PP | 250 mm (9,84'') | PPW - Polypropylene (white) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPW0300-PP | 300 mm (11,81'') | PPW - Polypropylene (white) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPW0350-PP | 350 mm (13,78'') | PPW - Polypropylene (white) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPW0400-PP | 400 mm (15,75'') | PPW - Polypropylene (white) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPW0450-PP | 450 mm (17,72'') | PPW - Polypropylene (white) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPW0500-PP | 500 mm (19,69'') | PPW - Polypropylene (white) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPW0550-PP | 550 mm (21,65'') | PPW - Polypropylene (white) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPW0600-PP | 600 mm (23,62'') | PPW - Polypropylene (white) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPW0650-PP | 650 mm (25,59'') | PPW - Polypropylene (white) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPW0700-PP | 700 mm (27,56'') | PPW - Polypropylene (white) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPW0750-PP | 750 mm (29,53'') | PPW - Polypropylene (white) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPW0800-PP | 800 mm (31,5'') | PPW - Polypropylene (white) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPW0850-PP | 850 mm (33,46'') | PPW - Polypropylene (white) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7234NTPPW0900-PP | 900 mm (35,43'') | PPW - Polypropylene (white) | PP White | No positioners | F7234 | 25 mm | 11000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
Enquiry Now
To allow us to respond to your enquiry promptly, please provide all required information.
