7220 Grip Top
Modular Belts
Description
Description
*Belts wider than standard are available with 50 mm increments.
The nominal tensile strength and the nominal width tolerance are valid for a temperature of 23°C (73 °F).
The actual width of the belt typically falls below the nominal value by 0.1% to 0.3%.
For PE belts up to 750 mm (30”) in width, the reduction ranges from -3 mm to 1 mm, and for widths beyond that, from -0.4% to 0.1%.
For POM belts up to 750 mm (30”) in width, the shrinkage ranges from -2 mm to 1 mm, and for those wider, from -0.25% to -0.25%.
For PP belts up to 750 mm (30”) in width, the decrease is between -1 mm and 2 mm, with the reduction for wider belts ranging from 0% to -0.45%.
Non-Standard belt widths are incremented by 16.65 mm (0.66”). The minimum width is 50 mm (2”).
Non-bricklayed belts are available in widths of 50 mm (2”), 100 mm (4”) and 200 mm (8”).

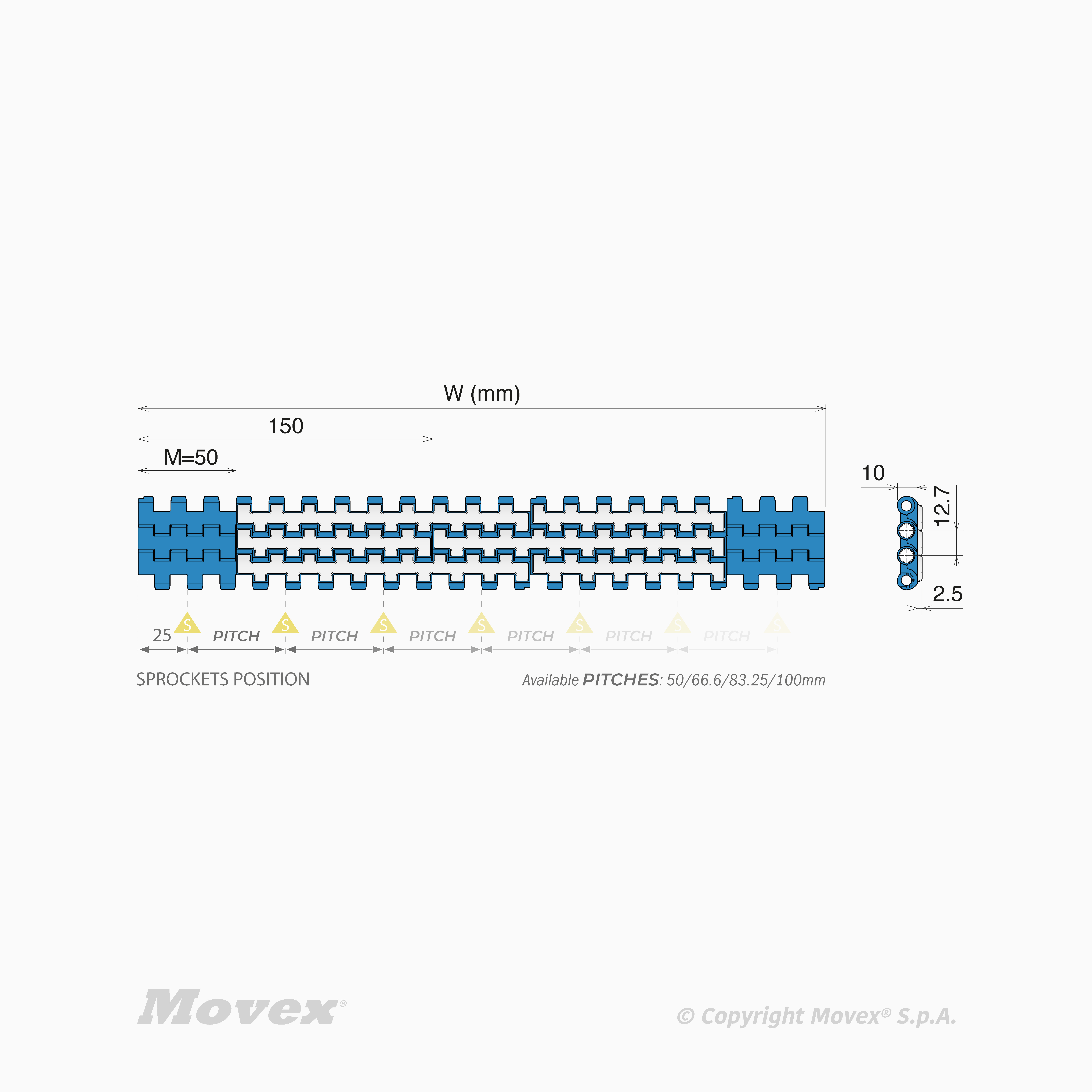

Basic features
| Series: | 7220 |
|---|---|
| Pitch: | 12.7 mm |
| Thickness: | 10 mm |
| Increments: | 50 mm - 1,97" |
| Surface Type: | GT - Grip Top |
| Functionality: | Straight |
| Unit of measure: | Ea |
7220 Grip Top
| Width | Material | Pin material | Version | Part | Back flex radius | Max working load | Mass | Fixation | Temperature range dry | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| F7220GTLFB0050-PBT | 50 mm (1,97'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0050-PP | 50 mm (1,97'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0100-PBT | 100 mm (3,94'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | - |
|
| F7220GTLFB0100-PP | 100 mm (3,94'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0150-PBT | 150 mm (5,90") | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | - |
|
| F7220GTLFB0150-PP | 150 mm (5,90") | LFB - Low friction acetal (Blue) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0200-PBT | 200 mm (7,87'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | - |
|
| F7220GTLFB0200-PP | 200 mm (7,87'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0250-PBT | 250 mm (9,84'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | - |
|
| F7220GTLFB0250-PP | 250 mm (9,84'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0300-PBT | 300 mm (11,81'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | - |
|
| F7220GTLFB0300-PP | 300 mm (11,81'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0350-PBT | 350 mm (13,78'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | - |
|
| F7220GTLFB0350-PP | 350 mm (13,78'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0400-PBT | 400 mm (15,75'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | - |
|
| F7220GTLFB0400-PP | 400 mm (15,75'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0450-PBT | 450 mm (17,72'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0450-PP | 450 mm (17,72'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0500-PBT | 500 mm (19,69'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0500-PP | 500 mm (19,69'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0550-PBT | 550 mm (21,65'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0550-PP | 550 mm (21,65'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0600-PBT | 600 mm (23,62'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0600-PP | 600 mm (23,62'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0650-PBT | 650 mm (25,59'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0650-PP | 650 mm (25,59'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0700-PBT | 700 mm (27,56'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0700-PP | 700 mm (27,56'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0750-PBT | 750 mm (29,53'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0750-PP | 750 mm (29,53'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0800-PBT | 800 mm (31,5'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0800-PP | 800 mm (31,5'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0850-PBT | 850 mm (33,46'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0850-PP | 850 mm (33,46'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0900-PBT | 900 mm (35,43'') | LFB - Low friction acetal (Blue) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFB0900-PP | 900 mm (35,43'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0050-PBT | 50 mm (1,97'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0050-PP | 50 mm (1,97'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0100-PBT | 100 mm (3,94'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0100-PP | 100 mm (3,94'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0150-PBT | 150 mm (5,90") | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0150-PP | 150 mm (5,90") | LFC - Low friction acetal (cyan) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0200-PBT | 200 mm (7,87'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0200-PP | 200 mm (7,87'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0250-PBT | 250 mm (9,84'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0250-PP | 250 mm (9,84'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0300-PBT | 300 mm (11,81'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0300-PP | 300 mm (11,81'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0350-PBT | 350 mm (13,78'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0350-PP | 350 mm (13,78'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0400-PBT | 400 mm (15,75'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0400-PP | 400 mm (15,75'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0450-PBT | 450 mm (17,72'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0450-PP | 450 mm (17,72'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0500-PBT | 500 mm (19,69'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0500-PP | 500 mm (19,69'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0550-PBT | 550 mm (21,65'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0550-PP | 550 mm (21,65'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0600-PBT | 600 mm (23,62'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0600-PP | 600 mm (23,62'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0650-PBT | 650 mm (25,59'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0650-PP | 650 mm (25,59'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0700-PBT | 700 mm (27,56'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0700-PP | 700 mm (27,56'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0750-PBT | 750 mm (29,53'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0750-PP | 750 mm (29,53'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0800-PBT | 800 mm (31,5'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0800-PP | 800 mm (31,5'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0850-PBT | 850 mm (33,46'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0850-PP | 850 mm (33,46'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0900-PBT | 900 mm (35,43'') | LFC - Low friction acetal (cyan) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFC0900-PP | 900 mm (35,43'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0050-PBT | 50 mm (1,97'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0050-PP | 50 mm (1,97'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0100-PBT | 100 mm (3,94'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0100-PP | 100 mm (3,94'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0150-PBT | 150 mm (5,90") | LFW - Low Friction acetal (White) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0150-PP | 150 mm (5,90") | LFW - Low Friction acetal (White) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0200-PBT | 200 mm (7,87'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0200-PP | 200 mm (7,87'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0250-PBT | 250 mm (9,84'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0250-PP | 250 mm (9,84'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0300-PBT | 300 mm (11,81'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0300-PP | 300 mm (11,81'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0350-PBT | 350 mm (13,78'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0350-PP | 350 mm (13,78'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0400-PBT | 400 mm (15,75'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0400-PP | 400 mm (15,75'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0450-PBT | 450 mm (17,72'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0450-PP | 450 mm (17,72'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0500-PBT | 500 mm (19,69'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0500-PP | 500 mm (19,69'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0550-PBT | 550 mm (21,65'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0550-PP | 550 mm (21,65'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0600-PBT | 600 mm (23,62'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0600-PP | 600 mm (23,62'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0650-PBT | 650 mm (25,59'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0650-PP | 650 mm (25,59'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0700-PBT | 700 mm (27,56'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0700-PP | 700 mm (27,56'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0750-PBT | 750 mm (29,53'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0750-PP | 750 mm (29,53'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0800-PBT | 800 mm (31,5'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0800-PP | 800 mm (31,5'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0850-PBT | 850 mm (33,46'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0850-PP | 850 mm (33,46'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0900-PBT | 900 mm (35,43'') | LFW - Low Friction acetal (White) | PBT white | No positioners | F7220 | 7.5 mm | 18000 N/m | 10.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTLFW0900-PP | 900 mm (35,43'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7220 | 7.5 mm | 16000 N/m | 10 kg/m^2 | Self-Locking Pin | +5÷93 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPB0050-PP | 50 mm (1,97'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPB0100-PP | 100 mm (3,94'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPB0150-PP | 150 mm (5,90") | PPB - Polypropylene (Blue) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPB0200-PP | 200 mm (7,87'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPB0250-PP | 250 mm (9,84'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPB0300-PP | 300 mm (11,81'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPB0350-PP | 350 mm (13,78'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPB0400-PP | 400 mm (15,75'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPB0450-PP | 450 mm (17,72'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPB0500-PP | 500 mm (19,69'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPB0550-PP | 550 mm (21,65'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPB0600-PP | 600 mm (23,62'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPB0650-PP | 650 mm (25,59'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPB0700-PP | 700 mm (27,56'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPB0750-PP | 750 mm (29,53'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPB0800-PP | 800 mm (31,5'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPB0850-PP | 850 mm (33,46'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPB0900-PP | 900 mm (35,43'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPC0050-PP | 50 mm (1,97'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPC0100-PP | 100 mm (3,94'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPC0150-PP | 150 mm (5,90") | PPC - Polypropylene (cyan) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPC0200-PP | 200 mm (7,87'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPC0250-PP | 250 mm (9,84'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPC0300-PP | 300 mm (11,81'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPC0350-PP | 350 mm (13,78'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPC0400-PP | 400 mm (15,75'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPC0450-PP | 450 mm (17,72'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPC0500-PP | 500 mm (19,69'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPC0550-PP | 550 mm (21,65'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPC0600-PP | 600 mm (23,62'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPC0650-PP | 650 mm (25,59'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPC0700-PP | 700 mm (27,56'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPC0750-PP | 750 mm (29,53'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPC0800-PP | 800 mm (31,5'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPC0850-PP | 850 mm (33,46'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPC0900-PP | 900 mm (35,43'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPW0050-PP | 50 mm (1,97'') | PPW - Polypropylene (white) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPW0100-PP | 100 mm (3,94'') | PPW - Polypropylene (white) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPW0150-PP | 150 mm (5,90") | PPW - Polypropylene (white) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPW0200-PP | 200 mm (7,87'') | PPW - Polypropylene (white) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPW0250-PP | 250 mm (9,84'') | PPW - Polypropylene (white) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPW0300-PP | 300 mm (11,81'') | PPW - Polypropylene (white) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPW0350-PP | 350 mm (13,78'') | PPW - Polypropylene (white) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPW0400-PP | 400 mm (15,75'') | PPW - Polypropylene (white) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPW0450-PP | 450 mm (17,72'') | PPW - Polypropylene (white) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPW0500-PP | 500 mm (19,69'') | PPW - Polypropylene (white) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPW0550-PP | 550 mm (21,65'') | PPW - Polypropylene (white) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPW0600-PP | 600 mm (23,62'') | PPW - Polypropylene (white) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPW0650-PP | 650 mm (25,59'') | PPW - Polypropylene (white) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPW0700-PP | 700 mm (27,56'') | PPW - Polypropylene (white) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPW0750-PP | 750 mm (29,53'') | PPW - Polypropylene (white) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPW0800-PP | 800 mm (31,5'') | PPW - Polypropylene (white) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPW0850-PP | 850 mm (33,46'') | PPW - Polypropylene (white) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
| F7220GTPPW0900-PP | 900 mm (35,43'') | PPW - Polypropylene (white) | PP White | No positioners | F7220 | 7.5 mm | 11000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Temporary code, to be created specifically on request |
|
Enquiry Now
To allow us to respond to your enquiry promptly, please provide all required information.
