7010 Nub Top
Modular Belts
Description
Description
*Belts wider than standard are available with 75 mm increments.
The nominal tensile strength and the nominal width tolerance are valid for a temperature of 23°C (73 °F).
The actual width of the belt typically falls below the nominal value by 0.1% to 0.3%.
For PE belts up to 750 mm (30”) in width, the reduction ranges from -3 mm to 0 mm, and for widths beyond that, from -0.4% to 0%.
For POM belts up to 750 mm (30”) in width, the shrinkage ranges from -3 mm to 0 mm, and for those wider, from -0.4% to 0%.
For PP belts up to 750 mm (30”) in width, the decrease is between -3 mm and 0 mm, with the reduction for wider belts ranging from -0.3% to 0.1%.
Non-Standard belt widths are incremented by 18.75 mm (0.74”). The minimum width is 37.5 mm (1.5”).
Non-bricklayed belts are available in widths of 75 mm (3”), 150 mm (6”), 300 (12”) and 600 mm (24”).

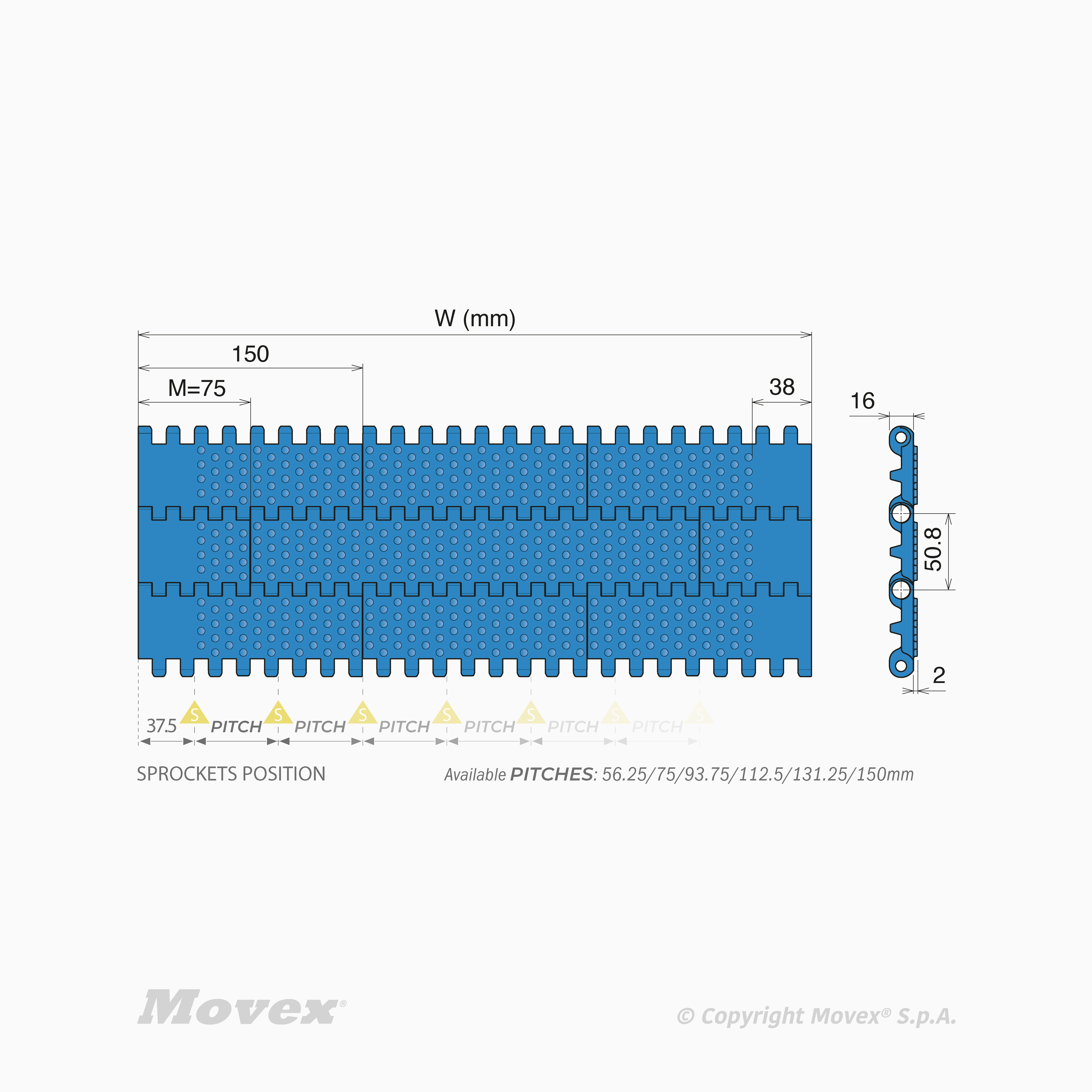

Basic features
| Series: | 7010 |
|---|---|
| Pitch: | 50.8 mm |
| Thickness: | 16 mm |
| Increments: | 75 mm - 2,95" |
| Surface Type: | NT - Nub Top |
| Functionality: | Straight |
| Unit of measure: | Ea |
7010 Nub Top
| Width | Material | Pin material | Version | Part | Back flex radius | Max working load | Mass | Fixation | Temperature range dry | Supplementary informations | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| F7010NTLFB0075-PA6 | 75 mm (2,95'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0075-PBT | 75 mm (2,95'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0075-PE | 75 mm (2,95'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0075-PP | 75 mm (2,95'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0150-PA6 | 150 mm (5,91'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0150-PBT | 150 mm (5,91'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0150-PE | 150 mm (5,91'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0150-PP | 150 mm (5,91'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0225-PA6 | 225 mm (8,86'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0225-PBT | 225 mm (8,86'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0225-PE | 225 mm (8,86'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0225-PP | 225 mm (8,86'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0300-PA6 | 300 mm (11,81'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0300-PBT | 300 mm (11,81'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0300-PE | 300 mm (11,81'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0300-PP | 300 mm (11,81'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0375-PA6 | 375 mm (14,76'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0375-PBT | 375 mm (14,76'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0375-PE | 375 mm (14,76'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0375-PP | 375 mm (14,76'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0450-PA6 | 450 mm (17,72'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0450-PBT | 450 mm (17,72'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0450-PE | 450 mm (17,72'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0450-PP | 450 mm (17,72'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0525-PA6 | 525 mm (20,67'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0525-PBT | 525 mm (20,67'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0525-PE | 525 mm (20,67'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0525-PP | 525 mm (20,67'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0600-PA6 | 600 mm (23,62'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0600-PBT | 600 mm (23,62'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0600-PE | 600 mm (23,62'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0600-PP | 600 mm (23,62'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0675-PA6 | 675 mm (26,57'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0675-PBT | 675 mm (26,57'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0675-PE | 675 mm (26,57'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0675-PP | 675 mm (26,57'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0750-PA6 | 750 mm (29,53'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0750-PBT | 750 mm (29,53'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0750-PE | 750 mm (29,53'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0750-PP | 750 mm (29,53'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0825-PA6 | 825 mm (32,48'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0825-PBT | 825 mm (32,48'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0825-PE | 825 mm (32,48'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0825-PP | 825 mm (32,48'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0900-PA6 | 900 mm (35,43'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0900-PBT | 900 mm (35,43'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0900-PE | 900 mm (35,43'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0900-PP | 900 mm (35,43'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0975-PA6 | 975 mm (38,39'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0975-PBT | 975 mm (38,39'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0975-PE | 975 mm (38,39'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB0975-PP | 975 mm (38,39'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB1050-PA6 | 1050 mm (41,34'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB1050-PBT | 1050 mm (41,34'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB1050-PE | 1050 mm (41,34'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB1050-PP | 1050 mm (41,34'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB1125-PA6 | 1125 mm (44,29'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB1125-PBT | 1125 mm (44,29'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB1125-PE | 1125 mm (44,29'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB1125-PP | 1125 mm (44,29'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB1200-PA6 | 1200 mm (47,24'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB1200-PBT | 1200 mm (47,24'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB1200-PE | 1200 mm (47,24'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB1200-PP | 1200 mm (47,24'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB1275-PA6 | 1275 mm (50,2'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB1275-PBT | 1275 mm (50,2'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB1275-PE | 1275 mm (50,2'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB1275-PP | 1275 mm (50,2'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB1350-PA6 | 1350 mm (53,15'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB1350-PBT | 1350 mm (53,15'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB1350-PE | 1350 mm (53,15'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFB1350-PP | 1350 mm (53,15'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0075-PA6 | 75 mm (2,95'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0075-PBT | 75 mm (2,95'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0075-PE | 75 mm (2,95'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0075-PP | 75 mm (2,95'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0150-PA6 | 150 mm (5,91'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0150-PBT | 150 mm (5,91'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0150-PE | 150 mm (5,91'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0150-PP | 150 mm (5,91'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0225-PA6 | 225 mm (8,86'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0225-PBT | 225 mm (8,86'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0225-PE | 225 mm (8,86'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0225-PP | 225 mm (8,86'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0300-PA6 | 300 mm (11,81'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0300-PBT | 300 mm (11,81'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0300-PE | 300 mm (11,81'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0300-PP | 300 mm (11,81'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0375-PA6 | 375 mm (14,76'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0375-PBT | 375 mm (14,76'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0375-PE | 375 mm (14,76'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0375-PP | 375 mm (14,76'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0450-PA6 | 450 mm (17,72'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0450-PBT | 450 mm (17,72'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0450-PE | 450 mm (17,72'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0450-PP | 450 mm (17,72'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0525-PA6 | 525 mm (20,67'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0525-PBT | 525 mm (20,67'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0525-PE | 525 mm (20,67'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0525-PP | 525 mm (20,67'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0600-PA6 | 600 mm (23,62'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0600-PBT | 600 mm (23,62'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0600-PE | 600 mm (23,62'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0600-PP | 600 mm (23,62'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0675-PA6 | 675 mm (26,57'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0675-PBT | 675 mm (26,57'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0675-PE | 675 mm (26,57'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0675-PP | 675 mm (26,57'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0750-PA6 | 750 mm (29,53'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0750-PBT | 750 mm (29,53'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0750-PE | 750 mm (29,53'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0750-PP | 750 mm (29,53'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0825-PA6 | 825 mm (32,48'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0825-PBT | 825 mm (32,48'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0825-PE | 825 mm (32,48'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0825-PP | 825 mm (32,48'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0900-PA6 | 900 mm (35,43'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0900-PBT | 900 mm (35,43'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0900-PE | 900 mm (35,43'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0900-PP | 900 mm (35,43'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0975-PA6 | 975 mm (38,39'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0975-PBT | 975 mm (38,39'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0975-PE | 975 mm (38,39'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC0975-PP | 975 mm (38,39'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC1050-PA6 | 1050 mm (41,34'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC1050-PBT | 1050 mm (41,34'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC1050-PE | 1050 mm (41,34'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC1050-PP | 1050 mm (41,34'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC1125-PA6 | 1125 mm (44,29'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC1125-PBT | 1125 mm (44,29'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC1125-PE | 1125 mm (44,29'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC1125-PP | 1125 mm (44,29'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC1200-PA6 | 1200 mm (47,24'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC1200-PBT | 1200 mm (47,24'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC1200-PE | 1200 mm (47,24'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC1200-PP | 1200 mm (47,24'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC1275-PA6 | 1275 mm (50,2'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC1275-PBT | 1275 mm (50,2'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC1275-PE | 1275 mm (50,2'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC1275-PP | 1275 mm (50,2'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC1350-PA6 | 1350 mm (53,15'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC1350-PBT | 1350 mm (53,15'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC1350-PE | 1350 mm (53,15'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFC1350-PP | 1350 mm (53,15'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0075-PA6 | 75 mm (2,95'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0075-PBT | 75 mm (2,95'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0075-PE | 75 mm (2,95'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0075-PP | 75 mm (2,95'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0150-PA6 | 150 mm (5,91'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0150-PBT | 150 mm (5,91'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0150-PE | 150 mm (5,91'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0150-PP | 150 mm (5,91'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0225-PA6 | 225 mm (8,86'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0225-PBT | 225 mm (8,86'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0225-PE | 225 mm (8,86'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0225-PP | 225 mm (8,86'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0300-PA6 | 300 mm (11,81'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0300-PBT | 300 mm (11,81'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0300-PE | 300 mm (11,81'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0300-PP | 300 mm (11,81'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0375-PA6 | 375 mm (14,76'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0375-PBT | 375 mm (14,76'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0375-PE | 375 mm (14,76'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0375-PP | 375 mm (14,76'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0450-PA6 | 450 mm (17,72'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0450-PBT | 450 mm (17,72'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0450-PE | 450 mm (17,72'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0450-PP | 450 mm (17,72'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0525-PA6 | 525 mm (20,67'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0525-PBT | 525 mm (20,67'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0525-PE | 525 mm (20,67'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0525-PP | 525 mm (20,67'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0600-PA6 | 600 mm (23,62'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0600-PBT | 600 mm (23,62'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0600-PE | 600 mm (23,62'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0600-PP | 600 mm (23,62'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0675-PA6 | 675 mm (26,57'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0675-PBT | 675 mm (26,57'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0675-PE | 675 mm (26,57'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0675-PP | 675 mm (26,57'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0750-PA6 | 750 mm (29,53'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0750-PBT | 750 mm (29,53'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0750-PE | 750 mm (29,53'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0750-PP | 750 mm (29,53'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0825-PA6 | 825 mm (32,48'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0825-PBT | 825 mm (32,48'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0825-PE | 825 mm (32,48'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0825-PP | 825 mm (32,48'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0900-PA6 | 900 mm (35,43'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0900-PBT | 900 mm (35,43'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0900-PE | 900 mm (35,43'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0900-PP | 900 mm (35,43'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0975-PA6 | 975 mm (38,39'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0975-PBT | 975 mm (38,39'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0975-PE | 975 mm (38,39'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW0975-PP | 975 mm (38,39'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW1050-PA6 | 1050 mm (41,34'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW1050-PBT | 1050 mm (41,34'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW1050-PE | 1050 mm (41,34'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW1050-PP | 1050 mm (41,34'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW1125-PA6 | 1125 mm (44,29'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW1125-PBT | 1125 mm (44,29'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW1125-PE | 1125 mm (44,29'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW1125-PP | 1125 mm (44,29'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW1200-PA6 | 1200 mm (47,24'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW1200-PBT | 1200 mm (47,24'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW1200-PE | 1200 mm (47,24'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW1200-PP | 1200 mm (47,24'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW1275-PA6 | 1275 mm (50,2'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW1275-PBT | 1275 mm (50,2'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW1275-PE | 1275 mm (50,2'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW1275-PP | 1275 mm (50,2'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW1350-PA6 | 1350 mm (53,15'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW1350-PBT | 1350 mm (53,15'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW1350-PE | 1350 mm (53,15'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.6 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTLFW1350-PP | 1350 mm (53,15'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.6 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010NTPEB0075-PA6 | 75 mm (2,95'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0075-PBT | 75 mm (2,95'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0075-PE | 75 mm (2,95'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0075-PP | 75 mm (2,95'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0150-PA6 | 150 mm (5,91'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0150-PBT | 150 mm (5,91'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | - | - |
|
| F7010NTPEB0150-PE | 150 mm (5,91'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0150-PP | 150 mm (5,91'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0225-PA6 | 225 mm (8,86'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0225-PBT | 225 mm (8,86'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | - | - |
|
| F7010NTPEB0225-PE | 225 mm (8,86'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0225-PP | 225 mm (8,86'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0300-PA6 | 300 mm (11,81'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0300-PBT | 300 mm (11,81'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0300-PE | 300 mm (11,81'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0300-PP | 300 mm (11,81'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0375-PA6 | 375 mm (14,76'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0375-PBT | 375 mm (14,76'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0375-PE | 375 mm (14,76'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0375-PP | 375 mm (14,76'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0450-PA6 | 450 mm (17,72'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0450-PBT | 450 mm (17,72'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0450-PE | 450 mm (17,72'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0450-PP | 450 mm (17,72'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0525-PA6 | 525 mm (20,67'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0525-PBT | 525 mm (20,67'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0525-PE | 525 mm (20,67'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0525-PP | 525 mm (20,67'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0600-PA6 | 600 mm (23,62'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0600-PBT | 600 mm (23,62'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0600-PE | 600 mm (23,62'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0600-PP | 600 mm (23,62'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0675-PA6 | 675 mm (26,57'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0675-PBT | 675 mm (26,57'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0675-PE | 675 mm (26,57'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0675-PP | 675 mm (26,57'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0750-PA6 | 750 mm (29,53'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0750-PBT | 750 mm (29,53'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0750-PE | 750 mm (29,53'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0750-PP | 750 mm (29,53'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0825-PA6 | 825 mm (32,48'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0825-PBT | 825 mm (32,48'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0825-PE | 825 mm (32,48'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0825-PP | 825 mm (32,48'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0900-PA6 | 900 mm (35,43'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0900-PBT | 900 mm (35,43'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0900-PE | 900 mm (35,43'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0900-PP | 900 mm (35,43'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0975-PA6 | 975 mm (38,39'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0975-PBT | 975 mm (38,39'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0975-PE | 975 mm (38,39'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB0975-PP | 975 mm (38,39'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB1050-PA6 | 1050 mm (41,34'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB1050-PBT | 1050 mm (41,34'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB1050-PE | 1050 mm (41,34'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB1050-PP | 1050 mm (41,34'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB1125-PA6 | 1125 mm (44,29'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB1125-PBT | 1125 mm (44,29'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB1125-PE | 1125 mm (44,29'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB1125-PP | 1125 mm (44,29'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB1200-PA6 | 1200 mm (47,24'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB1200-PBT | 1200 mm (47,24'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB1200-PE | 1200 mm (47,24'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB1200-PP | 1200 mm (47,24'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB1275-PA6 | 1275 mm (50,2'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB1275-PBT | 1275 mm (50,2'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB1275-PE | 1275 mm (50,2'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB1275-PP | 1275 mm (50,2'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB1350-PA6 | 1350 mm (53,15'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB1350-PBT | 1350 mm (53,15'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB1350-PE | 1350 mm (53,15'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEB1350-PP | 1350 mm (53,15'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0075-PA6 | 75 mm (2,95'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0075-PBT | 75 mm (2,95'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0075-PE | 75 mm (2,95'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0075-PP | 75 mm (2,95'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0150-PA6 | 150 mm (5,91'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0150-PBT | 150 mm (5,91'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0150-PE | 150 mm (5,91'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0150-PP | 150 mm (5,91'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0225-PA6 | 225 mm (8,86'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0225-PBT | 225 mm (8,86'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0225-PE | 225 mm (8,86'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0225-PP | 225 mm (8,86'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0300-PA6 | 300 mm (11,81'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0300-PBT | 300 mm (11,81'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0300-PE | 300 mm (11,81'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0300-PP | 300 mm (11,81'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0375-PA6 | 375 mm (14,76'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0375-PBT | 375 mm (14,76'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0375-PE | 375 mm (14,76'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0375-PP | 375 mm (14,76'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0450-PA6 | 450 mm (17,72'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0450-PBT | 450 mm (17,72'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0450-PE | 450 mm (17,72'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0450-PP | 450 mm (17,72'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0525-PA6 | 525 mm (20,67'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0525-PBT | 525 mm (20,67'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0525-PE | 525 mm (20,67'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0525-PP | 525 mm (20,67'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0600-PA6 | 600 mm (23,62'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0600-PBT | 600 mm (23,62'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0600-PE | 600 mm (23,62'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0600-PP | 600 mm (23,62'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0675-PA6 | 675 mm (26,57'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0675-PBT | 675 mm (26,57'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0675-PE | 675 mm (26,57'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0675-PP | 675 mm (26,57'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0750-PA6 | 750 mm (29,53'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0750-PBT | 750 mm (29,53'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0750-PE | 750 mm (29,53'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0750-PP | 750 mm (29,53'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0825-PA6 | 825 mm (32,48'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0825-PBT | 825 mm (32,48'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0825-PE | 825 mm (32,48'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0825-PP | 825 mm (32,48'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0900-PA6 | 900 mm (35,43'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0900-PBT | 900 mm (35,43'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0900-PE | 900 mm (35,43'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0900-PP | 900 mm (35,43'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0975-PA6 | 975 mm (38,39'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0975-PBT | 975 mm (38,39'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0975-PE | 975 mm (38,39'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC0975-PP | 975 mm (38,39'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC1050-PA6 | 1050 mm (41,34'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC1050-PBT | 1050 mm (41,34'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC1050-PE | 1050 mm (41,34'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC1050-PP | 1050 mm (41,34'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC1125-PA6 | 1125 mm (44,29'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC1125-PBT | 1125 mm (44,29'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC1125-PE | 1125 mm (44,29'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC1125-PP | 1125 mm (44,29'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC1200-PA6 | 1200 mm (47,24'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC1200-PBT | 1200 mm (47,24'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC1200-PE | 1200 mm (47,24'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC1200-PP | 1200 mm (47,24'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC1275-PA6 | 1275 mm (50,2'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC1275-PBT | 1275 mm (50,2'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC1275-PE | 1275 mm (50,2'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC1275-PP | 1275 mm (50,2'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC1350-PA6 | 1350 mm (53,15'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC1350-PBT | 1350 mm (53,15'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC1350-PE | 1350 mm (53,15'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEC1350-PP | 1350 mm (53,15'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0075-PA6 | 75 mm (2,95'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0075-PBT | 75 mm (2,95'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0075-PE | 75 mm (2,95'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0075-PP | 75 mm (2,95'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0150-PA6 | 150 mm (5,91'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0150-PBT | 150 mm (5,91'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0150-PE | 150 mm (5,91'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0150-PP | 150 mm (5,91'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0225-PA6 | 225 mm (8,86'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0225-PBT | 225 mm (8,86'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0225-PE | 225 mm (8,86'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0225-PP | 225 mm (8,86'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0300-PA6 | 300 mm (11,81'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0300-PBT | 300 mm (11,81'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0300-PE | 300 mm (11,81'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0300-PP | 300 mm (11,81'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0375-PA6 | 375 mm (14,76'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0375-PBT | 375 mm (14,76'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0375-PE | 375 mm (14,76'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0375-PP | 375 mm (14,76'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0450-PA6 | 450 mm (17,72'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0450-PBT | 450 mm (17,72'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0450-PE | 450 mm (17,72'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0450-PP | 450 mm (17,72'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0525-PA6 | 525 mm (20,67'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0525-PBT | 525 mm (20,67'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0525-PE | 525 mm (20,67'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0525-PP | 525 mm (20,67'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0600-PA6 | 600 mm (23,62'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0600-PBT | 600 mm (23,62'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0600-PE | 600 mm (23,62'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0600-PP | 600 mm (23,62'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0675-PA6 | 675 mm (26,57'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0675-PBT | 675 mm (26,57'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0675-PE | 675 mm (26,57'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0675-PP | 675 mm (26,57'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0750-PA6 | 750 mm (29,53'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0750-PBT | 750 mm (29,53'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0750-PE | 750 mm (29,53'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0750-PP | 750 mm (29,53'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0825-PA6 | 825 mm (32,48'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0825-PBT | 825 mm (32,48'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0825-PE | 825 mm (32,48'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0825-PP | 825 mm (32,48'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0900-PA6 | 900 mm (35,43'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0900-PBT | 900 mm (35,43'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0900-PE | 900 mm (35,43'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0900-PP | 900 mm (35,43'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0975-PA6 | 975 mm (38,39'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0975-PBT | 975 mm (38,39'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0975-PE | 975 mm (38,39'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN0975-PP | 975 mm (38,39'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN1050-PA6 | 1050 mm (41,34'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN1050-PBT | 1050 mm (41,34'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN1050-PE | 1050 mm (41,34'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN1050-PP | 1050 mm (41,34'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN1125-PA6 | 1125 mm (44,29'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN1125-PBT | 1125 mm (44,29'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN1125-PE | 1125 mm (44,29'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN1125-PP | 1125 mm (44,29'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN1200-PA6 | 1200 mm (47,24'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN1200-PBT | 1200 mm (47,24'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN1200-PE | 1200 mm (47,24'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN1200-PP | 1200 mm (47,24'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN1275-PA6 | 1275 mm (50,2'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN1275-PBT | 1275 mm (50,2'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN1275-PE | 1275 mm (50,2'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN1275-PP | 1275 mm (50,2'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN1350-PA6 | 1350 mm (53,15'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN1350-PBT | 1350 mm (53,15'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN1350-PE | 1350 mm (53,15'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEN1350-PP | 1350 mm (53,15'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0075-PA6 | 75 mm (2,95'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0075-PBT | 75 mm (2,95'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0075-PE | 75 mm (2,95'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0075-PP | 75 mm (2,95'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0150-PA6 | 150 mm (5,91'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0150-PBT | 150 mm (5,91'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0150-PE | 150 mm (5,91'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0150-PP | 150 mm (5,91'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0225-PA6 | 225 mm (8,86'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0225-PBT | 225 mm (8,86'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0225-PE | 225 mm (8,86'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0225-PP | 225 mm (8,86'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0300-PA6 | 300 mm (11,81'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0300-PBT | 300 mm (11,81'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0300-PE | 300 mm (11,81'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0300-PP | 300 mm (11,81'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0375-PA6 | 375 mm (14,76'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0375-PBT | 375 mm (14,76'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0375-PE | 375 mm (14,76'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0375-PP | 375 mm (14,76'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0450-PA6 | 450 mm (17,72'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0450-PBT | 450 mm (17,72'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0450-PE | 450 mm (17,72'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0450-PP | 450 mm (17,72'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0525-PA6 | 525 mm (20,67'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0525-PBT | 525 mm (20,67'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0525-PE | 525 mm (20,67'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0525-PP | 525 mm (20,67'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0600-PA6 | 600 mm (23,62'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0600-PBT | 600 mm (23,62'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0600-PE | 600 mm (23,62'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0600-PP | 600 mm (23,62'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0675-PA6 | 675 mm (26,57'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0675-PBT | 675 mm (26,57'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0675-PE | 675 mm (26,57'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0675-PP | 675 mm (26,57'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0750-PA6 | 750 mm (29,53'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0750-PBT | 750 mm (29,53'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0750-PE | 750 mm (29,53'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0750-PP | 750 mm (29,53'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0825-PA6 | 825 mm (32,48'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0825-PBT | 825 mm (32,48'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0825-PE | 825 mm (32,48'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0825-PP | 825 mm (32,48'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0900-PA6 | 900 mm (35,43'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0900-PBT | 900 mm (35,43'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0900-PE | 900 mm (35,43'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0900-PP | 900 mm (35,43'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0975-PA6 | 975 mm (38,39'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0975-PBT | 975 mm (38,39'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0975-PE | 975 mm (38,39'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW0975-PP | 975 mm (38,39'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW1050-PA6 | 1050 mm (41,34'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW1050-PBT | 1050 mm (41,34'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW1050-PE | 1050 mm (41,34'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW1050-PP | 1050 mm (41,34'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW1125-PA6 | 1125 mm (44,29'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW1125-PBT | 1125 mm (44,29'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW1125-PE | 1125 mm (44,29'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW1125-PP | 1125 mm (44,29'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW1200-PA6 | 1200 mm (47,24'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW1200-PBT | 1200 mm (47,24'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW1200-PE | 1200 mm (47,24'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW1200-PP | 1200 mm (47,24'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW1275-PA6 | 1275 mm (50,2'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW1275-PBT | 1275 mm (50,2'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW1275-PE | 1275 mm (50,2'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW1275-PP | 1275 mm (50,2'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW1350-PA6 | 1350 mm (53,15'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW1350-PBT | 1350 mm (53,15'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW1350-PE | 1350 mm (53,15'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPEW1350-PP | 1350 mm (53,15'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 10.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010NTPPB0075-PA6 | 75 mm (2,95'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPB0075-PBT | 75 mm (2,95'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB0075-PE | 75 mm (2,95'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPB0075-PP | 75 mm (2,95'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB0150-PA6 | 150 mm (5,91'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPB0150-PBT | 150 mm (5,91'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB0150-PE | 150 mm (5,91'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPB0150-PP | 150 mm (5,91'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB0225-PA6 | 225 mm (8,86'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPB0225-PBT | 225 mm (8,86'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB0225-PE | 225 mm (8,86'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPB0225-PP | 225 mm (8,86'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB0300-PA6 | 300 mm (11,81'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPB0300-PBT | 300 mm (11,81'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB0300-PE | 300 mm (11,81'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPB0300-PP | 300 mm (11,81'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB0375-PA6 | 375 mm (14,76'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPB0375-PBT | 375 mm (14,76'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB0375-PE | 375 mm (14,76'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPB0375-PP | 375 mm (14,76'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB0450-PA6 | 450 mm (17,72'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPB0450-PBT | 450 mm (17,72'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB0450-PE | 450 mm (17,72'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPB0450-PP | 450 mm (17,72'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB0525-PA6 | 525 mm (20,67'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPB0525-PBT | 525 mm (20,67'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB0525-PE | 525 mm (20,67'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPB0525-PP | 525 mm (20,67'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB0600-PA6 | 600 mm (23,62'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPB0600-PBT | 600 mm (23,62'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB0600-PE | 600 mm (23,62'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPB0600-PP | 600 mm (23,62'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB0675-PA6 | 675 mm (26,57'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPB0675-PBT | 675 mm (26,57'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB0675-PE | 675 mm (26,57'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPB0675-PP | 675 mm (26,57'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB0750-PA6 | 750 mm (29,53'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPB0750-PBT | 750 mm (29,53'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB0750-PE | 750 mm (29,53'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPB0750-PP | 750 mm (29,53'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB0825-PA6 | 825 mm (32,48'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPB0825-PBT | 825 mm (32,48'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB0825-PE | 825 mm (32,48'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPB0825-PP | 825 mm (32,48'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB0900-PA6 | 900 mm (35,43'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPB0900-PBT | 900 mm (35,43'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB0900-PE | 900 mm (35,43'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPB0900-PP | 900 mm (35,43'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB0975-PA6 | 975 mm (38,39'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPB0975-PBT | 975 mm (38,39'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB0975-PE | 975 mm (38,39'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPB0975-PP | 975 mm (38,39'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB1050-PA6 | 1050 mm (41,34'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPB1050-PBT | 1050 mm (41,34'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB1050-PE | 1050 mm (41,34'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPB1050-PP | 1050 mm (41,34'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB1125-PA6 | 1125 mm (44,29'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPB1125-PBT | 1125 mm (44,29'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB1125-PE | 1125 mm (44,29'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPB1125-PP | 1125 mm (44,29'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB1200-PA6 | 1200 mm (47,24'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPB1200-PBT | 1200 mm (47,24'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB1200-PE | 1200 mm (47,24'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPB1200-PP | 1200 mm (47,24'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB1275-PA6 | 1275 mm (50,2'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPB1275-PBT | 1275 mm (50,2'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB1275-PE | 1275 mm (50,2'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPB1275-PP | 1275 mm (50,2'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB1350-PA6 | 1350 mm (53,15'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPB1350-PBT | 1350 mm (53,15'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPB1350-PE | 1350 mm (53,15'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPB1350-PP | 1350 mm (53,15'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC0075-PA6 | 75 mm (2,95'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPC0075-PBT | 75 mm (2,95'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC0075-PE | 75 mm (2,95'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPC0075-PP | 75 mm (2,95'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC0150-PA6 | 150 mm (5,91'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPC0150-PBT | 150 mm (5,91'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC0150-PE | 150 mm (5,91'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPC0150-PP | 150 mm (5,91'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC0225-PA6 | 225 mm (8,86'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPC0225-PBT | 225 mm (8,86'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC0225-PE | 225 mm (8,86'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPC0225-PP | 225 mm (8,86'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC0300-PA6 | 300 mm (11,81'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPC0300-PBT | 300 mm (11,81'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC0300-PE | 300 mm (11,81'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPC0300-PP | 300 mm (11,81'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC0375-PA6 | 375 mm (14,76'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPC0375-PBT | 375 mm (14,76'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC0375-PE | 375 mm (14,76'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPC0375-PP | 375 mm (14,76'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC0450-PA6 | 450 mm (17,72'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPC0450-PBT | 450 mm (17,72'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC0450-PE | 450 mm (17,72'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPC0450-PP | 450 mm (17,72'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC0525-PA6 | 525 mm (20,67'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPC0525-PBT | 525 mm (20,67'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC0525-PE | 525 mm (20,67'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPC0525-PP | 525 mm (20,67'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC0600-PA6 | 600 mm (23,62'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPC0600-PBT | 600 mm (23,62'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC0600-PE | 600 mm (23,62'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPC0600-PP | 600 mm (23,62'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC0675-PA6 | 675 mm (26,57'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPC0675-PBT | 675 mm (26,57'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC0675-PE | 675 mm (26,57'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPC0675-PP | 675 mm (26,57'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC0750-PA6 | 750 mm (29,53'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPC0750-PBT | 750 mm (29,53'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC0750-PE | 750 mm (29,53'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPC0750-PP | 750 mm (29,53'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC0825-PA6 | 825 mm (32,48'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPC0825-PBT | 825 mm (32,48'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC0825-PE | 825 mm (32,48'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPC0825-PP | 825 mm (32,48'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC0900-PA6 | 900 mm (35,43'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPC0900-PBT | 900 mm (35,43'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC0900-PE | 900 mm (35,43'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPC0900-PP | 900 mm (35,43'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC0975-PA6 | 975 mm (38,39'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPC0975-PBT | 975 mm (38,39'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC0975-PE | 975 mm (38,39'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPC0975-PP | 975 mm (38,39'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC1050-PA6 | 1050 mm (41,34'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPC1050-PBT | 1050 mm (41,34'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC1050-PE | 1050 mm (41,34'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPC1050-PP | 1050 mm (41,34'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC1125-PA6 | 1125 mm (44,29'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPC1125-PBT | 1125 mm (44,29'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC1125-PE | 1125 mm (44,29'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPC1125-PP | 1125 mm (44,29'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC1200-PA6 | 1200 mm (47,24'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPC1200-PBT | 1200 mm (47,24'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC1200-PE | 1200 mm (47,24'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPC1200-PP | 1200 mm (47,24'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC1275-PA6 | 1275 mm (50,2'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPC1275-PBT | 1275 mm (50,2'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC1275-PE | 1275 mm (50,2'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPC1275-PP | 1275 mm (50,2'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC1350-PA6 | 1350 mm (53,15'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPC1350-PBT | 1350 mm (53,15'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPC1350-PE | 1350 mm (53,15'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPC1350-PP | 1350 mm (53,15'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW0075-PA6 | 75 mm (2,95'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPW0075-PBT | 75 mm (2,95'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW0075-PE | 75 mm (2,95'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPW0075-PP | 75 mm (2,95'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW0150-PA6 | 150 mm (5,91'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPW0150-PBT | 150 mm (5,91'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW0150-PE | 150 mm (5,91'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPW0150-PP | 150 mm (5,91'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW0225-PA6 | 225 mm (8,86'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPW0225-PBT | 225 mm (8,86'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW0225-PE | 225 mm (8,86'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPW0225-PP | 225 mm (8,86'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW0300-PA6 | 300 mm (11,81'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPW0300-PBT | 300 mm (11,81'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW0300-PE | 300 mm (11,81'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPW0300-PP | 300 mm (11,81'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW0375-PA6 | 375 mm (14,76'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPW0375-PBT | 375 mm (14,76'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW0375-PE | 375 mm (14,76'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPW0375-PP | 375 mm (14,76'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW0450-PA6 | 450 mm (17,72'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPW0450-PBT | 450 mm (17,72'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW0450-PE | 450 mm (17,72'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPW0450-PP | 450 mm (17,72'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW0525-PA6 | 525 mm (20,67'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPW0525-PBT | 525 mm (20,67'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW0525-PE | 525 mm (20,67'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPW0525-PP | 525 mm (20,67'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW0600-PA6 | 600 mm (23,62'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPW0600-PBT | 600 mm (23,62'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW0600-PE | 600 mm (23,62'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPW0600-PP | 600 mm (23,62'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW0675-PA6 | 675 mm (26,57'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPW0675-PBT | 675 mm (26,57'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW0675-PE | 675 mm (26,57'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPW0675-PP | 675 mm (26,57'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW0750-PA6 | 750 mm (29,53'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPW0750-PBT | 750 mm (29,53'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW0750-PE | 750 mm (29,53'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPW0750-PP | 750 mm (29,53'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW0825-PA6 | 825 mm (32,48'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPW0825-PBT | 825 mm (32,48'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW0825-PE | 825 mm (32,48'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPW0825-PP | 825 mm (32,48'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW0900-PA6 | 900 mm (35,43'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPW0900-PBT | 900 mm (35,43'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW0900-PE | 900 mm (35,43'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPW0900-PP | 900 mm (35,43'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW0975-PA6 | 975 mm (38,39'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPW0975-PBT | 975 mm (38,39'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW0975-PE | 975 mm (38,39'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPW0975-PP | 975 mm (38,39'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW1050-PA6 | 1050 mm (41,34'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPW1050-PBT | 1050 mm (41,34'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW1050-PE | 1050 mm (41,34'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPW1050-PP | 1050 mm (41,34'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW1125-PA6 | 1125 mm (44,29'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPW1125-PBT | 1125 mm (44,29'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW1125-PE | 1125 mm (44,29'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPW1125-PP | 1125 mm (44,29'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW1200-PA6 | 1200 mm (47,24'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPW1200-PBT | 1200 mm (47,24'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW1200-PE | 1200 mm (47,24'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPW1200-PP | 1200 mm (47,24'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW1275-PA6 | 1275 mm (50,2'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPW1275-PBT | 1275 mm (50,2'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW1275-PE | 1275 mm (50,2'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPW1275-PP | 1275 mm (50,2'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW1350-PA6 | 1350 mm (53,15'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010NTPPW1350-PBT | 1350 mm (53,15'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010NTPPW1350-PE | 1350 mm (53,15'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010NTPPW1350-PP | 1350 mm (53,15'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 10 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
Enquiry Now
To allow us to respond to your enquiry promptly, please provide all required information.
