7010 Heavy duty Flat Top

Modular Belts

Description

Description
These solutions are ideal for various stages of food processing: from vegetable blanching to fruit processing, as well as washing lines in sandy environments and freezing operations. Available materials are Low friction acetal Pigeon Blue (RAL 5014), White and Blue (RAL 5005). The wide range of available heights (up to 76 mm) make the belt suitable for any application, from food to logistic and distribution, from small parts to heavy ones. Side indent and central notches are available to support the belt in the return section, by guiding it with Movex ® extruded wear-strips. Custom your belt and ask for a quotation, look at our website or ask to your sales representative.

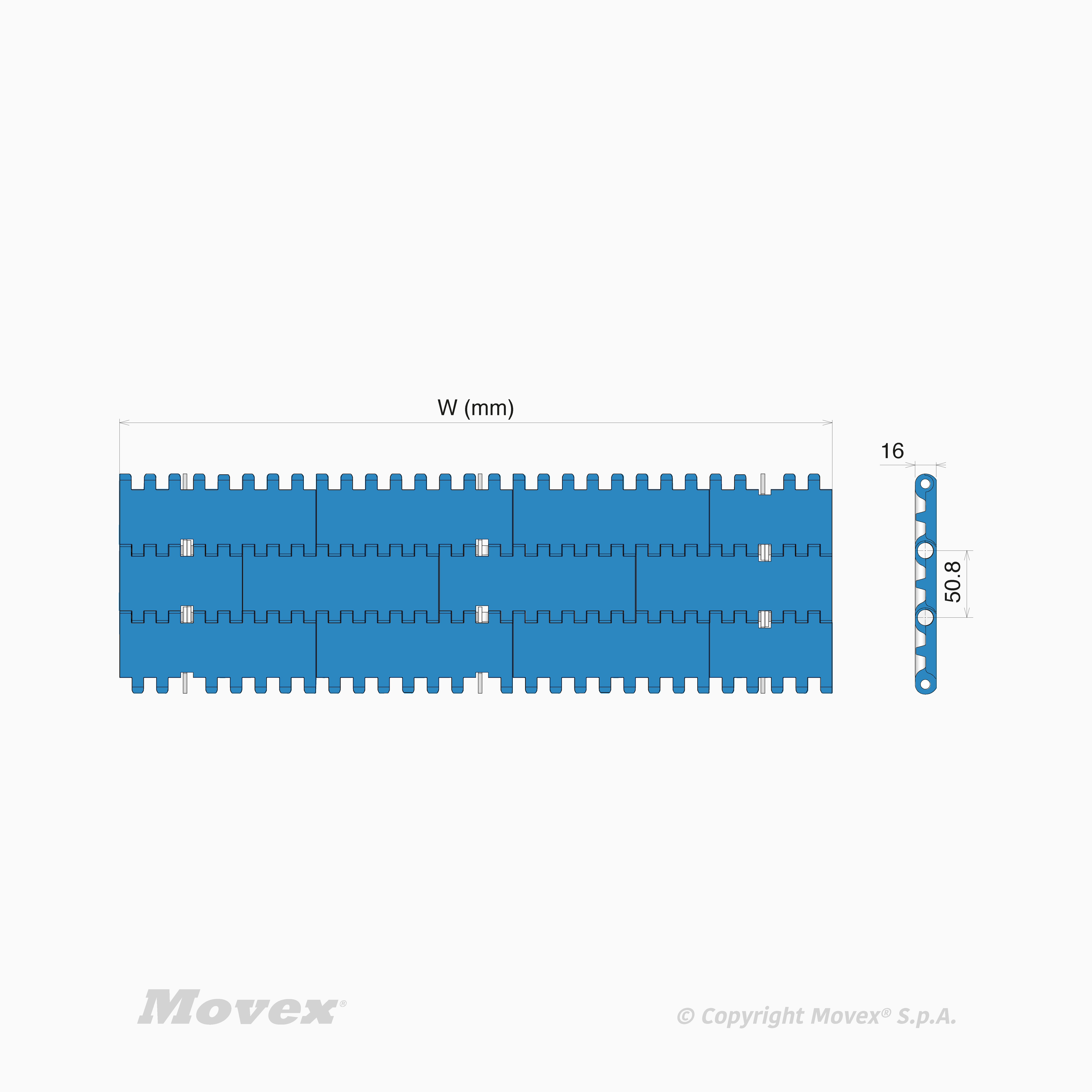

Basic features
Series: 7010
Pitch: 50.8 mm
Thickness: 16 mm
Increments: 75 mm - 2,95"
Surface Type: FT - Flat Top
Functionality: Straight
Unit of measure: Ea

7010 Heavy duty Flat Top

Width Material Pin material Version Part Back flex radius Fixation Supplementary informations
Code Actions
on demand-1 custom custom SS 304 custom on demand 50 mm Self-Locking Pin Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request cart-icon
