7010 Cone Top
Modular Belts
Description
Description
*Belts wider than standard are available with 75 mm increments.
The nominal tensile strength and the nominal width tolerance are valid for a temperature of 23°C (73 °F).
The actual width of the belt typically falls below the nominal value by 0.1% to 0.3%.
For PE belts up to 750 mm (30”) in width, the reduction ranges from -3 mm to 0 mm, and for widths beyond that, from -0.4% to 0%.
For POM belts up to 750 mm (30”) in width, the shrinkage ranges from -3 mm to 0 mm, and for those wider, from -0.4% to 0%.
For PP belts up to 750 mm (30”) in width, the decrease is between -3 mm and 0 mm, with the reduction for wider belts ranging from -0.3% to 0.1%.
Non-Standard belt widths are incremented by 18.75 mm (0.74”). The minimum width is 37.5 mm (1.5”).
Non-bricklayed belts are available in widths of 75 mm (3”), 150 mm (6”), 300 (12”) and 600 mm (24”).

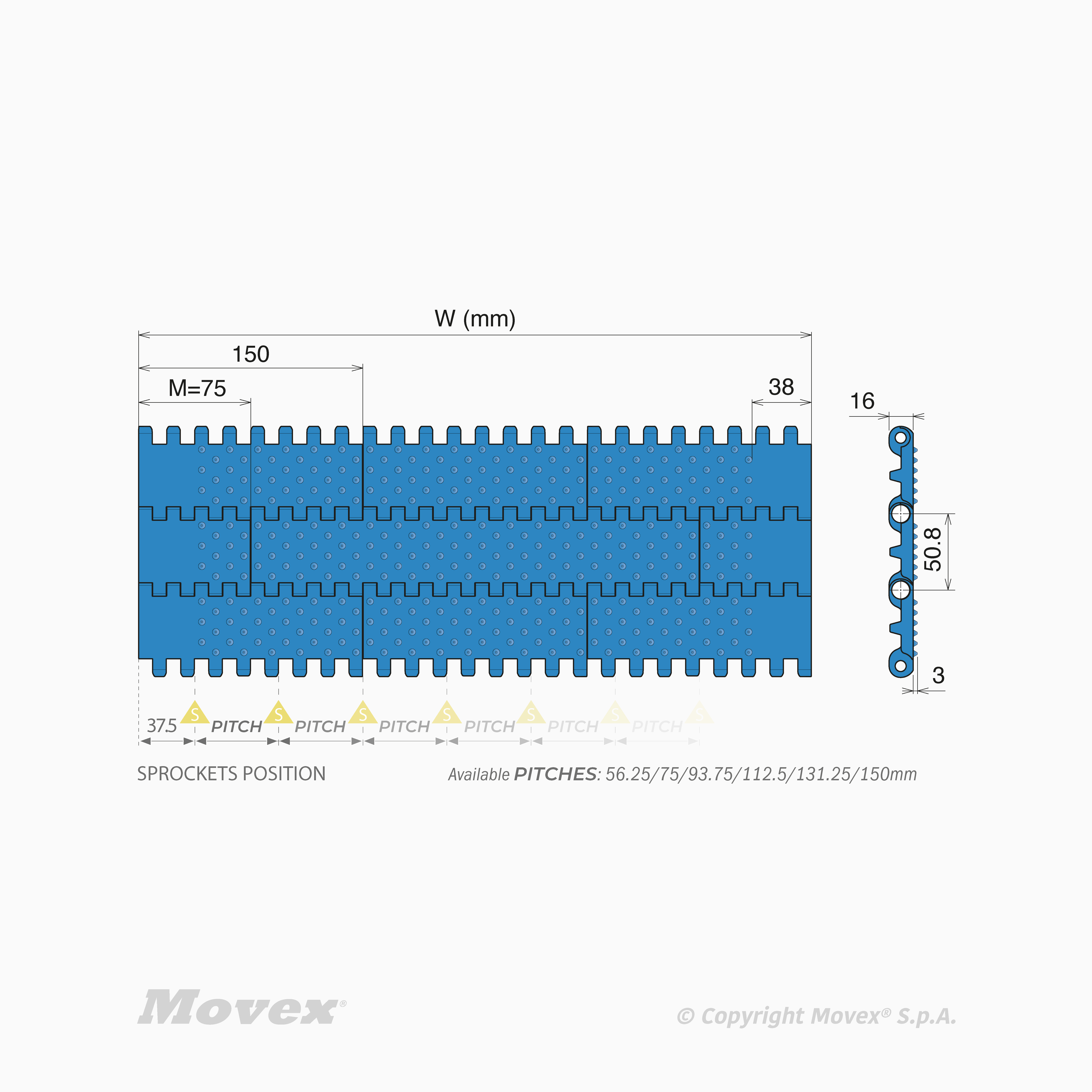

Basic features
| Series: | 7010 |
|---|---|
| Pitch: | 50.8 mm |
| Thickness: | 16 mm |
| Increments: | 75 mm - 2,95" |
| Surface Type: | CT - Cone Top |
| Functionality: | Straight |
| Unit of measure: | Ea |
7010 Cone Top
| Width | Material | Pin material | Version | Part | Back flex radius | Max working load | Mass | Fixation | Temperature range dry | Supplementary informations | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| F7010CTLFB0075-PA6 | 75 mm (2,95'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0075-PBT | 75 mm (2,95'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0075-PE | 75 mm (2,95'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0075-PP | 75 mm (2,95'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0150-PA6 | 150 mm (5,91'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0150-PBT | 150 mm (5,91'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0150-PE | 150 mm (5,91'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0150-PP | 150 mm (5,91'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0225-PA6 | 225 mm (8,86'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0225-PBT | 225 mm (8,86'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0225-PE | 225 mm (8,86'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0225-PP | 225 mm (8,86'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0300-PA6 | 300 mm (11,81'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0300-PBT | 300 mm (11,81'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0300-PE | 300 mm (11,81'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0300-PP | 300 mm (11,81'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0375-PA6 | 375 mm (14,76'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0375-PBT | 375 mm (14,76'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0375-PE | 375 mm (14,76'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0375-PP | 375 mm (14,76'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0450-PA6 | 450 mm (17,72'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0450-PBT | 450 mm (17,72'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0450-PE | 450 mm (17,72'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0450-PP | 450 mm (17,72'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0525-PA6 | 525 mm (20,67'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0525-PBT | 525 mm (20,67'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0525-PE | 525 mm (20,67'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0525-PP | 525 mm (20,67'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0600-PA6 | 600 mm (23,62'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0600-PBT | 600 mm (23,62'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0600-PE | 600 mm (23,62'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0600-PP | 600 mm (23,62'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0675-PA6 | 675 mm (26,57'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0675-PBT | 675 mm (26,57'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0675-PE | 675 mm (26,57'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0675-PP | 675 mm (26,57'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0750-PA6 | 750 mm (29,53'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0750-PBT | 750 mm (29,53'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0750-PE | 750 mm (29,53'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0750-PP | 750 mm (29,53'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0825-PA6 | 825 mm (32,48'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0825-PBT | 825 mm (32,48'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0825-PE | 825 mm (32,48'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0825-PP | 825 mm (32,48'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0900-PA6 | 900 mm (35,43'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0900-PBT | 900 mm (35,43'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0900-PE | 900 mm (35,43'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0900-PP | 900 mm (35,43'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0975-PA6 | 975 mm (38,39'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0975-PBT | 975 mm (38,39'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0975-PE | 975 mm (38,39'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB0975-PP | 975 mm (38,39'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB1050-PA6 | 1050 mm (41,34'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB1050-PBT | 1050 mm (41,34'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB1050-PE | 1050 mm (41,34'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB1050-PP | 1050 mm (41,34'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB1125-PA6 | 1125 mm (44,29'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB1125-PBT | 1125 mm (44,29'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB1125-PE | 1125 mm (44,29'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB1125-PP | 1125 mm (44,29'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB1200-PA6 | 1200 mm (47,24'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB1200-PBT | 1200 mm (47,24'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB1200-PE | 1200 mm (47,24'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB1200-PP | 1200 mm (47,24'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB1275-PA6 | 1275 mm (50,2'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB1275-PBT | 1275 mm (50,2'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB1275-PE | 1275 mm (50,2'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB1275-PP | 1275 mm (50,2'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB1350-PA6 | 1350 mm (53,15'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB1350-PBT | 1350 mm (53,15'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB1350-PE | 1350 mm (53,15'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFB1350-PP | 1350 mm (53,15'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0075-PA6 | 75 mm (2,95'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0075-PBT | 75 mm (2,95'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0075-PE | 75 mm (2,95'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0075-PP | 75 mm (2,95'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0150-PA6 | 150 mm (5,91'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0150-PBT | 150 mm (5,91'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0150-PE | 150 mm (5,91'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0150-PP | 150 mm (5,91'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0225-PA6 | 225 mm (8,86'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0225-PBT | 225 mm (8,86'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0225-PE | 225 mm (8,86'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0225-PP | 225 mm (8,86'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0300-PA6 | 300 mm (11,81'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0300-PBT | 300 mm (11,81'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0300-PE | 300 mm (11,81'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0300-PP | 300 mm (11,81'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0375-PA6 | 375 mm (14,76'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0375-PBT | 375 mm (14,76'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0375-PE | 375 mm (14,76'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0375-PP | 375 mm (14,76'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0450-PA6 | 450 mm (17,72'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0450-PBT | 450 mm (17,72'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0450-PE | 450 mm (17,72'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0450-PP | 450 mm (17,72'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0525-PA6 | 525 mm (20,67'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0525-PBT | 525 mm (20,67'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0525-PE | 525 mm (20,67'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0525-PP | 525 mm (20,67'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0600-PA6 | 600 mm (23,62'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0600-PBT | 600 mm (23,62'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0600-PE | 600 mm (23,62'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0600-PP | 600 mm (23,62'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0675-PA6 | 675 mm (26,57'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0675-PBT | 675 mm (26,57'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0675-PE | 675 mm (26,57'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0675-PP | 675 mm (26,57'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0750-PA6 | 750 mm (29,53'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0750-PBT | 750 mm (29,53'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0750-PE | 750 mm (29,53'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0750-PP | 750 mm (29,53'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0825-PA6 | 825 mm (32,48'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0825-PBT | 825 mm (32,48'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0825-PE | 825 mm (32,48'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0825-PP | 825 mm (32,48'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0900-PA6 | 900 mm (35,43'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0900-PBT | 900 mm (35,43'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0900-PE | 900 mm (35,43'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0900-PP | 900 mm (35,43'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0975-PA6 | 975 mm (38,39'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0975-PBT | 975 mm (38,39'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0975-PE | 975 mm (38,39'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC0975-PP | 975 mm (38,39'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC1050-PA6 | 1050 mm (41,34'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC1050-PBT | 1050 mm (41,34'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC1050-PE | 1050 mm (41,34'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC1050-PP | 1050 mm (41,34'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC1125-PA6 | 1125 mm (44,29'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC1125-PBT | 1125 mm (44,29'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC1125-PE | 1125 mm (44,29'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC1125-PP | 1125 mm (44,29'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC1200-PA6 | 1200 mm (47,24'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC1200-PBT | 1200 mm (47,24'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC1200-PE | 1200 mm (47,24'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC1200-PP | 1200 mm (47,24'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC1275-PA6 | 1275 mm (50,2'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC1275-PBT | 1275 mm (50,2'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC1275-PE | 1275 mm (50,2'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC1275-PP | 1275 mm (50,2'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC1350-PA6 | 1350 mm (53,15'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC1350-PBT | 1350 mm (53,15'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC1350-PE | 1350 mm (53,15'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFC1350-PP | 1350 mm (53,15'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0075-PA6 | 75 mm (2,95'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0075-PBT | 75 mm (2,95'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0075-PE | 75 mm (2,95'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0075-PP | 75 mm (2,95'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0150-PA6 | 150 mm (5,91'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0150-PBT | 150 mm (5,91'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0150-PE | 150 mm (5,91'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0150-PP | 150 mm (5,91'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0225-PA6 | 225 mm (8,86'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0225-PBT | 225 mm (8,86'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0225-PE | 225 mm (8,86'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0225-PP | 225 mm (8,86'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0300-PA6 | 300 mm (11,81'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0300-PBT | 300 mm (11,81'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0300-PE | 300 mm (11,81'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0300-PP | 300 mm (11,81'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0375-PA6 | 375 mm (14,76'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0375-PBT | 375 mm (14,76'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0375-PE | 375 mm (14,76'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0375-PP | 375 mm (14,76'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0450-PA6 | 450 mm (17,72'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0450-PBT | 450 mm (17,72'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0450-PE | 450 mm (17,72'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0450-PP | 450 mm (17,72'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0525-PA6 | 525 mm (20,67'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0525-PBT | 525 mm (20,67'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0525-PE | 525 mm (20,67'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0525-PP | 525 mm (20,67'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0600-PA6 | 600 mm (23,62'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0600-PBT | 600 mm (23,62'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0600-PE | 600 mm (23,62'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0600-PP | 600 mm (23,62'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0675-PA6 | 675 mm (26,57'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0675-PBT | 675 mm (26,57'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0675-PE | 675 mm (26,57'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0675-PP | 675 mm (26,57'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0750-PA6 | 750 mm (29,53'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0750-PBT | 750 mm (29,53'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0750-PE | 750 mm (29,53'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0750-PP | 750 mm (29,53'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0825-PA6 | 825 mm (32,48'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0825-PBT | 825 mm (32,48'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0825-PE | 825 mm (32,48'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0825-PP | 825 mm (32,48'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0900-PA6 | 900 mm (35,43'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0900-PBT | 900 mm (35,43'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0900-PE | 900 mm (35,43'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0900-PP | 900 mm (35,43'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0975-PA6 | 975 mm (38,39'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0975-PBT | 975 mm (38,39'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0975-PE | 975 mm (38,39'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW0975-PP | 975 mm (38,39'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW1050-PA6 | 1050 mm (41,34'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW1050-PBT | 1050 mm (41,34'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW1050-PE | 1050 mm (41,34'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW1050-PP | 1050 mm (41,34'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW1125-PA6 | 1125 mm (44,29'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW1125-PBT | 1125 mm (44,29'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW1125-PE | 1125 mm (44,29'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW1125-PP | 1125 mm (44,29'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW1200-PA6 | 1200 mm (47,24'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW1200-PBT | 1200 mm (47,24'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW1200-PE | 1200 mm (47,24'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW1200-PP | 1200 mm (47,24'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW1275-PA6 | 1275 mm (50,2'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW1275-PBT | 1275 mm (50,2'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW1275-PE | 1275 mm (50,2'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW1275-PP | 1275 mm (50,2'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW1350-PA6 | 1350 mm (53,15'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7010 | 50 mm | 30000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW1350-PBT | 1350 mm (53,15'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7010 | 50 mm | 35000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW1350-PE | 1350 mm (53,15'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7010 | 50 mm | 18000 N/m | 14.1 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTLFW1350-PP | 1350 mm (53,15'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7010 | 50 mm | 16000 N/m | 14.1 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7010CTPEB0075-PA6 | 75 mm (2,95'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0075-PBT | 75 mm (2,95'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0075-PE | 75 mm (2,95'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0075-PP | 75 mm (2,95'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0150-PA6 | 150 mm (5,91'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0150-PBT | 150 mm (5,91'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | - | - |
|
| F7010CTPEB0150-PE | 150 mm (5,91'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0150-PP | 150 mm (5,91'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0225-PA6 | 225 mm (8,86'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0225-PBT | 225 mm (8,86'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | - | - |
|
| F7010CTPEB0225-PE | 225 mm (8,86'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0225-PP | 225 mm (8,86'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0300-PA6 | 300 mm (11,81'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0300-PBT | 300 mm (11,81'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | - | - |
|
| F7010CTPEB0300-PE | 300 mm (11,81'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0300-PP | 300 mm (11,81'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0375-PA6 | 375 mm (14,76'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0375-PBT | 375 mm (14,76'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0375-PE | 375 mm (14,76'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0375-PP | 375 mm (14,76'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0450-PA6 | 450 mm (17,72'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0450-PBT | 450 mm (17,72'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0450-PE | 450 mm (17,72'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0450-PP | 450 mm (17,72'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0525-PA6 | 525 mm (20,67'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0525-PBT | 525 mm (20,67'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0525-PE | 525 mm (20,67'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0525-PP | 525 mm (20,67'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0600-PA6 | 600 mm (23,62'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0600-PBT | 600 mm (23,62'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0600-PE | 600 mm (23,62'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0600-PP | 600 mm (23,62'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0675-PA6 | 675 mm (26,57'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0675-PBT | 675 mm (26,57'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0675-PE | 675 mm (26,57'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0675-PP | 675 mm (26,57'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0750-PA6 | 750 mm (29,53'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0750-PBT | 750 mm (29,53'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0750-PE | 750 mm (29,53'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0750-PP | 750 mm (29,53'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0825-PA6 | 825 mm (32,48'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0825-PBT | 825 mm (32,48'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0825-PE | 825 mm (32,48'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0825-PP | 825 mm (32,48'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0900-PA6 | 900 mm (35,43'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0900-PBT | 900 mm (35,43'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0900-PE | 900 mm (35,43'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0900-PP | 900 mm (35,43'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0975-PA6 | 975 mm (38,39'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0975-PBT | 975 mm (38,39'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0975-PE | 975 mm (38,39'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB0975-PP | 975 mm (38,39'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB1050-PA6 | 1050 mm (41,34'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB1050-PBT | 1050 mm (41,34'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB1050-PE | 1050 mm (41,34'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB1050-PP | 1050 mm (41,34'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB1125-PA6 | 1125 mm (44,29'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB1125-PBT | 1125 mm (44,29'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB1125-PE | 1125 mm (44,29'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB1125-PP | 1125 mm (44,29'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB1200-PA6 | 1200 mm (47,24'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB1200-PBT | 1200 mm (47,24'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB1200-PE | 1200 mm (47,24'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB1200-PP | 1200 mm (47,24'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB1275-PA6 | 1275 mm (50,2'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB1275-PBT | 1275 mm (50,2'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB1275-PE | 1275 mm (50,2'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB1275-PP | 1275 mm (50,2'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB1350-PA6 | 1350 mm (53,15'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB1350-PBT | 1350 mm (53,15'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB1350-PE | 1350 mm (53,15'') | PEB - Polyethylene (blue) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEB1350-PP | 1350 mm (53,15'') | PEB - Polyethylene (blue) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0075-PA6 | 75 mm (2,95'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0075-PBT | 75 mm (2,95'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0075-PE | 75 mm (2,95'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0075-PP | 75 mm (2,95'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0150-PA6 | 150 mm (5,91'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0150-PBT | 150 mm (5,91'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0150-PE | 150 mm (5,91'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0150-PP | 150 mm (5,91'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0225-PA6 | 225 mm (8,86'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0225-PBT | 225 mm (8,86'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0225-PE | 225 mm (8,86'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0225-PP | 225 mm (8,86'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0300-PA6 | 300 mm (11,81'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0300-PBT | 300 mm (11,81'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0300-PE | 300 mm (11,81'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0300-PP | 300 mm (11,81'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0375-PA6 | 375 mm (14,76'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0375-PBT | 375 mm (14,76'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0375-PE | 375 mm (14,76'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0375-PP | 375 mm (14,76'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0450-PA6 | 450 mm (17,72'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0450-PBT | 450 mm (17,72'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0450-PE | 450 mm (17,72'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0450-PP | 450 mm (17,72'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0525-PA6 | 525 mm (20,67'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0525-PBT | 525 mm (20,67'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0525-PE | 525 mm (20,67'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0525-PP | 525 mm (20,67'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0600-PA6 | 600 mm (23,62'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0600-PBT | 600 mm (23,62'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0600-PE | 600 mm (23,62'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0600-PP | 600 mm (23,62'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0675-PA6 | 675 mm (26,57'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0675-PBT | 675 mm (26,57'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0675-PE | 675 mm (26,57'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0675-PP | 675 mm (26,57'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0750-PA6 | 750 mm (29,53'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0750-PBT | 750 mm (29,53'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0750-PE | 750 mm (29,53'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0750-PP | 750 mm (29,53'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0825-PA6 | 825 mm (32,48'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0825-PBT | 825 mm (32,48'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0825-PE | 825 mm (32,48'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0825-PP | 825 mm (32,48'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0900-PA6 | 900 mm (35,43'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0900-PBT | 900 mm (35,43'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0900-PE | 900 mm (35,43'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0900-PP | 900 mm (35,43'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0975-PA6 | 975 mm (38,39'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0975-PBT | 975 mm (38,39'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0975-PE | 975 mm (38,39'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC0975-PP | 975 mm (38,39'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC1050-PA6 | 1050 mm (41,34'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC1050-PBT | 1050 mm (41,34'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC1050-PE | 1050 mm (41,34'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC1050-PP | 1050 mm (41,34'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC1125-PA6 | 1125 mm (44,29'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC1125-PBT | 1125 mm (44,29'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC1125-PE | 1125 mm (44,29'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC1125-PP | 1125 mm (44,29'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC1200-PA6 | 1200 mm (47,24'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC1200-PBT | 1200 mm (47,24'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC1200-PE | 1200 mm (47,24'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC1200-PP | 1200 mm (47,24'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC1275-PA6 | 1275 mm (50,2'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC1275-PBT | 1275 mm (50,2'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC1275-PE | 1275 mm (50,2'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC1275-PP | 1275 mm (50,2'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC1350-PA6 | 1350 mm (53,15'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC1350-PBT | 1350 mm (53,15'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC1350-PE | 1350 mm (53,15'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEC1350-PP | 1350 mm (53,15'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0075-PA6 | 75 mm (2,95'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0075-PBT | 75 mm (2,95'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0075-PE | 75 mm (2,95'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0075-PP | 75 mm (2,95'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0150-PA6 | 150 mm (5,91'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0150-PBT | 150 mm (5,91'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0150-PE | 150 mm (5,91'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0150-PP | 150 mm (5,91'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0225-PA6 | 225 mm (8,86'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0225-PBT | 225 mm (8,86'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0225-PE | 225 mm (8,86'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0225-PP | 225 mm (8,86'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0300-PA6 | 300 mm (11,81'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0300-PBT | 300 mm (11,81'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0300-PE | 300 mm (11,81'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0300-PP | 300 mm (11,81'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0375-PA6 | 375 mm (14,76'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0375-PBT | 375 mm (14,76'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0375-PE | 375 mm (14,76'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0375-PP | 375 mm (14,76'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0450-PA6 | 450 mm (17,72'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0450-PBT | 450 mm (17,72'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0450-PE | 450 mm (17,72'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0450-PP | 450 mm (17,72'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0525-PA6 | 525 mm (20,67'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0525-PBT | 525 mm (20,67'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0525-PE | 525 mm (20,67'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0525-PP | 525 mm (20,67'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0600-PA6 | 600 mm (23,62'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0600-PBT | 600 mm (23,62'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0600-PE | 600 mm (23,62'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0600-PP | 600 mm (23,62'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0675-PA6 | 675 mm (26,57'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0675-PBT | 675 mm (26,57'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0675-PE | 675 mm (26,57'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0675-PP | 675 mm (26,57'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0750-PA6 | 750 mm (29,53'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0750-PBT | 750 mm (29,53'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0750-PE | 750 mm (29,53'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0750-PP | 750 mm (29,53'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0825-PA6 | 825 mm (32,48'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0825-PBT | 825 mm (32,48'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0825-PE | 825 mm (32,48'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0825-PP | 825 mm (32,48'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0900-PA6 | 900 mm (35,43'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0900-PBT | 900 mm (35,43'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0900-PE | 900 mm (35,43'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0900-PP | 900 mm (35,43'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0975-PA6 | 975 mm (38,39'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0975-PBT | 975 mm (38,39'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0975-PE | 975 mm (38,39'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN0975-PP | 975 mm (38,39'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN1050-PA6 | 1050 mm (41,34'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN1050-PBT | 1050 mm (41,34'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN1050-PE | 1050 mm (41,34'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN1050-PP | 1050 mm (41,34'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN1125-PA6 | 1125 mm (44,29'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN1125-PBT | 1125 mm (44,29'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN1125-PE | 1125 mm (44,29'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN1125-PP | 1125 mm (44,29'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN1200-PA6 | 1200 mm (47,24'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN1200-PBT | 1200 mm (47,24'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN1200-PE | 1200 mm (47,24'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN1200-PP | 1200 mm (47,24'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN1275-PA6 | 1275 mm (50,2'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN1275-PBT | 1275 mm (50,2'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN1275-PE | 1275 mm (50,2'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN1275-PP | 1275 mm (50,2'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN1350-PA6 | 1350 mm (53,15'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN1350-PBT | 1350 mm (53,15'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN1350-PE | 1350 mm (53,15'') | PEN - Polyethylene (natural) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEN1350-PP | 1350 mm (53,15'') | PEN - Polyethylene (natural) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0075-PA6 | 75 mm (2,95'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0075-PBT | 75 mm (2,95'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0075-PE | 75 mm (2,95'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0075-PP | 75 mm (2,95'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0150-PA6 | 150 mm (5,91'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0150-PBT | 150 mm (5,91'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0150-PE | 150 mm (5,91'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0150-PP | 150 mm (5,91'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0225-PA6 | 225 mm (8,86'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0225-PBT | 225 mm (8,86'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0225-PE | 225 mm (8,86'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0225-PP | 225 mm (8,86'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0300-PA6 | 300 mm (11,81'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0300-PBT | 300 mm (11,81'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0300-PE | 300 mm (11,81'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0300-PP | 300 mm (11,81'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0375-PA6 | 375 mm (14,76'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0375-PBT | 375 mm (14,76'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0375-PE | 375 mm (14,76'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0375-PP | 375 mm (14,76'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0450-PA6 | 450 mm (17,72'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0450-PBT | 450 mm (17,72'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0450-PE | 450 mm (17,72'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0450-PP | 450 mm (17,72'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0525-PA6 | 525 mm (20,67'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0525-PBT | 525 mm (20,67'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0525-PE | 525 mm (20,67'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0525-PP | 525 mm (20,67'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0600-PA6 | 600 mm (23,62'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0600-PBT | 600 mm (23,62'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0600-PE | 600 mm (23,62'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0600-PP | 600 mm (23,62'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0675-PA6 | 675 mm (26,57'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0675-PBT | 675 mm (26,57'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0675-PE | 675 mm (26,57'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0675-PP | 675 mm (26,57'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0750-PA6 | 750 mm (29,53'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0750-PBT | 750 mm (29,53'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0750-PE | 750 mm (29,53'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0750-PP | 750 mm (29,53'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0825-PA6 | 825 mm (32,48'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0825-PBT | 825 mm (32,48'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0825-PE | 825 mm (32,48'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0825-PP | 825 mm (32,48'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0900-PA6 | 900 mm (35,43'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0900-PBT | 900 mm (35,43'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0900-PE | 900 mm (35,43'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0900-PP | 900 mm (35,43'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0975-PA6 | 975 mm (38,39'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0975-PBT | 975 mm (38,39'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0975-PE | 975 mm (38,39'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW0975-PP | 975 mm (38,39'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW1050-PA6 | 1050 mm (41,34'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW1050-PBT | 1050 mm (41,34'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW1050-PE | 1050 mm (41,34'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW1050-PP | 1050 mm (41,34'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW1125-PA6 | 1125 mm (44,29'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW1125-PBT | 1125 mm (44,29'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW1125-PE | 1125 mm (44,29'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW1125-PP | 1125 mm (44,29'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW1200-PA6 | 1200 mm (47,24'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW1200-PBT | 1200 mm (47,24'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW1200-PE | 1200 mm (47,24'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW1200-PP | 1200 mm (47,24'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW1275-PA6 | 1275 mm (50,2'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW1275-PBT | 1275 mm (50,2'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW1275-PE | 1275 mm (50,2'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW1275-PP | 1275 mm (50,2'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW1350-PA6 | 1350 mm (53,15'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW1350-PBT | 1350 mm (53,15'') | PEW - Polyethylene (white) | PBT White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW1350-PE | 1350 mm (53,15'') | PEW - Polyethylene (white) | PE White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPEW1350-PP | 1350 mm (53,15'') | PEW - Polyethylene (white) | PP White | No positioners | F7010 | 50 mm | 10000 N/m | 9.9 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | - |
|
| F7010CTPPB0075-PA6 | 75 mm (2,95'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPB0075-PBT | 75 mm (2,95'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB0075-PE | 75 mm (2,95'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPB0075-PP | 75 mm (2,95'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB0150-PA6 | 150 mm (5,91'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPB0150-PBT | 150 mm (5,91'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB0150-PE | 150 mm (5,91'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPB0150-PP | 150 mm (5,91'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB0225-PA6 | 225 mm (8,86'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPB0225-PBT | 225 mm (8,86'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB0225-PE | 225 mm (8,86'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPB0225-PP | 225 mm (8,86'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB0300-PA6 | 300 mm (11,81'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPB0300-PBT | 300 mm (11,81'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB0300-PE | 300 mm (11,81'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPB0300-PP | 300 mm (11,81'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB0375-PA6 | 375 mm (14,76'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPB0375-PBT | 375 mm (14,76'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB0375-PE | 375 mm (14,76'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPB0375-PP | 375 mm (14,76'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB0450-PA6 | 450 mm (17,72'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPB0450-PBT | 450 mm (17,72'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB0450-PE | 450 mm (17,72'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPB0450-PP | 450 mm (17,72'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB0525-PA6 | 525 mm (20,67'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPB0525-PBT | 525 mm (20,67'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB0525-PE | 525 mm (20,67'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPB0525-PP | 525 mm (20,67'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB0600-PA6 | 600 mm (23,62'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPB0600-PBT | 600 mm (23,62'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB0600-PE | 600 mm (23,62'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPB0600-PP | 600 mm (23,62'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB0675-PA6 | 675 mm (26,57'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPB0675-PBT | 675 mm (26,57'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB0675-PE | 675 mm (26,57'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPB0675-PP | 675 mm (26,57'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB0750-PA6 | 750 mm (29,53'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPB0750-PBT | 750 mm (29,53'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB0750-PE | 750 mm (29,53'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPB0750-PP | 750 mm (29,53'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB0825-PA6 | 825 mm (32,48'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPB0825-PBT | 825 mm (32,48'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB0825-PE | 825 mm (32,48'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPB0825-PP | 825 mm (32,48'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB0900-PA6 | 900 mm (35,43'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPB0900-PBT | 900 mm (35,43'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB0900-PE | 900 mm (35,43'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPB0900-PP | 900 mm (35,43'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB0975-PA6 | 975 mm (38,39'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPB0975-PBT | 975 mm (38,39'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB0975-PE | 975 mm (38,39'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPB0975-PP | 975 mm (38,39'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB1050-PA6 | 1050 mm (41,34'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPB1050-PBT | 1050 mm (41,34'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB1050-PE | 1050 mm (41,34'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPB1050-PP | 1050 mm (41,34'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB1125-PA6 | 1125 mm (44,29'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPB1125-PBT | 1125 mm (44,29'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB1125-PE | 1125 mm (44,29'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPB1125-PP | 1125 mm (44,29'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB1200-PA6 | 1200 mm (47,24'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPB1200-PBT | 1200 mm (47,24'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB1200-PE | 1200 mm (47,24'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPB1200-PP | 1200 mm (47,24'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB1275-PA6 | 1275 mm (50,2'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPB1275-PBT | 1275 mm (50,2'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB1275-PE | 1275 mm (50,2'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPB1275-PP | 1275 mm (50,2'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB1350-PA6 | 1350 mm (53,15'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPB1350-PBT | 1350 mm (53,15'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPB1350-PE | 1350 mm (53,15'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPB1350-PP | 1350 mm (53,15'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC0075-PA6 | 75 mm (2,95'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPC0075-PBT | 75 mm (2,95'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC0075-PE | 75 mm (2,95'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPC0075-PP | 75 mm (2,95'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC0150-PA6 | 150 mm (5,91'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPC0150-PBT | 150 mm (5,91'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC0150-PE | 150 mm (5,91'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPC0150-PP | 150 mm (5,91'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC0225-PA6 | 225 mm (8,86'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPC0225-PBT | 225 mm (8,86'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC0225-PE | 225 mm (8,86'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPC0225-PP | 225 mm (8,86'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC0300-PA6 | 300 mm (11,81'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPC0300-PBT | 300 mm (11,81'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC0300-PE | 300 mm (11,81'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPC0300-PP | 300 mm (11,81'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC0375-PA6 | 375 mm (14,76'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPC0375-PBT | 375 mm (14,76'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC0375-PE | 375 mm (14,76'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPC0375-PP | 375 mm (14,76'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC0450-PA6 | 450 mm (17,72'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPC0450-PBT | 450 mm (17,72'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC0450-PE | 450 mm (17,72'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPC0450-PP | 450 mm (17,72'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC0525-PA6 | 525 mm (20,67'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPC0525-PBT | 525 mm (20,67'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC0525-PE | 525 mm (20,67'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPC0525-PP | 525 mm (20,67'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC0600-PA6 | 600 mm (23,62'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPC0600-PBT | 600 mm (23,62'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC0600-PE | 600 mm (23,62'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPC0600-PP | 600 mm (23,62'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC0675-PA6 | 675 mm (26,57'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPC0675-PBT | 675 mm (26,57'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC0675-PE | 675 mm (26,57'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPC0675-PP | 675 mm (26,57'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC0750-PA6 | 750 mm (29,53'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPC0750-PBT | 750 mm (29,53'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC0750-PE | 750 mm (29,53'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPC0750-PP | 750 mm (29,53'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC0825-PA6 | 825 mm (32,48'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPC0825-PBT | 825 mm (32,48'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC0825-PE | 825 mm (32,48'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPC0825-PP | 825 mm (32,48'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC0900-PA6 | 900 mm (35,43'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPC0900-PBT | 900 mm (35,43'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC0900-PE | 900 mm (35,43'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPC0900-PP | 900 mm (35,43'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC0975-PA6 | 975 mm (38,39'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPC0975-PBT | 975 mm (38,39'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC0975-PE | 975 mm (38,39'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPC0975-PP | 975 mm (38,39'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC1050-PA6 | 1050 mm (41,34'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPC1050-PBT | 1050 mm (41,34'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC1050-PE | 1050 mm (41,34'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPC1050-PP | 1050 mm (41,34'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC1125-PA6 | 1125 mm (44,29'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPC1125-PBT | 1125 mm (44,29'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC1125-PE | 1125 mm (44,29'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPC1125-PP | 1125 mm (44,29'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC1200-PA6 | 1200 mm (47,24'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPC1200-PBT | 1200 mm (47,24'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC1200-PE | 1200 mm (47,24'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPC1200-PP | 1200 mm (47,24'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC1275-PA6 | 1275 mm (50,2'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPC1275-PBT | 1275 mm (50,2'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC1275-PE | 1275 mm (50,2'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPC1275-PP | 1275 mm (50,2'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC1350-PA6 | 1350 mm (53,15'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPC1350-PBT | 1350 mm (53,15'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPC1350-PE | 1350 mm (53,15'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPC1350-PP | 1350 mm (53,15'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW0075-PA6 | 75 mm (2,95'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPW0075-PBT | 75 mm (2,95'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW0075-PE | 75 mm (2,95'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPW0075-PP | 75 mm (2,95'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW0150-PA6 | 150 mm (5,91'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPW0150-PBT | 150 mm (5,91'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW0150-PE | 150 mm (5,91'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPW0150-PP | 150 mm (5,91'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW0225-PA6 | 225 mm (8,86'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPW0225-PBT | 225 mm (8,86'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW0225-PE | 225 mm (8,86'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPW0225-PP | 225 mm (8,86'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW0300-PA6 | 300 mm (11,81'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPW0300-PBT | 300 mm (11,81'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW0300-PE | 300 mm (11,81'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPW0300-PP | 300 mm (11,81'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW0375-PA6 | 375 mm (14,76'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPW0375-PBT | 375 mm (14,76'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW0375-PE | 375 mm (14,76'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPW0375-PP | 375 mm (14,76'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW0450-PA6 | 450 mm (17,72'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPW0450-PBT | 450 mm (17,72'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW0450-PE | 450 mm (17,72'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPW0450-PP | 450 mm (17,72'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW0525-PA6 | 525 mm (20,67'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPW0525-PBT | 525 mm (20,67'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW0525-PE | 525 mm (20,67'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPW0525-PP | 525 mm (20,67'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW0600-PA6 | 600 mm (23,62'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPW0600-PBT | 600 mm (23,62'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW0600-PE | 600 mm (23,62'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPW0600-PP | 600 mm (23,62'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW0675-PA6 | 675 mm (26,57'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPW0675-PBT | 675 mm (26,57'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW0675-PE | 675 mm (26,57'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPW0675-PP | 675 mm (26,57'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW0750-PA6 | 750 mm (29,53'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPW0750-PBT | 750 mm (29,53'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW0750-PE | 750 mm (29,53'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPW0750-PP | 750 mm (29,53'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW0825-PA6 | 825 mm (32,48'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPW0825-PBT | 825 mm (32,48'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW0825-PE | 825 mm (32,48'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPW0825-PP | 825 mm (32,48'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW0900-PA6 | 900 mm (35,43'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPW0900-PBT | 900 mm (35,43'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW0900-PE | 900 mm (35,43'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPW0900-PP | 900 mm (35,43'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW0975-PA6 | 975 mm (38,39'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPW0975-PBT | 975 mm (38,39'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW0975-PE | 975 mm (38,39'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPW0975-PP | 975 mm (38,39'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW1050-PA6 | 1050 mm (41,34'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPW1050-PBT | 1050 mm (41,34'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW1050-PE | 1050 mm (41,34'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPW1050-PP | 1050 mm (41,34'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW1125-PA6 | 1125 mm (44,29'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPW1125-PBT | 1125 mm (44,29'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW1125-PE | 1125 mm (44,29'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPW1125-PP | 1125 mm (44,29'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW1200-PA6 | 1200 mm (47,24'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPW1200-PBT | 1200 mm (47,24'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW1200-PE | 1200 mm (47,24'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPW1200-PP | 1200 mm (47,24'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW1275-PA6 | 1275 mm (50,2'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPW1275-PBT | 1275 mm (50,2'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW1275-PE | 1275 mm (50,2'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPW1275-PP | 1275 mm (50,2'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW1350-PA6 | 1350 mm (53,15'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7010 | 50 mm | 22000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7010CTPPW1350-PBT | 1350 mm (53,15'') | PPW - Polypropylene (white) | PBT White | No positioners | F7010 | 50 mm | 26000 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7010CTPPW1350-PE | 1350 mm (53,15'') | PPW - Polypropylene (white) | PE White | No positioners | F7010 | 50 mm | 13500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7010CTPPW1350-PP | 1350 mm (53,15'') | PPW - Polypropylene (white) | PP White | No positioners | F7010 | 50 mm | 14500 N/m | 9.5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 7 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
Enquiry Now
To allow us to respond to your enquiry promptly, please provide all required information.
