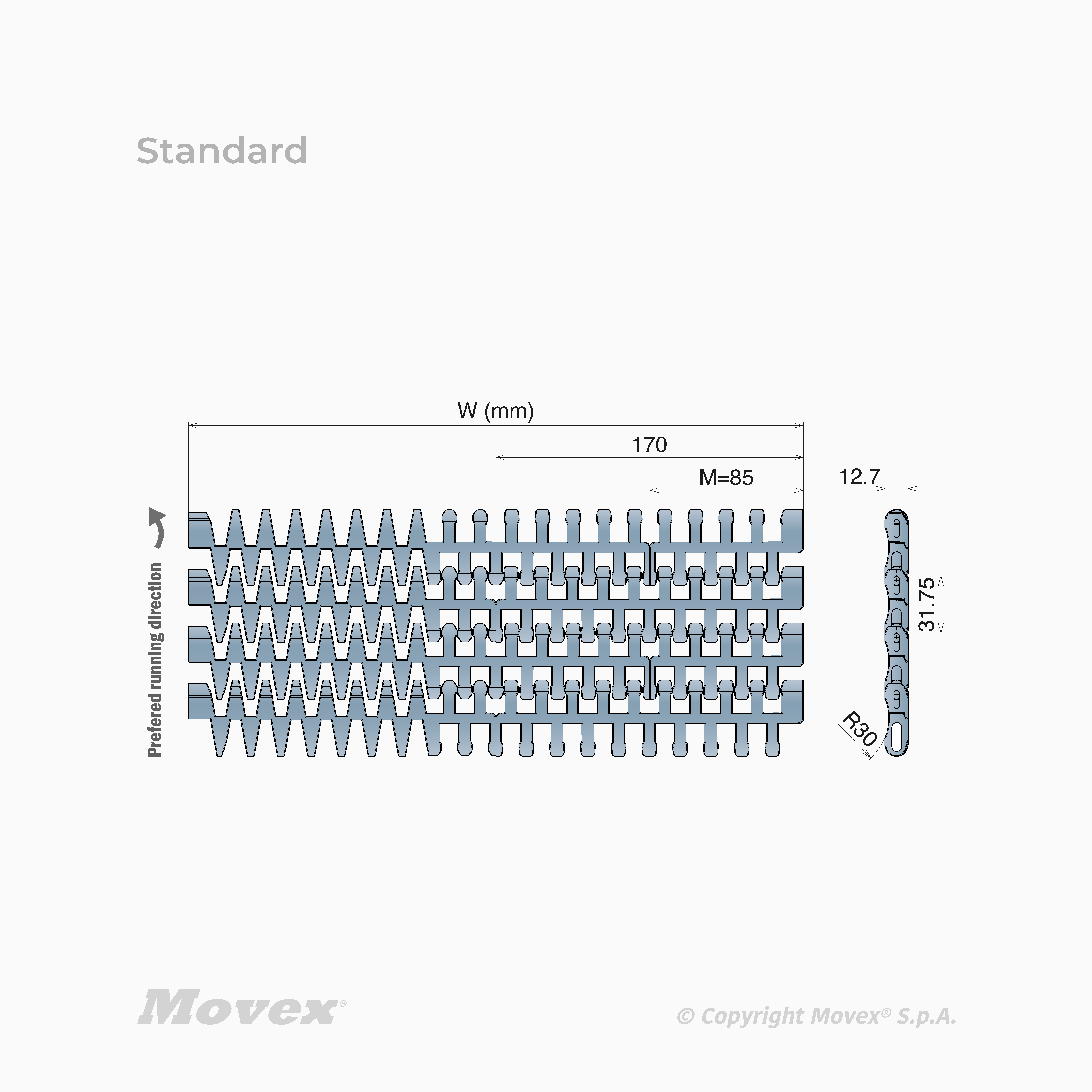

600 Small Radius
Modular Belts
Description
Basic features
| Series: | 600 |
|---|---|
| Pitch: | 31.75 mm |
| Thickness: | 12.7 mm |
| Increments: | 85 mm |
| Surface Type: | FT - Flat Top |
| Functionality: | Side-Flexing |
| Unit of measure: | Meter |
600 Small Radius
| Width | Material | Version | Part | Back flex radius | Max working load | Mass | Pin material | Fixation | Box | Temperature range dry | Temperature range wet | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||
| P5423010340A | 340 mm (13,39") | LFA - Low friction acetal (01) | A - No tab | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 880mm Open Surface 29,5 % |
|

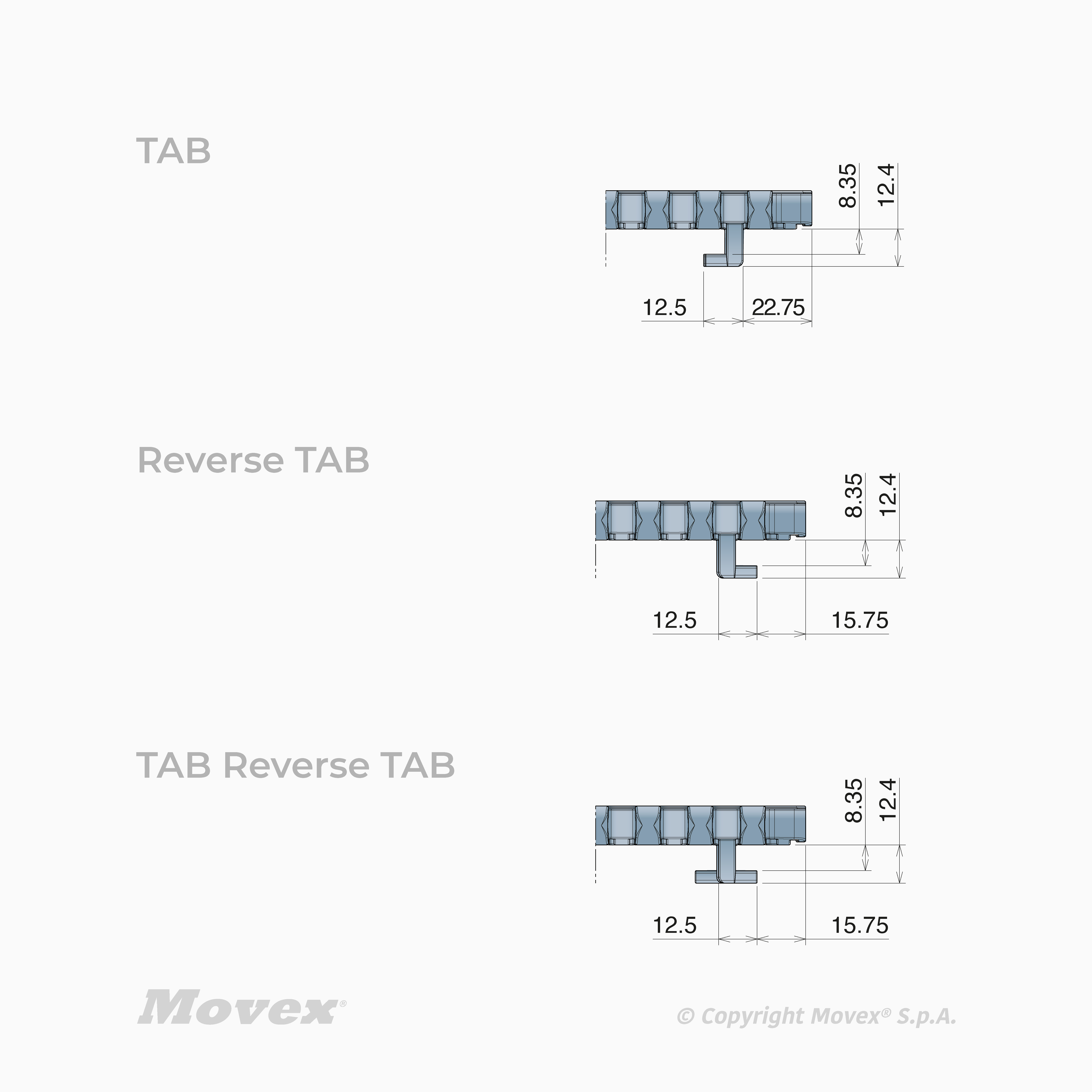

| P5423010340B | 340 mm (13,39") | LFA - Low friction acetal (01) | B - TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5423010340C | 340 mm (13,39") | LFA - Low friction acetal (01) | C - REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5423010340D | 340 mm (13,39") | LFA - Low friction acetal (01) | D - TAB REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 720 mm Open Surface 29,5 % |
|
| P5423010425A | 425 mm (16,73") | LFA - Low friction acetal (01) | A - No tab | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5423010425B | 425 mm (16,73") | LFA - Low friction acetal (01) | B - TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5423010425C | 425 mm (16,73") | LFA - Low friction acetal (01) | C - REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5423010425D | 425 mm (16,73") | LFA - Low friction acetal (01) | D - TAB REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 1040 mm Open Surface 29,5 % |
|
| P5423010510A | 510 mm (20,08") | LFA - Low friction acetal (01) | A - No tab | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5423010510B | 510 mm (20,08") | LFA - Low friction acetal (01) | B - TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5423010510C | 510 mm (20,08") | LFA - Low friction acetal (01) | C - REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5423010510D | 510 mm (20,08") | LFA - Low friction acetal (01) | D - TAB REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 1200 mm Open Surface 29,5 % |
|
| P5423010595A | 595 mm (23,43") | LFA - Low friction acetal (01) | A - No tab | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | - |
|
| P5423010595B | 595 mm (23,43") | LFA - Low friction acetal (01) | B - TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | - |
|
| P5423010595C | 595 mm (23,43") | LFA - Low friction acetal (01) | C - REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | - |
|
| P5423010595D | 595 mm (23,43") | LFA - Low friction acetal (01) | D - TAB REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 400 mm Open Surface 29,5 % |
|
| P5423010680A | 680 mm (26,77") | LFA - Low friction acetal (01) | A - No tab | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | - |
|
| P5423010680B | 680 mm (26,77") | LFA - Low friction acetal (01) | B - TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | - |
|
| P5423010680C | 680 mm (26,77") | LFA - Low friction acetal (01) | C - REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 500 mm Open Surface 29,5 % |
|
| P5423010680D | 680 mm (26,77") | LFA - Low friction acetal (01) | D - TAB REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 500 mm Open Surface 29,5 % |
|
| P5423010765A | 765 mm (30,12") | LFA - Low friction acetal (01) | A - No tab | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | - |
|
| P5423010765B | 765 mm (30,12") | LFA - Low friction acetal (01) | B - TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | - |
|
| P5423010765C | 765 mm (30,12") | LFA - Low friction acetal (01) | C - REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 600mm Open Surface 29,5 % |
|
| P5423010765D | 765 mm (30,12") | LFA - Low friction acetal (01) | D - TAB REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 600mm Open Surface 29,5 % |
|
| P5423010850A | 850 mm (33,46") | LFA - Low friction acetal (01) | A - No tab | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | - |
|
| P5423010850B | 850 mm (33,46") | LFA - Low friction acetal (01) | B - TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | - |
|
| P5423010850C | 850 mm (33,46") | LFA - Low friction acetal (01) | C - REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 720 mm Open Surface 29,5 % |
|
| P5423010850D | 850 mm (33,46") | LFA - Low friction acetal (01) | D - TAB REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 720 mm Open Surface 29,5 % |
|
| P5423230340A | 340 mm (13,39") | LFB - Low friction acetal (Blue) | A - No tab | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 1040 mm Open Surface 29,5 % |
|
| P5423230340B | 340 mm (13,39") | LFB - Low friction acetal (Blue) | B - TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 1040 mm Open Surface 29,5 % |
|
| P5423230340C | 340 mm (13,39") | LFB - Low friction acetal (Blue) | C - REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 500 mm Open Surface 29,5 % |
|
| P5423230340D | 340 mm (13,39") | LFB - Low friction acetal (Blue) | D - TAB REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 880mm Open Surface 29,5 % |
|
| P5423230425A | 425 mm (16,73") | LFB - Low friction acetal (Blue) | A - No tab | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 1200 mm Open Surface 29,5 % |
|
| P5423230425B | 425 mm (16,73") | LFB - Low friction acetal (Blue) | B - TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 600mm Open Surface 29,5 % |
|
| P5423230425C | 425 mm (16,73") | LFB - Low friction acetal (Blue) | C - REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 600mm Open Surface 29,5 % |
|
| P5423230425D | 425 mm (16,73") | LFB - Low friction acetal (Blue) | D - TAB REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 880mm Open Surface 29,5 % |
|
| P5423230510A | 510 mm (20,08") | LFB - Low friction acetal (Blue) | A - No tab | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 1200 mm Open Surface 29,5 % |
|
| P5423230510B | 510 mm (20,08") | LFB - Low friction acetal (Blue) | B - TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 880mm Open Surface 29,5 % |
|
| P5423230510C | 510 mm (20,08") | LFB - Low friction acetal (Blue) | C - REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 600mm Open Surface 29,5 % |
|
| P5423230510D | 510 mm (20,08") | LFB - Low friction acetal (Blue) | D - TAB REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 880mm Open Surface 29,5 % |
|
| P5423230595A | 595 mm (23,43") | LFB - Low friction acetal (Blue) | A - No tab | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 400 mm Open Surface 29,5 % |
|
| P5423230595B | 595 mm (23,43") | LFB - Low friction acetal (Blue) | B - TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 500 mm Open Surface 29,5 % |
|
| P5423230595C | 595 mm (23,43") | LFB - Low friction acetal (Blue) | C - REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 600mm Open Surface 29,5 % |
|
| P5423230595D | 595 mm (23,43") | LFB - Low friction acetal (Blue) | D - TAB REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 880mm Open Surface 29,5 % |
|
| P5423230680A | 680 mm (26,77") | LFB - Low friction acetal (Blue) | A - No tab | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 500 mm Open Surface 29,5 % |
|
| P5423230680B | 680 mm (26,77") | LFB - Low friction acetal (Blue) | B - TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 1200 mm Open Surface 29,5 % |
|
| P5423230680C | 680 mm (26,77") | LFB - Low friction acetal (Blue) | C - REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 600mm Open Surface 29,5 % |
|
| P5423230680D | 680 mm (26,77") | LFB - Low friction acetal (Blue) | D - TAB REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 1200 mm Open Surface 29,5 % |
|
| P5423230765A | 765 mm (30,12") | LFB - Low friction acetal (Blue) | A - No tab | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 600mm Open Surface 29,5 % |
|
| P5423230765B | 765 mm (30,12") | LFB - Low friction acetal (Blue) | B - TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 400 mm Open Surface 29,5 % |
|
| P5423230765C | 765 mm (30,12") | LFB - Low friction acetal (Blue) | C - REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 720 mm Open Surface 29,5 % |
|
| P5423230765D | 765 mm (30,12") | LFB - Low friction acetal (Blue) | D - TAB REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 500 mm Open Surface 29,5 % |
|
| P5423230850A | 850 mm (33,46") | LFB - Low friction acetal (Blue) | A - No tab | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 720 mm Open Surface 29,5 % |
|
| P5423230850B | 850 mm (33,46") | LFB - Low friction acetal (Blue) | B - TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 500 mm Open Surface 29,5 % |
|
| P5423230850C | 850 mm (33,46") | LFB - Low friction acetal (Blue) | C - REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 720 mm Open Surface 29,5 % |
|
| P5423230850D | 850 mm (33,46") | LFB - Low friction acetal (Blue) | D - TAB REVERSE TAB | P5423 | 25 mm | 30000 N/m | 7 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Specific Curve Max. Working Load - 2500N Min. Radius 600mm Open Surface 29,5 % |
|
