590 split machined sprocket

590 split machined sprocket

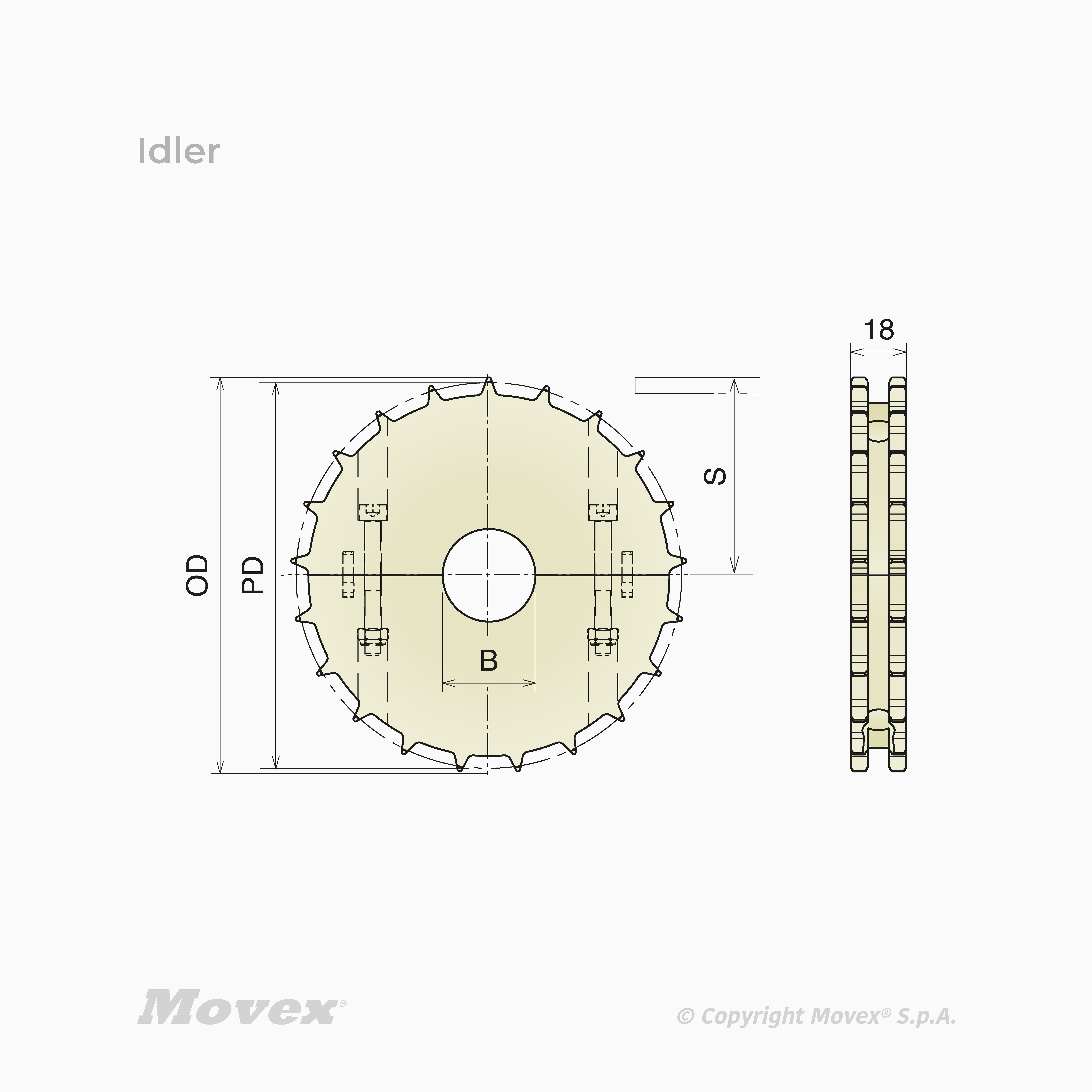

	Z-	Bore	Version	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code	All 17 21 24 25	All 18 mm 25 mm 25 x 25 mm 30 mm 30 x 30 mm 35 mm 40 mm 40 x 40 mm	All Drive Idler	All Split	All Machined	All 100.7 mm 126 mm 142.9 mm 149 mm	All 103.4 mm 128.7 mm 145.6 mm 151.7 mm	All 46 mm 58.65 mm 67.1 mm 70.15 mm	All PA - Polyamide composite	All -40÷80 °C	All -20÷120 °C	Actions
P151101	17	25 mm	Drive	Split	Machined	100.7 mm	103.4 mm	46 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151102	17	30 mm	Drive	Split	Machined	100.7 mm	103.4 mm	46 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151103	17	35 mm	Drive	Split	Machined	100.7 mm	103.4 mm	46 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151104	17	40 mm	Drive	Split	Machined	100.7 mm	103.4 mm	46 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151106	17	25 x 25 mm	Drive	Split	Machined	100.7 mm	103.4 mm	46 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151107	17	30 x 30 mm	Drive	Split	Machined	100.7 mm	103.4 mm	46 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151108	17	40 x 40 mm	Drive	Split	Machined	100.7 mm	103.4 mm	46 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151150	17	18 mm	Idler	Split	Machined	100.7 mm	103.4 mm	46 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151151	17	25 mm	Idler	Split	Machined	100.7 mm	103.4 mm	46 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151152	17	30 mm	Idler	Split	Machined	100.7 mm	103.4 mm	46 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151153	17	35 mm	Idler	Split	Machined	100.7 mm	103.4 mm	46 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151154	17	40 mm	Idler	Split	Machined	100.7 mm	103.4 mm	46 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151201	21	25 mm	Drive	Split	Machined	126 mm	128.7 mm	58.65 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151202	21	30 mm	Drive	Split	Machined	126 mm	128.7 mm	58.65 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151203	21	35 mm	Drive	Split	Machined	126 mm	128.7 mm	58.65 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151204	21	40 mm	Drive	Split	Machined	126 mm	128.7 mm	58.65 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151206	21	25 x 25 mm	Drive	Split	Machined	126 mm	128.7 mm	58.65 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151207	21	30 x 30 mm	Drive	Split	Machined	126 mm	128.7 mm	58.65 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151208	21	40 x 40 mm	Drive	Split	Machined	126 mm	128.7 mm	58.65 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151250	21	18 mm	Idler	Split	Machined	126 mm	128.7 mm	58.65 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151251	21	25 mm	Idler	Split	Machined	126 mm	128.7 mm	58.65 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151252	21	30 mm	Idler	Split	Machined	126 mm	128.7 mm	58.65 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151253	21	35 mm	Idler	Split	Machined	126 mm	128.7 mm	58.65 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151254	21	40 mm	Idler	Split	Machined	126 mm	128.7 mm	58.65 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151301	24	25 mm	Drive	Split	Machined	142.9 mm	145.6 mm	67.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151302	24	30 mm	Drive	Split	Machined	142.9 mm	145.6 mm	67.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151303	24	35 mm	Drive	Split	Machined	142.9 mm	145.6 mm	67.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151304	24	40 mm	Drive	Split	Machined	142.9 mm	145.6 mm	67.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151306	24	25 x 25 mm	Drive	Split	Machined	142.9 mm	145.6 mm	67.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151307	24	30 x 30 mm	Drive	Split	Machined	142.9 mm	145.6 mm	67.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151308	24	40 x 40 mm	Drive	Split	Machined	142.9 mm	145.6 mm	67.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151350	24	18 mm	Idler	Split	Machined	142.9 mm	145.6 mm	67.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151351	24	25 mm	Idler	Split	Machined	142.9 mm	145.6 mm	67.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151352	24	30 mm	Idler	Split	Machined	142.9 mm	145.6 mm	67.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151353	24	35 mm	Idler	Split	Machined	142.9 mm	145.6 mm	67.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151354	24	40 mm	Idler	Split	Machined	142.9 mm	145.6 mm	67.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151401	25	25 mm	Drive	Split	Machined	149 mm	151.7 mm	70.15 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151402	25	30 mm	Drive	Split	Machined	149 mm	151.7 mm	70.15 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151403	25	35 mm	Drive	Split	Machined	149 mm	151.7 mm	70.15 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151404	25	40 mm	Drive	Split	Machined	149 mm	151.7 mm	70.15 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151406	25	25 x 25 mm	Drive	Split	Machined	149 mm	151.7 mm	70.15 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151407	25	30 x 30 mm	Drive	Split	Machined	149 mm	151.7 mm	70.15 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151408	25	40 x 40 mm	Drive	Split	Machined	149 mm	151.7 mm	70.15 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151450	25	18 mm	Idler	Split	Machined	149 mm	151.7 mm	70.15 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151451	25	25 mm	Idler	Split	Machined	149 mm	151.7 mm	70.15 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151452	25	30 mm	Idler	Split	Machined	149 mm	151.7 mm	70.15 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151453	25	35 mm	Idler	Split	Machined	149 mm	151.7 mm	70.15 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P151454	25	40 mm	Idler	Split	Machined	149 mm	151.7 mm	70.15 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C

•
