590 Flush Grid
Modular Belts
Description
Description
*Belts wider than standard are available with 3 inch increments.
The nominal tensile strength and the nominal width tolerance are valid for a temperature of 23°C (73 °F).
The actual width of the belt typically falls below the nominal value by 0.1% to 0.3%.
For POM belts up to 750 mm (30”) in width, the shrinkage ranges from -4 mm to 0 mm, and for those wider, from -0.5% to 0%.
For PP belts up to 750 mm (30”) in width, the decrease is between -3 mm and 0 mm, with the reduction for wider belts ranging from -0.25% to 0.25%.
Non-Standard belt widths are incremented by 12.7 mm (0.5”). The minimum width is 76.2 (3.0”).

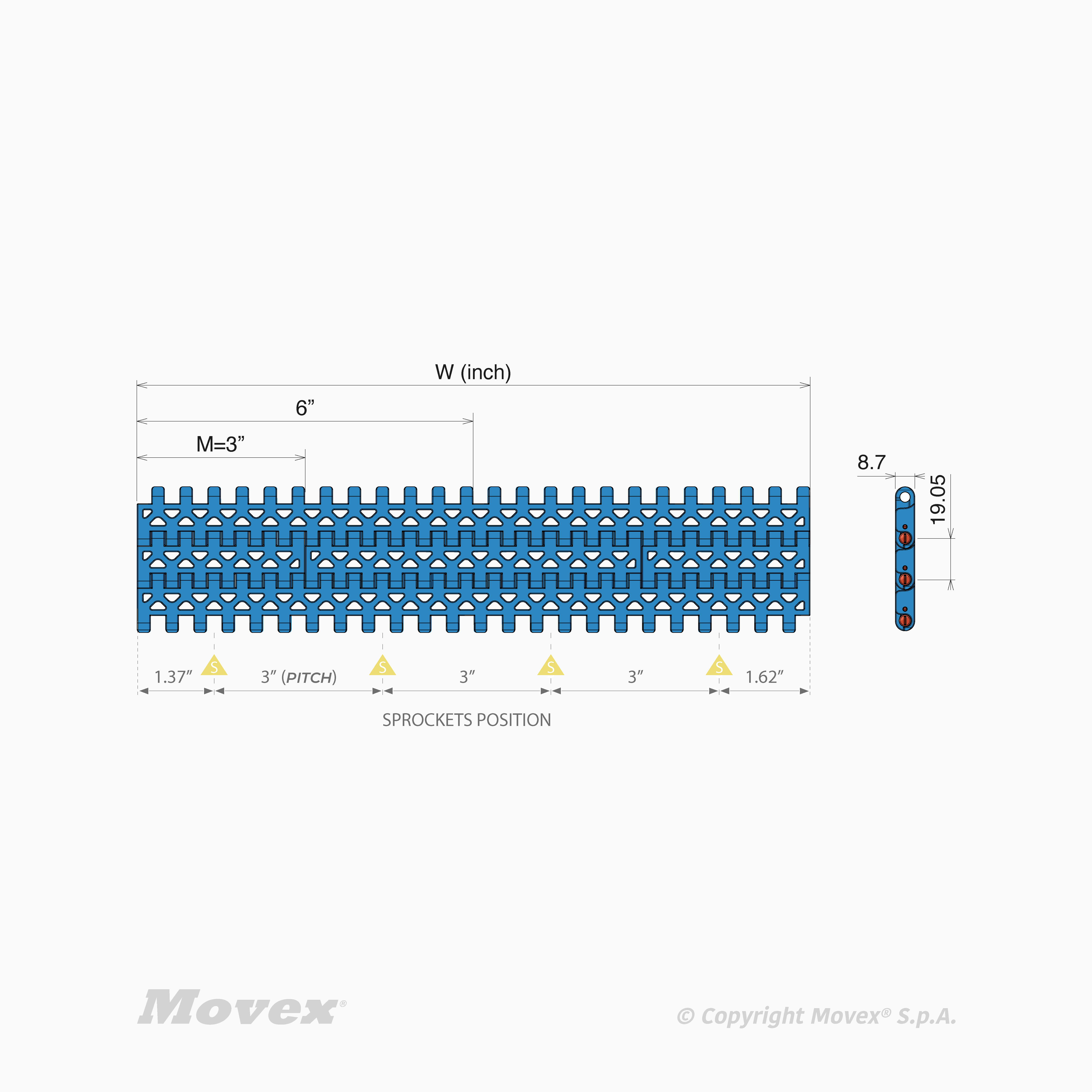

Basic features
| Series: | 590 |
|---|---|
| Pitch: | 19.05 mm |
| Thickness: | 8.7 mm |
| Increments: | 3" - 76,2 mm |
| Surface Type: | FG - Flush Grid |
| Functionality: | Straight |
| Unit of measure: | Ea (Part F590) |
590 Flush Grid
| Width | Material | Pin material | Version | Part | Back flex radius | Max working load | Fixation | Box | Temperature range dry | Temperature range wet | Mass | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||
| F590FGLFA0003-PA6 | 3" (76,2 mm) | LFA - Low friction acetal (01) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFA0003-PE | 3" (76,2 mm) | LFA - Low friction acetal (01) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0003-PP | 3" (76,2 mm) | LFA - Low friction acetal (01) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0006-PA6 | 6" (152,4 mm) | LFA - Low friction acetal (01) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0006-PE | 6" (152,4 mm) | LFA - Low friction acetal (01) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0006-PP | 6" (152,4 mm) | LFA - Low friction acetal (01) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0009-PA6 | 9" (228,6 mm) | LFA - Low friction acetal (01) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0009-PE | 9" (228,6 mm) | LFA - Low friction acetal (01) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFA0009-PP | 9" (228,6 mm) | LFA - Low friction acetal (01) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0012-PA6 | 12" (304,8 mm) | LFA - Low friction acetal (01) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFA0012-PE | 12" (304,8 mm) | LFA - Low friction acetal (01) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0012-PP | 12" (304,8 mm) | LFA - Low friction acetal (01) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFA0015-PA6 | 15" (381 mm) | LFA - Low friction acetal (01) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFA0015-PE | 15" (381 mm) | LFA - Low friction acetal (01) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0015-PP | 15" (381 mm) | LFA - Low friction acetal (01) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0018-PA6 | 18" (457,2 mm) | LFA - Low friction acetal (01) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0018-PE | 18" (457,2 mm) | LFA - Low friction acetal (01) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0018-PP | 18" (457,2 mm) | LFA - Low friction acetal (01) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0021-PA6 | 21" (533,4 mm) | LFA - Low friction acetal (01) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0021-PE | 21" (533,4 mm) | LFA - Low friction acetal (01) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFA0021-PP | 21" (533,4 mm) | LFA - Low friction acetal (01) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0024-PA6 | 24" (609,6 mm) | LFA - Low friction acetal (01) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0024-PE | 24" (609,6 mm) | LFA - Low friction acetal (01) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0024-PP | 24" (609,6 mm) | LFA - Low friction acetal (01) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFA0027-PA6 | 27" (685,8 mm) | LFA - Low friction acetal (01) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0027-PE | 27" (685,8 mm) | LFA - Low friction acetal (01) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0027-PP | 27" (685,8 mm) | LFA - Low friction acetal (01) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFA0030-PA6 | 30" (762 mm) | LFA - Low friction acetal (01) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFA0030-PE | 30" (762 mm) | LFA - Low friction acetal (01) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0030-PP | 30" (762 mm) | LFA - Low friction acetal (01) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0033-PA6 | 33" (838,2 mm) | LFA - Low friction acetal (01) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFA0033-PE | 33" (838,2 mm) | LFA - Low friction acetal (01) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0033-PP | 33" (838,2 mm) | LFA - Low friction acetal (01) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFA0036-PA6 | 36" (914,4 mm) | LFA - Low friction acetal (01) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0036-PE | 36" (914,4 mm) | LFA - Low friction acetal (01) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFA0036-PP | 36" (914,4 mm) | LFA - Low friction acetal (01) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFA0039-PA6 | 39" (990,6 mm) | LFA - Low friction acetal (01) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFA0039-PE | 39" (990,6 mm) | LFA - Low friction acetal (01) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFA0039-PP | 39" (990,6 mm) | LFA - Low friction acetal (01) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFA0042-PA6 | 42" (1066,8 mm) | LFA - Low friction acetal (01) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFA0042-PE | 42" (1066,8 mm) | LFA - Low friction acetal (01) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFA0042-PP | 42" (1066,8 mm) | LFA - Low friction acetal (01) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0045-PA6 | 45" (1143 mm) | LFA - Low friction acetal (01) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFA0045-PE | 45" (1143 mm) | LFA - Low friction acetal (01) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFA0045-PP | 45" (1143 mm) | LFA - Low friction acetal (01) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFA0048-PA6 | 48" (1219,2 mm) | LFA - Low friction acetal (01) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFA0048-PE | 48" (1219,2 mm) | LFA - Low friction acetal (01) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFA0048-PP | 48" (1219,2 mm) | LFA - Low friction acetal (01) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFA0051-PA6 | 51" (1295,4 mm) | LFA - Low friction acetal (01) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0051-PE | 51" (1295,4 mm) | LFA - Low friction acetal (01) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0051-PP | 51" (1295,4 mm) | LFA - Low friction acetal (01) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFA0054-PA6 | 54" (1371,6 mm) | LFA - Low friction acetal (01) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0054-PE | 54" (1371,6 mm) | LFA - Low friction acetal (01) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFA0054-PP | 54" (1371,6 mm) | LFA - Low friction acetal (01) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0003-PA6 | 3" (76,2 mm) | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | - |
|
| F590FGLFB0003-PE | 3" (76,2 mm) | LFB - Low friction acetal (Blue) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0003-PP | 3" (76,2 mm) | LFB - Low friction acetal (Blue) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFB0006-PA6 | 6" (152,4 mm) | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFB0006-PE | 6" (152,4 mm) | LFB - Low friction acetal (Blue) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0006-PP | 6" (152,4 mm) | LFB - Low friction acetal (Blue) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0009-PA6 | 9" (228,6 mm) | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFB0009-PE | 9" (228,6 mm) | LFB - Low friction acetal (Blue) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFB0009-PP | 9" (228,6 mm) | LFB - Low friction acetal (Blue) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFB0012-PA6 | 12" (304,8 mm) | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0012-PE | 12" (304,8 mm) | LFB - Low friction acetal (Blue) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFB0012-PP | 12" (304,8 mm) | LFB - Low friction acetal (Blue) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFB0015-PA6 | 15" (381 mm) | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFB0015-PE | 15" (381 mm) | LFB - Low friction acetal (Blue) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0015-PP | 15" (381 mm) | LFB - Low friction acetal (Blue) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFB0018-PA6 | 18" (457,2 mm) | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0018-PE | 18" (457,2 mm) | LFB - Low friction acetal (Blue) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0018-PP | 18" (457,2 mm) | LFB - Low friction acetal (Blue) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0021-PA6 | 21" (533,4 mm) | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0021-PE | 21" (533,4 mm) | LFB - Low friction acetal (Blue) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFB0021-PP | 21" (533,4 mm) | LFB - Low friction acetal (Blue) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0024-PA6 | 24" (609,6 mm) | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0024-PE | 24" (609,6 mm) | LFB - Low friction acetal (Blue) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0024-PP | 24" (609,6 mm) | LFB - Low friction acetal (Blue) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFB0027-PA6 | 27" (685,8 mm) | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0027-PE | 27" (685,8 mm) | LFB - Low friction acetal (Blue) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0027-PP | 27" (685,8 mm) | LFB - Low friction acetal (Blue) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFB0030-PA6 | 30" (762 mm) | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0030-PE | 30" (762 mm) | LFB - Low friction acetal (Blue) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0030-PP | 30" (762 mm) | LFB - Low friction acetal (Blue) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFB0033-PA6 | 33" (838,2 mm) | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0033-PE | 33" (838,2 mm) | LFB - Low friction acetal (Blue) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFB0033-PP | 33" (838,2 mm) | LFB - Low friction acetal (Blue) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0036-PA6 | 36" (914,4 mm) | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0036-PE | 36" (914,4 mm) | LFB - Low friction acetal (Blue) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0036-PP | 36" (914,4 mm) | LFB - Low friction acetal (Blue) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFB0039-PA6 | 39" (990,6 mm) | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFB0039-PE | 39" (990,6 mm) | LFB - Low friction acetal (Blue) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0039-PP | 39" (990,6 mm) | LFB - Low friction acetal (Blue) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0042-PA6 | 42" (1066,8 mm) | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFB0042-PE | 42" (1066,8 mm) | LFB - Low friction acetal (Blue) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0042-PP | 42" (1066,8 mm) | LFB - Low friction acetal (Blue) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0045-PA6 | 45" (1143 mm) | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0045-PE | 45" (1143 mm) | LFB - Low friction acetal (Blue) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFB0045-PP | 45" (1143 mm) | LFB - Low friction acetal (Blue) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFB0048-PA6 | 48" (1219,2 mm) | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0048-PE | 48" (1219,2 mm) | LFB - Low friction acetal (Blue) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0048-PP | 48" (1219,2 mm) | LFB - Low friction acetal (Blue) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0051-PA6 | 51" (1295,4 mm) | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFB0051-PE | 51" (1295,4 mm) | LFB - Low friction acetal (Blue) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0051-PP | 51" (1295,4 mm) | LFB - Low friction acetal (Blue) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0054-PA6 | 54" (1371,6 mm) | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0054-PE | 54" (1371,6 mm) | LFB - Low friction acetal (Blue) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFB0054-PP | 54" (1371,6 mm) | LFB - Low friction acetal (Blue) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0003-PA6 | 3" (76,2 mm) | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0003-PBT | 3" (76,2 mm) | LFC - Low friction acetal (cyan) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0003-PE | 3" (76,2 mm) | LFC - Low friction acetal (cyan) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0003-PP | 3" (76,2 mm) | LFC - Low friction acetal (cyan) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0006-PA6 | 6" (152,4 mm) | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0006-PBT | 6" (152,4 mm) | LFC - Low friction acetal (cyan) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0006-PE | 6" (152,4 mm) | LFC - Low friction acetal (cyan) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0006-PP | 6" (152,4 mm) | LFC - Low friction acetal (cyan) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0009-PA6 | 9" (228,6 mm) | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0009-PBT | 9" (228,6 mm) | LFC - Low friction acetal (cyan) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0009-PE | 9" (228,6 mm) | LFC - Low friction acetal (cyan) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0009-PP | 9" (228,6 mm) | LFC - Low friction acetal (cyan) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0012-PA6 | 12" (304,8 mm) | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0012-PBT | 12" (304,8 mm) | LFC - Low friction acetal (cyan) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0012-PE | 12" (304,8 mm) | LFC - Low friction acetal (cyan) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0012-PP | 12" (304,8 mm) | LFC - Low friction acetal (cyan) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0015-PA6 | 15" (381 mm) | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0015-PBT | 15" (381 mm) | LFC - Low friction acetal (cyan) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0015-PE | 15" (381 mm) | LFC - Low friction acetal (cyan) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0015-PP | 15" (381 mm) | LFC - Low friction acetal (cyan) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0018-PA6 | 18" (457,2 mm) | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0018-PBT | 18" (457,2 mm) | LFC - Low friction acetal (cyan) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0018-PE | 18" (457,2 mm) | LFC - Low friction acetal (cyan) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0018-PP | 18" (457,2 mm) | LFC - Low friction acetal (cyan) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0021-PA6 | 21" (533,4 mm) | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0021-PBT | 21" (533,4 mm) | LFC - Low friction acetal (cyan) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0021-PE | 21" (533,4 mm) | LFC - Low friction acetal (cyan) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0021-PP | 21" (533,4 mm) | LFC - Low friction acetal (cyan) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0024-PA6 | 24" (609,6 mm) | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0024-PBT | 24" (609,6 mm) | LFC - Low friction acetal (cyan) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0024-PE | 24" (609,6 mm) | LFC - Low friction acetal (cyan) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0024-PP | 24" (609,6 mm) | LFC - Low friction acetal (cyan) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0027-PA6 | 27" (685,8 mm) | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0027-PBT | 27" (685,8 mm) | LFC - Low friction acetal (cyan) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0027-PE | 27" (685,8 mm) | LFC - Low friction acetal (cyan) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0027-PP | 27" (685,8 mm) | LFC - Low friction acetal (cyan) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0030-PA6 | 30" (762 mm) | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0030-PBT | 30" (762 mm) | LFC - Low friction acetal (cyan) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0030-PE | 30" (762 mm) | LFC - Low friction acetal (cyan) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0030-PP | 30" (762 mm) | LFC - Low friction acetal (cyan) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0033-PA6 | 33" (838,2 mm) | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0033-PBT | 33" (838,2 mm) | LFC - Low friction acetal (cyan) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0033-PE | 33" (838,2 mm) | LFC - Low friction acetal (cyan) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0033-PP | 33" (838,2 mm) | LFC - Low friction acetal (cyan) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0036-PA6 | 36" (914,4 mm) | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0036-PBT | 36" (914,4 mm) | LFC - Low friction acetal (cyan) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0036-PE | 36" (914,4 mm) | LFC - Low friction acetal (cyan) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0036-PP | 36" (914,4 mm) | LFC - Low friction acetal (cyan) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0039-PA6 | 39" (990,6 mm) | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0039-PBT | 39" (990,6 mm) | LFC - Low friction acetal (cyan) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0039-PE | 39" (990,6 mm) | LFC - Low friction acetal (cyan) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0039-PP | 39" (990,6 mm) | LFC - Low friction acetal (cyan) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0042-PA6 | 42" (1066,8 mm) | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0042-PBT | 42" (1066,8 mm) | LFC - Low friction acetal (cyan) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0042-PE | 42" (1066,8 mm) | LFC - Low friction acetal (cyan) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0042-PP | 42" (1066,8 mm) | LFC - Low friction acetal (cyan) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0045-PA6 | 45" (1143 mm) | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0045-PBT | 45" (1143 mm) | LFC - Low friction acetal (cyan) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0045-PE | 45" (1143 mm) | LFC - Low friction acetal (cyan) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0045-PP | 45" (1143 mm) | LFC - Low friction acetal (cyan) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0048-PA6 | 48" (1219,2 mm) | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0048-PBT | 48" (1219,2 mm) | LFC - Low friction acetal (cyan) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0048-PE | 48" (1219,2 mm) | LFC - Low friction acetal (cyan) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0048-PP | 48" (1219,2 mm) | LFC - Low friction acetal (cyan) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0051-PA6 | 51" (1295,4 mm) | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0051-PBT | 51" (1295,4 mm) | LFC - Low friction acetal (cyan) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0051-PE | 51" (1295,4 mm) | LFC - Low friction acetal (cyan) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0051-PP | 51" (1295,4 mm) | LFC - Low friction acetal (cyan) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0054-PA6 | 54" (1371,6 mm) | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0054-PBT | 54" (1371,6 mm) | LFC - Low friction acetal (cyan) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFC0054-PE | 54" (1371,6 mm) | LFC - Low friction acetal (cyan) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFC0054-PP | 54" (1371,6 mm) | LFC - Low friction acetal (cyan) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0003-PA6 | 3" (76,2 mm) | LFW - Low Friction acetal (White) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0003-PBT | 3" (76,2 mm) | LFW - Low Friction acetal (White) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0003-PE | 3" (76,2 mm) | LFW - Low Friction acetal (White) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0003-PP | 3" (76,2 mm) | LFW - Low Friction acetal (White) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0006-PA6 | 6" (152,4 mm) | LFW - Low Friction acetal (White) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0006-PBT | 6" (152,4 mm) | LFW - Low Friction acetal (White) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0006-PE | 6" (152,4 mm) | LFW - Low Friction acetal (White) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0006-PP | 6" (152,4 mm) | LFW - Low Friction acetal (White) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0009-PA6 | 9" (228,6 mm) | LFW - Low Friction acetal (White) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0009-PBT | 9" (228,6 mm) | LFW - Low Friction acetal (White) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0009-PE | 9" (228,6 mm) | LFW - Low Friction acetal (White) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0009-PP | 9" (228,6 mm) | LFW - Low Friction acetal (White) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0012-PA6 | 12" (304,8 mm) | LFW - Low Friction acetal (White) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0012-PBT | 12" (304,8 mm) | LFW - Low Friction acetal (White) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0012-PE | 12" (304,8 mm) | LFW - Low Friction acetal (White) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0012-PP | 12" (304,8 mm) | LFW - Low Friction acetal (White) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0015-PA6 | 15" (381 mm) | LFW - Low Friction acetal (White) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0015-PBT | 15" (381 mm) | LFW - Low Friction acetal (White) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0015-PE | 15" (381 mm) | LFW - Low Friction acetal (White) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0015-PP | 15" (381 mm) | LFW - Low Friction acetal (White) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0018-PA6 | 18" (457,2 mm) | LFW - Low Friction acetal (White) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0018-PBT | 18" (457,2 mm) | LFW - Low Friction acetal (White) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0018-PE | 18" (457,2 mm) | LFW - Low Friction acetal (White) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0018-PP | 18" (457,2 mm) | LFW - Low Friction acetal (White) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0021-PA6 | 21" (533,4 mm) | LFW - Low Friction acetal (White) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0021-PBT | 21" (533,4 mm) | LFW - Low Friction acetal (White) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0021-PE | 21" (533,4 mm) | LFW - Low Friction acetal (White) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0021-PP | 21" (533,4 mm) | LFW - Low Friction acetal (White) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0024-PA6 | 24" (609,6 mm) | LFW - Low Friction acetal (White) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0024-PBT | 24" (609,6 mm) | LFW - Low Friction acetal (White) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0024-PE | 24" (609,6 mm) | LFW - Low Friction acetal (White) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0024-PP | 24" (609,6 mm) | LFW - Low Friction acetal (White) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0027-PA6 | 27" (685,8 mm) | LFW - Low Friction acetal (White) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0027-PBT | 27" (685,8 mm) | LFW - Low Friction acetal (White) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0027-PE | 27" (685,8 mm) | LFW - Low Friction acetal (White) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0027-PP | 27" (685,8 mm) | LFW - Low Friction acetal (White) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0030-PA6 | 30" (762 mm) | LFW - Low Friction acetal (White) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0030-PBT | 30" (762 mm) | LFW - Low Friction acetal (White) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0030-PE | 30" (762 mm) | LFW - Low Friction acetal (White) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0030-PP | 30" (762 mm) | LFW - Low Friction acetal (White) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0033-PA6 | 33" (838,2 mm) | LFW - Low Friction acetal (White) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0033-PBT | 33" (838,2 mm) | LFW - Low Friction acetal (White) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0033-PE | 33" (838,2 mm) | LFW - Low Friction acetal (White) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0033-PP | 33" (838,2 mm) | LFW - Low Friction acetal (White) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0036-PA6 | 36" (914,4 mm) | LFW - Low Friction acetal (White) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0036-PBT | 36" (914,4 mm) | LFW - Low Friction acetal (White) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0036-PE | 36" (914,4 mm) | LFW - Low Friction acetal (White) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0036-PP | 36" (914,4 mm) | LFW - Low Friction acetal (White) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0039-PA6 | 39" (990,6 mm) | LFW - Low Friction acetal (White) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0039-PBT | 39" (990,6 mm) | LFW - Low Friction acetal (White) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0039-PE | 39" (990,6 mm) | LFW - Low Friction acetal (White) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0039-PP | 39" (990,6 mm) | LFW - Low Friction acetal (White) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0042-PA6 | 42" (1066,8 mm) | LFW - Low Friction acetal (White) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0042-PBT | 42" (1066,8 mm) | LFW - Low Friction acetal (White) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0042-PE | 42" (1066,8 mm) | LFW - Low Friction acetal (White) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0042-PP | 42" (1066,8 mm) | LFW - Low Friction acetal (White) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0045-PA6 | 45" (1143 mm) | LFW - Low Friction acetal (White) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0045-PBT | 45" (1143 mm) | LFW - Low Friction acetal (White) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0045-PE | 45" (1143 mm) | LFW - Low Friction acetal (White) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0045-PP | 45" (1143 mm) | LFW - Low Friction acetal (White) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0048-PA6 | 48" (1219,2 mm) | LFW - Low Friction acetal (White) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0048-PBT | 48" (1219,2 mm) | LFW - Low Friction acetal (White) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0048-PE | 48" (1219,2 mm) | LFW - Low Friction acetal (White) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0048-PP | 48" (1219,2 mm) | LFW - Low Friction acetal (White) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0051-PA6 | 51" (1295,4 mm) | LFW - Low Friction acetal (White) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0051-PBT | 51" (1295,4 mm) | LFW - Low Friction acetal (White) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0051-PE | 51" (1295,4 mm) | LFW - Low Friction acetal (White) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0051-PP | 51" (1295,4 mm) | LFW - Low Friction acetal (White) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0054-PA6 | 54" (1371,6 mm) | LFW - Low Friction acetal (White) | PA6 White | No positioners | F590 | 25 mm | 26000 N/m | Snap-in Clip | - | -40÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0054-PBT | 54" (1371,6 mm) | LFW - Low Friction acetal (White) | PBT White | No positioners | F590 | 25 mm | 30000 N/m | Snap-in Clip | - | -40÷80 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGLFW0054-PE | 54" (1371,6 mm) | LFW - Low Friction acetal (White) | PE White | No positioners | F590 | 25 mm | 16000 N/m | Snap-in Clip | - | -40÷65 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGLFW0054-PP | 54" (1371,6 mm) | LFW - Low Friction acetal (White) | PP White | No positioners | F590 | 25 mm | 15000 N/m | Snap-in Clip | - | 5÷93 °C | -40÷65 °C | 7 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0003-PA6 | 3" (76,2 mm) | PPB - Polypropylene (Blue) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0003-PBT | 3" (76,2 mm) | PPB - Polypropylene (Blue) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0003-PE | 3" (76,2 mm) | PPB - Polypropylene (Blue) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0003-PP | 3" (76,2 mm) | PPB - Polypropylene (Blue) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0006-PA6 | 6" (152,4 mm) | PPB - Polypropylene (Blue) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0006-PBT | 6" (152,4 mm) | PPB - Polypropylene (Blue) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0006-PE | 6" (152,4 mm) | PPB - Polypropylene (Blue) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0006-PP | 6" (152,4 mm) | PPB - Polypropylene (Blue) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0009-PA6 | 9" (228,6 mm) | PPB - Polypropylene (Blue) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0009-PBT | 9" (228,6 mm) | PPB - Polypropylene (Blue) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0009-PE | 9" (228,6 mm) | PPB - Polypropylene (Blue) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0009-PP | 9" (228,6 mm) | PPB - Polypropylene (Blue) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0012-PA6 | 12" (304,8 mm) | PPB - Polypropylene (Blue) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0012-PBT | 12" (304,8 mm) | PPB - Polypropylene (Blue) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0012-PE | 12" (304,8 mm) | PPB - Polypropylene (Blue) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0012-PP | 12" (304,8 mm) | PPB - Polypropylene (Blue) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0015-PA6 | 15" (381 mm) | PPB - Polypropylene (Blue) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0015-PBT | 15" (381 mm) | PPB - Polypropylene (Blue) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0015-PE | 15" (381 mm) | PPB - Polypropylene (Blue) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0015-PP | 15" (381 mm) | PPB - Polypropylene (Blue) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0018-PA6 | 18" (457,2 mm) | PPB - Polypropylene (Blue) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0018-PBT | 18" (457,2 mm) | PPB - Polypropylene (Blue) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0018-PE | 18" (457,2 mm) | PPB - Polypropylene (Blue) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0018-PP | 18" (457,2 mm) | PPB - Polypropylene (Blue) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0021-PA6 | 21" (533,4 mm) | PPB - Polypropylene (Blue) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0021-PBT | 21" (533,4 mm) | PPB - Polypropylene (Blue) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0021-PE | 21" (533,4 mm) | PPB - Polypropylene (Blue) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0021-PP | 21" (533,4 mm) | PPB - Polypropylene (Blue) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0024-PA6 | 24" (609,6 mm) | PPB - Polypropylene (Blue) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0024-PBT | 24" (609,6 mm) | PPB - Polypropylene (Blue) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0024-PE | 24" (609,6 mm) | PPB - Polypropylene (Blue) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0024-PP | 24" (609,6 mm) | PPB - Polypropylene (Blue) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0027-PA6 | 27" (685,8 mm) | PPB - Polypropylene (Blue) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0027-PBT | 27" (685,8 mm) | PPB - Polypropylene (Blue) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0027-PE | 27" (685,8 mm) | PPB - Polypropylene (Blue) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0027-PP | 27" (685,8 mm) | PPB - Polypropylene (Blue) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0030-PA6 | 30" (762 mm) | PPB - Polypropylene (Blue) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0030-PBT | 30" (762 mm) | PPB - Polypropylene (Blue) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0030-PE | 30" (762 mm) | PPB - Polypropylene (Blue) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0030-PP | 30" (762 mm) | PPB - Polypropylene (Blue) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0033-PA6 | 33" (838,2 mm) | PPB - Polypropylene (Blue) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0033-PBT | 33" (838,2 mm) | PPB - Polypropylene (Blue) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0033-PE | 33" (838,2 mm) | PPB - Polypropylene (Blue) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0033-PP | 33" (838,2 mm) | PPB - Polypropylene (Blue) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0036-PA6 | 36" (914,4 mm) | PPB - Polypropylene (Blue) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0036-PBT | 36" (914,4 mm) | PPB - Polypropylene (Blue) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0036-PE | 36" (914,4 mm) | PPB - Polypropylene (Blue) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0036-PP | 36" (914,4 mm) | PPB - Polypropylene (Blue) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0039-PA6 | 39" (990,6 mm) | PPB - Polypropylene (Blue) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0039-PBT | 39" (990,6 mm) | PPB - Polypropylene (Blue) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0039-PE | 39" (990,6 mm) | PPB - Polypropylene (Blue) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0039-PP | 39" (990,6 mm) | PPB - Polypropylene (Blue) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0042-PA6 | 42" (1066,8 mm) | PPB - Polypropylene (Blue) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0042-PBT | 42" (1066,8 mm) | PPB - Polypropylene (Blue) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0042-PE | 42" (1066,8 mm) | PPB - Polypropylene (Blue) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0042-PP | 42" (1066,8 mm) | PPB - Polypropylene (Blue) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0045-PA6 | 45" (1143 mm) | PPB - Polypropylene (Blue) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0045-PBT | 45" (1143 mm) | PPB - Polypropylene (Blue) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0045-PE | 45" (1143 mm) | PPB - Polypropylene (Blue) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0045-PP | 45" (1143 mm) | PPB - Polypropylene (Blue) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0048-PA6 | 48" (1219,2 mm) | PPB - Polypropylene (Blue) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0048-PBT | 48" (1219,2 mm) | PPB - Polypropylene (Blue) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0048-PE | 48" (1219,2 mm) | PPB - Polypropylene (Blue) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0048-PP | 48" (1219,2 mm) | PPB - Polypropylene (Blue) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0051-PA6 | 51" (1295,4 mm) | PPB - Polypropylene (Blue) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0051-PBT | 51" (1295,4 mm) | PPB - Polypropylene (Blue) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0051-PE | 51" (1295,4 mm) | PPB - Polypropylene (Blue) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0051-PP | 51" (1295,4 mm) | PPB - Polypropylene (Blue) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0054-PA6 | 54" (1371,6 mm) | PPB - Polypropylene (Blue) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPB0054-PBT | 54" (1371,6 mm) | PPB - Polypropylene (Blue) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0054-PE | 54" (1371,6 mm) | PPB - Polypropylene (Blue) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPB0054-PP | 54" (1371,6 mm) | PPB - Polypropylene (Blue) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0003-PA6 | 3" (76,2 mm) | PPC - Polypropylene (cyan) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0003-PBT | 3" (76,2 mm) | PPC - Polypropylene (cyan) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0003-PE | 3" (76,2 mm) | PPC - Polypropylene (cyan) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0003-PP | 3" (76,2 mm) | PPC - Polypropylene (cyan) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0006-PA6 | 6" (152,4 mm) | PPC - Polypropylene (cyan) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0006-PBT | 6" (152,4 mm) | PPC - Polypropylene (cyan) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0006-PE | 6" (152,4 mm) | PPC - Polypropylene (cyan) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0006-PP | 6" (152,4 mm) | PPC - Polypropylene (cyan) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0009-PA6 | 9" (228,6 mm) | PPC - Polypropylene (cyan) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0009-PBT | 9" (228,6 mm) | PPC - Polypropylene (cyan) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0009-PE | 9" (228,6 mm) | PPC - Polypropylene (cyan) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0009-PP | 9" (228,6 mm) | PPC - Polypropylene (cyan) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0012-PA6 | 12" (304,8 mm) | PPC - Polypropylene (cyan) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0012-PBT | 12" (304,8 mm) | PPC - Polypropylene (cyan) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0012-PE | 12" (304,8 mm) | PPC - Polypropylene (cyan) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0012-PP | 12" (304,8 mm) | PPC - Polypropylene (cyan) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0015-PA6 | 15" (381 mm) | PPC - Polypropylene (cyan) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0015-PBT | 15" (381 mm) | PPC - Polypropylene (cyan) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0015-PE | 15" (381 mm) | PPC - Polypropylene (cyan) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0015-PP | 15" (381 mm) | PPC - Polypropylene (cyan) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0018-PA6 | 18" (457,2 mm) | PPC - Polypropylene (cyan) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0018-PBT | 18" (457,2 mm) | PPC - Polypropylene (cyan) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0018-PE | 18" (457,2 mm) | PPC - Polypropylene (cyan) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0018-PP | 18" (457,2 mm) | PPC - Polypropylene (cyan) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0021-PA6 | 21" (533,4 mm) | PPC - Polypropylene (cyan) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0021-PBT | 21" (533,4 mm) | PPC - Polypropylene (cyan) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0021-PE | 21" (533,4 mm) | PPC - Polypropylene (cyan) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0021-PP | 21" (533,4 mm) | PPC - Polypropylene (cyan) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0024-PA6 | 24" (609,6 mm) | PPC - Polypropylene (cyan) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0024-PBT | 24" (609,6 mm) | PPC - Polypropylene (cyan) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0024-PE | 24" (609,6 mm) | PPC - Polypropylene (cyan) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0024-PP | 24" (609,6 mm) | PPC - Polypropylene (cyan) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0027-PA6 | 27" (685,8 mm) | PPC - Polypropylene (cyan) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0027-PBT | 27" (685,8 mm) | PPC - Polypropylene (cyan) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0027-PE | 27" (685,8 mm) | PPC - Polypropylene (cyan) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0027-PP | 27" (685,8 mm) | PPC - Polypropylene (cyan) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0030-PA6 | 30" (762 mm) | PPC - Polypropylene (cyan) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0030-PBT | 30" (762 mm) | PPC - Polypropylene (cyan) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0030-PE | 30" (762 mm) | PPC - Polypropylene (cyan) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0030-PP | 30" (762 mm) | PPC - Polypropylene (cyan) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0033-PA6 | 33" (838,2 mm) | PPC - Polypropylene (cyan) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0033-PBT | 33" (838,2 mm) | PPC - Polypropylene (cyan) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0033-PE | 33" (838,2 mm) | PPC - Polypropylene (cyan) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0033-PP | 33" (838,2 mm) | PPC - Polypropylene (cyan) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0036-PA6 | 36" (914,4 mm) | PPC - Polypropylene (cyan) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0036-PBT | 36" (914,4 mm) | PPC - Polypropylene (cyan) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0036-PE | 36" (914,4 mm) | PPC - Polypropylene (cyan) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0036-PP | 36" (914,4 mm) | PPC - Polypropylene (cyan) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0039-PA6 | 39" (990,6 mm) | PPC - Polypropylene (cyan) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0039-PBT | 39" (990,6 mm) | PPC - Polypropylene (cyan) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0039-PE | 39" (990,6 mm) | PPC - Polypropylene (cyan) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0039-PP | 39" (990,6 mm) | PPC - Polypropylene (cyan) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0042-PA6 | 42" (1066,8 mm) | PPC - Polypropylene (cyan) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0042-PBT | 42" (1066,8 mm) | PPC - Polypropylene (cyan) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0042-PE | 42" (1066,8 mm) | PPC - Polypropylene (cyan) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0042-PP | 42" (1066,8 mm) | PPC - Polypropylene (cyan) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0045-PA6 | 45" (1143 mm) | PPC - Polypropylene (cyan) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0045-PBT | 45" (1143 mm) | PPC - Polypropylene (cyan) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0045-PE | 45" (1143 mm) | PPC - Polypropylene (cyan) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0045-PP | 45" (1143 mm) | PPC - Polypropylene (cyan) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0048-PA6 | 48" (1219,2 mm) | PPC - Polypropylene (cyan) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0048-PBT | 48" (1219,2 mm) | PPC - Polypropylene (cyan) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0048-PE | 48" (1219,2 mm) | PPC - Polypropylene (cyan) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0048-PP | 48" (1219,2 mm) | PPC - Polypropylene (cyan) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0051-PA6 | 51" (1295,4 mm) | PPC - Polypropylene (cyan) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0051-PBT | 51" (1295,4 mm) | PPC - Polypropylene (cyan) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0051-PE | 51" (1295,4 mm) | PPC - Polypropylene (cyan) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0051-PP | 51" (1295,4 mm) | PPC - Polypropylene (cyan) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0054-PA6 | 54" (1371,6 mm) | PPC - Polypropylene (cyan) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0054-PBT | 54" (1371,6 mm) | PPC - Polypropylene (cyan) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPC0054-PE | 54" (1371,6 mm) | PPC - Polypropylene (cyan) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPC0054-PP | 54" (1371,6 mm) | PPC - Polypropylene (cyan) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0003-PA6 | 3" (76,2 mm) | PPG - Polypropylene (grey) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0003-PBT | 3" (76,2 mm) | PPG - Polypropylene (grey) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0003-PE | 3" (76,2 mm) | PPG - Polypropylene (grey) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0003-PP | 3" (76,2 mm) | PPG - Polypropylene (grey) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0006-PA6 | 6" (152,4 mm) | PPG - Polypropylene (grey) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0006-PBT | 6" (152,4 mm) | PPG - Polypropylene (grey) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0006-PE | 6" (152,4 mm) | PPG - Polypropylene (grey) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0006-PP | 6" (152,4 mm) | PPG - Polypropylene (grey) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0009-PA6 | 9" (228,6 mm) | PPG - Polypropylene (grey) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0009-PBT | 9" (228,6 mm) | PPG - Polypropylene (grey) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0009-PE | 9" (228,6 mm) | PPG - Polypropylene (grey) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0009-PP | 9" (228,6 mm) | PPG - Polypropylene (grey) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0012-PA6 | 12" (304,8 mm) | PPG - Polypropylene (grey) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0012-PBT | 12" (304,8 mm) | PPG - Polypropylene (grey) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0012-PE | 12" (304,8 mm) | PPG - Polypropylene (grey) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0012-PP | 12" (304,8 mm) | PPG - Polypropylene (grey) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0015-PA6 | 15" (381 mm) | PPG - Polypropylene (grey) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0015-PBT | 15" (381 mm) | PPG - Polypropylene (grey) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0015-PE | 15" (381 mm) | PPG - Polypropylene (grey) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0015-PP | 15" (381 mm) | PPG - Polypropylene (grey) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0018-PA6 | 18" (457,2 mm) | PPG - Polypropylene (grey) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0018-PBT | 18" (457,2 mm) | PPG - Polypropylene (grey) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0018-PE | 18" (457,2 mm) | PPG - Polypropylene (grey) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0018-PP | 18" (457,2 mm) | PPG - Polypropylene (grey) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0021-PA6 | 21" (533,4 mm) | PPG - Polypropylene (grey) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0021-PBT | 21" (533,4 mm) | PPG - Polypropylene (grey) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0021-PE | 21" (533,4 mm) | PPG - Polypropylene (grey) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0021-PP | 21" (533,4 mm) | PPG - Polypropylene (grey) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0024-PA6 | 24" (609,6 mm) | PPG - Polypropylene (grey) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0024-PBT | 24" (609,6 mm) | PPG - Polypropylene (grey) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0024-PE | 24" (609,6 mm) | PPG - Polypropylene (grey) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0024-PP | 24" (609,6 mm) | PPG - Polypropylene (grey) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0027-PA6 | 27" (685,8 mm) | PPG - Polypropylene (grey) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0027-PBT | 27" (685,8 mm) | PPG - Polypropylene (grey) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0027-PE | 27" (685,8 mm) | PPG - Polypropylene (grey) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0027-PP | 27" (685,8 mm) | PPG - Polypropylene (grey) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0030-PA6 | 30" (762 mm) | PPG - Polypropylene (grey) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0030-PBT | 30" (762 mm) | PPG - Polypropylene (grey) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0030-PE | 30" (762 mm) | PPG - Polypropylene (grey) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0030-PP | 30" (762 mm) | PPG - Polypropylene (grey) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0033-PA6 | 33" (838,2 mm) | PPG - Polypropylene (grey) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0033-PBT | 33" (838,2 mm) | PPG - Polypropylene (grey) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0033-PE | 33" (838,2 mm) | PPG - Polypropylene (grey) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0033-PP | 33" (838,2 mm) | PPG - Polypropylene (grey) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0036-PA6 | 36" (914,4 mm) | PPG - Polypropylene (grey) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0036-PBT | 36" (914,4 mm) | PPG - Polypropylene (grey) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0036-PE | 36" (914,4 mm) | PPG - Polypropylene (grey) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0036-PP | 36" (914,4 mm) | PPG - Polypropylene (grey) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0039-PA6 | 39" (990,6 mm) | PPG - Polypropylene (grey) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0039-PBT | 39" (990,6 mm) | PPG - Polypropylene (grey) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0039-PE | 39" (990,6 mm) | PPG - Polypropylene (grey) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0039-PP | 39" (990,6 mm) | PPG - Polypropylene (grey) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0042-PA6 | 42" (1066,8 mm) | PPG - Polypropylene (grey) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0042-PBT | 42" (1066,8 mm) | PPG - Polypropylene (grey) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0042-PE | 42" (1066,8 mm) | PPG - Polypropylene (grey) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0042-PP | 42" (1066,8 mm) | PPG - Polypropylene (grey) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0045-PA6 | 45" (1143 mm) | PPG - Polypropylene (grey) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0045-PBT | 45" (1143 mm) | PPG - Polypropylene (grey) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0045-PE | 45" (1143 mm) | PPG - Polypropylene (grey) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0045-PP | 45" (1143 mm) | PPG - Polypropylene (grey) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0048-PA6 | 48" (1219,2 mm) | PPG - Polypropylene (grey) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0048-PBT | 48" (1219,2 mm) | PPG - Polypropylene (grey) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0048-PE | 48" (1219,2 mm) | PPG - Polypropylene (grey) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0048-PP | 48" (1219,2 mm) | PPG - Polypropylene (grey) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0051-PA6 | 51" (1295,4 mm) | PPG - Polypropylene (grey) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0051-PBT | 51" (1295,4 mm) | PPG - Polypropylene (grey) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0051-PE | 51" (1295,4 mm) | PPG - Polypropylene (grey) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0051-PP | 51" (1295,4 mm) | PPG - Polypropylene (grey) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0054-PA6 | 54" (1371,6 mm) | PPG - Polypropylene (grey) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0054-PBT | 54" (1371,6 mm) | PPG - Polypropylene (grey) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPG0054-PE | 54" (1371,6 mm) | PPG - Polypropylene (grey) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPG0054-PP | 54" (1371,6 mm) | PPG - Polypropylene (grey) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0003-PA6 | 3" (76,2 mm) | PPW - Polypropylene (white) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0003-PBT | 3" (76,2 mm) | PPW - Polypropylene (white) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0003-PE | 3" (76,2 mm) | PPW - Polypropylene (white) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0003-PP | 3" (76,2 mm) | PPW - Polypropylene (white) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0006-PA6 | 6" (152,4 mm) | PPW - Polypropylene (white) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0006-PBT | 6" (152,4 mm) | PPW - Polypropylene (white) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0006-PE | 6" (152,4 mm) | PPW - Polypropylene (white) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0006-PP | 6" (152,4 mm) | PPW - Polypropylene (white) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0009-PA6 | 9" (228,6 mm) | PPW - Polypropylene (white) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0009-PBT | 9" (228,6 mm) | PPW - Polypropylene (white) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0009-PE | 9" (228,6 mm) | PPW - Polypropylene (white) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0009-PP | 9" (228,6 mm) | PPW - Polypropylene (white) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0012-PA6 | 12" (304,8 mm) | PPW - Polypropylene (white) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0012-PBT | 12" (304,8 mm) | PPW - Polypropylene (white) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0012-PE | 12" (304,8 mm) | PPW - Polypropylene (white) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0012-PP | 12" (304,8 mm) | PPW - Polypropylene (white) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0015-PA6 | 15" (381 mm) | PPW - Polypropylene (white) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0015-PBT | 15" (381 mm) | PPW - Polypropylene (white) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0015-PE | 15" (381 mm) | PPW - Polypropylene (white) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0015-PP | 15" (381 mm) | PPW - Polypropylene (white) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0018-PA6 | 18" (457,2 mm) | PPW - Polypropylene (white) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0018-PBT | 18" (457,2 mm) | PPW - Polypropylene (white) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0018-PE | 18" (457,2 mm) | PPW - Polypropylene (white) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0018-PP | 18" (457,2 mm) | PPW - Polypropylene (white) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0021-PA6 | 21" (533,4 mm) | PPW - Polypropylene (white) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0021-PBT | 21" (533,4 mm) | PPW - Polypropylene (white) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0021-PE | 21" (533,4 mm) | PPW - Polypropylene (white) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0021-PP | 21" (533,4 mm) | PPW - Polypropylene (white) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0024-PA6 | 24" (609,6 mm) | PPW - Polypropylene (white) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0024-PBT | 24" (609,6 mm) | PPW - Polypropylene (white) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0024-PE | 24" (609,6 mm) | PPW - Polypropylene (white) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0024-PP | 24" (609,6 mm) | PPW - Polypropylene (white) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0027-PA6 | 27" (685,8 mm) | PPW - Polypropylene (white) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0027-PBT | 27" (685,8 mm) | PPW - Polypropylene (white) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0027-PE | 27" (685,8 mm) | PPW - Polypropylene (white) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0027-PP | 27" (685,8 mm) | PPW - Polypropylene (white) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0030-PA6 | 30" (762 mm) | PPW - Polypropylene (white) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0030-PBT | 30" (762 mm) | PPW - Polypropylene (white) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0030-PE | 30" (762 mm) | PPW - Polypropylene (white) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0030-PP | 30" (762 mm) | PPW - Polypropylene (white) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0033-PA6 | 33" (838,2 mm) | PPW - Polypropylene (white) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0033-PBT | 33" (838,2 mm) | PPW - Polypropylene (white) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0033-PE | 33" (838,2 mm) | PPW - Polypropylene (white) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0033-PP | 33" (838,2 mm) | PPW - Polypropylene (white) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0036-PA6 | 36" (914,4 mm) | PPW - Polypropylene (white) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0036-PBT | 36" (914,4 mm) | PPW - Polypropylene (white) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0036-PE | 36" (914,4 mm) | PPW - Polypropylene (white) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0036-PP | 36" (914,4 mm) | PPW - Polypropylene (white) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0039-PA6 | 39" (990,6 mm) | PPW - Polypropylene (white) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0039-PBT | 39" (990,6 mm) | PPW - Polypropylene (white) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0039-PE | 39" (990,6 mm) | PPW - Polypropylene (white) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0039-PP | 39" (990,6 mm) | PPW - Polypropylene (white) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0042-PA6 | 42" (1066,8 mm) | PPW - Polypropylene (white) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0042-PBT | 42" (1066,8 mm) | PPW - Polypropylene (white) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0042-PE | 42" (1066,8 mm) | PPW - Polypropylene (white) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0042-PP | 42" (1066,8 mm) | PPW - Polypropylene (white) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0045-PA6 | 45" (1143 mm) | PPW - Polypropylene (white) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0045-PBT | 45" (1143 mm) | PPW - Polypropylene (white) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0045-PE | 45" (1143 mm) | PPW - Polypropylene (white) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0045-PP | 45" (1143 mm) | PPW - Polypropylene (white) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0048-PA6 | 48" (1219,2 mm) | PPW - Polypropylene (white) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0048-PBT | 48" (1219,2 mm) | PPW - Polypropylene (white) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0048-PE | 48" (1219,2 mm) | PPW - Polypropylene (white) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0048-PP | 48" (1219,2 mm) | PPW - Polypropylene (white) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0051-PA6 | 51" (1295,4 mm) | PPW - Polypropylene (white) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0051-PBT | 51" (1295,4 mm) | PPW - Polypropylene (white) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0051-PE | 51" (1295,4 mm) | PPW - Polypropylene (white) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0051-PP | 51" (1295,4 mm) | PPW - Polypropylene (white) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0054-PA6 | 54" (1371,6 mm) | PPW - Polypropylene (white) | PA6 White | No positioners | F590 | 25 mm | 18000 N/m | Snap-in Clip | - | 0÷80 °C | 0÷80 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| F590FGPPW0054-PBT | 54" (1371,6 mm) | PPW - Polypropylene (white) | PBT White | No positioners | F590 | 25 mm | 22500 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0054-PE | 54" (1371,6 mm) | PPW - Polypropylene (white) | PE White | No positioners | F590 | 25 mm | 11000 N/m | Snap-in Clip | - | 0÷65 °C | 0÷65 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| F590FGPPW0054-PP | 54" (1371,6 mm) | PPW - Polypropylene (white) | PP White | No positioners | F590 | 25 mm | 13000 N/m | Snap-in Clip | - | 0÷100 °C | 0÷100 °C | 4.9 kg/m^2 | Pin diameter: 4.25 mm Open surface 25% |
|
| P5302010003A | 3" (76,2 mm) | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | - | Pin diameter: 4.25 mm Open surface 25% Temporary code, to be created specifically on request |
|
| P5302010003C | 3" (76,2 mm) | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010006A | 6" (152,4 mm) | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010006C | 6" (152,4 mm) | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010009A | 9" (228,6 mm) | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010009C | 9" (228,6 mm) | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010012A | 12" (304,8 mm) | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010012C | 12" (304,8 mm) | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010015A | 15" (381 mm) | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010015C | 15" (381 mm) | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010018A | 18" (457,2 mm) | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010018C | 18" (457,2 mm) | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010021A | 21" (533,4 mm) | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010021C | 21" (533,4 mm) | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010024A | 24" (609,6 mm) | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010024C | 24" (609,6 mm) | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010027A | 27" (685,8 mm) | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010027C | 27" (685,8 mm) | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010030A | 30" (762 mm) | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010030C | 30" (762 mm) | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010033A | 33" (838,2 mm) | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010033C | 33" (838,2 mm) | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010036A | 36" (914,4 mm) | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010036C | 36" (914,4 mm) | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010039A | 39" (990,6 mm) | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010039C | 39" (990,6 mm) | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010042A | 42" (1066,8 mm) | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010042C | 42" (1066,8 mm) | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 3,33 ft - 1,016 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010045A | 45" (1143 mm) | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010045C | 45" (1143 mm) | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 3,33 ft - 1,016 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010048A | 48" (1219,2 mm) | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 3,33 ft - 1,016 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010048C | 48" (1219,2 mm) | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010051A | 51" (1295,4 mm) | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010051C | 51" (1295,4 mm) | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 3,33 ft - 1,016 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010054A | 54" (1371,6 mm) | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 3,33 ft - 1,016 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302010054C | 54" (1371,6 mm) | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 3,33 ft - 1,016 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302030003A | 3" (76,2 mm) | MX - Performance PBT (03) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 10 ft - 3,048 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030003C | 3" (76,2 mm) | MX - Performance PBT (03) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 10 ft - 3,048 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030006A | 6" (152,4 mm) | MX - Performance PBT (03) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 10 ft - 3,048 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030006C | 6" (152,4 mm) | MX - Performance PBT (03) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030009A | 9" (228,6 mm) | MX - Performance PBT (03) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030009C | 9" (228,6 mm) | MX - Performance PBT (03) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030012A | 12" (304,8 mm) | MX - Performance PBT (03) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030012C | 12" (304,8 mm) | MX - Performance PBT (03) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030015A | 15" (381 mm) | MX - Performance PBT (03) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030015C | 15" (381 mm) | MX - Performance PBT (03) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030018A | 18" (457,2 mm) | MX - Performance PBT (03) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030018C | 18" (457,2 mm) | MX - Performance PBT (03) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030021A | 21" (533,4 mm) | MX - Performance PBT (03) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030021C | 21" (533,4 mm) | MX - Performance PBT (03) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030024A | 24" (609,6 mm) | MX - Performance PBT (03) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030024C | 24" (609,6 mm) | MX - Performance PBT (03) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030027A | 27" (685,8 mm) | MX - Performance PBT (03) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030027C | 27" (685,8 mm) | MX - Performance PBT (03) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030030A | 30" (762 mm) | MX - Performance PBT (03) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030030C | 30" (762 mm) | MX - Performance PBT (03) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030033A | 33" (838,2 mm) | MX - Performance PBT (03) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030033C | 33" (838,2 mm) | MX - Performance PBT (03) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030036A | 36" (914,4 mm) | MX - Performance PBT (03) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030036C | 36" (914,4 mm) | MX - Performance PBT (03) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030039A | 39" (990,6 mm) | MX - Performance PBT (03) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030039C | 39" (990,6 mm) | MX - Performance PBT (03) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030042A | 42" (1066,8 mm) | MX - Performance PBT (03) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 3,33 ft - 1,016 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030042C | 42" (1066,8 mm) | MX - Performance PBT (03) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 3,33 ft - 1,016 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030045A | 45" (1143 mm) | MX - Performance PBT (03) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030045C | 45" (1143 mm) | MX - Performance PBT (03) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 3,33 ft - 1,016 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030048A | 48" (1219,2 mm) | MX - Performance PBT (03) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 3,33 ft - 1,016 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030048C | 48" (1219,2 mm) | MX - Performance PBT (03) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 3,33 ft - 1,016 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030051A | 51" (1295,4 mm) | MX - Performance PBT (03) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 3,33 ft - 1,016 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030051C | 51" (1295,4 mm) | MX - Performance PBT (03) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 3,33 ft - 1,016 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030054A | 54" (1371,6 mm) | MX - Performance PBT (03) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 3,33 ft - 1,016 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302030054C | 54" (1371,6 mm) | MX - Performance PBT (03) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 3,33 ft - 1,016 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302230003A | 3" (76,2 mm) | LFB - Low friction acetal (Blue) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230003C | 3" (76,2 mm) | LFB - Low friction acetal (Blue) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230006A | 6" (152,4 mm) | LFB - Low friction acetal (Blue) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 10 ft - 3,048 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230006C | 6" (152,4 mm) | LFB - Low friction acetal (Blue) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 10 ft - 3,048 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230009A | 9" (228,6 mm) | LFB - Low friction acetal (Blue) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 10 ft - 3,048 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230009C | 9" (228,6 mm) | LFB - Low friction acetal (Blue) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230012A | 12" (304,8 mm) | LFB - Low friction acetal (Blue) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230012C | 12" (304,8 mm) | LFB - Low friction acetal (Blue) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230015A | 15" (381 mm) | LFB - Low friction acetal (Blue) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230015C | 15" (381 mm) | LFB - Low friction acetal (Blue) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230018A | 18" (457,2 mm) | LFB - Low friction acetal (Blue) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230018C | 18" (457,2 mm) | LFB - Low friction acetal (Blue) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230021A | 21" (533,4 mm) | LFB - Low friction acetal (Blue) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230021C | 21" (533,4 mm) | LFB - Low friction acetal (Blue) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230024A | 24" (609,6 mm) | LFB - Low friction acetal (Blue) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230024C | 24" (609,6 mm) | LFB - Low friction acetal (Blue) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230027A | 27" (685,8 mm) | LFB - Low friction acetal (Blue) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230027C | 27" (685,8 mm) | LFB - Low friction acetal (Blue) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230030A | 30" (762 mm) | LFB - Low friction acetal (Blue) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230030C | 30" (762 mm) | LFB - Low friction acetal (Blue) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230033A | 33" (838,2 mm) | LFB - Low friction acetal (Blue) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230033C | 33" (838,2 mm) | LFB - Low friction acetal (Blue) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230036A | 36" (914,4 mm) | LFB - Low friction acetal (Blue) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230036C | 36" (914,4 mm) | LFB - Low friction acetal (Blue) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230039A | 39" (990,6 mm) | LFB - Low friction acetal (Blue) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230039C | 39" (990,6 mm) | LFB - Low friction acetal (Blue) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230042A | 42" (1066,8 mm) | LFB - Low friction acetal (Blue) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 3,33 ft - 1,016 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230042C | 42" (1066,8 mm) | LFB - Low friction acetal (Blue) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230045A | 45" (1143 mm) | LFB - Low friction acetal (Blue) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230045C | 45" (1143 mm) | LFB - Low friction acetal (Blue) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 3,33 ft - 1,016 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230048A | 48" (1219,2 mm) | LFB - Low friction acetal (Blue) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 3,33 ft - 1,016 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230048C | 48" (1219,2 mm) | LFB - Low friction acetal (Blue) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 3,33 ft - 1,016 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230051A | 51" (1295,4 mm) | LFB - Low friction acetal (Blue) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230051C | 51" (1295,4 mm) | LFB - Low friction acetal (Blue) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230054A | 54" (1371,6 mm) | LFB - Low friction acetal (Blue) | PBT white | A - No positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 3,33 ft - 1,016 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302230054C | 54" (1371,6 mm) | LFB - Low friction acetal (Blue) | PBT white | C - 2 Positioners | P5302 | 25 mm | 30000 N/m | Snap-in Clip | 3,33 ft - 1,016 m Temporary code, to be created specifically on request | -40÷80 °C | -40÷65 °C | - | - |
|
| P5302300003A | 3" (76,2 mm) | PFX - Extra Performance PBT (30) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300003C | 3" (76,2 mm) | PFX - Extra Performance PBT (30) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 10 ft - 3,048 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300006A | 6" (152,4 mm) | PFX - Extra Performance PBT (30) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 10 ft - 3,048 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300006C | 6" (152,4 mm) | PFX - Extra Performance PBT (30) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300009A | 9" (228,6 mm) | PFX - Extra Performance PBT (30) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 10 ft - 3,048 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300009C | 9" (228,6 mm) | PFX - Extra Performance PBT (30) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300012A | 12" (304,8 mm) | PFX - Extra Performance PBT (30) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300012C | 12" (304,8 mm) | PFX - Extra Performance PBT (30) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300015A | 15" (381 mm) | PFX - Extra Performance PBT (30) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300015C | 15" (381 mm) | PFX - Extra Performance PBT (30) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300018A | 18" (457,2 mm) | PFX - Extra Performance PBT (30) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300018C | 18" (457,2 mm) | PFX - Extra Performance PBT (30) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300021A | 21" (533,4 mm) | PFX - Extra Performance PBT (30) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300021C | 21" (533,4 mm) | PFX - Extra Performance PBT (30) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300024A | 24" (609,6 mm) | PFX - Extra Performance PBT (30) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300024C | 24" (609,6 mm) | PFX - Extra Performance PBT (30) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300027A | 27" (685,8 mm) | PFX - Extra Performance PBT (30) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300027C | 27" (685,8 mm) | PFX - Extra Performance PBT (30) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300030A | 30" (762 mm) | PFX - Extra Performance PBT (30) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300030C | 30" (762 mm) | PFX - Extra Performance PBT (30) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300033A | 33" (838,2 mm) | PFX - Extra Performance PBT (30) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300033C | 33" (838,2 mm) | PFX - Extra Performance PBT (30) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300036A | 36" (914,4 mm) | PFX - Extra Performance PBT (30) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300036C | 36" (914,4 mm) | PFX - Extra Performance PBT (30) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300039A | 39" (990,6 mm) | PFX - Extra Performance PBT (30) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300039C | 39" (990,6 mm) | PFX - Extra Performance PBT (30) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300042A | 42" (1066,8 mm) | PFX - Extra Performance PBT (30) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300042C | 42" (1066,8 mm) | PFX - Extra Performance PBT (30) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 3,33 ft - 1,016 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300045A | 45" (1143 mm) | PFX - Extra Performance PBT (30) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300045C | 45" (1143 mm) | PFX - Extra Performance PBT (30) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300048A | 48" (1219,2 mm) | PFX - Extra Performance PBT (30) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 3,33 ft - 1,016 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300048C | 48" (1219,2 mm) | PFX - Extra Performance PBT (30) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300051A | 51" (1295,4 mm) | PFX - Extra Performance PBT (30) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 3,33 ft - 1,016 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300051C | 51" (1295,4 mm) | PFX - Extra Performance PBT (30) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300054A | 54" (1371,6 mm) | PFX - Extra Performance PBT (30) | POM grey | A - No positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | - | - |
|
| P5302300054C | 54" (1371,6 mm) | PFX - Extra Performance PBT (30) | POM grey | C - 2 Positioners | P5302 | 25 mm | 24000 N/m | Snap-in Clip | 3,33 ft - 1,016 m Temporary code, to be created specifically on request | -40÷120 °C | -40÷60 °C | - | - |
|
Enquiry Now
To allow us to respond to your enquiry promptly, please provide all required information.
