590 Flat Top One track Belt
Modular Belts
Description
Basic features
| Series: | 590 |
|---|---|
| Pitch: | 19.05 mm |
| Thickness: | 8.7 mm |
| Increments: | 3" - 76,2 mm |
| Surface Type: | FT - Flat Top |
| Functionality: | Straight |
| Unit of measure: | Meter |
590 Flat Top One track Belt
| Width | Material | Pin material | Version | Part | Back flex radius | Mass | Fixation | Box | Max working load | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||

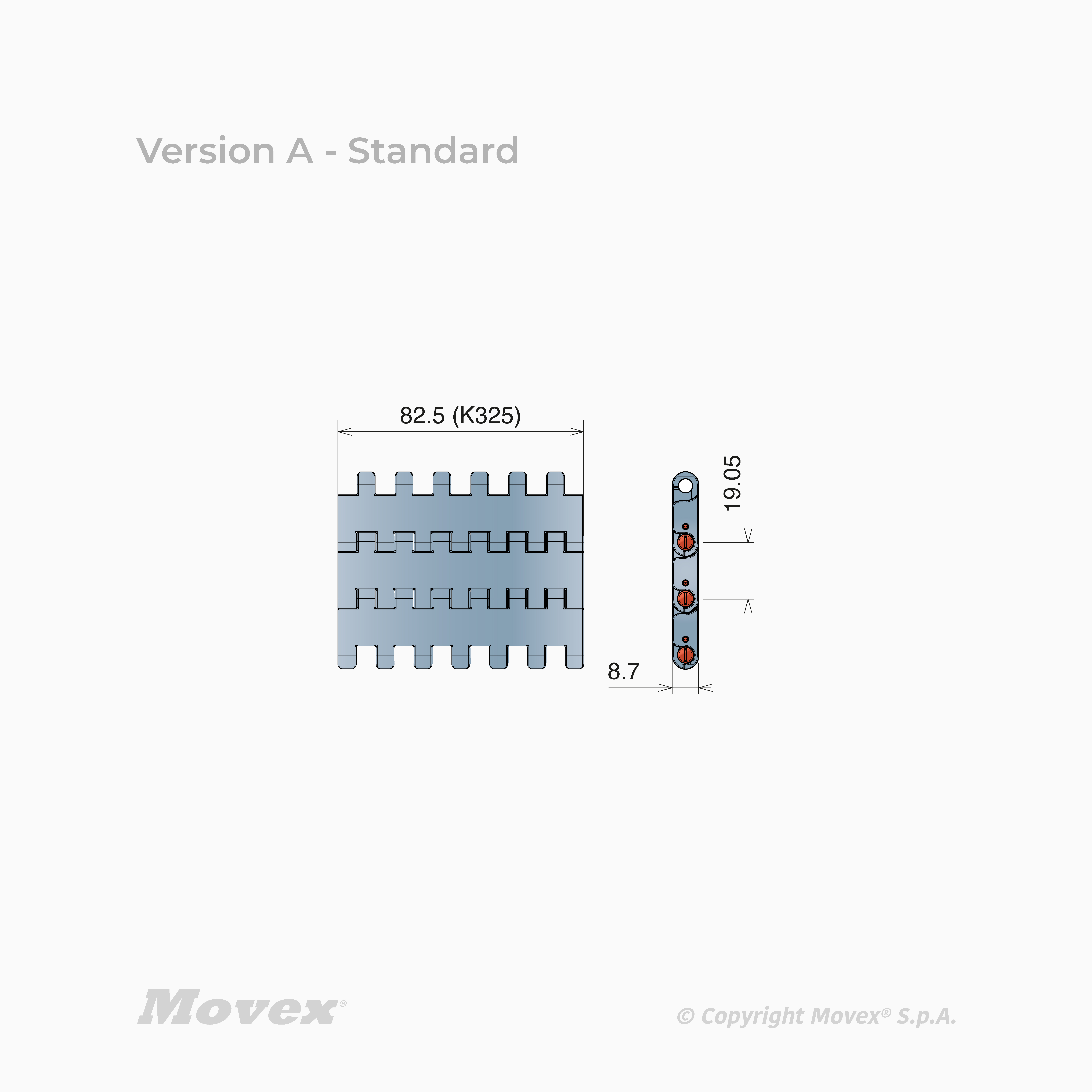

| P5301019325A | 3,25" (82,55 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5301 | 25 mm | 7.2 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C |
|
| P5301019325C | 3,25" (82,55 mm) | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5301 | 25 mm | 7.2 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C |
|

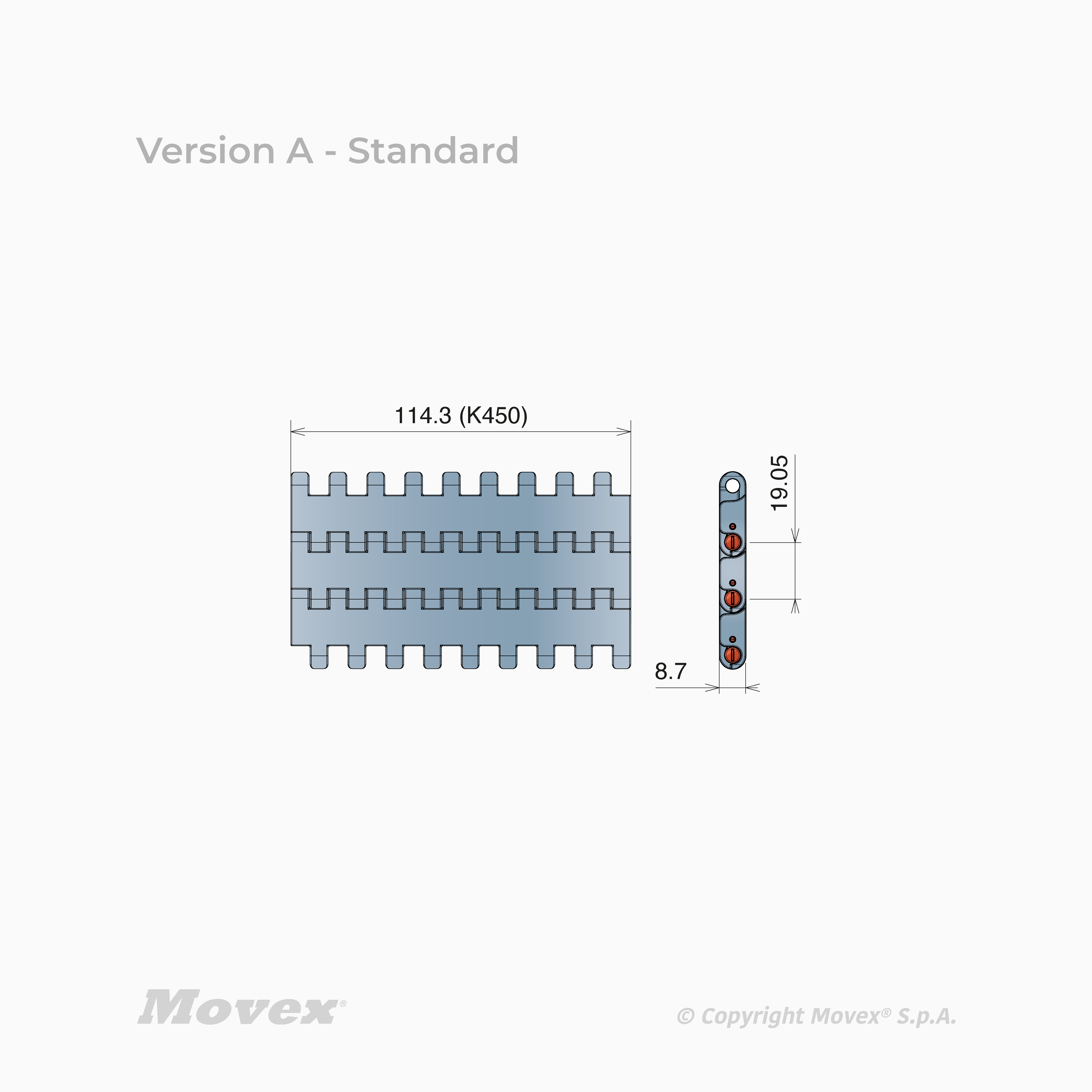

| P5301019450A | 4,5" (114,3 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5301 | 25 mm | 7.2 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C |
|
| P5301019450C | 4,5" (114,3 mm) | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5301 | 25 mm | 7.2 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C |
|

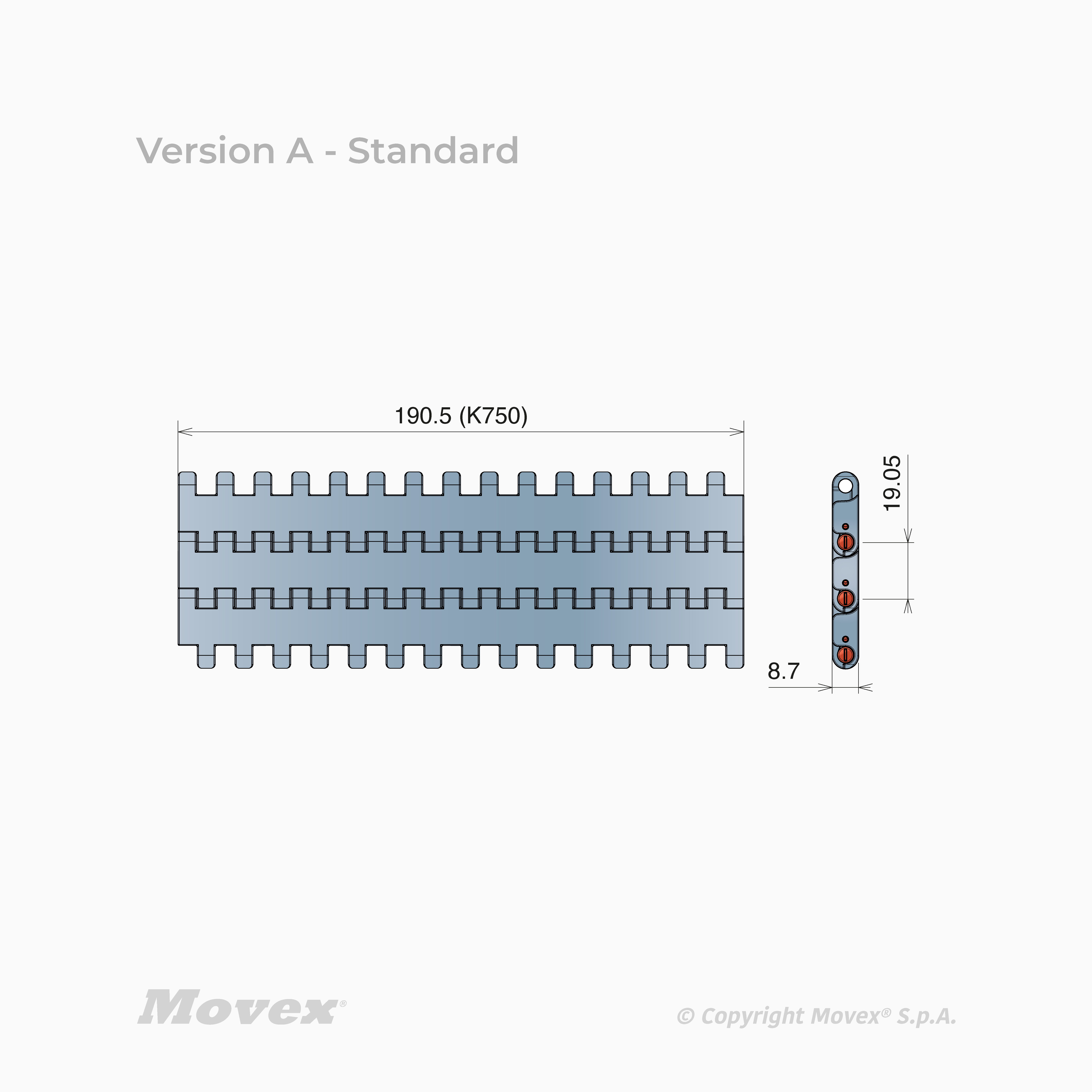

| P5301019750A | 7,5" (190,5 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5301 | 25 mm | 7.2 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C |
|
| P5301019750C | 7,5" (190,5 mm) | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5301 | 25 mm | 7.2 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C |
|
| P5301039325A | 3,25" (82,55 mm) | MX - Performance PBT (03) | POM Grey | A - No positioners | P5301 | 25 mm | 7 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C |
|
| P5301039325C | 3,25" (82,55 mm) | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5301 | 25 mm | 7 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C |
|
| P5301039450A | 4,5" (114,3 mm) | MX - Performance PBT (03) | POM Grey | A - No positioners | P5301 | 25 mm | 7 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C |
|
| P5301039450C | 4,5" (114,3 mm) | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5301 | 25 mm | 7 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C |
|
| P5301039750A | 7,5" (190,5 mm) | MX - Performance PBT (03) | POM Grey | A - No positioners | P5301 | 25 mm | 7 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C |
|
| P5301039750C | 7,5" (190,5 mm) | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5301 | 25 mm | 7 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C |
|
| P5301259325A | 3,25" (82,55 mm) | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5301 | 25 mm | 7.2 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C |
|
| P5301259325C | 3,25" (82,55 mm) | MPX - Lubricated Acetal (25) | PBT White | C - 2 Positioners | P5301 | 25 mm | 7.2 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C |
|
| P5301259450A | 4,5" (114,3 mm) | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5301 | 25 mm | 7.2 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C |
|
| P5301259450C | 4,5" (114,3 mm) | MPX - Lubricated Acetal (25) | PBT White | C - 2 Positioners | P5301 | 25 mm | 7.2 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C |
|
| P5301259750A | 7,5" (190,5 mm) | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5301 | 25 mm | 7.2 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C |
|
| P5301259750C | 7,5" (190,5 mm) | MPX - Lubricated Acetal (25) | PBT White | C - 2 Positioners | P5301 | 25 mm | 7.2 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C |
|
