556 machined sprocket

556 machined sprocket

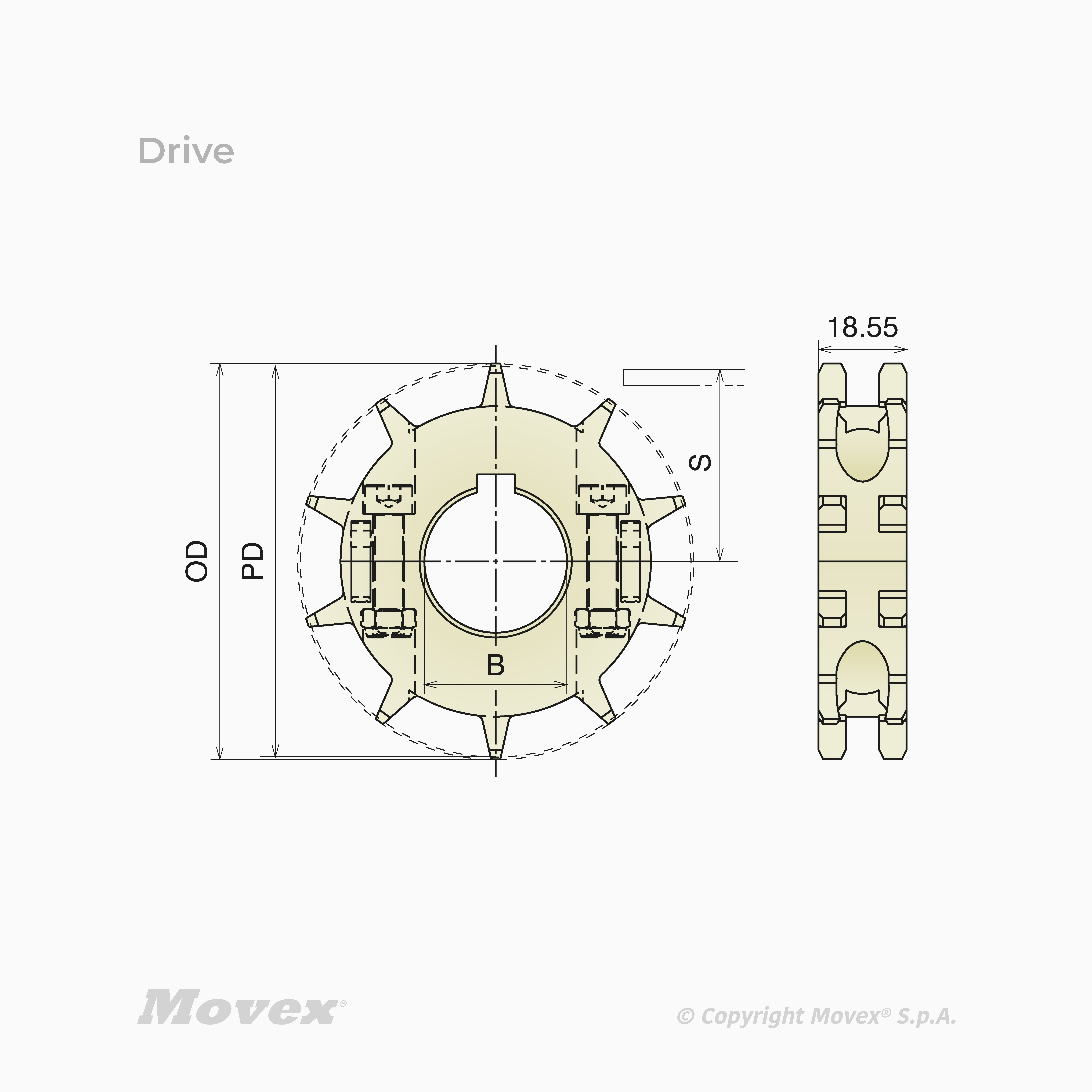

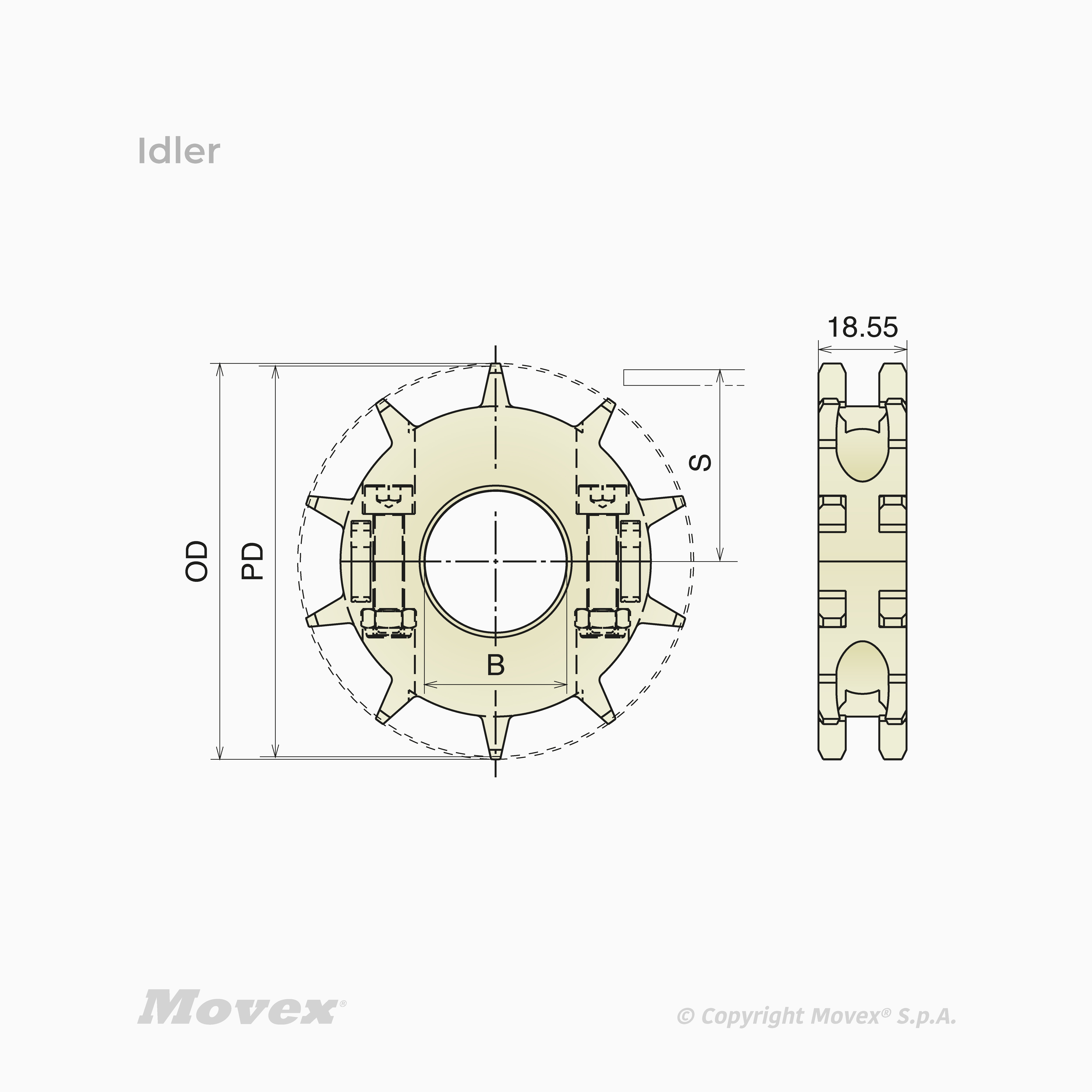

	Z-	Bore	Version	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code	All 10 12 15 18	All 18 mm 25 mm 25 x 25 mm 30 mm 30 x 30 mm 35 mm 40 mm 40 x 40 mm	All Drive Idler	All One-piece Split	All Machined	All 122.2 mm 146.3 mm 82.2 mm 98.1 mm	All 100 mm 124.3 mm 147.8 mm 83.3 mm	All 33 mm 41 mm 53 mm 65 mm	All PA - Polyamide composite	All -40÷80 °C	All -20÷120 °C	Actions
P162001	10	25 mm	Drive	Split	Machined	82.2 mm	83.3 mm	33 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162002	10	30 mm	Drive	Split	Machined	82.2 mm	83.3 mm	33 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162003E	10	35 mm	Drive	One-piece	Machined	82.2 mm	83.3 mm	33 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162004E	10	40 mm	Drive	One-piece	Machined	82.2 mm	83.3 mm	33 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162006	10	25 x 25 mm	Drive	Split	Machined	82.2 mm	83.3 mm	33 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162007	10	30 x 30 mm	Drive	Split	Machined	82.2 mm	83.3 mm	33 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162008E	10	40 x 40 mm	Drive	One-piece	Machined	82.2 mm	83.3 mm	33 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162050	10	18 mm	Idler	Split	Machined	82.2 mm	83.3 mm	33 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162051	10	25 mm	Idler	Split	Machined	82.2 mm	83.3 mm	33 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162052	10	30 mm	Idler	Split	Machined	82.2 mm	83.3 mm	33 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162053E	10	35 mm	Idler	One-piece	Machined	82.2 mm	83.3 mm	33 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162054E	10	40 mm	Idler	One-piece	Machined	82.2 mm	83.3 mm	33 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162101	12	25 mm	Drive	Split	Machined	98.1 mm	100 mm	41 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162102	12	30 mm	Drive	Split	Machined	98.1 mm	100 mm	41 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162103	12	35 mm	Drive	Split	Machined	98.1 mm	100 mm	41 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162104	12	40 mm	Drive	Split	Machined	98.1 mm	100 mm	41 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162106	12	25 x 25 mm	Drive	Split	Machined	98.1 mm	100 mm	41 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162107	12	30 x 30 mm	Drive	Split	Machined	98.1 mm	100 mm	41 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162108E	12	40 x 40 mm	Drive	One-piece	Machined	98.1 mm	100 mm	41 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162150	12	18 mm	Idler	Split	Machined	98.1 mm	100 mm	41 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162151	12	25 mm	Idler	Split	Machined	98.1 mm	100 mm	41 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162152	12	30 mm	Idler	Split	Machined	98.1 mm	100 mm	41 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162153	12	35 mm	Idler	Split	Machined	98.1 mm	100 mm	41 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162154	12	40 mm	Idler	Split	Machined	98.1 mm	100 mm	41 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162201	15	25 mm	Drive	Split	Machined	122.2 mm	124.3 mm	53 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162202	15	30 mm	Drive	Split	Machined	122.2 mm	124.3 mm	53 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162203	15	35 mm	Drive	Split	Machined	122.2 mm	124.3 mm	53 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162204	15	40 mm	Drive	Split	Machined	122.2 mm	124.3 mm	53 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162206	15	25 x 25 mm	Drive	Split	Machined	122.2 mm	124.3 mm	53 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162207	15	30 x 30 mm	Drive	Split	Machined	122.2 mm	124.3 mm	53 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162208	15	40 x 40 mm	Drive	Split	Machined	122.2 mm	124.3 mm	53 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162250	15	18 mm	Idler	Split	Machined	122.2 mm	124.3 mm	53 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162251	15	25 mm	Idler	Split	Machined	122.2 mm	124.3 mm	53 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162252	15	30 mm	Idler	Split	Machined	122.2 mm	124.3 mm	53 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162253	15	35 mm	Idler	Split	Machined	122.2 mm	124.3 mm	53 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162254	15	40 mm	Idler	Split	Machined	122.2 mm	124.3 mm	53 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162301	18	25 mm	Drive	Split	Machined	146.3 mm	147.8 mm	65 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162302	18	30 mm	Drive	Split	Machined	146.3 mm	147.8 mm	65 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162303	18	35 mm	Drive	Split	Machined	146.3 mm	147.8 mm	65 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162304	18	40 mm	Drive	Split	Machined	146.3 mm	147.8 mm	65 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162306	18	25 x 25 mm	Drive	Split	Machined	146.3 mm	147.8 mm	65 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162307	18	30 x 30 mm	Drive	Split	Machined	146.3 mm	147.8 mm	65 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162308	18	40 x 40 mm	Drive	Split	Machined	146.3 mm	147.8 mm	65 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162350	18	18 mm	Idler	Split	Machined	146.3 mm	147.8 mm	65 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162351	18	25 mm	Idler	Split	Machined	146.3 mm	147.8 mm	65 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162352	18	30 mm	Idler	Split	Machined	146.3 mm	147.8 mm	65 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162353	18	35 mm	Idler	Split	Machined	146.3 mm	147.8 mm	65 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P162354	18	40 mm	Idler	Split	Machined	146.3 mm	147.8 mm	65 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C

•
