553 one-piece molded sprocket
Belt sprockets
Description
Basic features
| Series: | 553 |
|---|---|
| Pitch: | 25.4 mm |
| Unit of measure: | Ea |
| Box: | 4 |

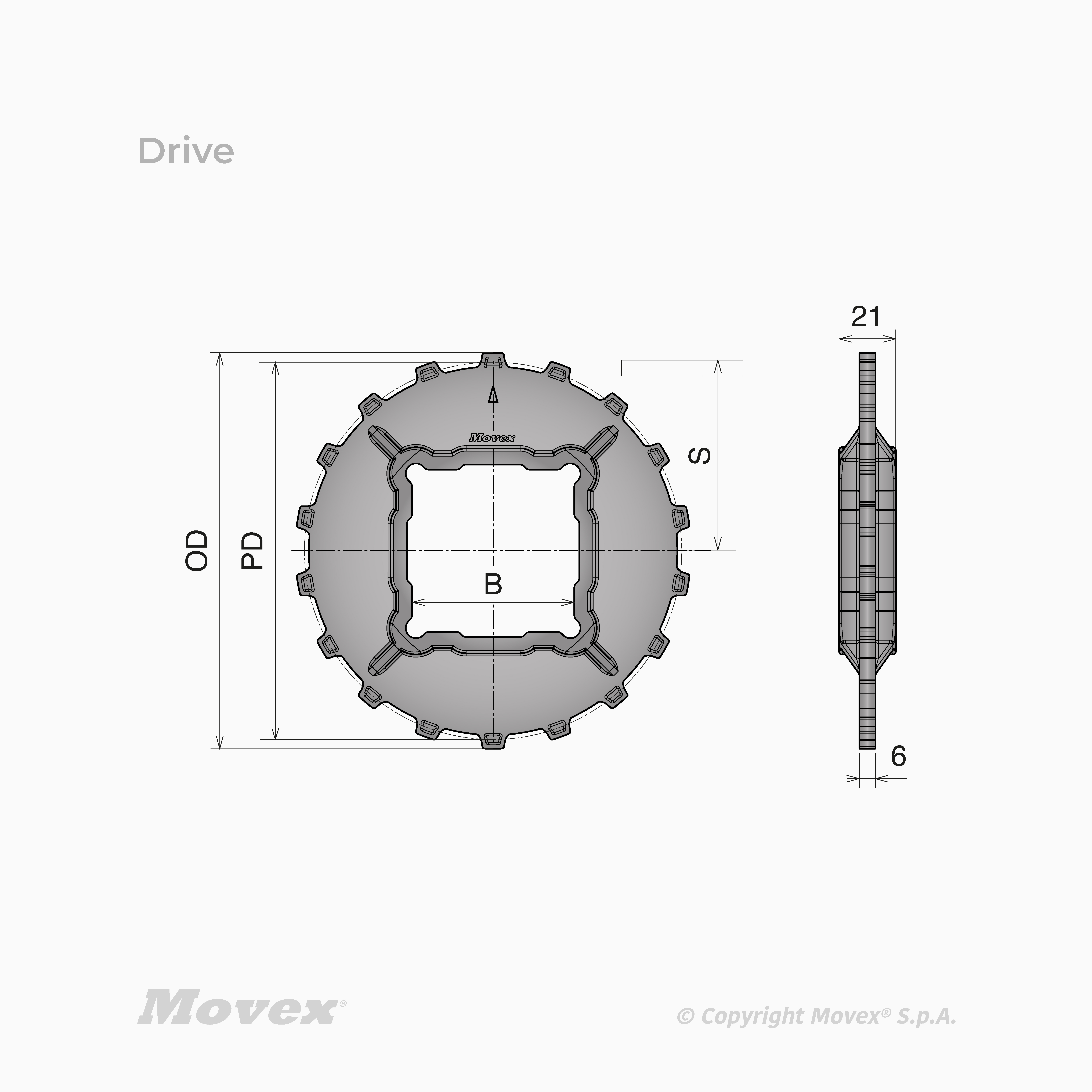

553 one-piece molded sprocket
| Z- | Bore |
Version | Type | Execution | Pitch diameter | Outer diameter | S dimension | Material | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| P166510 | 18 | 60 x 60 mm | Drive | Split | Molded | 146.3 mm | 146 mm | 68.5 mm | PA - Polyamide reinforced | -20÷120 °C | -20÷120 °C |
|
| P166511 | 18 | 40 x 40 mm | Drive | Split | Molded | 146.3 mm | 146 mm | 68.5 mm | PA - Polyamide reinforced | -20÷120 °C | -20÷120 °C |
|
