553 FlexTop
Modular Belts
Description
Description
The new Movex ® 553 FlexTop modular belt with self-locking spheres is specififically designed for high-precision material handling, suitable for several applications like logistic centers, packaging stations (food and beverage) and corrugated industries, easily to be integrated into existing systems.
The 360° movement possibility makes the belt suitable for diverting, rotating, accumulating and accelerating applications and minimize required maintenance and downtimes.
The small pitch between the spheres (diameter 12,7 mm and pitch 25,4 mm) allows every type of product transfer and is ideal for small and light packages, unlike traditional roller conveyors.
The complete closed sliding belt surface is the perfect solution to carry carton boxes, crates, cans and bottles shrink-wrap packaging and any kind of polybag with Top-Accuracy package control.

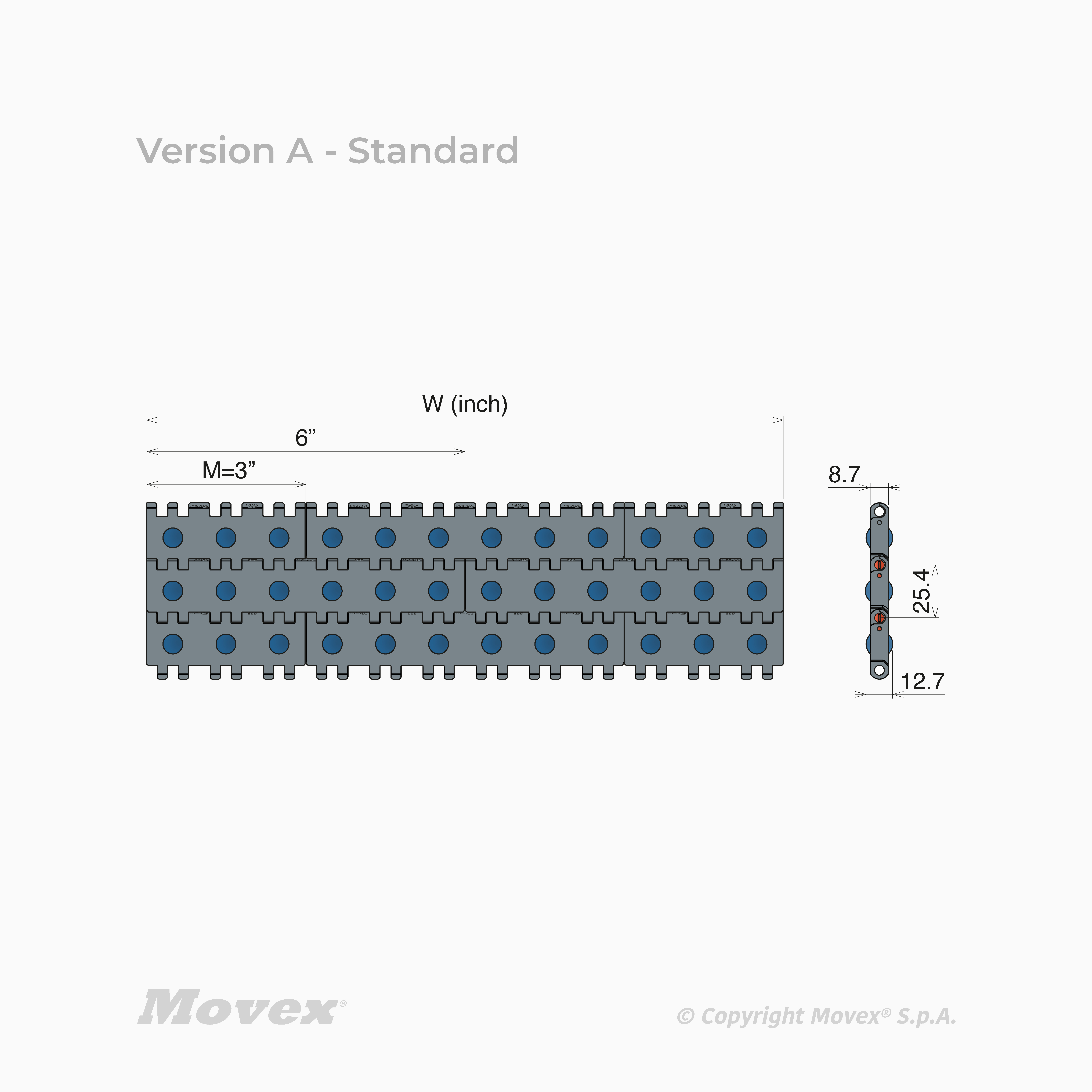

Basic features
| Series: | 553 |
|---|---|
| Pitch: | 25.4 mm |
| Thickness: | 8.7 mm |
| Increments: | 3" - 76,2 mm |
| Surface Type: | Flex Top Multi-directional |
| Functionality: | Straight |
| Unit of measure: | Meter |
553 FlexTop
| Width | Material | Version | Part | Back flex radius | Max working load | Mass | Pin material | Fixation | Box | Temperature range dry | Temperature range wet | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||
| P5530270003A | 3" (76,2 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Sphere material: High-tech polyamide Patented closed gap |
|
| P5530270006A | 6" (152,4 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | - |
|
| P5530270009A | 9" (228,6 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | - |
|
| P5530270012A | 12" (304,8 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - |
|
| P5530270015A | 15" (381 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - |
|
| P5530270018A | 18" (457,2 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - |
|
| P5530270021A | 21" (533,4 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - |
|
| P5530270024A | 24" (609,6 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | - |
|
| P5530270027A | 27" (685,8 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | - |
|
| P5530270030A | 30" (762 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | - |
|
| P5530270033A | 33" (838,2 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | - |
|
| P5530270036A | 36" (914,4 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | - |
|
| P5530270039A | 39" (990,6 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | - |
|
| P5530270042A | 42" (1066,8 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | - |
|
| P5530270045A | 45" (1143 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Sphere material: High-tech polyamide Patented closed gap |
|
| P5530270048A | 48" (1219,2 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Sphere material: High-tech polyamide Patented closed gap |
|
| P5530270051A | 51" (1295,4 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Sphere material: High-tech polyamide Patented closed gap |
|
| P5530270054A | 54" (1371,6 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Sphere material: High-tech polyamide Patented closed gap |
|
| P5530270057A | 57" (1447,8 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Sphere material: High-tech polyamide Patented closed gap |
|
| P5530270060A | 60" (1524 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Sphere material: High-tech polyamide Patented closed gap |
|
| P5530270063A | 63" (1600,2 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Sphere material: High-tech polyamide Patented closed gap |
|
| P5530270066A | 66" (1676,4 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Sphere material: High-tech polyamide Patented closed gap |
|
| P5530270069A | 69" (1752,6 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Sphere material: High-tech polyamide Patented closed gap |
|
| P5530270072A | 72" (1828,8 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Sphere material: High-tech polyamide Patented closed gap |
|
| P5530270075A | 75" (1905 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Sphere material: High-tech polyamide Patented closed gap |
|
| P5530270078A | 78" (1981,2 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Sphere material: High-tech polyamide Patented closed gap |
|
| P5530270081A | 81" (2057,4 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Sphere material: High-tech polyamide Patented closed gap |
|
| P5530270084A | 84" (2133,6 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Sphere material: High-tech polyamide Patented closed gap |
|
| P5530270087A | 87" (2209,8 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Sphere material: High-tech polyamide Patented closed gap |
|
| P5530270090A | 90" (2286 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Sphere material: High-tech polyamide Patented closed gap |
|
| P5530270093A | 93" (2362,2 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Sphere material: High-tech polyamide Patented closed gap |
|
| P5530270096A | 96" (2438,4 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Sphere material: High-tech polyamide Patented closed gap |
|
| P5530270099A | 99" (2514,6 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Sphere material: High-tech polyamide Patented closed gap |
|
| P5530270102A | 102" (2590,8 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Sphere material: High-tech polyamide Patented closed gap |
|
| P5530270105A | 105" (2667 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Sphere material: High-tech polyamide Patented closed gap |
|
| P5530270108A | 108" (2743,2") | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Sphere material: High-tech polyamide Patented closed gap |
|
| P5530270111A | 111" (2819,4 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Sphere material: High-tech polyamide Patented closed gap |
|
| P5530270114A | 114" (2895,6 mm) | LFG - Low friction acetal (Grey) | A - No positioners | P5530 | 25 mm | 27500 N/m | 10 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Sphere material: High-tech polyamide Patented closed gap |
|
