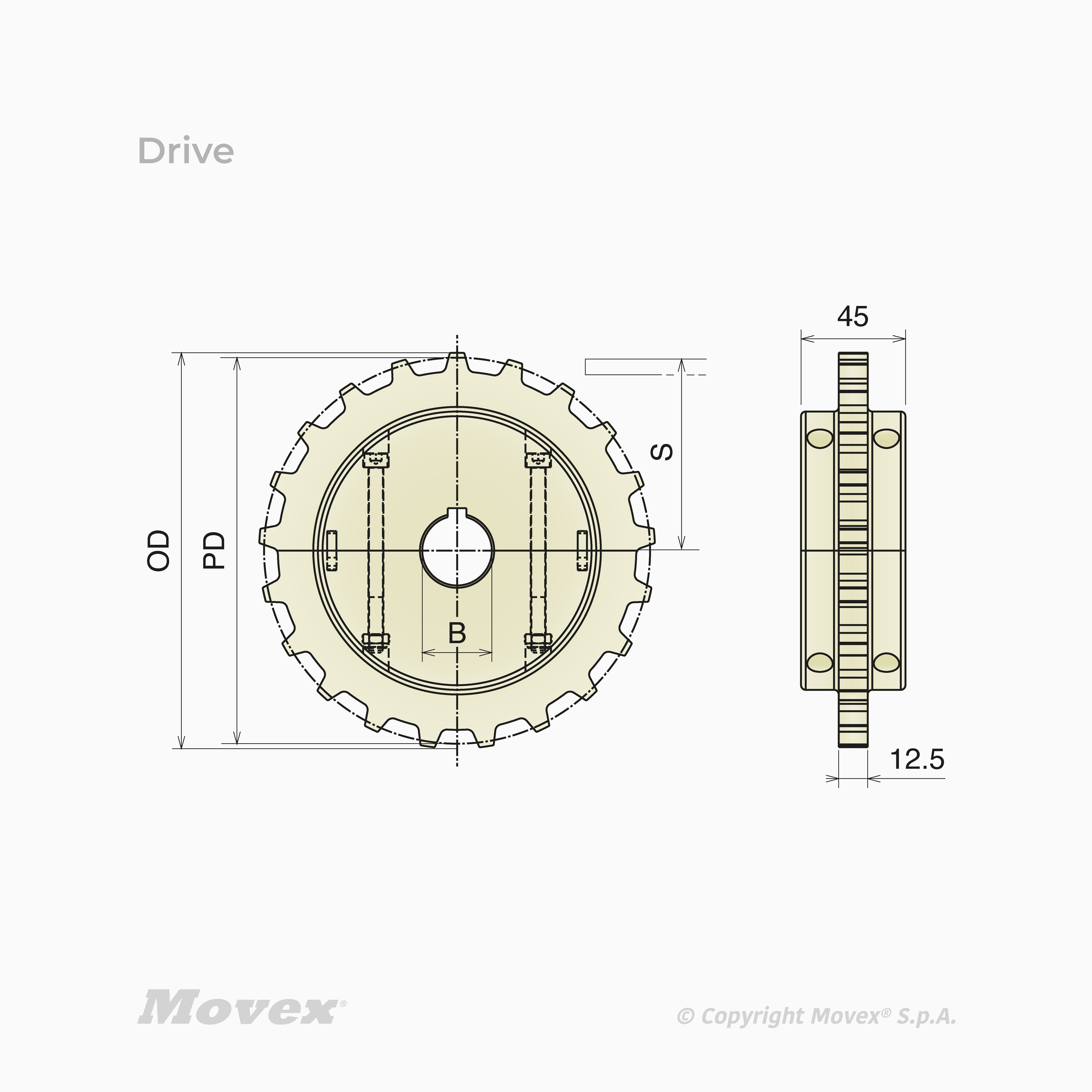

552 split machined sprocket

552 split machined sprocket

	Z-	Bore	Version	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code	All 16 18 21 25	All 18 mm 25 mm 25 x 25 mm 30 mm 30 x 30 mm 35 mm 40 mm 40 x 40 mm	All Drive Idler	All Split	All Machined	All 130.2 mm 146.3 mm 170.4 mm 202.7 mm	All 129 mm 130.6 mm 146.9 mm 170.7 mm 204.2 mm	All 58.7 mm 66.8 mm 78.8 mm 95 mm	All PA - Polyamide composite	All -40÷80 °C	All -20÷120 °C	Actions
P161101	16	25 mm	Drive	Split	Machined	130.2 mm	129 mm	58.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161102	16	30 mm	Drive	Split	Machined	130.2 mm	129 mm	58.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161103	16	35 mm	Drive	Split	Machined	130.2 mm	129 mm	58.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161104	16	40 mm	Drive	Split	Machined	130.2 mm	129 mm	58.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161106	16	25 x 25 mm	Drive	Split	Machined	130.2 mm	129 mm	58.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161107	16	30 x 30 mm	Drive	Split	Machined	130.2 mm	129 mm	58.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161108	16	40 x 40 mm	Drive	Split	Machined	130.2 mm	129 mm	58.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161150	16	18 mm	Idler	Split	Machined	130.2 mm	130.6 mm	58.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161151	16	25 mm	Idler	Split	Machined	130.2 mm	130.6 mm	58.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161152	16	30 mm	Idler	Split	Machined	130.2 mm	130.6 mm	58.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161153	16	35 mm	Idler	Split	Machined	130.2 mm	130.6 mm	58.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161154	16	40 mm	Idler	Split	Machined	130.2 mm	130.6 mm	58.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161201	18	25 mm	Drive	Split	Machined	146.3 mm	146.9 mm	66.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161202	18	30 mm	Drive	Split	Machined	146.3 mm	146.9 mm	66.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161203	18	35 mm	Drive	Split	Machined	146.3 mm	146.9 mm	66.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161204	18	40 mm	Drive	Split	Machined	146.3 mm	146.9 mm	66.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161206	18	25 x 25 mm	Drive	Split	Machined	146.3 mm	146.9 mm	66.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161207	18	30 x 30 mm	Drive	Split	Machined	146.3 mm	146.9 mm	66.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161208	18	40 x 40 mm	Drive	Split	Machined	146.3 mm	146.9 mm	66.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161250	18	18 mm	Idler	Split	Machined	146.3 mm	146.9 mm	66.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161251	18	25 mm	Idler	Split	Machined	146.3 mm	146.9 mm	66.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161252	18	30 mm	Idler	Split	Machined	146.3 mm	146.9 mm	66.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161253	18	35 mm	Idler	Split	Machined	146.3 mm	146.9 mm	66.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161254	18	40 mm	Idler	Split	Machined	146.3 mm	146.9 mm	66.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161301	21	25 mm	Drive	Split	Machined	170.4 mm	170.7 mm	78.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161302	21	30 mm	Drive	Split	Machined	170.4 mm	170.7 mm	78.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161303	21	35 mm	Drive	Split	Machined	170.4 mm	170.7 mm	78.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161304	21	40 mm	Drive	Split	Machined	170.4 mm	170.7 mm	78.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161306	21	25 x 25 mm	Drive	Split	Machined	170.4 mm	170.7 mm	78.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161307	21	30 x 30 mm	Drive	Split	Machined	170.4 mm	170.7 mm	78.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161308	21	40 x 40 mm	Drive	Split	Machined	170.4 mm	170.7 mm	78.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161350	21	18 mm	Idler	Split	Machined	170.4 mm	170.7 mm	78.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161351	21	25 mm	Idler	Split	Machined	170.4 mm	170.7 mm	78.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161352	21	30 mm	Idler	Split	Machined	170.4 mm	170.7 mm	78.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161353	21	35 mm	Idler	Split	Machined	170.4 mm	170.7 mm	78.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161354	21	40 mm	Idler	Split	Machined	170.4 mm	170.7 mm	78.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161401	25	25 mm	Drive	Split	Machined	202.7 mm	204.2 mm	95 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161402	25	30 mm	Drive	Split	Machined	202.7 mm	204.2 mm	95 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161403	25	35 mm	Drive	Split	Machined	202.7 mm	204.2 mm	95 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161404	25	40 mm	Drive	Split	Machined	202.7 mm	204.2 mm	95 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161406	25	25 x 25 mm	Drive	Split	Machined	202.7 mm	204.2 mm	95 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161407	25	30 x 30 mm	Drive	Split	Machined	202.7 mm	204.2 mm	95 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161408	25	40 x 40 mm	Drive	Split	Machined	202.7 mm	204.2 mm	95 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161450	25	18 mm	Idler	Split	Machined	202.7 mm	204.2 mm	95 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161451	25	25 mm	Idler	Split	Machined	202.7 mm	204.2 mm	95 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161452	25	30 mm	Idler	Split	Machined	202.7 mm	204.2 mm	95 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161453	25	35 mm	Idler	Split	Machined	202.7 mm	204.2 mm	95 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P161454	25	40 mm	Idler	Split	Machined	202.7 mm	204.2 mm	95 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C

•
