552 Perforated Top
Modular Belts
Description
Basic features
| Series: | 552 |
|---|---|
| Pitch: | 25.4 mm |
| Thickness: | 12.7 mm |
| Increments: | 3" - 76,2 mm |
| Surface Type: | PT - Perforated Top |
| Functionality: | Straight |
| Unit of measure: | Meter |

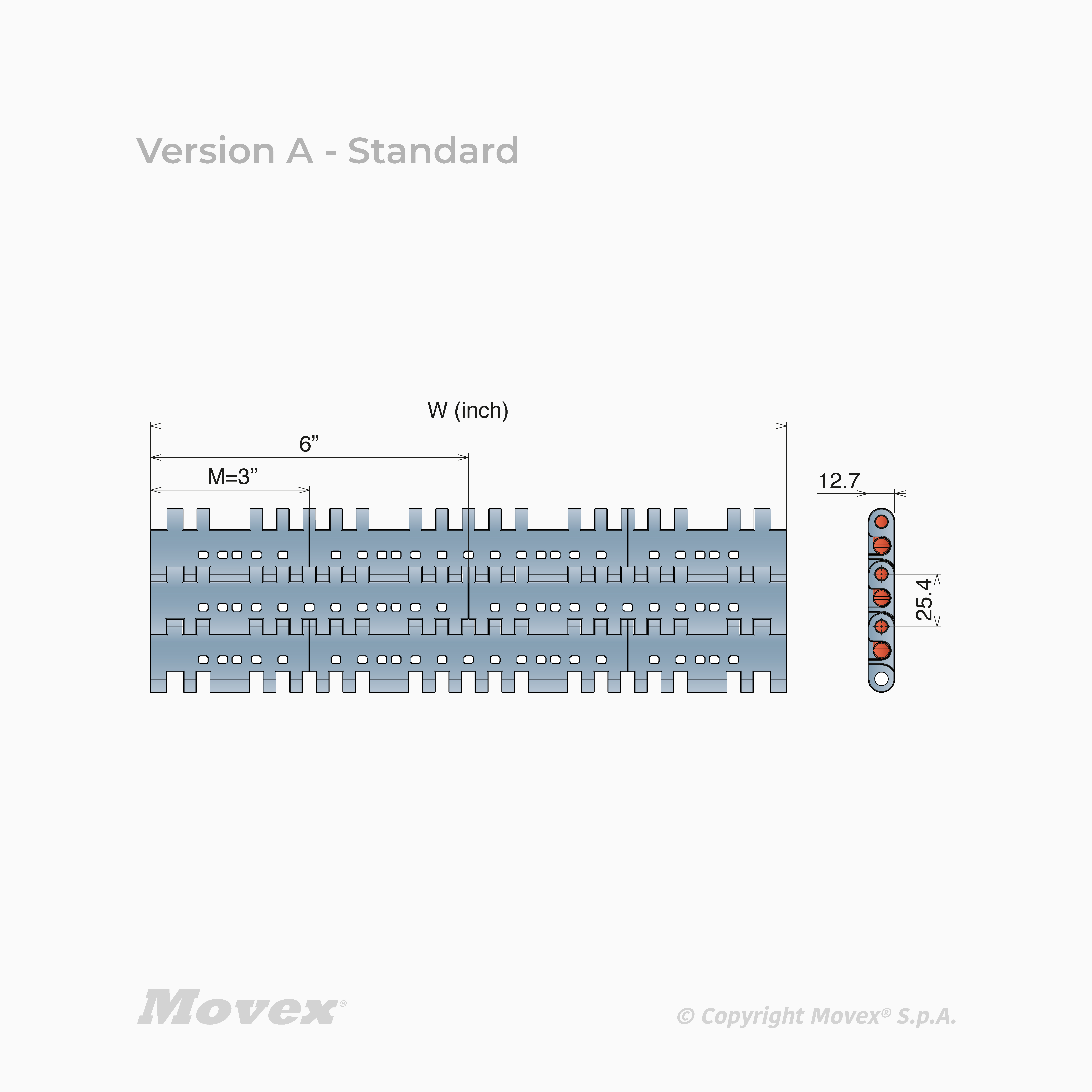

552 Perforated Top
| Width | Material | Pin material | Version | Part | Back flex radius | Max working load | Mass | Fixation | Box | Temperature range dry | Temperature range wet | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||
| P5342010009A | 9" (228,6 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Suraface 8 % |
|
| P5342010009A-SS | 9" (228,6 mm) | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Suraface 8 % |
|
| P5342010012A | 12" (304,8 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5342010012A-SS | 12" (304,8 mm) | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Suraface 8 % |
|
| P5342010015A | 15" (381 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5342010015A-SS | 15" (381 mm) | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Suraface 8 % |
|
| P5342010018A | 18" (457,2 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5342010018A-SS | 18" (457,2 mm) | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Suraface 8 % |
|
| P5342010021A | 21" (533,4 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5342010021A-SS | 21" (533,4 mm) | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Suraface 8 % |
|
| P5342010024A | 24" (609,6 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5342010024A-SS | 24" (609,6 mm) | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Suraface 8 % |
|
| P5342010027A | 27" (685,8 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5342010027A-SS | 27" (685,8 mm) | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Suraface 8 % |
|
| P5342010030A | 30" (762 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5342010030A-SS | 30" (762 mm) | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Suraface 8 % |
|
| P5342010033A | 33" (838,2 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5342010033A-SS | 33" (838,2 mm) | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Suraface 8 % |
|
| P5342010036A | 36" (914,4 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5342010036A-SS | 36" (914,4 mm) | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Suraface 8 % |
|
| P5342010039A | 39" (990,6 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5342010039A-SS | 39" (990,6 mm) | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Suraface 8 % |
|
| P5342010042A | 42" (1066,8 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - |
|
| P5342010042A-SS | 42" (1066,8 mm) | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Suraface 8 % |
|
| P5342010045A | 45" (1143 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - |
|
| P5342010045A-SS | 45" (1143 mm) | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Suraface 8 % |
|
| P5342010048A | 48" (1219,2 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - |
|
| P5342010048A-SS | 48" (1219,2 mm) | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Suraface 8 % |
|
| P5342010051A | 51" (1295,4 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - |
|
| P5342010051A-SS | 51" (1295,4 mm) | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Suraface 8 % |
|
| P5342010054A | 54" (1371,6 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - |
|
| P5342010054A-SS | 54" (1371,6 mm) | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Suraface 8 % |
|
| P5342030009A | 9" (228,6 mm) | MX - Performance PBT (03) | POM Grey | A - No positioners | P5342 | 25 mm | 33500 N/m | 12.7 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030009A-SS | 9" (228,6 mm) | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5342 | 25 mm | 36850 N/m | 12.7 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030012A | 12" (304,8 mm) | MX - Performance PBT (03) | POM Grey | A - No positioners | P5342 | 25 mm | 33500 N/m | 12.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030012A-SS | 12" (304,8 mm) | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5342 | 25 mm | 36850 N/m | 12.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030015A | 15" (381 mm) | MX - Performance PBT (03) | POM Grey | A - No positioners | P5342 | 25 mm | 33500 N/m | 12.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030015A-SS | 15" (381 mm) | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5342 | 25 mm | 36850 N/m | 12.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030018A | 18" (457,2 mm) | MX - Performance PBT (03) | POM Grey | A - No positioners | P5342 | 25 mm | 33500 N/m | 12.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030018A-SS | 18" (457,2 mm) | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5342 | 25 mm | 36850 N/m | 12.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030021A | 21" (533,4 mm) | MX - Performance PBT (03) | POM Grey | A - No positioners | P5342 | 25 mm | 33500 N/m | 12.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030021A-SS | 21" (533,4 mm) | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5342 | 25 mm | 36850 N/m | 12.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030024A | 24" (609,6 mm) | MX - Performance PBT (03) | POM Grey | A - No positioners | P5342 | 25 mm | 33500 N/m | 12.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030024A-SS | 24" (609,6 mm) | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5342 | 25 mm | 36850 N/m | 12.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030027A | 27" (685,8 mm) | MX - Performance PBT (03) | POM Grey | A - No positioners | P5342 | 25 mm | 33500 N/m | 12.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030027A-SS | 27" (685,8 mm) | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5342 | 25 mm | 36850 N/m | 12.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030030A | 30" (762 mm) | MX - Performance PBT (03) | POM Grey | A - No positioners | P5342 | 25 mm | 33500 N/m | 12.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030030A-SS | 30" (762 mm) | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5342 | 25 mm | 36850 N/m | 12.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030033A | 33" (838,2 mm) | MX - Performance PBT (03) | POM Grey | A - No positioners | P5342 | 25 mm | 33500 N/m | 12.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030033A-SS | 33" (838,2 mm) | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5342 | 25 mm | 36850 N/m | 12.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030036A | 36" (914,4 mm) | MX - Performance PBT (03) | POM Grey | A - No positioners | P5342 | 25 mm | 33500 N/m | 12.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030036A-SS | 36" (914,4 mm) | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5342 | 25 mm | 36850 N/m | 12.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030039A | 39" (990,6 mm) | MX - Performance PBT (03) | POM Grey | A - No positioners | P5342 | 25 mm | 33500 N/m | 12.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030039A-SS | 39" (990,6 mm) | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5342 | 25 mm | 36850 N/m | 12.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030042A | 42" (1066,8 mm) | MX - Performance PBT (03) | POM Grey | A - No positioners | P5342 | 25 mm | 33500 N/m | 12.7 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030042A-SS | 42" (1066,8 mm) | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5342 | 25 mm | 36850 N/m | 12.7 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030045A | 45" (1143 mm) | MX - Performance PBT (03) | POM Grey | A - No positioners | P5342 | 25 mm | 33500 N/m | 12.7 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030045A-SS | 45" (1143 mm) | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5342 | 25 mm | 36850 N/m | 12.7 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030048A | 48" (1219,2 mm) | MX - Performance PBT (03) | POM Grey | A - No positioners | P5342 | 25 mm | 33500 N/m | 12.7 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030048A-SS | 48" (1219,2 mm) | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5342 | 25 mm | 36850 N/m | 12.7 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030051A | 51" (1295,4 mm) | MX - Performance PBT (03) | POM Grey | A - No positioners | P5342 | 25 mm | 33500 N/m | 12.7 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030051A-SS | 51" (1295,4 mm) | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5342 | 25 mm | 36850 N/m | 12.7 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030054A | 54" (1371,6 mm) | MX - Performance PBT (03) | POM Grey | A - No positioners | P5342 | 25 mm | 33500 N/m | 12.7 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342030054A-SS | 54" (1371,6 mm) | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5342 | 25 mm | 36850 N/m | 12.7 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Suraface 8 % |
|
| P5342170009A | 9" (228,6 mm) | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.7 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170009A-SS | 9" (228,6 mm) | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.7 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170012A | 12" (304,8 mm) | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170012A-SS | 12" (304,8 mm) | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170015A | 15" (381 mm) | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170015A-SS | 15" (381 mm) | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170018A | 18" (457,2 mm) | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170018A-SS | 18" (457,2 mm) | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170021A | 21" (533,4 mm) | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170021A-SS | 21" (533,4 mm) | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170024A | 24" (609,6 mm) | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170024A-SS | 24" (609,6 mm) | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170027A | 27" (685,8 mm) | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170027A-SS | 27" (685,8 mm) | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170030A | 30" (762 mm) | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170030A-SS | 30" (762 mm) | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170033A | 33" (838,2 mm) | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170033A-SS | 33" (838,2 mm) | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170036A | 36" (914,4 mm) | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170036A-SS | 36" (914,4 mm) | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170039A | 39" (990,6 mm) | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170039A-SS | 39" (990,6 mm) | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.7 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170042A | 42" (1066,8 mm) | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.7 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170042A-SS | 42" (1066,8 mm) | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.7 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170045A | 45" (1143 mm) | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.7 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170045A-SS | 45" (1143 mm) | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.7 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170048A | 48" (1219,2 mm) | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.7 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170048A-SS | 48" (1219,2 mm) | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.7 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170051A | 51" (1295,4 mm) | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.7 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170051A-SS | 51" (1295,4 mm) | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.7 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170054A | 54" (1371,6 mm) | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.7 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342170054A-SS | 54" (1371,6 mm) | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.7 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Suraface 8 % |
|
| P5342250009A | 9" (228,6 mm) | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Suraface 8 % |
|
| P5342250009A-SS | 9" (228,6 mm) | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Suraface 8 % |
|
| P5342250012A | 12" (304,8 mm) | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷66 °C | Open Suraface 8 % |
|
| P5342250012A-SS | 12" (304,8 mm) | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷66 °C | Open Suraface 8 % |
|
| P5342250015A | 15" (381 mm) | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷67 °C | Open Suraface 8 % |
|
| P5342250015A-SS | 15" (381 mm) | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷67 °C | Open Suraface 8 % |
|
| P5342250018A | 18" (457,2 mm) | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷68 °C | Open Suraface 8 % |
|
| P5342250018A-SS | 18" (457,2 mm) | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷68 °C | Open Suraface 8 % |
|
| P5342250021A | 21" (533,4 mm) | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷69 °C | Open Suraface 8 % |
|
| P5342250021A-SS | 21" (533,4 mm) | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷69 °C | Open Suraface 8 % |
|
| P5342250024A | 24" (609,6 mm) | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷70 °C | Open Suraface 8 % |
|
| P5342250024A-SS | 24" (609,6 mm) | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷70 °C | Open Suraface 8 % |
|
| P5342250027A | 27" (685,8 mm) | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷71 °C | Open Suraface 8 % |
|
| P5342250027A-SS | 27" (685,8 mm) | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷71 °C | Open Suraface 8 % |
|
| P5342250030A | 30" (762 mm) | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷72 °C | Open Suraface 8 % |
|
| P5342250030A-SS | 30" (762 mm) | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷72 °C | Open Suraface 8 % |
|
| P5342250033A | 33" (838,2 mm) | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷73 °C | Open Suraface 8 % |
|
| P5342250033A-SS | 33" (838,2 mm) | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷73 °C | Open Suraface 8 % |
|
| P5342250036A | 36" (914,4 mm) | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷74 °C | Open Suraface 8 % |
|
| P5342250036A-SS | 36" (914,4 mm) | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷74 °C | Open Suraface 8 % |
|
| P5342250039A | 39" (990,6 mm) | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷75 °C | Open Suraface 8 % |
|
| P5342250039A-SS | 39" (990,6 mm) | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷75 °C | Open Suraface 8 % |
|
| P5342250042A | 42" (1066,8 mm) | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷76 °C | Open Suraface 8 % |
|
| P5342250042A-SS | 42" (1066,8 mm) | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷76 °C | Open Suraface 8 % |
|
| P5342250045A | 45" (1143 mm) | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷77 °C | Open Suraface 8 % |
|
| P5342250045A-SS | 45" (1143 mm) | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷77 °C | Open Suraface 8 % |
|
| P5342250048A | 48" (1219,2 mm) | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷78 °C | Open Suraface 8 % |
|
| P5342250048A-SS | 48" (1219,2 mm) | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷78 °C | Open Suraface 8 % |
|
| P5342250051A | 51" (1295,4 mm) | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷79 °C | Open Suraface 8 % |
|
| P5342250051A-SS | 51" (1295,4 mm) | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷79 °C | Open Suraface 8 % |
|
| P5342250054A | 54" (1371,6 mm) | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5342 | 25 mm | 41500 N/m | 13.2 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷80 °C | Open Suraface 8 % |
|
| P5342250054A-SS | 54" (1371,6 mm) | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5342 | 25 mm | 45650 N/m | 13.2 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷80 °C | Open Suraface 8 % |
|
