551 Flat Top
Modular Belts
Description
Basic features
| Series: | 551 |
|---|---|
| Pitch: | 25.4 mm |
| Thickness: | 12.7 mm |
| Increments: | 85 mm |
| Surface Type: | FT - Flat Top |
| Functionality: | Straight |
| Unit of measure: | Meter |

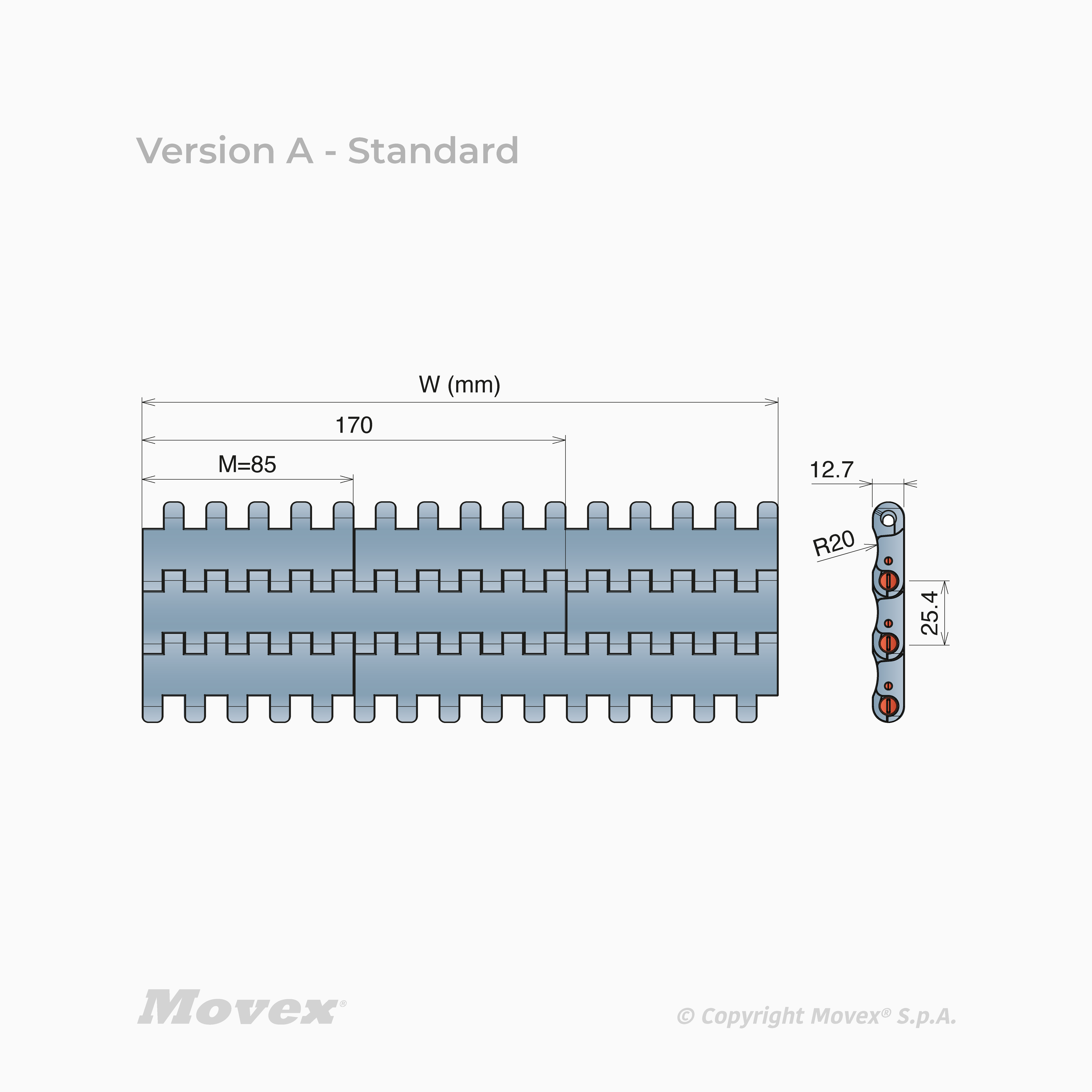

551 Flat Top
| Width | Material | Pin material | Version | Part | Back flex radius | Max working load | Mass | Fixation | Box | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| P5231010085A | 85 mm (3,35") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231010085A-SS | 85 mm (3,35") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231010085B | 85 mm (3,35") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231010085B-SS | 85 mm (3,35") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231010085C | 85 mm (3,35") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231010085C-SS | 85 mm (3,35") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231010170A | 170 mm (6,69") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231010170A-SS | 170 mm (6,69") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231010170B | 170 mm (6,69") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231010170B-SS | 170 mm (6,69") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231010170C | 170 mm (6,69") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231010170C-SS | 170 mm (6,69") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231010255A | 255 mm (10,04") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231010255A-SS | 255 mm (10,04") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231010255B | 255 mm (10,04") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231010255B-SS | 255 mm (10,04") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231010255C | 255 mm (10,04") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231010255C-SS | 255 mm (10,04") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231010340A | 340 mm (13,39") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010340A-SS | 340 mm (13,39") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010340B | 340 mm (13,39") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010340B-SS | 340 mm (13,39") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010340C | 340 mm (13,39") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010340C-SS | 340 mm (13,39") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010425A | 425 mm (16,73") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010425A-SS | 425 mm (16,73") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010425B | 425 mm (16,73") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010425B-SS | 425 mm (16,73") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010425C | 425 mm (16,73") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010425C-SS | 425 mm (16,73") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010510A | 510 mm (20,08") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010510A-SS | 510 mm (20,08") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010510B | 510 mm (20,08") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010510B-SS | 510 mm (20,08") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010510C | 510 mm (20,08") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010510C-SS | 510 mm (20,08") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010595A | 595 mm (23,43") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010595A-SS | 595 mm (23,43") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010595B | 595 mm (23,43") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010595B-SS | 595 mm (23,43") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010595C | 595 mm (23,43") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010595C-SS | 595 mm (23,43") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010680A | 680 mm (26,77") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010680A-SS | 680 mm (26,77") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010680B | 680 mm (26,77") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010680B-SS | 680 mm (26,77") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010680C | 680 mm (26,77") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010680C-SS | 680 mm (26,77") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010765A | 765 mm (30,12") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010765A-SS | 765 mm (30,12") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010765B | 765 mm (30,12") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010765B-SS | 765 mm (30,12") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010765C | 765 mm (30,12") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010765C-SS | 765 mm (30,12") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010850A | 850 mm (33,46") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010850A-SS | 850 mm (33,46") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010850B | 850 mm (33,46") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010850B-SS | 850 mm (33,46") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010850C | 850 mm (33,46") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010850C-SS | 850 mm (33,46") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010935A | 935 mm (36,81") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010935A-SS | 935 mm (36,81") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010935B | 935 mm (36,81") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010935B-SS | 935 mm (36,81") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010935C | 935 mm (36,81") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231010935C-SS | 935 mm (36,81") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231011020A | 1020 mm (40,16") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011020A-SS | 1020 mm (40,16") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011020B | 1020 mm (40,16") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011020B-SS | 1020 mm (40,16") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011020C | 1020 mm (40,16") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011020C-SS | 1020 mm (40,16") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011105A | 1105 mm (43,50") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011105A-SS | 1105 mm (43,50") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011105B | 1105 mm (43,50") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011105B-SS | 1105 mm (43,50") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011105C | 1105 mm (43,50") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011105C-SS | 1105 mm (43,50") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011190A | 1190 mm (46,85") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011190A-SS | 1190 mm (46,85") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011190B | 1190 mm (46,85") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011190B-SS | 1190 mm (46,85") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011190C | 1190 mm (46,85") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011190C-SS | 1190 mm (46,85") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011275A | 1275 mm (50,20") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011275A-SS | 1275 mm (50,20") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011275B | 1275 mm (50,20") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011275B-SS | 1275 mm (50,20") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011275C | 1275 mm (50,20") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011275C-SS | 1275 mm (50,20") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011360A | 1360 mm (53,54") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011360A-SS | 1360 mm (53,54") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011360B | 1360 mm (53,54") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011360B-SS | 1360 mm (53,54") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011360C | 1360 mm (53,54") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011360C-SS | 1360 mm (53,54") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011445A | 1445 mm (56,89") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011445A-SS | 1445 mm (56,89") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011445B | 1445 mm (56,89") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011445B-SS | 1445 mm (56,89") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011445C | 1445 mm (56,89") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011445C-SS | 1445 mm (56,89") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011530A | 1530 mm (60,24") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011530A-SS | 1530 mm (60,24") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011530B | 1530 mm (60,24") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011530B-SS | 1530 mm (60,24") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011530C | 1530 mm (60,24") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231011530C-SS | 1530 mm (60,24") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231020085A | 85 mm (3,35") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C |
|
| P5231020085A-SS | 85 mm (3,35") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C |
|
| P5231020085B | 85 mm (3,35") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C |
|
| P5231020085B-SS | 85 mm (3,35") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C |
|
| P5231020085C | 85 mm (3,35") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C |
|
| P5231020085C-SS | 85 mm (3,35") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C |
|
| P5231020170A | 170 mm (6,69") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C |
|
| P5231020170A-SS | 170 mm (6,69") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C |
|
| P5231020170B | 170 mm (6,69") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C |
|
| P5231020170B-SS | 170 mm (6,69") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C |
|
| P5231020170C | 170 mm (6,69") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C |
|
| P5231020170C-SS | 170 mm (6,69") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C |
|
| P5231020255A | 255 mm (10,04") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C |
|
| P5231020255A-SS | 255 mm (10,04") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C |
|
| P5231020255B | 255 mm (10,04") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C |
|
| P5231020255B-SS | 255 mm (10,04") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C |
|
| P5231020255C | 255 mm (10,04") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C |
|
| P5231020255C-SS | 255 mm (10,04") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C |
|
| P5231020340A | 340 mm (13,39") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020340A-SS | 340 mm (13,39") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020340B | 340 mm (13,39") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020340B-SS | 340 mm (13,39") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020340C | 340 mm (13,39") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020340C-SS | 340 mm (13,39") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020425A | 425 mm (16,73") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020425A-SS | 425 mm (16,73") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020425B | 425 mm (16,73") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020425B-SS | 425 mm (16,73") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020425C | 425 mm (16,73") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020425C-SS | 425 mm (16,73") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020510A | 510 mm (20,08") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020510A-SS | 510 mm (20,08") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020510B | 510 mm (20,08") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020510B-SS | 510 mm (20,08") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020510C | 510 mm (20,08") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020510C-SS | 510 mm (20,08") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020595A | 595 mm (23,43") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020595A-SS | 595 mm (23,43") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020595B | 595 mm (23,43") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020595B-SS | 595 mm (23,43") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020595C | 595 mm (23,43") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020595C-SS | 595 mm (23,43") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020680A | 680 mm (26,77") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020680A-SS | 680 mm (26,77") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020680B | 680 mm (26,77") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020680B-SS | 680 mm (26,77") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020680C | 680 mm (26,77") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020680C-SS | 680 mm (26,77") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020765A | 765 mm (30,12") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020765A-SS | 765 mm (30,12") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020765B | 765 mm (30,12") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020765B-SS | 765 mm (30,12") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020765C | 765 mm (30,12") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020765C-SS | 765 mm (30,12") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020850A | 850 mm (33,46") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020850A-SS | 850 mm (33,46") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020850B | 850 mm (33,46") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020850B-SS | 850 mm (33,46") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020850C | 850 mm (33,46") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020850C-SS | 850 mm (33,46") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020935A | 935 mm (36,81") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020935A-SS | 935 mm (36,81") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020935B | 935 mm (36,81") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020935B-SS | 935 mm (36,81") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020935C | 935 mm (36,81") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231020935C-SS | 935 mm (36,81") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C |
|
| P5231021020A | 1020 mm (40,16") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021020A-SS | 1020 mm (40,16") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021020B | 1020 mm (40,16") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021020B-SS | 1020 mm (40,16") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021020C | 1020 mm (40,16") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021020C-SS | 1020 mm (40,16") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021105A | 1105 mm (43,50") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021105A-SS | 1105 mm (43,50") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021105B | 1105 mm (43,50") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021105B-SS | 1105 mm (43,50") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021105C | 1105 mm (43,50") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021105C-SS | 1105 mm (43,50") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021190A | 1190 mm (46,85") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021190A-SS | 1190 mm (46,85") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021190B | 1190 mm (46,85") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021190B-SS | 1190 mm (46,85") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021190C | 1190 mm (46,85") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021190C-SS | 1190 mm (46,85") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021275A | 1275 mm (50,20") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021275A-SS | 1275 mm (50,20") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021275B | 1275 mm (50,20") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021275B-SS | 1275 mm (50,20") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021275C | 1275 mm (50,20") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021275C-SS | 1275 mm (50,20") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021360A | 1360 mm (53,54") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021360A-SS | 1360 mm (53,54") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021360B | 1360 mm (53,54") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021360B-SS | 1360 mm (53,54") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021360C | 1360 mm (53,54") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021360C-SS | 1360 mm (53,54") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021445A | 1445 mm (56,89") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021445A-SS | 1445 mm (56,89") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021445B | 1445 mm (56,89") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021445B-SS | 1445 mm (56,89") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021445C | 1445 mm (56,89") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021445C-SS | 1445 mm (56,89") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021530A | 1530 mm (60,24") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021530A-SS | 1530 mm (60,24") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021530B | 1530 mm (60,24") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021530B-SS | 1530 mm (60,24") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021530C | 1530 mm (60,24") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5231 | 25 mm | 27000 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231021530C-SS | 1530 mm (60,24") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 29700 N/m | 10 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C |
|
| P5231030085A | 85 mm (3,35") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231030085A-SS | 85 mm (3,35") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231030085B | 85 mm (3,35") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231030085B-SS | 85 mm (3,35") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231030085C | 85 mm (3,35") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231030085C-SS | 85 mm (3,35") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231030170A | 170 mm (6,69") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231030170A-SS | 170 mm (6,69") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231030170B | 170 mm (6,69") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231030170B-SS | 170 mm (6,69") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231030170C | 170 mm (6,69") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231030170C-SS | 170 mm (6,69") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231030255A | 255 mm (10,04") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231030255A-SS | 255 mm (10,04") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231030255B | 255 mm (10,04") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231030255B-SS | 255 mm (10,04") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231030255C | 255 mm (10,04") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231030255C-SS | 255 mm (10,04") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231030340A | 340 mm (13,39") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030340A-SS | 340 mm (13,39") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030340B | 340 mm (13,39") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030340B-SS | 340 mm (13,39") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030340C | 340 mm (13,39") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030340C-SS | 340 mm (13,39") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030425A | 425 mm (16,73") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030425A-SS | 425 mm (16,73") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030425B | 425 mm (16,73") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030425B-SS | 425 mm (16,73") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030425C | 425 mm (16,73") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030425C-SS | 425 mm (16,73") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030510A | 510 mm (20,08") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030510A-SS | 510 mm (20,08") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030510B | 510 mm (20,08") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030510B-SS | 510 mm (20,08") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030510C | 510 mm (20,08") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030510C-SS | 510 mm (20,08") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030595A | 595 mm (23,43") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030595A-SS | 595 mm (23,43") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030595B | 595 mm (23,43") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030595B-SS | 595 mm (23,43") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030595C | 595 mm (23,43") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030595C-SS | 595 mm (23,43") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030680A | 680 mm (26,77") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030680A-SS | 680 mm (26,77") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030680B | 680 mm (26,77") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030680B-SS | 680 mm (26,77") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030680C | 680 mm (26,77") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030680C-SS | 680 mm (26,77") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030765A | 765 mm (30,12") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030765A-SS | 765 mm (30,12") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030765B | 765 mm (30,12") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030765B-SS | 765 mm (30,12") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030765C | 765 mm (30,12") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030765C-SS | 765 mm (30,12") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030850A | 850 mm (33,46") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030850A-SS | 850 mm (33,46") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030850B | 850 mm (33,46") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030850B-SS | 850 mm (33,46") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030850C | 850 mm (33,46") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030850C-SS | 850 mm (33,46") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030935A | 935 mm (36,81") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030935A-SS | 935 mm (36,81") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030935B | 935 mm (36,81") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030935B-SS | 935 mm (36,81") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030935C | 935 mm (36,81") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231030935C-SS | 935 mm (36,81") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231031020A | 1020 mm (40,16") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031020A-SS | 1020 mm (40,16") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031020B | 1020 mm (40,16") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031020B-SS | 1020 mm (40,16") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031020C | 1020 mm (40,16") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031020C-SS | 1020 mm (40,16") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031105A | 1105 mm (43,50") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031105A-SS | 1105 mm (43,50") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031105B | 1105 mm (43,50") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031105B-SS | 1105 mm (43,50") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031105C | 1105 mm (43,50") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031105C-SS | 1105 mm (43,50") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031190A | 1190 mm (46,85") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031190A-SS | 1190 mm (46,85") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031190B | 1190 mm (46,85") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031190B-SS | 1190 mm (46,85") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031190C | 1190 mm (46,85") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031190C-SS | 1190 mm (46,85") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031275A | 1275 mm (50,20") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031275A-SS | 1275 mm (50,20") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031275B | 1275 mm (50,20") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031275B-SS | 1275 mm (50,20") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031275C | 1275 mm (50,20") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031275C-SS | 1275 mm (50,20") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031360A | 1360 mm (53,54") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031360A-SS | 1360 mm (53,54") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031360B | 1360 mm (53,54") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031360B-SS | 1360 mm (53,54") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031360C | 1360 mm (53,54") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031360C-SS | 1360 mm (53,54") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031445A | 1445 mm (56,89") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031445A-SS | 1445 mm (56,89") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031445B | 1445 mm (56,89") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031445B-SS | 1445 mm (56,89") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031445C | 1445 mm (56,89") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031445C-SS | 1445 mm (56,89") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031530A | 1530 mm (60,24") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031530A-SS | 1530 mm (60,24") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031530B | 1530 mm (60,24") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031530B-SS | 1530 mm (60,24") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031530C | 1530 mm (60,24") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231031530C-SS | 1530 mm (60,24") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231160085A | 85 mm (3,35") | DKM - Aramide Reinforced Acetal (16) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231160085A-SS | 85 mm (3,35") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231160085B | 85 mm (3,35") | DKM - Aramide Reinforced Acetal (16) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231160085B-SS | 85 mm (3,35") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231160085C | 85 mm (3,35") | DKM - Aramide Reinforced Acetal (16) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231160085C-SS | 85 mm (3,35") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231160170A | 170 mm (6,69") | DKM - Aramide Reinforced Acetal (16) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231160170A-SS | 170 mm (6,69") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231160170B | 170 mm (6,69") | DKM - Aramide Reinforced Acetal (16) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231160170B-SS | 170 mm (6,69") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231160170C | 170 mm (6,69") | DKM - Aramide Reinforced Acetal (16) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231160170C-SS | 170 mm (6,69") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231160255A | 255 mm (10,04") | DKM - Aramide Reinforced Acetal (16) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231160255A-SS | 255 mm (10,04") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231160255B | 255 mm (10,04") | DKM - Aramide Reinforced Acetal (16) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231160255B-SS | 255 mm (10,04") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231160255C | 255 mm (10,04") | DKM - Aramide Reinforced Acetal (16) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231160255C-SS | 255 mm (10,04") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231160340A | 340 mm (13,39") | DKM - Aramide Reinforced Acetal (16) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160340A-SS | 340 mm (13,39") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160340B | 340 mm (13,39") | DKM - Aramide Reinforced Acetal (16) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160340B-SS | 340 mm (13,39") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160340C | 340 mm (13,39") | DKM - Aramide Reinforced Acetal (16) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160340C-SS | 340 mm (13,39") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160425A | 425 mm (16,73") | DKM - Aramide Reinforced Acetal (16) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160425A-SS | 425 mm (16,73") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160425B | 425 mm (16,73") | DKM - Aramide Reinforced Acetal (16) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160425B-SS | 425 mm (16,73") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160425C | 425 mm (16,73") | DKM - Aramide Reinforced Acetal (16) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160425C-SS | 425 mm (16,73") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160510A | 510 mm (20,08") | DKM - Aramide Reinforced Acetal (16) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160510A-SS | 510 mm (20,08") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160510B | 510 mm (20,08") | DKM - Aramide Reinforced Acetal (16) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160510B-SS | 510 mm (20,08") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160510C | 510 mm (20,08") | DKM - Aramide Reinforced Acetal (16) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160510C-SS | 510 mm (20,08") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160595A | 595 mm (23,43") | DKM - Aramide Reinforced Acetal (16) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160595A-SS | 595 mm (23,43") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160595B | 595 mm (23,43") | DKM - Aramide Reinforced Acetal (16) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160595B-SS | 595 mm (23,43") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160595C | 595 mm (23,43") | DKM - Aramide Reinforced Acetal (16) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160595C-SS | 595 mm (23,43") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160680A | 680 mm (26,77") | DKM - Aramide Reinforced Acetal (16) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160680A-SS | 680 mm (26,77") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160680B | 680 mm (26,77") | DKM - Aramide Reinforced Acetal (16) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160680B-SS | 680 mm (26,77") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160680C | 680 mm (26,77") | DKM - Aramide Reinforced Acetal (16) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160680C-SS | 680 mm (26,77") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160765A | 765 mm (30,12") | DKM - Aramide Reinforced Acetal (16) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160765A-SS | 765 mm (30,12") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160765B | 765 mm (30,12") | DKM - Aramide Reinforced Acetal (16) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160765B-SS | 765 mm (30,12") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160765C | 765 mm (30,12") | DKM - Aramide Reinforced Acetal (16) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160765C-SS | 765 mm (30,12") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160850A | 850 mm (33,46") | DKM - Aramide Reinforced Acetal (16) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160850A-SS | 850 mm (33,46") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160850B | 850 mm (33,46") | DKM - Aramide Reinforced Acetal (16) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160850B-SS | 850 mm (33,46") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160850C | 850 mm (33,46") | DKM - Aramide Reinforced Acetal (16) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160850C-SS | 850 mm (33,46") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160935A | 935 mm (36,81") | DKM - Aramide Reinforced Acetal (16) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160935A-SS | 935 mm (36,81") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160935B | 935 mm (36,81") | DKM - Aramide Reinforced Acetal (16) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160935B-SS | 935 mm (36,81") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160935C | 935 mm (36,81") | DKM - Aramide Reinforced Acetal (16) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231160935C-SS | 935 mm (36,81") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231161020A | 1020 mm (40,16") | DKM - Aramide Reinforced Acetal (16) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161020A-SS | 1020 mm (40,16") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161020B | 1020 mm (40,16") | DKM - Aramide Reinforced Acetal (16) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161020B-SS | 1020 mm (40,16") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161020C | 1020 mm (40,16") | DKM - Aramide Reinforced Acetal (16) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161020C-SS | 1020 mm (40,16") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161105A | 1105 mm (43,50") | DKM - Aramide Reinforced Acetal (16) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161105A-SS | 1105 mm (43,50") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161105B | 1105 mm (43,50") | DKM - Aramide Reinforced Acetal (16) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161105B-SS | 1105 mm (43,50") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161105C | 1105 mm (43,50") | DKM - Aramide Reinforced Acetal (16) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161105C-SS | 1105 mm (43,50") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161190A | 1190 mm (46,85") | DKM - Aramide Reinforced Acetal (16) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161190A-SS | 1190 mm (46,85") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161190B | 1190 mm (46,85") | DKM - Aramide Reinforced Acetal (16) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161190B-SS | 1190 mm (46,85") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161190C | 1190 mm (46,85") | DKM - Aramide Reinforced Acetal (16) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161190C-SS | 1190 mm (46,85") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161275A | 1275 mm (50,20") | DKM - Aramide Reinforced Acetal (16) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161275A-SS | 1275 mm (50,20") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161275B | 1275 mm (50,20") | DKM - Aramide Reinforced Acetal (16) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161275B-SS | 1275 mm (50,20") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161275C | 1275 mm (50,20") | DKM - Aramide Reinforced Acetal (16) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161275C-SS | 1275 mm (50,20") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161360A | 1360 mm (53,54") | DKM - Aramide Reinforced Acetal (16) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161360A-SS | 1360 mm (53,54") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161360B | 1360 mm (53,54") | DKM - Aramide Reinforced Acetal (16) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161360B-SS | 1360 mm (53,54") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161360C | 1360 mm (53,54") | DKM - Aramide Reinforced Acetal (16) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161360C-SS | 1360 mm (53,54") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161445A | 1445 mm (56,89") | DKM - Aramide Reinforced Acetal (16) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161445A-SS | 1445 mm (56,89") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161445B | 1445 mm (56,89") | DKM - Aramide Reinforced Acetal (16) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161445B-SS | 1445 mm (56,89") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161445C | 1445 mm (56,89") | DKM - Aramide Reinforced Acetal (16) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161445C-SS | 1445 mm (56,89") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161530A | 1530 mm (60,24") | DKM - Aramide Reinforced Acetal (16) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161530A-SS | 1530 mm (60,24") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161530B | 1530 mm (60,24") | DKM - Aramide Reinforced Acetal (16) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161530B-SS | 1530 mm (60,24") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161530C | 1530 mm (60,24") | DKM - Aramide Reinforced Acetal (16) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231161530C-SS | 1530 mm (60,24") | DKM - Aramide Reinforced Acetal (16) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231170085A | 85 mm (3,35") | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C |
|
| P5231170085A-SS | 85 mm (3,35") | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C |
|
| P5231170085B | 85 mm (3,35") | MWX - Polyamide Composite (17) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C |
|
| P5231170085B-SS | 85 mm (3,35") | MWX - Polyamide Composite (17) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C |
|
| P5231170085C | 85 mm (3,35") | MWX - Polyamide Composite (17) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C |
|
| P5231170085C-SS | 85 mm (3,35") | MWX - Polyamide Composite (17) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C |
|
| P5231170170A | 170 mm (6,69") | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C |
|
| P5231170170A-SS | 170 mm (6,69") | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C |
|
| P5231170170B | 170 mm (6,69") | MWX - Polyamide Composite (17) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C |
|
| P5231170170B-SS | 170 mm (6,69") | MWX - Polyamide Composite (17) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C |
|
| P5231170170C | 170 mm (6,69") | MWX - Polyamide Composite (17) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C |
|
| P5231170170C-SS | 170 mm (6,69") | MWX - Polyamide Composite (17) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C |
|
| P5231170255A | 255 mm (10,04") | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C |
|
| P5231170255A-SS | 255 mm (10,04") | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C |
|
| P5231170255B | 255 mm (10,04") | MWX - Polyamide Composite (17) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C |
|
| P5231170255B-SS | 255 mm (10,04") | MWX - Polyamide Composite (17) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C |
|
| P5231170255C | 255 mm (10,04") | MWX - Polyamide Composite (17) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C |
|
| P5231170255C-SS | 255 mm (10,04") | MWX - Polyamide Composite (17) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C |
|
| P5231170340A | 340 mm (13,39") | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170340A-SS | 340 mm (13,39") | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170340B | 340 mm (13,39") | MWX - Polyamide Composite (17) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170340B-SS | 340 mm (13,39") | MWX - Polyamide Composite (17) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170340C | 340 mm (13,39") | MWX - Polyamide Composite (17) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170340C-SS | 340 mm (13,39") | MWX - Polyamide Composite (17) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170425A | 425 mm (16,73") | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170425A-SS | 425 mm (16,73") | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170425B | 425 mm (16,73") | MWX - Polyamide Composite (17) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170425B-SS | 425 mm (16,73") | MWX - Polyamide Composite (17) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170425C | 425 mm (16,73") | MWX - Polyamide Composite (17) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170425C-SS | 425 mm (16,73") | MWX - Polyamide Composite (17) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170510A | 510 mm (20,08") | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170510A-SS | 510 mm (20,08") | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170510B | 510 mm (20,08") | MWX - Polyamide Composite (17) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170510B-SS | 510 mm (20,08") | MWX - Polyamide Composite (17) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170510C | 510 mm (20,08") | MWX - Polyamide Composite (17) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170510C-SS | 510 mm (20,08") | MWX - Polyamide Composite (17) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170595A | 595 mm (23,43") | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170595A-SS | 595 mm (23,43") | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170595B | 595 mm (23,43") | MWX - Polyamide Composite (17) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170595B-SS | 595 mm (23,43") | MWX - Polyamide Composite (17) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170595C | 595 mm (23,43") | MWX - Polyamide Composite (17) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170595C-SS | 595 mm (23,43") | MWX - Polyamide Composite (17) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170680A | 680 mm (26,77") | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170680A-SS | 680 mm (26,77") | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170680B | 680 mm (26,77") | MWX - Polyamide Composite (17) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170680B-SS | 680 mm (26,77") | MWX - Polyamide Composite (17) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170680C | 680 mm (26,77") | MWX - Polyamide Composite (17) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170680C-SS | 680 mm (26,77") | MWX - Polyamide Composite (17) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170765A | 765 mm (30,12") | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170765A-SS | 765 mm (30,12") | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170765B | 765 mm (30,12") | MWX - Polyamide Composite (17) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170765B-SS | 765 mm (30,12") | MWX - Polyamide Composite (17) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170765C | 765 mm (30,12") | MWX - Polyamide Composite (17) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170765C-SS | 765 mm (30,12") | MWX - Polyamide Composite (17) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170850A | 850 mm (33,46") | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170850A-SS | 850 mm (33,46") | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170850B | 850 mm (33,46") | MWX - Polyamide Composite (17) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170850B-SS | 850 mm (33,46") | MWX - Polyamide Composite (17) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170850C | 850 mm (33,46") | MWX - Polyamide Composite (17) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170850C-SS | 850 mm (33,46") | MWX - Polyamide Composite (17) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170935A | 935 mm (36,81") | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170935A-SS | 935 mm (36,81") | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170935B | 935 mm (36,81") | MWX - Polyamide Composite (17) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170935B-SS | 935 mm (36,81") | MWX - Polyamide Composite (17) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170935C | 935 mm (36,81") | MWX - Polyamide Composite (17) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231170935C-SS | 935 mm (36,81") | MWX - Polyamide Composite (17) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5231171020A | 1020 mm (40,16") | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171020A-SS | 1020 mm (40,16") | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171020B | 1020 mm (40,16") | MWX - Polyamide Composite (17) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171020B-SS | 1020 mm (40,16") | MWX - Polyamide Composite (17) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171020C | 1020 mm (40,16") | MWX - Polyamide Composite (17) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171020C-SS | 1020 mm (40,16") | MWX - Polyamide Composite (17) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171105A | 1105 mm (43,50") | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171105A-SS | 1105 mm (43,50") | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171105B | 1105 mm (43,50") | MWX - Polyamide Composite (17) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171105B-SS | 1105 mm (43,50") | MWX - Polyamide Composite (17) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171105C | 1105 mm (43,50") | MWX - Polyamide Composite (17) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171105C-SS | 1105 mm (43,50") | MWX - Polyamide Composite (17) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171190A | 1190 mm (46,85") | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171190A-SS | 1190 mm (46,85") | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171190B | 1190 mm (46,85") | MWX - Polyamide Composite (17) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171190B-SS | 1190 mm (46,85") | MWX - Polyamide Composite (17) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171190C | 1190 mm (46,85") | MWX - Polyamide Composite (17) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171190C-SS | 1190 mm (46,85") | MWX - Polyamide Composite (17) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171275A | 1275 mm (50,20") | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171275A-SS | 1275 mm (50,20") | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171275B | 1275 mm (50,20") | MWX - Polyamide Composite (17) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171275B-SS | 1275 mm (50,20") | MWX - Polyamide Composite (17) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171275C | 1275 mm (50,20") | MWX - Polyamide Composite (17) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171275C-SS | 1275 mm (50,20") | MWX - Polyamide Composite (17) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171360A | 1360 mm (53,54") | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171360A-SS | 1360 mm (53,54") | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171360B | 1360 mm (53,54") | MWX - Polyamide Composite (17) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171360B-SS | 1360 mm (53,54") | MWX - Polyamide Composite (17) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171360C | 1360 mm (53,54") | MWX - Polyamide Composite (17) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171360C-SS | 1360 mm (53,54") | MWX - Polyamide Composite (17) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171445A | 1445 mm (56,89") | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171445A-SS | 1445 mm (56,89") | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171445B | 1445 mm (56,89") | MWX - Polyamide Composite (17) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171445B-SS | 1445 mm (56,89") | MWX - Polyamide Composite (17) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171445C | 1445 mm (56,89") | MWX - Polyamide Composite (17) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171445C-SS | 1445 mm (56,89") | MWX - Polyamide Composite (17) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171530A | 1530 mm (60,24") | MWX - Polyamide Composite (17) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171530A-SS | 1530 mm (60,24") | MWX - Polyamide Composite (17) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171530B | 1530 mm (60,24") | MWX - Polyamide Composite (17) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171530B-SS | 1530 mm (60,24") | MWX - Polyamide Composite (17) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171530C | 1530 mm (60,24") | MWX - Polyamide Composite (17) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231171530C-SS | 1530 mm (60,24") | MWX - Polyamide Composite (17) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 13 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5231250085A | 85 mm (3,35") | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231250085A-SS | 85 mm (3,35") | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231250085B | 85 mm (3,35") | MPX - Lubricated Acetal (25) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231250085B-SS | 85 mm (3,35") | MPX - Lubricated Acetal (25) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231250085C | 85 mm (3,35") | MPX - Lubricated Acetal (25) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231250085C-SS | 85 mm (3,35") | MPX - Lubricated Acetal (25) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231250170A | 170 mm (6,69") | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231250170A-SS | 170 mm (6,69") | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231250170B | 170 mm (6,69") | MPX - Lubricated Acetal (25) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231250170B-SS | 170 mm (6,69") | MPX - Lubricated Acetal (25) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231250170C | 170 mm (6,69") | MPX - Lubricated Acetal (25) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231250170C-SS | 170 mm (6,69") | MPX - Lubricated Acetal (25) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231250255A | 255 mm (10,04") | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231250255A-SS | 255 mm (10,04") | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231250255B | 255 mm (10,04") | MPX - Lubricated Acetal (25) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231250255B-SS | 255 mm (10,04") | MPX - Lubricated Acetal (25) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231250255C | 255 mm (10,04") | MPX - Lubricated Acetal (25) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231250255C-SS | 255 mm (10,04") | MPX - Lubricated Acetal (25) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5231250340A | 340 mm (13,39") | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250340A-SS | 340 mm (13,39") | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250340B | 340 mm (13,39") | MPX - Lubricated Acetal (25) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250340B-SS | 340 mm (13,39") | MPX - Lubricated Acetal (25) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250340C | 340 mm (13,39") | MPX - Lubricated Acetal (25) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250340C-SS | 340 mm (13,39") | MPX - Lubricated Acetal (25) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250425A | 425 mm (16,73") | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250425A-SS | 425 mm (16,73") | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250425B | 425 mm (16,73") | MPX - Lubricated Acetal (25) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250425B-SS | 425 mm (16,73") | MPX - Lubricated Acetal (25) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250425C | 425 mm (16,73") | MPX - Lubricated Acetal (25) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250425C-SS | 425 mm (16,73") | MPX - Lubricated Acetal (25) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250510A | 510 mm (20,08") | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250510A-SS | 510 mm (20,08") | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250510B | 510 mm (20,08") | MPX - Lubricated Acetal (25) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250510B-SS | 510 mm (20,08") | MPX - Lubricated Acetal (25) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250510C | 510 mm (20,08") | MPX - Lubricated Acetal (25) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250510C-SS | 510 mm (20,08") | MPX - Lubricated Acetal (25) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250595A | 595 mm (23,43") | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250595A-SS | 595 mm (23,43") | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250595B | 595 mm (23,43") | MPX - Lubricated Acetal (25) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250595B-SS | 595 mm (23,43") | MPX - Lubricated Acetal (25) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250595C | 595 mm (23,43") | MPX - Lubricated Acetal (25) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250595C-SS | 595 mm (23,43") | MPX - Lubricated Acetal (25) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250680A | 680 mm (26,77") | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250680A-SS | 680 mm (26,77") | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250680B | 680 mm (26,77") | MPX - Lubricated Acetal (25) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250680B-SS | 680 mm (26,77") | MPX - Lubricated Acetal (25) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250680C | 680 mm (26,77") | MPX - Lubricated Acetal (25) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250680C-SS | 680 mm (26,77") | MPX - Lubricated Acetal (25) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250765A | 765 mm (30,12") | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250765A-SS | 765 mm (30,12") | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250765B | 765 mm (30,12") | MPX - Lubricated Acetal (25) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250765B-SS | 765 mm (30,12") | MPX - Lubricated Acetal (25) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250765C | 765 mm (30,12") | MPX - Lubricated Acetal (25) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250765C-SS | 765 mm (30,12") | MPX - Lubricated Acetal (25) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250850A | 850 mm (33,46") | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250850A-SS | 850 mm (33,46") | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250850B | 850 mm (33,46") | MPX - Lubricated Acetal (25) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250850B-SS | 850 mm (33,46") | MPX - Lubricated Acetal (25) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250850C | 850 mm (33,46") | MPX - Lubricated Acetal (25) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250850C-SS | 850 mm (33,46") | MPX - Lubricated Acetal (25) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250935A | 935 mm (36,81") | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250935A-SS | 935 mm (36,81") | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250935B | 935 mm (36,81") | MPX - Lubricated Acetal (25) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250935B-SS | 935 mm (36,81") | MPX - Lubricated Acetal (25) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250935C | 935 mm (36,81") | MPX - Lubricated Acetal (25) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231250935C-SS | 935 mm (36,81") | MPX - Lubricated Acetal (25) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5231251020A | 1020 mm (40,16") | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251020A-SS | 1020 mm (40,16") | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251020B | 1020 mm (40,16") | MPX - Lubricated Acetal (25) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251020B-SS | 1020 mm (40,16") | MPX - Lubricated Acetal (25) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251020C | 1020 mm (40,16") | MPX - Lubricated Acetal (25) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251020C-SS | 1020 mm (40,16") | MPX - Lubricated Acetal (25) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251105A | 1105 mm (43,50") | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251105A-SS | 1105 mm (43,50") | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251105B | 1105 mm (43,50") | MPX - Lubricated Acetal (25) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251105B-SS | 1105 mm (43,50") | MPX - Lubricated Acetal (25) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251105C | 1105 mm (43,50") | MPX - Lubricated Acetal (25) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251105C-SS | 1105 mm (43,50") | MPX - Lubricated Acetal (25) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251190A | 1190 mm (46,85") | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251190A-SS | 1190 mm (46,85") | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251190B | 1190 mm (46,85") | MPX - Lubricated Acetal (25) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251190B-SS | 1190 mm (46,85") | MPX - Lubricated Acetal (25) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251190C | 1190 mm (46,85") | MPX - Lubricated Acetal (25) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251190C-SS | 1190 mm (46,85") | MPX - Lubricated Acetal (25) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251275A | 1275 mm (50,20") | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251275A-SS | 1275 mm (50,20") | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251275B | 1275 mm (50,20") | MPX - Lubricated Acetal (25) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251275B-SS | 1275 mm (50,20") | MPX - Lubricated Acetal (25) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251275C | 1275 mm (50,20") | MPX - Lubricated Acetal (25) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251275C-SS | 1275 mm (50,20") | MPX - Lubricated Acetal (25) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251360A | 1360 mm (53,54") | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251360A-SS | 1360 mm (53,54") | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251360B | 1360 mm (53,54") | MPX - Lubricated Acetal (25) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251360B-SS | 1360 mm (53,54") | MPX - Lubricated Acetal (25) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251360C | 1360 mm (53,54") | MPX - Lubricated Acetal (25) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251360C-SS | 1360 mm (53,54") | MPX - Lubricated Acetal (25) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251445A | 1445 mm (56,89") | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251445A-SS | 1445 mm (56,89") | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251445B | 1445 mm (56,89") | MPX - Lubricated Acetal (25) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251445B-SS | 1445 mm (56,89") | MPX - Lubricated Acetal (25) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251445C | 1445 mm (56,89") | MPX - Lubricated Acetal (25) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251445C-SS | 1445 mm (56,89") | MPX - Lubricated Acetal (25) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251530A | 1530 mm (60,24") | MPX - Lubricated Acetal (25) | PBT White | A - No positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251530A-SS | 1530 mm (60,24") | MPX - Lubricated Acetal (25) | Stainless steel | A - No positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251530B | 1530 mm (60,24") | MPX - Lubricated Acetal (25) | PBT White | B - 1 Positioner | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251530B-SS | 1530 mm (60,24") | MPX - Lubricated Acetal (25) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251530C | 1530 mm (60,24") | MPX - Lubricated Acetal (25) | PBT White | C - 2 Positioners | P5231 | 25 mm | 41500 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231251530C-SS | 1530 mm (60,24") | MPX - Lubricated Acetal (25) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 45650 N/m | 12.5 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5231300085A | 85 mm (3,35") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231300085A-SS | 85 mm (3,35") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231300085B | 85 mm (3,35") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231300085B-SS | 85 mm (3,35") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231300085C | 85 mm (3,35") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231300085C-SS | 85 mm (3,35") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231300170A | 170 mm (6,69") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231300170A-SS | 170 mm (6,69") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231300170B | 170 mm (6,69") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231300170B-SS | 170 mm (6,69") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231300170C | 170 mm (6,69") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231300170C-SS | 170 mm (6,69") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231300255A | 255 mm (10,04") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231300255A-SS | 255 mm (10,04") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231300255B | 255 mm (10,04") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231300255B-SS | 255 mm (10,04") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231300255C | 255 mm (10,04") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231300255C-SS | 255 mm (10,04") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5231300340A | 340 mm (13,39") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300340A-SS | 340 mm (13,39") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300340B | 340 mm (13,39") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300340B-SS | 340 mm (13,39") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300340C | 340 mm (13,39") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300340C-SS | 340 mm (13,39") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300425A | 425 mm (16,73") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300425A-SS | 425 mm (16,73") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300425B | 425 mm (16,73") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300425B-SS | 425 mm (16,73") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300425C | 425 mm (16,73") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300425C-SS | 425 mm (16,73") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300510A | 510 mm (20,08") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300510A-SS | 510 mm (20,08") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300510B | 510 mm (20,08") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300510B-SS | 510 mm (20,08") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300510C | 510 mm (20,08") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300510C-SS | 510 mm (20,08") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300595A | 595 mm (23,43") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300595A-SS | 595 mm (23,43") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300595B | 595 mm (23,43") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300595B-SS | 595 mm (23,43") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300595C | 595 mm (23,43") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300595C-SS | 595 mm (23,43") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300680A | 680 mm (26,77") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300680A-SS | 680 mm (26,77") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300680B | 680 mm (26,77") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300680B-SS | 680 mm (26,77") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300680C | 680 mm (26,77") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300680C-SS | 680 mm (26,77") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300765A | 765 mm (30,12") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300765A-SS | 765 mm (30,12") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300765B | 765 mm (30,12") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300765B-SS | 765 mm (30,12") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300765C | 765 mm (30,12") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300765C-SS | 765 mm (30,12") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300850A | 850 mm (33,46") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300850A-SS | 850 mm (33,46") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300850B | 850 mm (33,46") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300850B-SS | 850 mm (33,46") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300850C | 850 mm (33,46") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300850C-SS | 850 mm (33,46") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300935A | 935 mm (36,81") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300935A-SS | 935 mm (36,81") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300935B | 935 mm (36,81") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300935B-SS | 935 mm (36,81") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300935C | 935 mm (36,81") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231300935C-SS | 935 mm (36,81") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5231301020A | 1020 mm (40,16") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301020A-SS | 1020 mm (40,16") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301020B | 1020 mm (40,16") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301020B-SS | 1020 mm (40,16") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301020C | 1020 mm (40,16") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301020C-SS | 1020 mm (40,16") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301105A | 1105 mm (43,50") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301105A-SS | 1105 mm (43,50") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301105B | 1105 mm (43,50") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301105B-SS | 1105 mm (43,50") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301105C | 1105 mm (43,50") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301105C-SS | 1105 mm (43,50") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301190A | 1190 mm (46,85") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301190A-SS | 1190 mm (46,85") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301190B | 1190 mm (46,85") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301190B-SS | 1190 mm (46,85") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301190C | 1190 mm (46,85") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301190C-SS | 1190 mm (46,85") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301275A | 1275 mm (50,20") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301275A-SS | 1275 mm (50,20") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301275B | 1275 mm (50,20") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301275B-SS | 1275 mm (50,20") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301275C | 1275 mm (50,20") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301275C-SS | 1275 mm (50,20") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301360A | 1360 mm (53,54") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301360A-SS | 1360 mm (53,54") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301360B | 1360 mm (53,54") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301360B-SS | 1360 mm (53,54") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301360C | 1360 mm (53,54") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301360C-SS | 1360 mm (53,54") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301445A | 1445 mm (56,89") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301445A-SS | 1445 mm (56,89") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301445B | 1445 mm (56,89") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301445B-SS | 1445 mm (56,89") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301445C | 1445 mm (56,89") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301445C-SS | 1445 mm (56,89") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301530A | 1530 mm (60,24") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301530A-SS | 1530 mm (60,24") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301530B | 1530 mm (60,24") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301530B-SS | 1530 mm (60,24") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301530C | 1530 mm (60,24") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5231 | 25 mm | 33500 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5231301530C-SS | 1530 mm (60,24") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5231 | 25 mm | 36850 N/m | 12 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
Enquiry Now
To allow us to respond to your enquiry promptly, please provide all required information.
