550 Vacuum One track Belt
Modular Belts
Description
Basic features
| Series: | 550 |
|---|---|
| Pitch: | 25.4 mm |
| Thickness: | 8.7 mm |
| Increments: | 85 mm |
| Surface Type: | V - Vacuum |
| Functionality: | Straight |
| Unit of measure: | Meter |
550 Vacuum One track Belt
| Width | Material | Version | Part | Back flex radius | Max working load | Mass | Pin material | Fixation | Box | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||

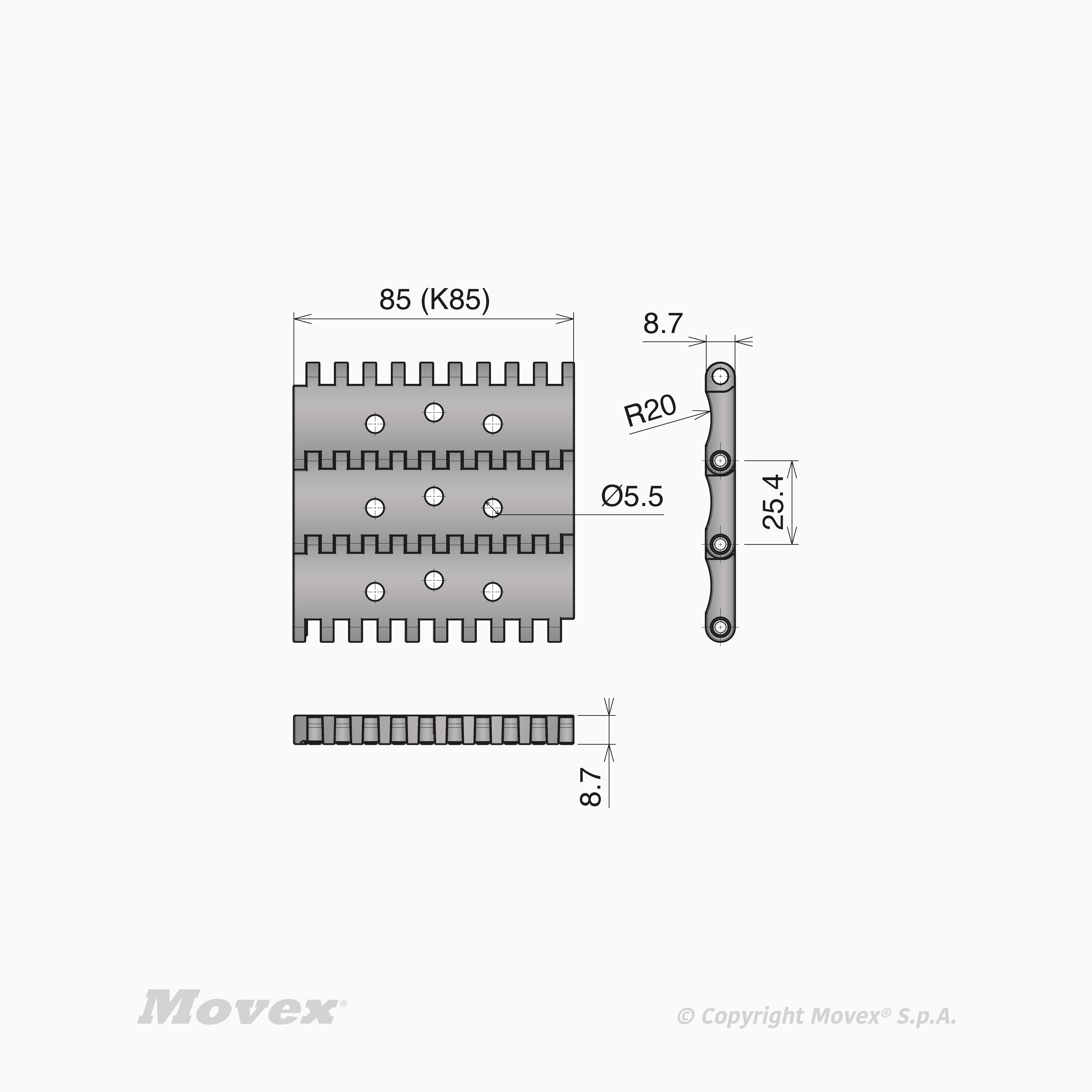

| P5508129085A | 85 mm (3,35") | AS - Antistatic Acetal (12) | A - No positioners | P5508 | 25 mm | 2500 N/m | 8.5 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|

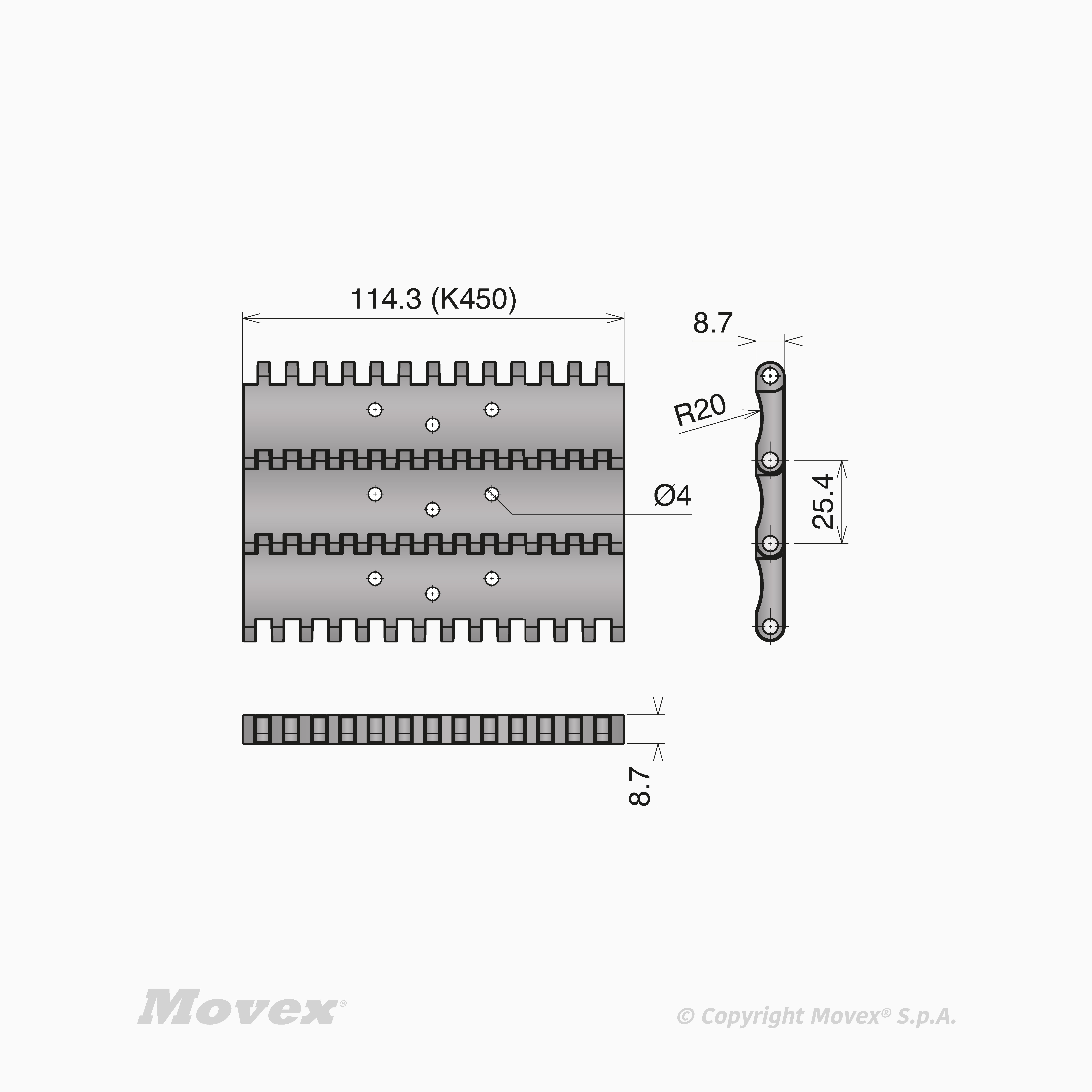

| P5508129114A | 114,3 mm (4,50") | AS - Antistatic Acetal (12) | A - No positioners | P5508 | 25 mm | 2500 N/m | 8.5 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
