550 Vacuum
Modular Belts
Description
Basic features
| Series: | 550 |
|---|---|
| Pitch: | 25.4 mm |
| Thickness: | 8.7 mm |
| Increments: | 85 mm |
| Surface Type: | V - Vacuum |
| Functionality: | Straight |
| Unit of measure: | Meter |

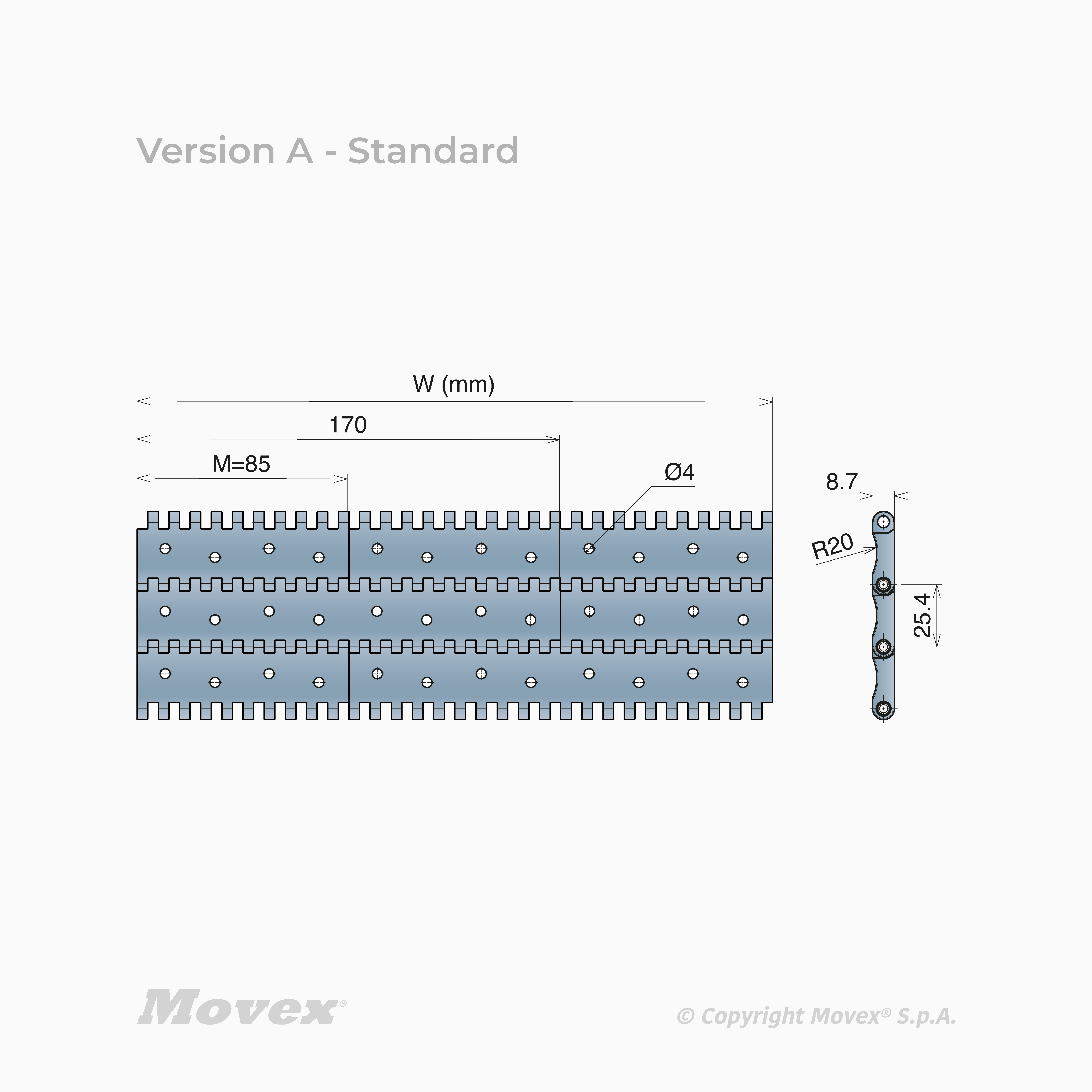

550 Vacuum
| Width | Material | Version | Part | Back flex radius | Max working load | Mass | Pin material | Fixation | Box | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| P5508010085A | 85 mm (3,35") | LFA - Low friction acetal (01) | A - No positioners | P5508 | 25 mm | 25500 N/m | 9 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5508010170A | 170 mm (6,69") | LFA - Low friction acetal (01) | A - No positioners | P5508 | 25 mm | 25500 N/m | 9 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5508010255A | 255 mm (10,04") | LFA - Low friction acetal (01) | A - No positioners | P5508 | 25 mm | 25500 N/m | 9 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5508010340A | 340 mm (13,39") | LFA - Low friction acetal (01) | A - No positioners | P5508 | 25 mm | 25500 N/m | 9 kg/m^2 | PBT white | Patented PinSphere | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5508010425A | 425 mm (16,73") | LFA - Low friction acetal (01) | A - No positioners | P5508 | 25 mm | 25500 N/m | 9 kg/m^2 | PBT white | Patented PinSphere | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5508010510A | 510 mm (20,08") | LFA - Low friction acetal (01) | A - No positioners | P5508 | 25 mm | 25500 N/m | 9 kg/m^2 | PBT white | Patented PinSphere | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5508010595A | 595 mm (23,43") | LFA - Low friction acetal (01) | A - No positioners | P5508 | 25 mm | 25500 N/m | 9 kg/m^2 | PBT white | Patented PinSphere | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5508010680A | 680 mm (26,77") | LFA - Low friction acetal (01) | A - No positioners | P5508 | 25 mm | 25500 N/m | 9 kg/m^2 | PBT white | Patented PinSphere | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5508010765A | 765 mm (30,12") | LFA - Low friction acetal (01) | A - No positioners | P5508 | 25 mm | 25500 N/m | 9 kg/m^2 | PBT white | Patented PinSphere | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5508010850A | 850 mm (33,46") | LFA - Low friction acetal (01) | A - No positioners | P5508 | 25 mm | 25500 N/m | 9 kg/m^2 | PBT white | Patented PinSphere | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5508010935A | 935 mm (36,81") | LFA - Low friction acetal (01) | A - No positioners | P5508 | 25 mm | 25500 N/m | 9 kg/m^2 | PBT white | Patented PinSphere | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5508011020A | 1020 mm (40,16") | LFA - Low friction acetal (01) | A - No positioners | P5508 | 25 mm | 25500 N/m | 9 kg/m^2 | PBT white | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5508011105A | 1105 mm (43,50") | LFA - Low friction acetal (01) | A - No positioners | P5508 | 25 mm | 25500 N/m | 9 kg/m^2 | PBT white | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5508011190A | 1190 mm (46,85") | LFA - Low friction acetal (01) | A - No positioners | P5508 | 25 mm | 25500 N/m | 9 kg/m^2 | PBT white | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5508011275A | 1275 mm (50,20") | LFA - Low friction acetal (01) | A - No positioners | P5508 | 25 mm | 25500 N/m | 9 kg/m^2 | PBT white | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5508011360A | 1360 mm (53,54") | LFA - Low friction acetal (01) | A - No positioners | P5508 | 25 mm | 25500 N/m | 9 kg/m^2 | PBT white | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5508011445A | 1445 mm (56,89") | LFA - Low friction acetal (01) | A - No positioners | P5508 | 25 mm | 25500 N/m | 9 kg/m^2 | PBT white | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5508011530A | 1530 mm (60,24") | LFA - Low friction acetal (01) | A - No positioners | P5508 | 25 mm | 25500 N/m | 9 kg/m^2 | PBT white | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5508030085A | 85 mm (3,35") | MX - Performance PBT (03) | A - No positioners | P5508 | 25 mm | 20500 N/m | 8.7 kg/m^2 | POM grey | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5508030170A | 170 mm (6,69") | MX - Performance PBT (03) | A - No positioners | P5508 | 25 mm | 20500 N/m | 8.7 kg/m^2 | POM grey | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5508030255A | 255 mm (10,04") | MX - Performance PBT (03) | A - No positioners | P5508 | 25 mm | 20500 N/m | 8.7 kg/m^2 | POM grey | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5508030340A | 340 mm (13,39") | MX - Performance PBT (03) | A - No positioners | P5508 | 25 mm | 20500 N/m | 8.7 kg/m^2 | POM grey | Patented PinSphere | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5508030425A | 425 mm (16,73") | MX - Performance PBT (03) | A - No positioners | P5508 | 25 mm | 20500 N/m | 8.7 kg/m^2 | POM grey | Patented PinSphere | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5508030510A | 510 mm (20,08") | MX - Performance PBT (03) | A - No positioners | P5508 | 25 mm | 20500 N/m | 8.7 kg/m^2 | POM grey | Patented PinSphere | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5508030595A | 595 mm (23,43") | MX - Performance PBT (03) | A - No positioners | P5508 | 25 mm | 20500 N/m | 8.7 kg/m^2 | POM grey | Patented PinSphere | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5508030680A | 680 mm (26,77") | MX - Performance PBT (03) | A - No positioners | P5508 | 25 mm | 20500 N/m | 8.7 kg/m^2 | POM grey | Patented PinSphere | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5508030765A | 765 mm (30,12") | MX - Performance PBT (03) | A - No positioners | P5508 | 25 mm | 20500 N/m | 8.7 kg/m^2 | POM grey | Patented PinSphere | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5508030850A | 850 mm (33,46") | MX - Performance PBT (03) | A - No positioners | P5508 | 25 mm | 20500 N/m | 8.7 kg/m^2 | POM grey | Patented PinSphere | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5508030935A | 935 mm (36,81") | MX - Performance PBT (03) | A - No positioners | P5508 | 25 mm | 20500 N/m | 8.7 kg/m^2 | POM grey | Patented PinSphere | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5508031020A | 1020 mm (40,16") | MX - Performance PBT (03) | A - No positioners | P5508 | 25 mm | 20500 N/m | 8.7 kg/m^2 | POM grey | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5508031105A | 1105 mm (43,50") | MX - Performance PBT (03) | A - No positioners | P5508 | 25 mm | 20500 N/m | 8.7 kg/m^2 | POM grey | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5508031190A | 1190 mm (46,85") | MX - Performance PBT (03) | A - No positioners | P5508 | 25 mm | 20500 N/m | 8.7 kg/m^2 | POM grey | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5508031275A | 1275 mm (50,20") | MX - Performance PBT (03) | A - No positioners | P5508 | 25 mm | 20500 N/m | 8.7 kg/m^2 | POM grey | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5508031360A | 1360 mm (53,54") | MX - Performance PBT (03) | A - No positioners | P5508 | 25 mm | 20500 N/m | 8.7 kg/m^2 | POM grey | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5508031445A | 1445 mm (56,89") | MX - Performance PBT (03) | A - No positioners | P5508 | 25 mm | 20500 N/m | 8.7 kg/m^2 | POM grey | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5508031530A | 1530 mm (60,24") | MX - Performance PBT (03) | A - No positioners | P5508 | 25 mm | 20500 N/m | 8.7 kg/m^2 | POM grey | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
