550 PRO split molded sprocket

Belt sprockets

Enquire Now

Description

Basic features

Series:	550 PRO
Pitch:	25.4 mm
Unit of measure:	Ea

550 PRO split molded sprocket

	Z-	Bore	Version	Box	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code													Actions

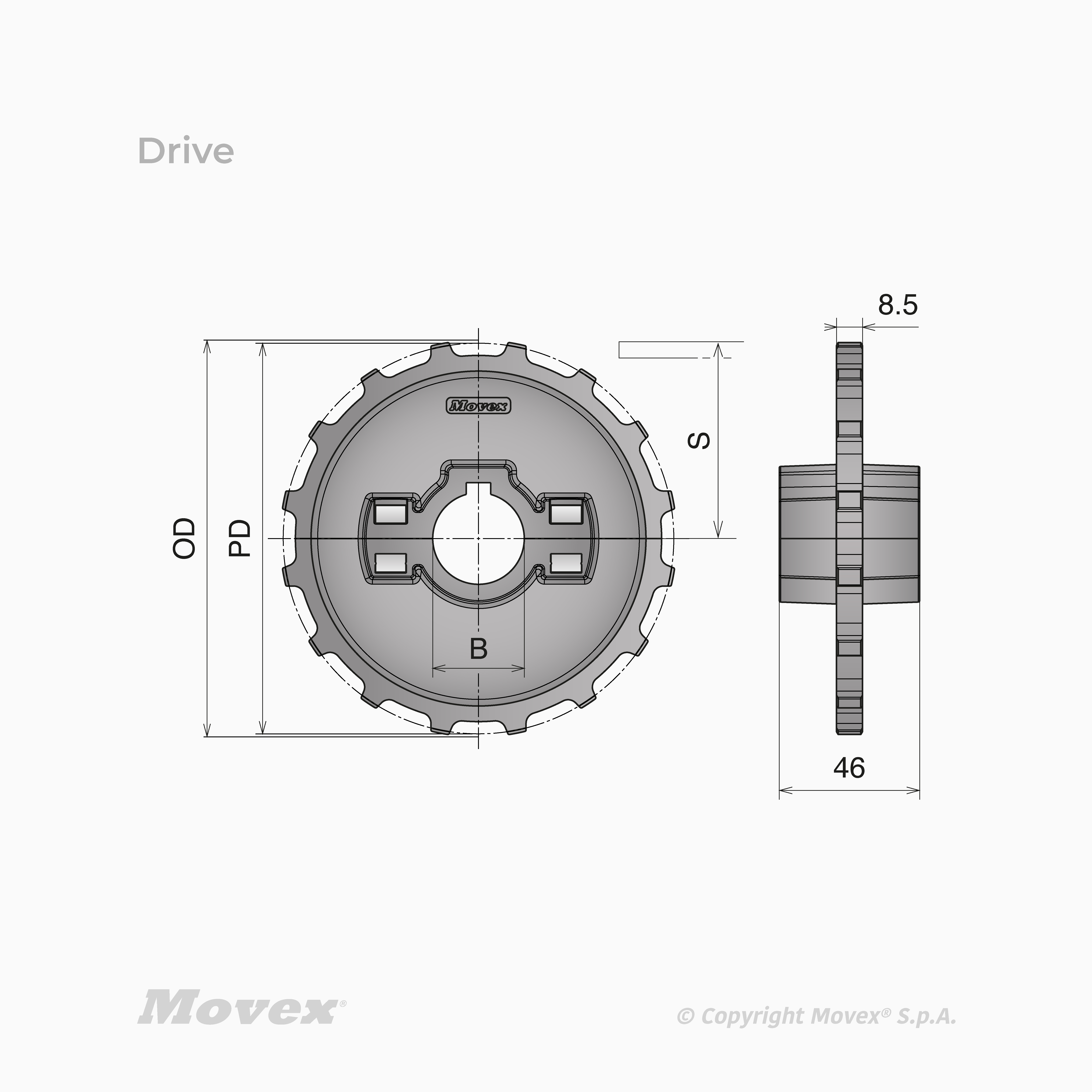

P165001	14	○ 25 mm	Drive	4	Split	Molded	114.1 mm	114 mm	52.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165002	14	○ 30 mm	Drive	4	Split	Molded	114.1 mm	114 mm	52.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165003	14	○ 35 mm	Drive	4	Split	Molded	114.1 mm	114 mm	52.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165004	14	○ 40 mm	Drive	4	Split	Molded	114.1 mm	114 mm	52.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165005	14	☐ 25 x 25 mm	Drive	-	Split	Molded	114.1 mm	114 mm	52.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165006	14	☐ 30 x 30 mm	Drive	4	Split	Molded	114.1 mm	114 mm	52.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165007	14	☐ 40 x 40 mm	Drive	4	Split	Molded	114.1 mm	114 mm	52.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C

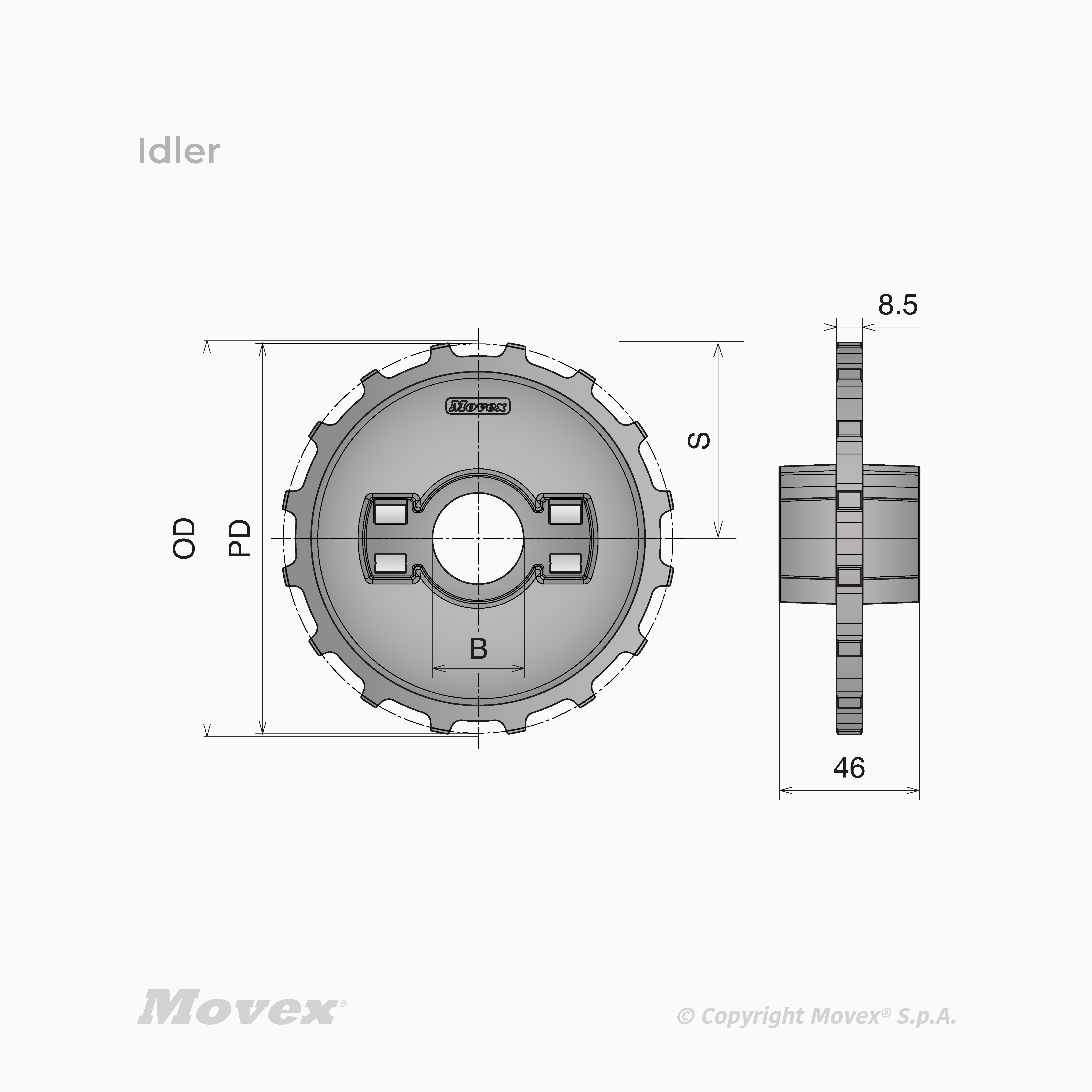

P165051	14	○ 25 mm	Idler	4	Split	Molded	114.1 mm	114 mm	52.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165052	14	○ 30 mm	Idler	4	Split	Molded	114.1 mm	114 mm	52.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165053	14	○ 35 mm	Idler	4	Split	Molded	114.1 mm	114 mm	52.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165054	14	○ 40 mm	Idler	4	Split	Molded	114.1 mm	114 mm	52.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165101	16	○ 25 mm	Drive	4	Split	Molded	130.2 mm	130 mm	60.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165102	16	○ 30 mm	Drive	4	Split	Molded	130.2 mm	130 mm	60.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165103	16	○ 35 mm	Drive	4	Split	Molded	130.2 mm	130 mm	60.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165104	16	○ 40 mm	Drive	4	Split	Molded	130.2 mm	130 mm	60.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165106	16	☐ 25 x 25 mm	Drive	4	Split	Molded	130.2 mm	130 mm	60.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165107	16	☐ 30 x 30 mm	Drive	4	Split	Molded	130.2 mm	130 mm	60.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165108	16	☐ 40 x 40 mm	Drive	4	Split	Molded	130.2 mm	130 mm	60.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165151	16	○ 25 mm	Idler	4	Split	Molded	130.2 mm	130 mm	60.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165152	16	○ 30 mm	Idler	4	Split	Molded	130.2 mm	130 mm	60.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165153	16	○ 35 mm	Idler	4	Split	Molded	130.2 mm	130 mm	60.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165154	16	○ 40 mm	Idler	4	Split	Molded	130.2 mm	130 mm	60.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165201	18	○ 25 mm	Drive	4	Split	Molded	146.3 mm	146 mm	68.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165202	18	○ 30 mm	Drive	4	Split	Molded	146.3 mm	146 mm	68.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165203	18	○ 35 mm	Drive	4	Split	Molded	146.3 mm	146 mm	68.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165204	18	○ 40 mm	Drive	4	Split	Molded	146.3 mm	146 mm	68.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165206	18	☐ 25 x 25 mm	Drive	4	Split	Molded	146.3 mm	146 mm	68.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165207	18	☐ 30 x 30 mm	Drive	4	Split	Molded	146.3 mm	146 mm	68.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165208	18	☐ 40 x 40 mm	Drive	4	Split	Molded	146.3 mm	146 mm	68.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165251	18	○ 25 mm	Idler	4	Split	Molded	146.3 mm	146 mm	68.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165252	18	○ 30 mm	Idler	4	Split	Molded	146.3 mm	146 mm	68.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165253	18	○ 35 mm	Idler	4	Split	Molded	146.3 mm	146 mm	68.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165254	18	○ 40 mm	Idler	4	Split	Molded	146.3 mm	146 mm	68.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165301	20	○ 25 mm	Drive	4	Split	Molded	162.4 mm	162 mm	76.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165302	20	○ 30 mm	Drive	4	Split	Molded	162.4 mm	162 mm	76.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165303	20	○ 35 mm	Drive	4	Split	Molded	162.4 mm	162 mm	76.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165304	20	○ 40 mm	Drive	4	Split	Molded	162.4 mm	162 mm	76.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165306	20	☐ 25 x 25 mm	Drive	4	Split	Molded	162.4 mm	162 mm	76.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165307	20	☐ 30 x 30 mm	Drive	4	Split	Molded	162.4 mm	162 mm	76.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165308	20	☐ 40 x 40 mm	Drive	4	Split	Molded	162.4 mm	162 mm	76.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165351	20	○ 25 mm	Idler	4	Split	Molded	162.4 mm	162 mm	76.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165352	20	○ 30 mm	Idler	4	Split	Molded	162.4 mm	162 mm	76.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165353	20	○ 35 mm	Idler	4	Split	Molded	162.4 mm	162 mm	76.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P165354	20	○ 40 mm	Idler	4	Split	Molded	162.4 mm	162 mm	76.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
