550 PRO split machined sprocket

Belt sprockets

Enquire Now

Description

Basic features

Series:	550 PRO
Pitch:	25.4 mm
Unit of measure:	Ea

550 PRO split machined sprocket

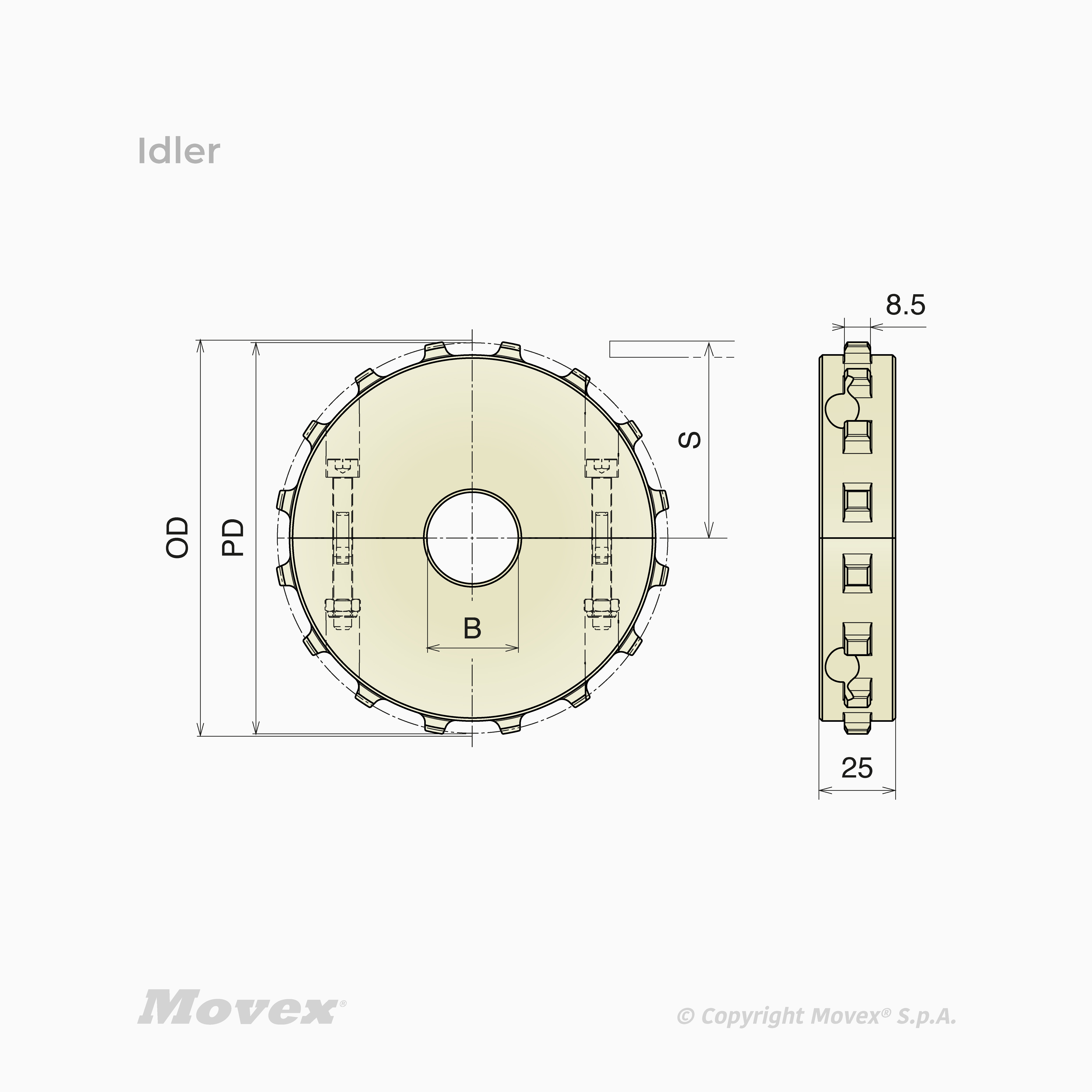

	Z-	Bore	Version	Box	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet	Supplementary informations
Code														Actions
P164001	14	○ 25 mm	Drive	4	Split	Machined	114.1 mm	114 mm	52.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164002	14	○ 30 mm	Drive	4	Split	Machined	114.1 mm	114 mm	52.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164003	14	○ 35 mm	Drive	4	Split	Machined	114.1 mm	114 mm	52.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164004	14	○ 40 mm	Drive	4	Split	Machined	114.1 mm	114 mm	52.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164006	14	☐ 25 x 25 mm	Drive	4	Split	Machined	114.1 mm	114 mm	52.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164007	14	☐ 30 x 30 mm	Drive	4	Split	Machined	114.1 mm	114 mm	52.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164008	14	☐ 40 x 40 mm	Drive	4	Split	Machined	114.1 mm	114 mm	52.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164050	14	○ 18 mm	Idler	4	Split	Machined	114.1 mm	114 mm	52.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164051	14	○ 25 mm	Idler	4	Split	Machined	114.1 mm	114 mm	52.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164052	14	○ 30 mm	Idler	4	Split	Machined	114.1 mm	114 mm	52.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164053	14	○ 35 mm	Idler	4	Split	Machined	114.1 mm	114 mm	52.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164054	14	○ 40 mm	Idler	4	Split	Machined	114.1 mm	114 mm	52.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164101	16	○ 25 mm	Drive	4	Split	Machined	130.2 mm	130 mm	60.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164102	16	○ 30 mm	Drive	4	Split	Machined	130.2 mm	130 mm	60.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164103	16	○ 35 mm	Drive	4	Split	Machined	130.2 mm	130 mm	60.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164104	16	○ 40 mm	Drive	4	Split	Machined	130.2 mm	130 mm	60.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164106	16	☐ 25 x 25 mm	Drive	4	Split	Machined	130.2 mm	130 mm	60.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164107	16	☐ 30 x 30 mm	Drive	4	Split	Machined	130.2 mm	130 mm	60.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164108	16	☐ 40 x 40 mm	Drive	4	Split	Machined	130.2 mm	130 mm	60.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164150	16	○ 18 mm	Idler	4	Split	Machined	130.2 mm	130 mm	60.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164151	16	○ 25 mm	Idler	4	Split	Machined	130.2 mm	130 mm	60.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164152	16	○ 30 mm	Idler	4	Split	Machined	130.2 mm	130 mm	60.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164153	16	○ 35 mm	Idler	4	Split	Machined	130.2 mm	130 mm	60.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164154	16	○ 40 mm	Idler	4	Split	Machined	130.2 mm	130 mm	60.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164201	18	○ 25 mm	Drive	4	Split	Machined	146.3 mm	146 mm	68.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164202	18	○ 30 mm	Drive	4	Split	Machined	146.3 mm	146 mm	68.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164203	18	○ 35 mm	Drive	4	Split	Machined	146.3 mm	146 mm	68.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164204	18	○ 40 mm	Drive	4	Split	Machined	146.3 mm	146 mm	68.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164206	18	☐ 25 x 25 mm	Drive	4	Split	Machined	146.3 mm	146 mm	68.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164207	18	☐ 30 x 30 mm	Drive	4	Split	Machined	146.3 mm	146 mm	68.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164208	18	☐ 40 x 40 mm	Drive	4	Split	Machined	146.3 mm	146 mm	68.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164250	18	○ 18 mm	Idler	4	Split	Machined	146.3 mm	146 mm	68.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164251	18	○ 25 mm	Idler	4	Split	Machined	146.3 mm	146 mm	68.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164252	18	○ 30 mm	Idler	4	Split	Machined	146.3 mm	146 mm	68.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164253	18	○ 35 mm	Idler	4	Split	Machined	146.3 mm	146 mm	68.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164254	18	○ 40 mm	Idler	4	Split	Machined	146.3 mm	146 mm	68.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164301	20	○ 25 mm	Drive	4	Split	Machined	162.4 mm	162 mm	76.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164302	20	○ 30 mm	Drive	4	Split	Machined	162.4 mm	162 mm	76.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164303	20	○ 35 mm	Drive	4	Split	Machined	162.4 mm	162 mm	76.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164304	20	○ 40 mm	Drive	4	Split	Machined	162.4 mm	162 mm	76.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164306	20	☐ 25 x 25 mm	Drive	4	Split	Machined	162.4 mm	162 mm	76.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164307	20	☐ 30 x 30 mm	Drive	4	Split	Machined	162.4 mm	162 mm	76.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164308	20	☐ 40 x 40 mm	Drive	4	Split	Machined	162.4 mm	162 mm	76.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164351	20	○ 25 mm	Idler	4	Split	Machined	162.4 mm	162 mm	76.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	a MOQ may be applied
P164352	20	○ 30 mm	Idler	4	Split	Machined	162.4 mm	162 mm	76.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P164353	20	○ 35 mm	Idler	4	Split	Machined	162.4 mm	162 mm	76.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	a MOQ may be applied
P164354	20	○ 40 mm	Idler	4	Split	Machined	162.4 mm	162 mm	76.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
