550 Flat Top One track Belt
Modular Belts
Description
Basic features
| Series: | 550 |
|---|---|
| Pitch: | 25.4 mm |
| Thickness: | 8.7 mm |
| Increments: | 85 mm |
| Surface Type: | FT - Flat Top |
| Functionality: | Straight |
| Unit of measure: | Meter |
550 Flat Top One track Belt
| Width | Material | Version | Part | Back flex radius | Mass | Pin material | Fixation | Box | Max working load | Temperature range dry | Temperature range wet | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||

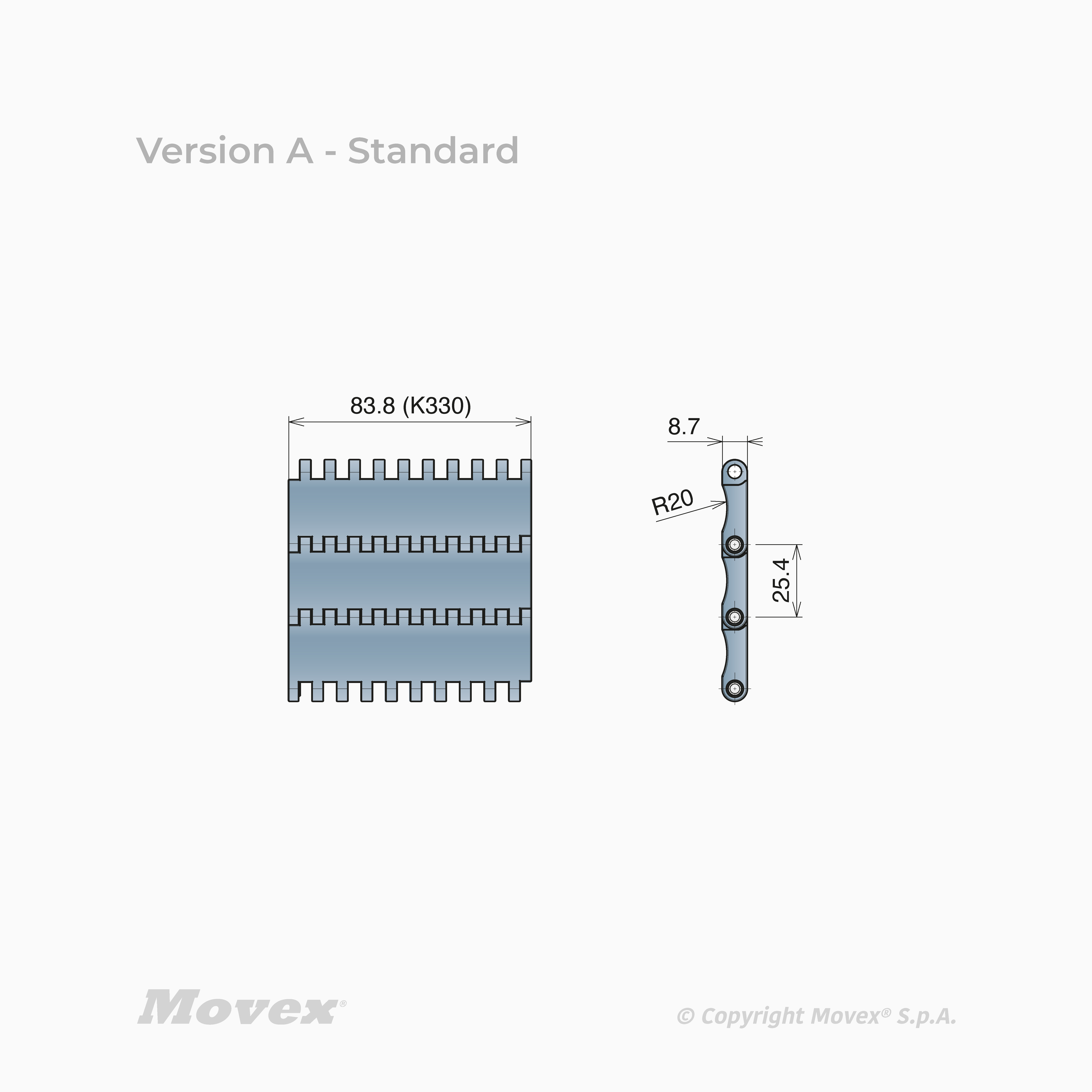

| P5221019330A | 3,30" (83,82 mm) | LFA - Low friction acetal (01) | A - No positioners | P5221 | 25 mm | 8.5 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | Specific Max Working Load = 2000 N |
|

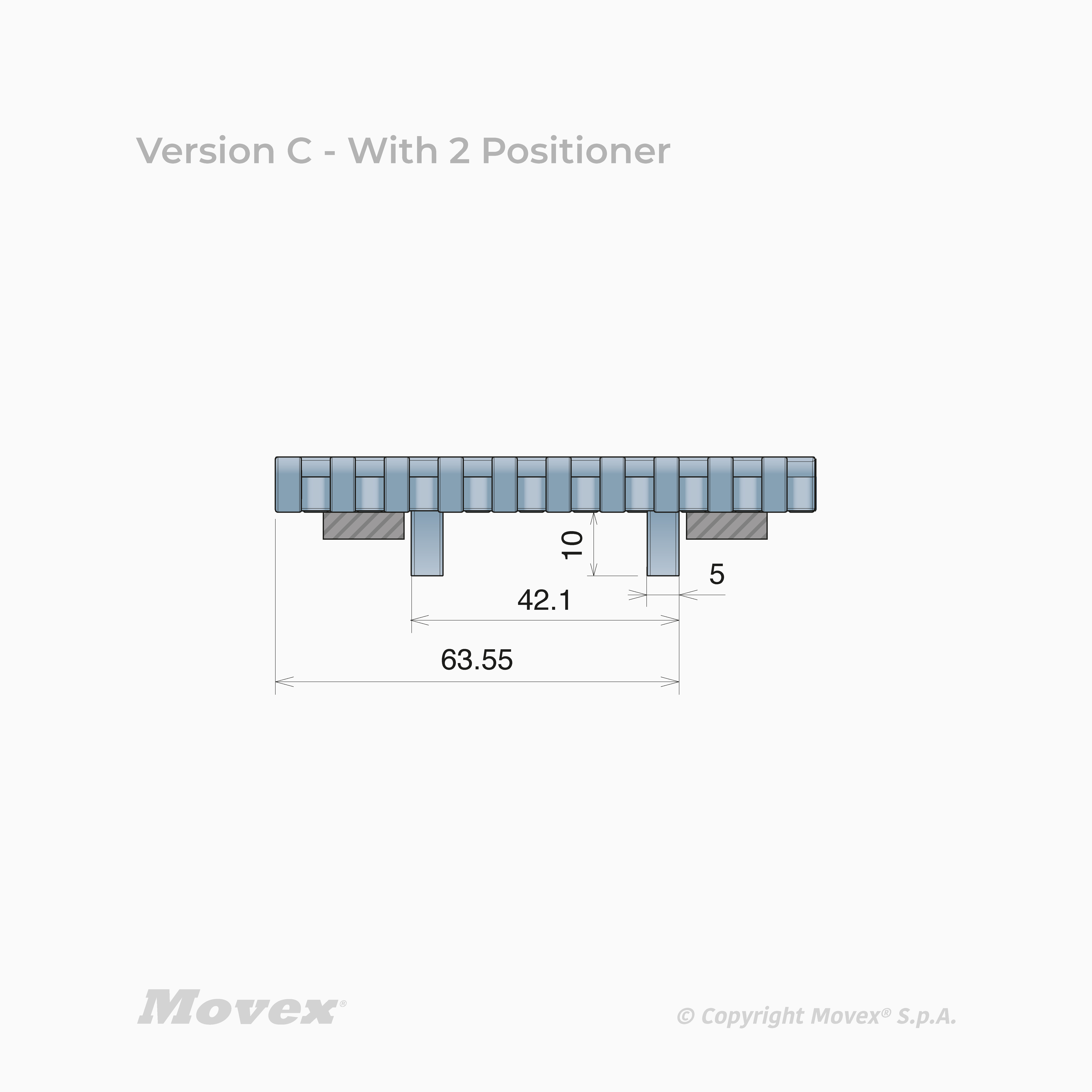

| P5221019330C | 3,30" (83,82 mm) | LFA - Low friction acetal (01) | C - 2 Positioners | P5221 | 25 mm | 8.5 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|

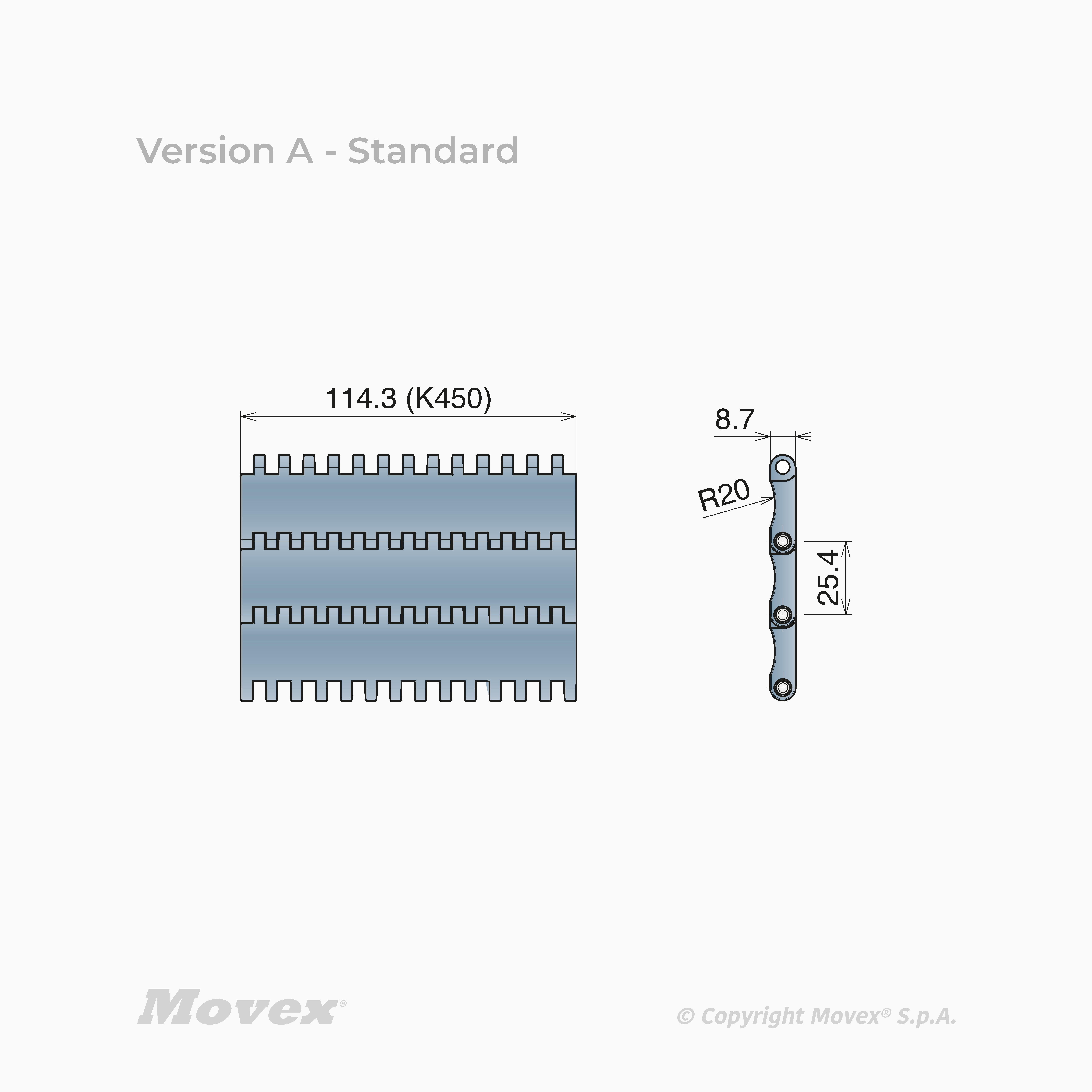

| P5221019450A | 4,5" (114,3 mm) | LFA - Low friction acetal (01) | A - No positioners | P5221 | 25 mm | 8.5 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|

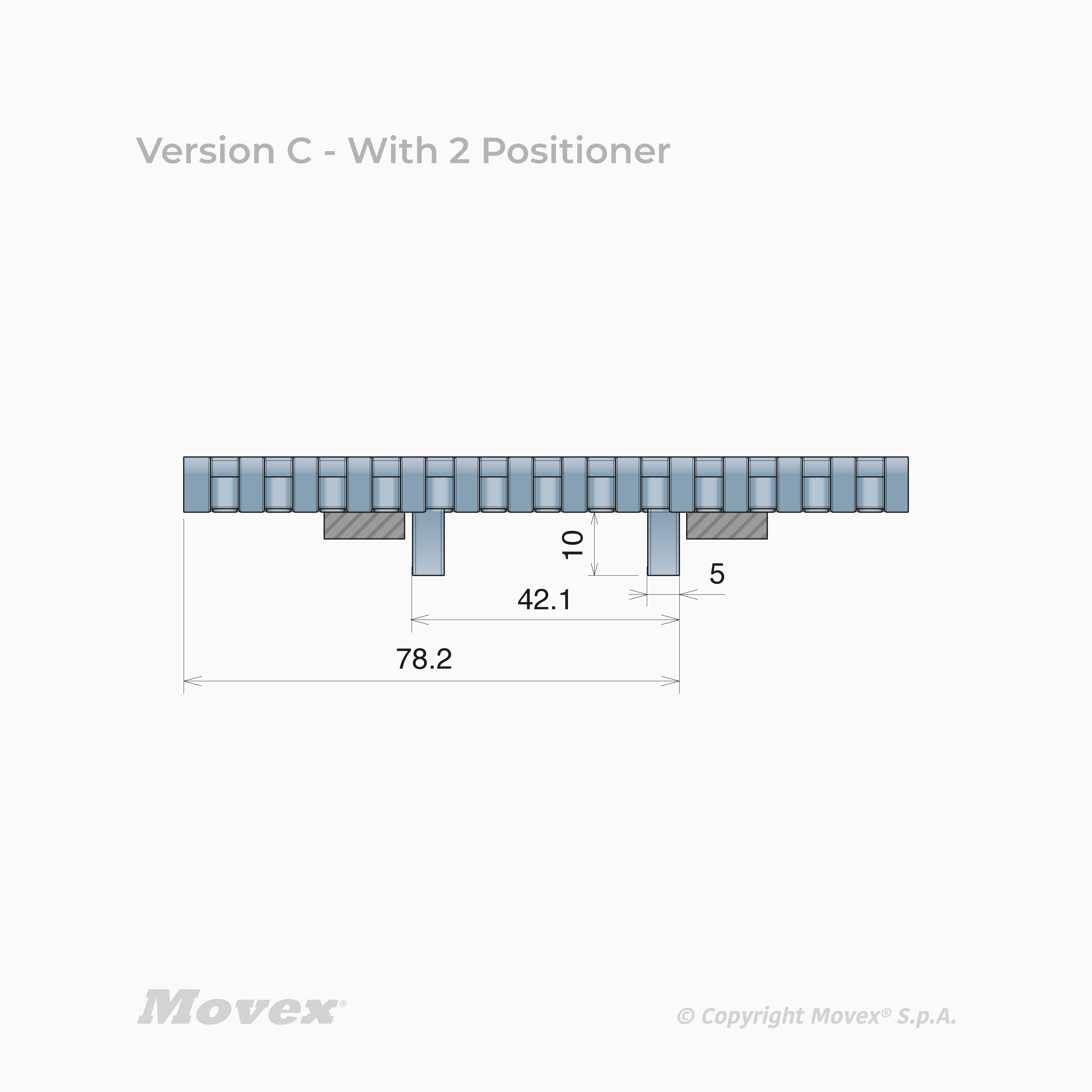

| P5221019450C | 4,5" (114,3 mm) | LFA - Low friction acetal (01) | C - 2 Positioners | P5221 | 25 mm | 8.5 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|
| P5221029330A | 3,30" (83,82 mm) | PP - Polypropylene (02) | A - No positioners | P5221 | 25 mm | 8.4 kg/m^2 | PP Blue | Patented PinSphere | 10 ft - 3,048 m | - N/m | 4÷104 °C | 4÷104 °C | Specific Max Working Load = 2500 N |
|
| P5221029330C | 3,30" (83,82 mm) | PP - Polypropylene (02) | C - 2 Positioners | P5221 | 25 mm | 8.4 kg/m^2 | PP Blue | Patented PinSphere | 10 ft - 3,048 m | - N/m | 4÷104 °C | 4÷104 °C | Specific Max Working Load = 2500 N |
|
| P5221029450A | 4,5" (114,3 mm) | PP - Polypropylene (02) | A - No positioners | P5221 | 25 mm | 8.4 kg/m^2 | PP Blue | Patented PinSphere | 10 ft - 3,048 m | - N/m | 4÷104 °C | 4÷104 °C | Specific Max Working Load = 2000 N |
|
| P5221029450C | 4,5" (114,3 mm) | PP - Polypropylene (02) | C - 2 Positioners | P5221 | 25 mm | 8.4 kg/m^2 | PP Blue | Patented PinSphere | 10 ft - 3,048 m | - N/m | 4÷104 °C | 4÷104 °C | Specific Max Working Load = 2000 N |
|
| P5221039330A | 3,30" (83,82 mm) | MX - Performance PBT (03) | A - No positioners | P5221 | 25 mm | 8.2 kg/m^2 | POM grey | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max Working Load = 2500 N |
|
| P5221039330C | 3,30" (83,82 mm) | MX - Performance PBT (03) | C - 2 Positioners | P5221 | 25 mm | 8.2 kg/m^2 | POM grey | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max Working Load = 2500 N |
|
| P5221039450A | 4,5" (114,3 mm) | MX - Performance PBT (03) | A - No positioners | P5221 | 25 mm | 8.2 kg/m^2 | POM grey | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max Working Load = 2500 N |
|
| P5221039450C | 4,5" (114,3 mm) | MX - Performance PBT (03) | C - 2 Positioners | P5221 | 25 mm | 8.2 kg/m^2 | POM grey | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max Working Load = 2500 N |
|
| P5221169330A | 3,30" (83,82 mm) | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5221 | 25 mm | 8.5 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|
| P5221169330C | 3,30" (83,82 mm) | DKM - Aramide Reinforced Acetal (16) | C - 2 Positioners | P5221 | 25 mm | 8.5 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|
| P5221169450A | 4,5" (114,3 mm) | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5221 | 25 mm | 8.5 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|
| P5221169450C | 4,5" (114,3 mm) | DKM - Aramide Reinforced Acetal (16) | C - 2 Positioners | P5221 | 25 mm | 8.5 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|
| P5221179330A | 3,30" (83,82 mm) | MWX - Polyamide Composite (17) | A - No positioners | P5221 | 25 mm | 8.9 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷104 °C | Not suitable °C | - |
|
| P5221179330C | 3,30" (83,82 mm) | MWX - Polyamide Composite (17) | C - 2 Positioners | P5221 | 25 mm | 8.9 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷104 °C | Not suitable °C | - |
|
| P5221179450A | 4,5" (114,3 mm) | MWX - Polyamide Composite (17) | A - No positioners | P5221 | 25 mm | 8.9 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷104 °C | Not suitable °C | - |
|
| P5221179450C | 4,5" (114,3 mm) | MWX - Polyamide Composite (17) | C - 2 Positioners | P5221 | 25 mm | 8.9 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷104 °C | Not suitable °C | Specific Max Working Load = 2500 N |
|
| P5221239330A | 3,30" (83,82 mm) | LFB - Low friction acetal (Blue) | A - No positioners | P5221 | 25 mm | 8.5 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|
| P5221239330C | 3,30" (83,82 mm) | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5221 | 25 mm | 8.5 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|
| P5221239450A | 4,5" (114,3 mm) | LFB - Low friction acetal (Blue) | A - No positioners | P5221 | 25 mm | 8.5 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|
| P5221239450C | 4,5" (114,3 mm) | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5221 | 25 mm | 8.5 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | Specific Max Working Load = 2500 N |
|
| P5221309330A | 3,30" (83,82 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5221 | 25 mm | 8.2 kg/m^2 | POM grey | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max Working Load = 2500 N |
|
| P5221309330C | 3,30" (83,82 mm) | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5221 | 25 mm | 8.2 kg/m^2 | POM grey | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max Working Load = 2500 N |
|
| P5221309450A | 4,5" (114,3 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5221 | 25 mm | 8.2 kg/m^2 | POM grey | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max Working Load = 2500 N |
|
| P5221309450C | 4,5" (114,3 mm) | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5221 | 25 mm | 8.2 kg/m^2 | POM grey | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max Working Load = 2500 N |
|
