525 Heavy Duty Flat Top
Modular Belts
Description
Basic features
| Series: | 525 |
|---|---|
| Pitch: | 15 mm |
| Thickness: | 8.7 mm |
| Increments: | 85 mm |
| Surface Type: | FT - Flat Top |
| Functionality: | Straight |
| Unit of measure: | Meter |

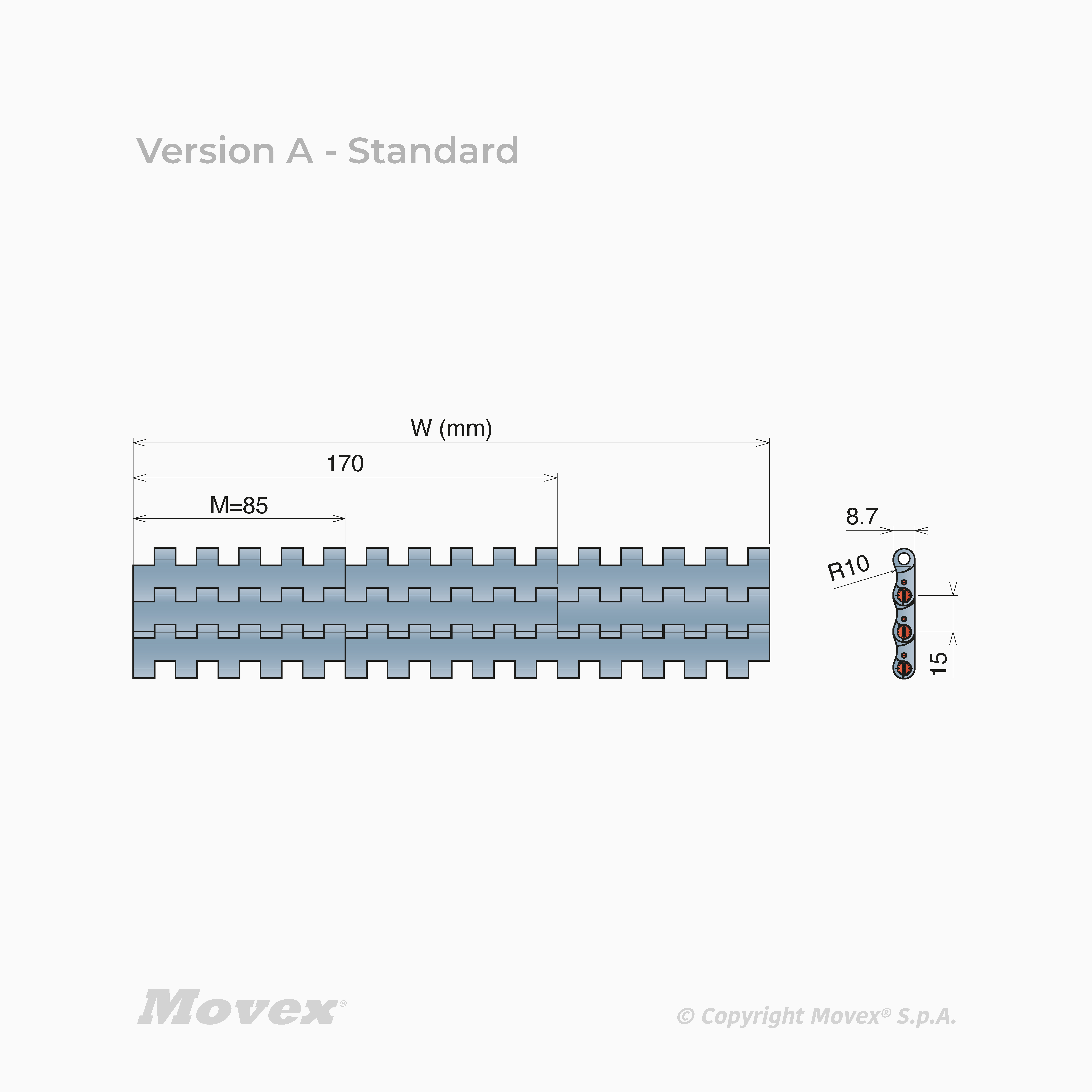

525 Heavy Duty Flat Top
| Width | Material | Pin material | Version | Part | Back flex radius | Max working load | Mass | Fixation | Box | Temperature range dry | Temperature range wet | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||
| P5261010085A | 85 mm (3,35") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010085A-SS | 85 mm (3,35") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010085B | 85 mm (3,35") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010085B-SS | 85 mm (3,35") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|

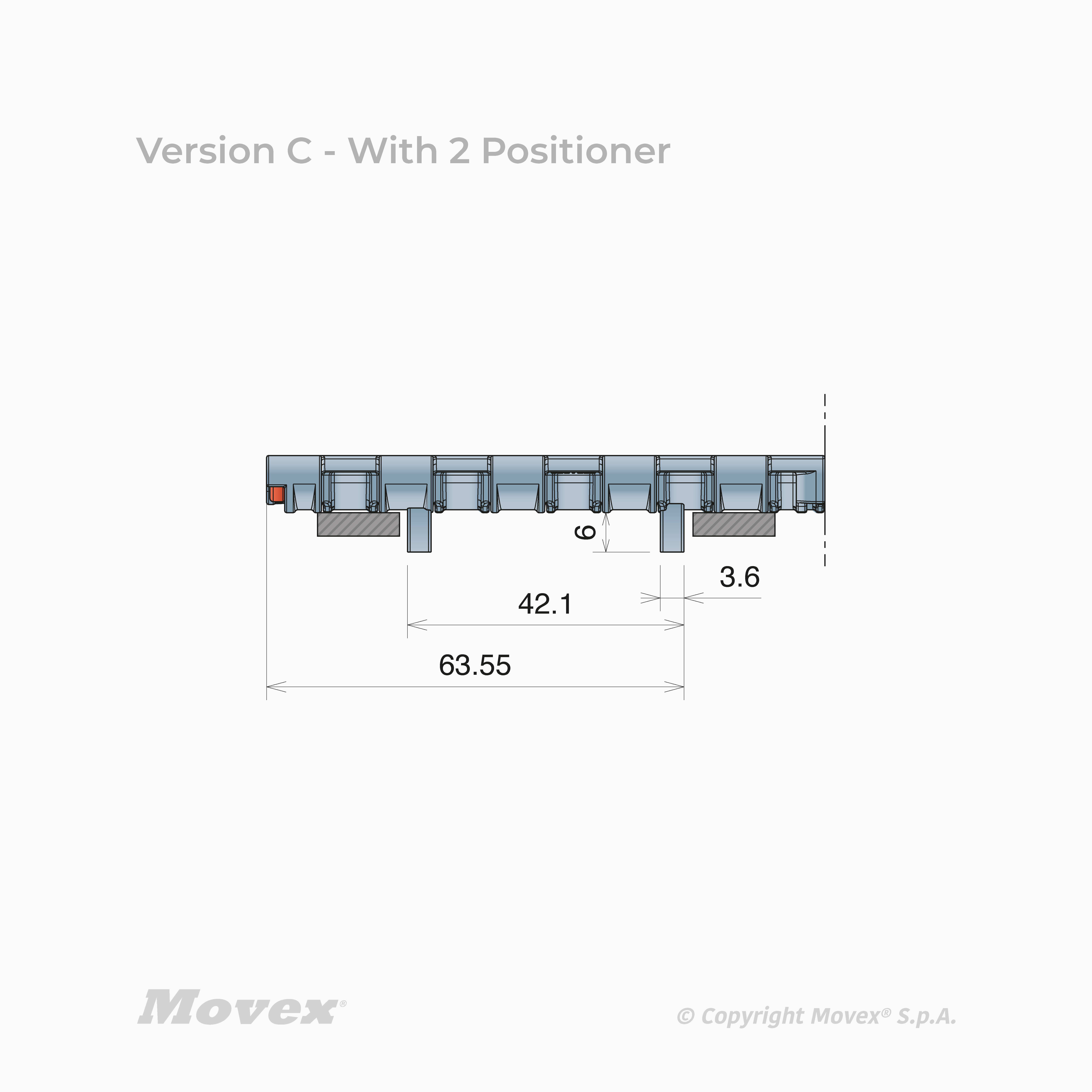

| P5261010085C | 85 mm (3,35") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010085C-SS | 85 mm (3,35") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010170A | 170 mm (6,69") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | - |
|
| P5261010170A-SS | 170 mm (6,69") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010170B | 170 mm (6,69") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010170B-SS | 170 mm (6,69") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010170C | 170 mm (6,69") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010170C-SS | 170 mm (6,69") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010255A | 255 mm (10,04") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | - |
|
| P5261010255A-SS | 255 mm (10,04") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010255B | 255 mm (10,04") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010255B-SS | 255 mm (10,04") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010255C | 255 mm (10,04") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010255C-SS | 255 mm (10,04") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010340A | 340 mm (13,39") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | - |
|
| P5261010340A-SS | 340 mm (13,39") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010340B | 340 mm (13,39") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010340B-SS | 340 mm (13,39") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010340C | 340 mm (13,39") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010340C-SS | 340 mm (13,39") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010425A | 425 mm (16,73") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | - |
|
| P5261010425A-SS | 425 mm (16,73") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010425B | 425 mm (16,73") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010425B-SS | 425 mm (16,73") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010425C | 425 mm (16,73") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010425C-SS | 425 mm (16,73") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010510A | 510 mm (20,08") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | - |
|
| P5261010510A-SS | 510 mm (20,08") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010510B | 510 mm (20,08") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010510B-SS | 510 mm (20,08") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010510C | 510 mm (20,08") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010510C-SS | 510 mm (20,08") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010595A | 595 mm (23,43") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010595A-SS | 595 mm (23,43") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010595B | 595 mm (23,43") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010595B-SS | 595 mm (23,43") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010595C | 595 mm (23,43") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010595C-SS | 595 mm (23,43") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010680A | 680 mm (26,77") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010680A-SS | 680 mm (26,77") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010680B | 680 mm (26,77") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010680B-SS | 680 mm (26,77") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010680C | 680 mm (26,77") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010680C-SS | 680 mm (26,77") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010765A | 765 mm (30,12") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010765A-SS | 765 mm (30,12") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010765B | 765 mm (30,12") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010765B-SS | 765 mm (30,12") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010765C | 765 mm (30,12") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010765C-SS | 765 mm (30,12") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010850A | 850 mm (33,46") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010850A-SS | 850 mm (33,46") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010850B | 850 mm (33,46") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010850B-SS | 850 mm (33,46") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010850C | 850 mm (33,46") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010850C-SS | 850 mm (33,46") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010935A | 935 mm (36,81") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010935A-SS | 935 mm (36,81") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010935B | 935 mm (36,81") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010935B-SS | 935 mm (36,81") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010935C | 935 mm (36,81") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261010935C-SS | 935 mm (36,81") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011020A | 1020 mm (40,16") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011020A-SS | 1020 mm (40,16") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011020B | 1020 mm (40,16") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011020B-SS | 1020 mm (40,16") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011020C | 1020 mm (40,16") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011020C-SS | 1020 mm (40,16") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011105A | 1105 mm (43,50") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011105A-SS | 1105 mm (43,50") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011105B | 1105 mm (43,50") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011105B-SS | 1105 mm (43,50") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011105C | 1105 mm (43,50") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011105C-SS | 1105 mm (43,50") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011190A | 1190 mm (46,85") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011190A-SS | 1190 mm (46,85") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011190B | 1190 mm (46,85") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011190B-SS | 1190 mm (46,85") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011190C | 1190 mm (46,85") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011190C-SS | 1190 mm (46,85") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011275A | 1275 mm (50,20") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011275A-SS | 1275 mm (50,20") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011275B | 1275 mm (50,20") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011275B-SS | 1275 mm (50,20") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011275C | 1275 mm (50,20") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011275C-SS | 1275 mm (50,20") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011360A | 1360 mm (53,54") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011360A-SS | 1360 mm (53,54") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011360B | 1360 mm (53,54") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011360B-SS | 1360 mm (53,54") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011360C | 1360 mm (53,54") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011360C-SS | 1360 mm (53,54") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011445A | 1445 mm (56,89") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011445A-SS | 1445 mm (56,89") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011445B | 1445 mm (56,89") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011445B-SS | 1445 mm (56,89") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011445C | 1445 mm (56,89") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011445C-SS | 1445 mm (56,89") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011530A | 1530 mm (60,24") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011530A-SS | 1530 mm (60,24") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011530B | 1530 mm (60,24") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011530B-SS | 1530 mm (60,24") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011530C | 1530 mm (60,24") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261011530C-SS | 1530 mm (60,24") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261020085A | 85 mm (3,35") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020085A-SS | 85 mm (3,35") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020085B | 85 mm (3,35") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020085B-SS | 85 mm (3,35") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020085C | 85 mm (3,35") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020085C-SS | 85 mm (3,35") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020170A | 170 mm (6,69") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020170A-SS | 170 mm (6,69") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020170B | 170 mm (6,69") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020170B-SS | 170 mm (6,69") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020170C | 170 mm (6,69") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020170C-SS | 170 mm (6,69") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020255A | 255 mm (10,04") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020255A-SS | 255 mm (10,04") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020255B | 255 mm (10,04") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020255B-SS | 255 mm (10,04") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020255C | 255 mm (10,04") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020255C-SS | 255 mm (10,04") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020340A | 340 mm (13,39") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020340A-SS | 340 mm (13,39") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020340B | 340 mm (13,39") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020340B-SS | 340 mm (13,39") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020340C | 340 mm (13,39") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020340C-SS | 340 mm (13,39") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020425A | 425 mm (16,73") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020425A-SS | 425 mm (16,73") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020425B | 425 mm (16,73") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020425B-SS | 425 mm (16,73") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020425C | 425 mm (16,73") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020425C-SS | 425 mm (16,73") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020510A | 510 mm (20,08") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020510A-SS | 510 mm (20,08") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020510B | 510 mm (20,08") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020510B-SS | 510 mm (20,08") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020510C | 510 mm (20,08") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020510C-SS | 510 mm (20,08") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020595A | 595 mm (23,43") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020595A-SS | 595 mm (23,43") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020595B | 595 mm (23,43") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020595B-SS | 595 mm (23,43") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020595C | 595 mm (23,43") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020595C-SS | 595 mm (23,43") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020680A | 680 mm (26,77") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020680A-SS | 680 mm (26,77") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020680B | 680 mm (26,77") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020680B-SS | 680 mm (26,77") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020680C | 680 mm (26,77") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020680C-SS | 680 mm (26,77") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020765A | 765 mm (30,12") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020765A-SS | 765 mm (30,12") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020765B | 765 mm (30,12") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020765B-SS | 765 mm (30,12") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020765C | 765 mm (30,12") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020765C-SS | 765 mm (30,12") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020850A | 850 mm (33,46") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020850A-SS | 850 mm (33,46") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020850B | 850 mm (33,46") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020850B-SS | 850 mm (33,46") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020850C | 850 mm (33,46") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020850C-SS | 850 mm (33,46") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020935A | 935 mm (36,81") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020935A-SS | 935 mm (36,81") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020935B | 935 mm (36,81") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020935B-SS | 935 mm (36,81") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020935C | 935 mm (36,81") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261020935C-SS | 935 mm (36,81") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021020A | 1020 mm (40,16") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021020A-SS | 1020 mm (40,16") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021020B | 1020 mm (40,16") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021020B-SS | 1020 mm (40,16") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021020C | 1020 mm (40,16") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021020C-SS | 1020 mm (40,16") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021105A | 1105 mm (43,50") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021105A-SS | 1105 mm (43,50") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021105B | 1105 mm (43,50") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021105B-SS | 1105 mm (43,50") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021105C | 1105 mm (43,50") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021105C-SS | 1105 mm (43,50") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021190A | 1190 mm (46,85") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021190A-SS | 1190 mm (46,85") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021190B | 1190 mm (46,85") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021190B-SS | 1190 mm (46,85") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021190C | 1190 mm (46,85") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021190C-SS | 1190 mm (46,85") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021275A | 1275 mm (50,20") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021275A-SS | 1275 mm (50,20") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021275B | 1275 mm (50,20") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021275B-SS | 1275 mm (50,20") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021275C | 1275 mm (50,20") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021275C-SS | 1275 mm (50,20") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021360A | 1360 mm (53,54") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021360A-SS | 1360 mm (53,54") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021360B | 1360 mm (53,54") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021360B-SS | 1360 mm (53,54") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021360C | 1360 mm (53,54") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021360C-SS | 1360 mm (53,54") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021445A | 1445 mm (56,89") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021445A-SS | 1445 mm (56,89") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021445B | 1445 mm (56,89") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021445B-SS | 1445 mm (56,89") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021445C | 1445 mm (56,89") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021445C-SS | 1445 mm (56,89") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021530A | 1530 mm (60,24") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021530A-SS | 1530 mm (60,24") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021530B | 1530 mm (60,24") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021530B-SS | 1530 mm (60,24") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021530C | 1530 mm (60,24") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5261 | 25 mm | 15500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261021530C-SS | 1530 mm (60,24") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 17050 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | 4÷104 °C | 4÷104 °C | Reinforced Positioner |
|
| P5261030085A | 85 mm (3,35") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030085A-SS | 85 mm (3,35") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030085B | 85 mm (3,35") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030085B-SS | 85 mm (3,35") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030085C | 85 mm (3,35") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030085C-SS | 85 mm (3,35") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030170A | 170 mm (6,69") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030170A-SS | 170 mm (6,69") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030170B | 170 mm (6,69") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030170B-SS | 170 mm (6,69") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030170C | 170 mm (6,69") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030170C-SS | 170 mm (6,69") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030255A | 255 mm (10,04") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030255A-SS | 255 mm (10,04") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030255B | 255 mm (10,04") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030255B-SS | 255 mm (10,04") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030255C | 255 mm (10,04") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030255C-SS | 255 mm (10,04") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030340A | 340 mm (13,39") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030340A-SS | 340 mm (13,39") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030340B | 340 mm (13,39") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030340B-SS | 340 mm (13,39") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030340C | 340 mm (13,39") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030340C-SS | 340 mm (13,39") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030425A | 425 mm (16,73") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030425A-SS | 425 mm (16,73") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030425B | 425 mm (16,73") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030425B-SS | 425 mm (16,73") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030425C | 425 mm (16,73") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030425C-SS | 425 mm (16,73") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030510A | 510 mm (20,08") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030510A-SS | 510 mm (20,08") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030510B | 510 mm (20,08") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030510B-SS | 510 mm (20,08") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030510C | 510 mm (20,08") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030510C-SS | 510 mm (20,08") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030595A | 595 mm (23,43") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030595A-SS | 595 mm (23,43") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030595B | 595 mm (23,43") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030595B-SS | 595 mm (23,43") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030595C | 595 mm (23,43") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030595C-SS | 595 mm (23,43") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030680A | 680 mm (26,77") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030680A-SS | 680 mm (26,77") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030680B | 680 mm (26,77") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030680B-SS | 680 mm (26,77") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030680C | 680 mm (26,77") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030680C-SS | 680 mm (26,77") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030765A | 765 mm (30,12") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030765A-SS | 765 mm (30,12") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030765B | 765 mm (30,12") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030765B-SS | 765 mm (30,12") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030765C | 765 mm (30,12") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030765C-SS | 765 mm (30,12") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030850A | 850 mm (33,46") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030850A-SS | 850 mm (33,46") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030850B | 850 mm (33,46") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030850B-SS | 850 mm (33,46") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030850C | 850 mm (33,46") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030850C-SS | 850 mm (33,46") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030935A | 935 mm (36,81") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030935A-SS | 935 mm (36,81") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030935B | 935 mm (36,81") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030935B-SS | 935 mm (36,81") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030935C | 935 mm (36,81") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261030935C-SS | 935 mm (36,81") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031020A | 1020 mm (40,16") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031020A-SS | 1020 mm (40,16") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031020B | 1020 mm (40,16") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031020B-SS | 1020 mm (40,16") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031020C | 1020 mm (40,16") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031020C-SS | 1020 mm (40,16") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031105A | 1105 mm (43,50") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031105A-SS | 1105 mm (43,50") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031105B | 1105 mm (43,50") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031105B-SS | 1105 mm (43,50") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031105C | 1105 mm (43,50") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031105C-SS | 1105 mm (43,50") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031190A | 1190 mm (46,85") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031190A-SS | 1190 mm (46,85") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031190B | 1190 mm (46,85") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031190B-SS | 1190 mm (46,85") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031190C | 1190 mm (46,85") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031190C-SS | 1190 mm (46,85") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031275A | 1275 mm (50,20") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031275A-SS | 1275 mm (50,20") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031275B | 1275 mm (50,20") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031275B-SS | 1275 mm (50,20") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031275C | 1275 mm (50,20") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031275C-SS | 1275 mm (50,20") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031360A | 1360 mm (53,54") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031360A-SS | 1360 mm (53,54") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031360B | 1360 mm (53,54") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031360B-SS | 1360 mm (53,54") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031360C | 1360 mm (53,54") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031360C-SS | 1360 mm (53,54") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031445A | 1445 mm (56,89") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031445A-SS | 1445 mm (56,89") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031445B | 1445 mm (56,89") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031445B-SS | 1445 mm (56,89") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031445C | 1445 mm (56,89") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031445C-SS | 1445 mm (56,89") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031530A | 1530 mm (60,24") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031530A-SS | 1530 mm (60,24") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031530B | 1530 mm (60,24") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031530B-SS | 1530 mm (60,24") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031530C | 1530 mm (60,24") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261031530C-SS | 1530 mm (60,24") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261230085A | 85 mm (3,35") | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230085A-SS | 85 mm (3,35") | LFB - Low friction acetal (Blue) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230085B | 85 mm (3,35") | LFB - Low friction acetal (Blue) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230085B-SS | 85 mm (3,35") | LFB - Low friction acetal (Blue) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230085C | 85 mm (3,35") | LFB - Low friction acetal (Blue) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230085C-SS | 85 mm (3,35") | LFB - Low friction acetal (Blue) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230170A | 170 mm (6,69") | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230170A-SS | 170 mm (6,69") | LFB - Low friction acetal (Blue) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230170B | 170 mm (6,69") | LFB - Low friction acetal (Blue) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230170B-SS | 170 mm (6,69") | LFB - Low friction acetal (Blue) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230170C | 170 mm (6,69") | LFB - Low friction acetal (Blue) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230170C-SS | 170 mm (6,69") | LFB - Low friction acetal (Blue) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230255A | 255 mm (10,04") | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230255A-SS | 255 mm (10,04") | LFB - Low friction acetal (Blue) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230255B | 255 mm (10,04") | LFB - Low friction acetal (Blue) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230255B-SS | 255 mm (10,04") | LFB - Low friction acetal (Blue) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230255C | 255 mm (10,04") | LFB - Low friction acetal (Blue) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230255C-SS | 255 mm (10,04") | LFB - Low friction acetal (Blue) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230340A | 340 mm (13,39") | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230340A-SS | 340 mm (13,39") | LFB - Low friction acetal (Blue) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230340B | 340 mm (13,39") | LFB - Low friction acetal (Blue) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230340B-SS | 340 mm (13,39") | LFB - Low friction acetal (Blue) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230340C | 340 mm (13,39") | LFB - Low friction acetal (Blue) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230340C-SS | 340 mm (13,39") | LFB - Low friction acetal (Blue) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230425A | 425 mm (16,73") | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230425A-SS | 425 mm (16,73") | LFB - Low friction acetal (Blue) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230425B | 425 mm (16,73") | LFB - Low friction acetal (Blue) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230425B-SS | 425 mm (16,73") | LFB - Low friction acetal (Blue) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230425C | 425 mm (16,73") | LFB - Low friction acetal (Blue) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230425C-SS | 425 mm (16,73") | LFB - Low friction acetal (Blue) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230510A | 510 mm (20,08") | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230510A-SS | 510 mm (20,08") | LFB - Low friction acetal (Blue) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230510B | 510 mm (20,08") | LFB - Low friction acetal (Blue) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230510B-SS | 510 mm (20,08") | LFB - Low friction acetal (Blue) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230510C | 510 mm (20,08") | LFB - Low friction acetal (Blue) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230510C-SS | 510 mm (20,08") | LFB - Low friction acetal (Blue) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230595A | 595 mm (23,43") | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230595A-SS | 595 mm (23,43") | LFB - Low friction acetal (Blue) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230595B | 595 mm (23,43") | LFB - Low friction acetal (Blue) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230595B-SS | 595 mm (23,43") | LFB - Low friction acetal (Blue) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230595C | 595 mm (23,43") | LFB - Low friction acetal (Blue) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230595C-SS | 595 mm (23,43") | LFB - Low friction acetal (Blue) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230680A | 680 mm (26,77") | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230680A-SS | 680 mm (26,77") | LFB - Low friction acetal (Blue) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230680B | 680 mm (26,77") | LFB - Low friction acetal (Blue) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230680B-SS | 680 mm (26,77") | LFB - Low friction acetal (Blue) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230680C | 680 mm (26,77") | LFB - Low friction acetal (Blue) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230680C-SS | 680 mm (26,77") | LFB - Low friction acetal (Blue) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230765A | 765 mm (30,12") | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230765A-SS | 765 mm (30,12") | LFB - Low friction acetal (Blue) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230765B | 765 mm (30,12") | LFB - Low friction acetal (Blue) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230765B-SS | 765 mm (30,12") | LFB - Low friction acetal (Blue) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230765C | 765 mm (30,12") | LFB - Low friction acetal (Blue) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230765C-SS | 765 mm (30,12") | LFB - Low friction acetal (Blue) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230850A | 850 mm (33,46") | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230850A-SS | 850 mm (33,46") | LFB - Low friction acetal (Blue) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230850B | 850 mm (33,46") | LFB - Low friction acetal (Blue) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230850B-SS | 850 mm (33,46") | LFB - Low friction acetal (Blue) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230850C | 850 mm (33,46") | LFB - Low friction acetal (Blue) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230850C-SS | 850 mm (33,46") | LFB - Low friction acetal (Blue) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230935A | 935 mm (36,81") | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230935A-SS | 935 mm (36,81") | LFB - Low friction acetal (Blue) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230935B | 935 mm (36,81") | LFB - Low friction acetal (Blue) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230935B-SS | 935 mm (36,81") | LFB - Low friction acetal (Blue) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230935C | 935 mm (36,81") | LFB - Low friction acetal (Blue) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261230935C-SS | 935 mm (36,81") | LFB - Low friction acetal (Blue) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231020A | 1020 mm (40,16") | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231020A-SS | 1020 mm (40,16") | LFB - Low friction acetal (Blue) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231020B | 1020 mm (40,16") | LFB - Low friction acetal (Blue) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231020B-SS | 1020 mm (40,16") | LFB - Low friction acetal (Blue) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231020C | 1020 mm (40,16") | LFB - Low friction acetal (Blue) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231020C-SS | 1020 mm (40,16") | LFB - Low friction acetal (Blue) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231105A | 1105 mm (43,50") | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231105A-SS | 1105 mm (43,50") | LFB - Low friction acetal (Blue) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231105B | 1105 mm (43,50") | LFB - Low friction acetal (Blue) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231105B-SS | 1105 mm (43,50") | LFB - Low friction acetal (Blue) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231105C | 1105 mm (43,50") | LFB - Low friction acetal (Blue) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231105C-SS | 1105 mm (43,50") | LFB - Low friction acetal (Blue) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231190A | 1190 mm (46,85") | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231190A-SS | 1190 mm (46,85") | LFB - Low friction acetal (Blue) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231190B | 1190 mm (46,85") | LFB - Low friction acetal (Blue) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231190B-SS | 1190 mm (46,85") | LFB - Low friction acetal (Blue) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231190C | 1190 mm (46,85") | LFB - Low friction acetal (Blue) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231190C-SS | 1190 mm (46,85") | LFB - Low friction acetal (Blue) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231275A | 1275 mm (50,20") | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231275A-SS | 1275 mm (50,20") | LFB - Low friction acetal (Blue) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231275B | 1275 mm (50,20") | LFB - Low friction acetal (Blue) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231275B-SS | 1275 mm (50,20") | LFB - Low friction acetal (Blue) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231275C | 1275 mm (50,20") | LFB - Low friction acetal (Blue) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231275C-SS | 1275 mm (50,20") | LFB - Low friction acetal (Blue) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231360A | 1360 mm (53,54") | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231360A-SS | 1360 mm (53,54") | LFB - Low friction acetal (Blue) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231360B | 1360 mm (53,54") | LFB - Low friction acetal (Blue) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231360B-SS | 1360 mm (53,54") | LFB - Low friction acetal (Blue) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231360C | 1360 mm (53,54") | LFB - Low friction acetal (Blue) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231360C-SS | 1360 mm (53,54") | LFB - Low friction acetal (Blue) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231445A | 1445 mm (56,89") | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231445A-SS | 1445 mm (56,89") | LFB - Low friction acetal (Blue) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231445B | 1445 mm (56,89") | LFB - Low friction acetal (Blue) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231445B-SS | 1445 mm (56,89") | LFB - Low friction acetal (Blue) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231445C | 1445 mm (56,89") | LFB - Low friction acetal (Blue) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231445C-SS | 1445 mm (56,89") | LFB - Low friction acetal (Blue) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231530A | 1530 mm (60,24") | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231530A-SS | 1530 mm (60,24") | LFB - Low friction acetal (Blue) | Stainless steel | A - No positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231530B | 1530 mm (60,24") | LFB - Low friction acetal (Blue) | PBT White | B - 1 Positioner | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231530B-SS | 1530 mm (60,24") | LFB - Low friction acetal (Blue) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231530C | 1530 mm (60,24") | LFB - Low friction acetal (Blue) | PBT White | C - 2 Positioners | P5261 | 25 mm | 25500 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261231530C-SS | 1530 mm (60,24") | LFB - Low friction acetal (Blue) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 28050 N/m | 9 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Reinforced Positioner |
|
| P5261300085A | 85 mm (3,35") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300085A-SS | 85 mm (3,35") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300085B | 85 mm (3,35") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300085B-SS | 85 mm (3,35") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300085C | 85 mm (3,35") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300085C-SS | 85 mm (3,35") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300170A | 170 mm (6,69") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300170A-SS | 170 mm (6,69") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300170B | 170 mm (6,69") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300170B-SS | 170 mm (6,69") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300170C | 170 mm (6,69") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300170C-SS | 170 mm (6,69") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300255A | 255 mm (10,04") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300255A-SS | 255 mm (10,04") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300255B | 255 mm (10,04") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300255B-SS | 255 mm (10,04") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300255C | 255 mm (10,04") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300255C-SS | 255 mm (10,04") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300340A | 340 mm (13,39") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300340A-SS | 340 mm (13,39") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300340B | 340 mm (13,39") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300340B-SS | 340 mm (13,39") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300340C | 340 mm (13,39") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300340C-SS | 340 mm (13,39") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300425A | 425 mm (16,73") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300425A-SS | 425 mm (16,73") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300425B | 425 mm (16,73") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300425B-SS | 425 mm (16,73") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300425C | 425 mm (16,73") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300425C-SS | 425 mm (16,73") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300510A | 510 mm (20,08") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300510A-SS | 510 mm (20,08") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300510B | 510 mm (20,08") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300510B-SS | 510 mm (20,08") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300510C | 510 mm (20,08") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300510C-SS | 510 mm (20,08") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300595A | 595 mm (23,43") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300595A-SS | 595 mm (23,43") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300595B | 595 mm (23,43") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300595B-SS | 595 mm (23,43") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300595C | 595 mm (23,43") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300595C-SS | 595 mm (23,43") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300680A | 680 mm (26,77") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300680A-SS | 680 mm (26,77") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300680B | 680 mm (26,77") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300680B-SS | 680 mm (26,77") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300680C | 680 mm (26,77") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300680C-SS | 680 mm (26,77") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300765A | 765 mm (30,12") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300765A-SS | 765 mm (30,12") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300765B | 765 mm (30,12") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300765B-SS | 765 mm (30,12") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300765C | 765 mm (30,12") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300765C-SS | 765 mm (30,12") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300850A | 850 mm (33,46") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300850A-SS | 850 mm (33,46") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300850B | 850 mm (33,46") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300850B-SS | 850 mm (33,46") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300850C | 850 mm (33,46") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300850C-SS | 850 mm (33,46") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300935A | 935 mm (36,81") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300935A-SS | 935 mm (36,81") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300935B | 935 mm (36,81") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300935B-SS | 935 mm (36,81") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300935C | 935 mm (36,81") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261300935C-SS | 935 mm (36,81") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301020A | 1020 mm (40,16") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301020A-SS | 1020 mm (40,16") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301020B | 1020 mm (40,16") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301020B-SS | 1020 mm (40,16") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301020C | 1020 mm (40,16") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301020C-SS | 1020 mm (40,16") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301105A | 1105 mm (43,50") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301105A-SS | 1105 mm (43,50") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301105B | 1105 mm (43,50") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301105B-SS | 1105 mm (43,50") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301105C | 1105 mm (43,50") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301105C-SS | 1105 mm (43,50") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301190A | 1190 mm (46,85") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301190A-SS | 1190 mm (46,85") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301190B | 1190 mm (46,85") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301190B-SS | 1190 mm (46,85") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301190C | 1190 mm (46,85") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301190C-SS | 1190 mm (46,85") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301275A | 1275 mm (50,20") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301275A-SS | 1275 mm (50,20") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301275B | 1275 mm (50,20") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301275B-SS | 1275 mm (50,20") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301275C | 1275 mm (50,20") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301275C-SS | 1275 mm (50,20") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301360A | 1360 mm (53,54") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301360A-SS | 1360 mm (53,54") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301360B | 1360 mm (53,54") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301360B-SS | 1360 mm (53,54") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301360C | 1360 mm (53,54") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301360C-SS | 1360 mm (53,54") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301445A | 1445 mm (56,89") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301445A-SS | 1445 mm (56,89") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301445B | 1445 mm (56,89") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301445B-SS | 1445 mm (56,89") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301445C | 1445 mm (56,89") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301445C-SS | 1445 mm (56,89") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301530A | 1530 mm (60,24") | PFX - Extra Performance PBT (30) | POM Grey | A - No positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301530A-SS | 1530 mm (60,24") | PFX - Extra Performance PBT (30) | Stainless steel | A - No positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301530B | 1530 mm (60,24") | PFX - Extra Performance PBT (30) | POM Grey | B - 1 Positioner | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301530B-SS | 1530 mm (60,24") | PFX - Extra Performance PBT (30) | Stainless steel | B - 1 Positioner | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301530C | 1530 mm (60,24") | PFX - Extra Performance PBT (30) | POM Grey | C - 2 Positioners | P5261 | 25 mm | 20500 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
| P5261301530C-SS | 1530 mm (60,24") | PFX - Extra Performance PBT (30) | Stainless steel | C - 2 Positioners | P5261 | 25 mm | 22550 N/m | 8.7 kg/m^2 | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Reinforced Positioner |
|
Enquiry Now
To allow us to respond to your enquiry promptly, please provide all required information.
