522 Heavy Duty Flat Top One track Belt
Modular Belts
Description
Description
The new Movex ® 522 HD Flat Top one-track & modular belt is the perfect solution for any type of packaging machinery, from food to beverage industries as well as all the other consumer goods.
The wide range of One-Track belts (6 different widths) is ideal also for folding and gluing machinery, thanks to the high-speed capacity, it generates low noise and vibration, it results quick in maintenance and is a perfect combination of reduced transfers and high working loads. Available versions with positioners assure a correct guidance, minimize side-movements and improve the machine performance.
Available materials are Low Friction Acetal, MX Performance PBT and PFX Extra Performance PBT, able to minimize coefficient of friction and wear over carried products.
Basic features
| Series: | 522 |
|---|---|
| Pitch: | 12.7 mm |
| Thickness: | 8.7 mm |
| Increments: | 50 mm |
| Surface Type: | FT - Flat Top |
| Functionality: | Straight |
| Unit of measure: | Meter |
522 Heavy Duty Flat Top One track Belt
| Width | Material | Version | Part | Back flex radius | Mass | Pin material | Fixation | Box | Max working load | Temperature range dry | Temperature range wet | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||

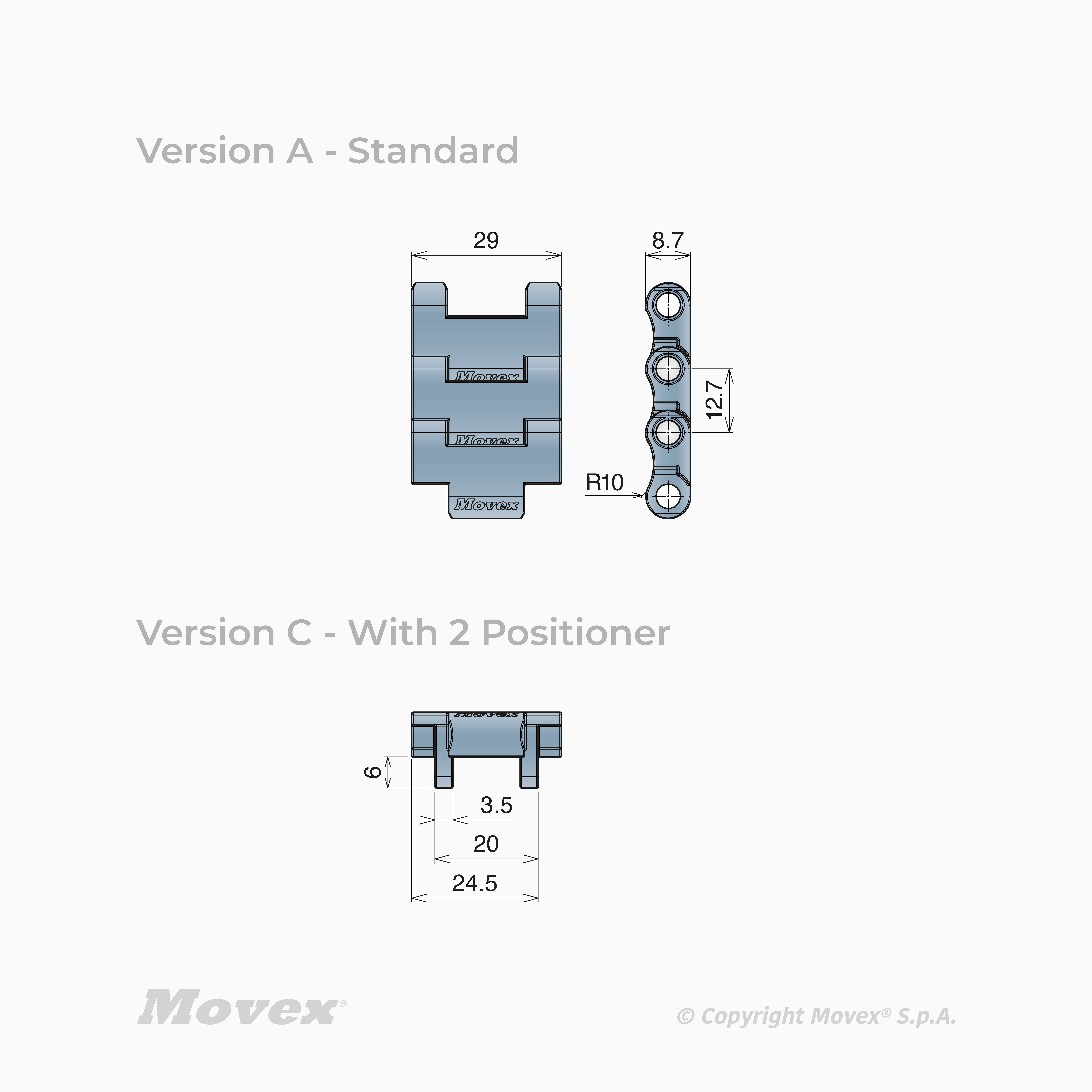

| P5271019115A | 1,15" (29,21 mm) | LFA - Low friction acetal (01) | A - No positioners | P5271 | 10 mm | 7.8 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | Specific Max Working Load = 1520 N |
|
| P5271019115C | 1,15" (29,21 mm) | LFA - Low friction acetal (01) | C - 2 Positioners | P5271 | 10 mm | 7.8 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|
| P5271019134A | 1,34" (34,04 mm) | LFA - Low friction acetal (01) | A - No positioners | P5271 | 10 mm | 7.8 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|
| P5271019134C | 1,34" (34,04 mm) | LFA - Low friction acetal (01) | C - 2 Positioners | P5271 | 10 mm | 7.8 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|

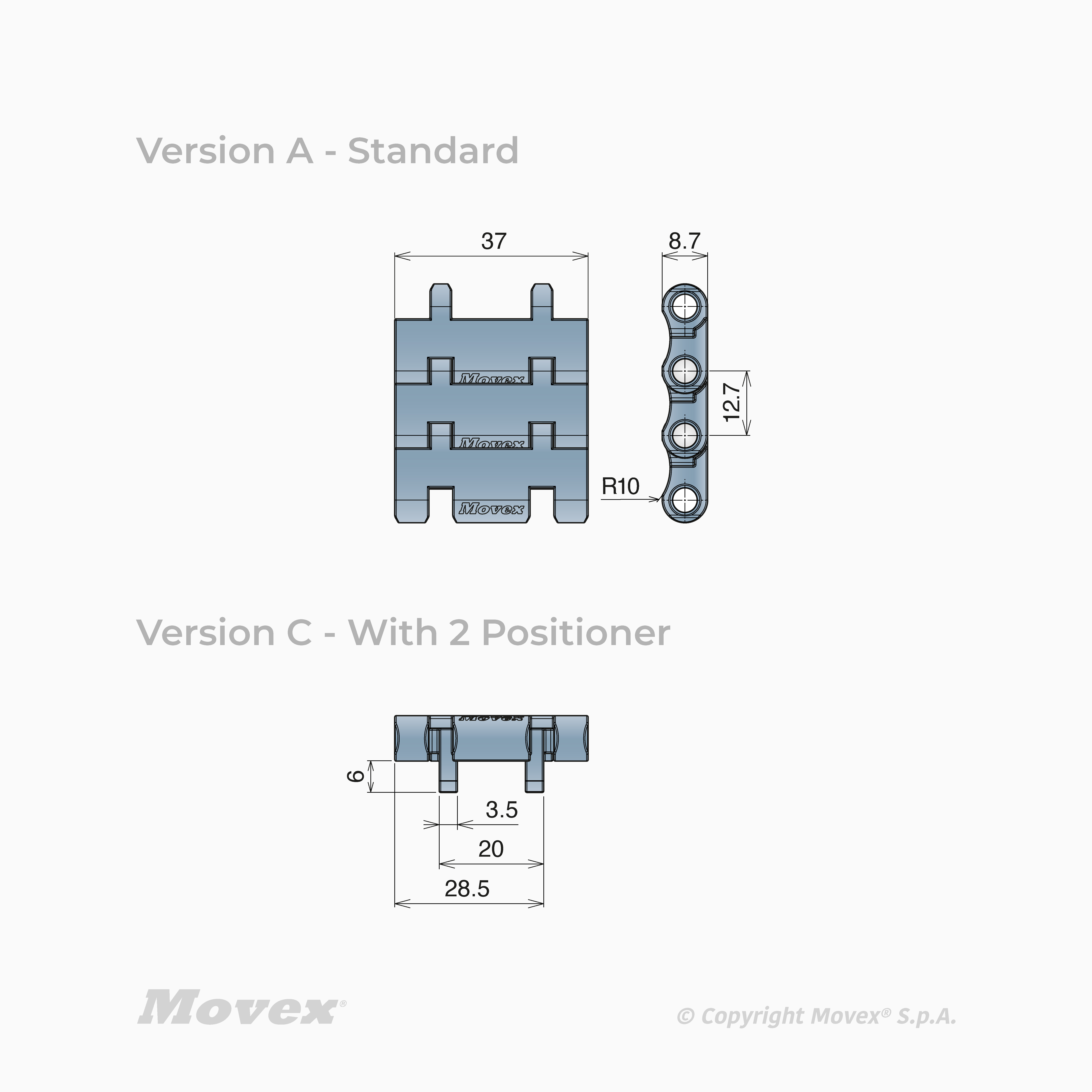

| P5271019145A | 1,45" (36,83 mm) | LFA - Low friction acetal (01) | A - No positioners | P5271 | 10 mm | 7.8 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|
| P5271019145C | 1,45" (36,83 mm) | LFA - Low friction acetal (01) | C - 2 Positioners | P5271 | 10 mm | 7.8 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|

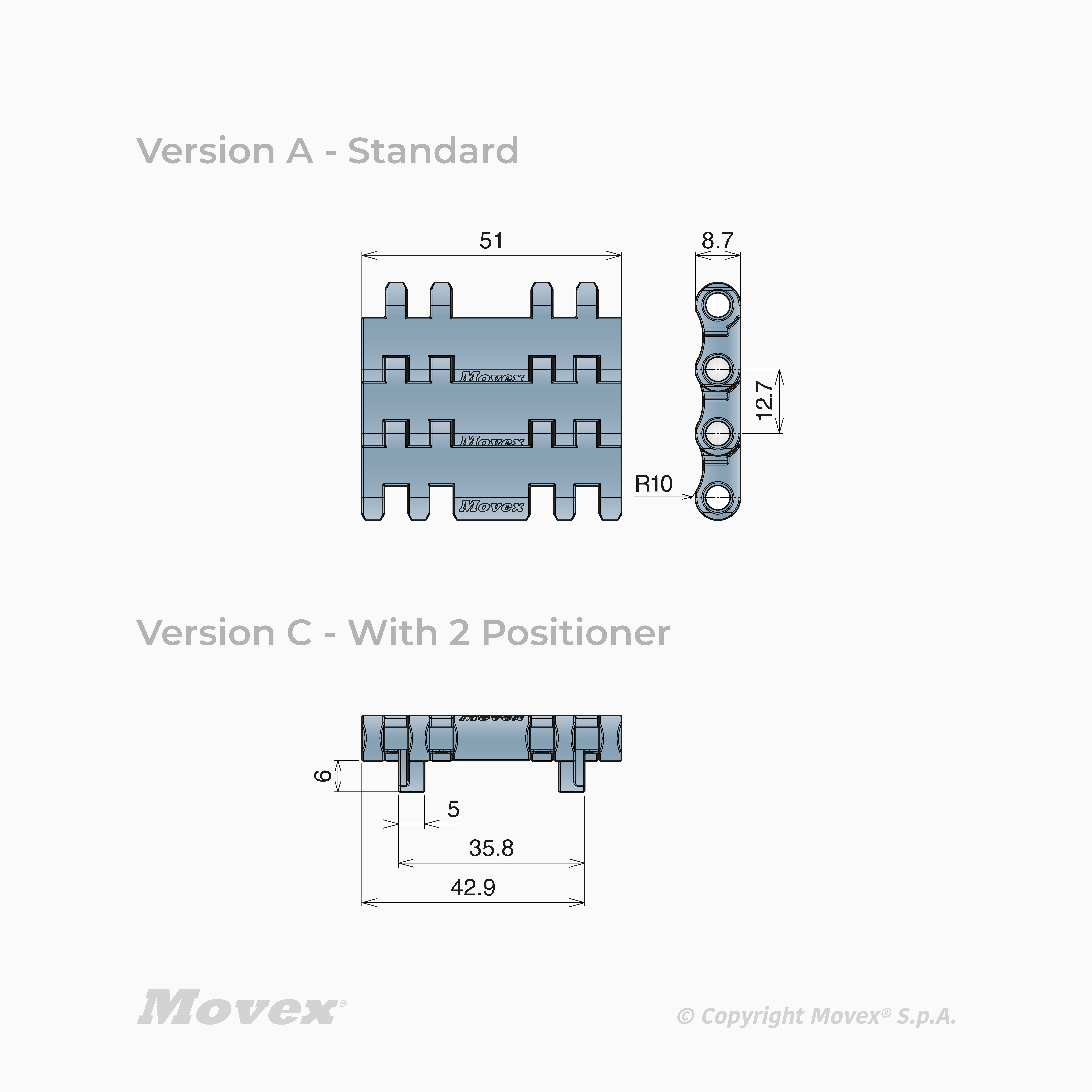

| P5271019200A | 2" (50,8 mm) | LFA - Low friction acetal (01) | A - No positioners | P5271 | 10 mm | 7.8 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|
| P5271019200C | 2" (50,8 mm) | LFA - Low friction acetal (01) | C - 2 Positioners | P5271 | 10 mm | 7.8 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|

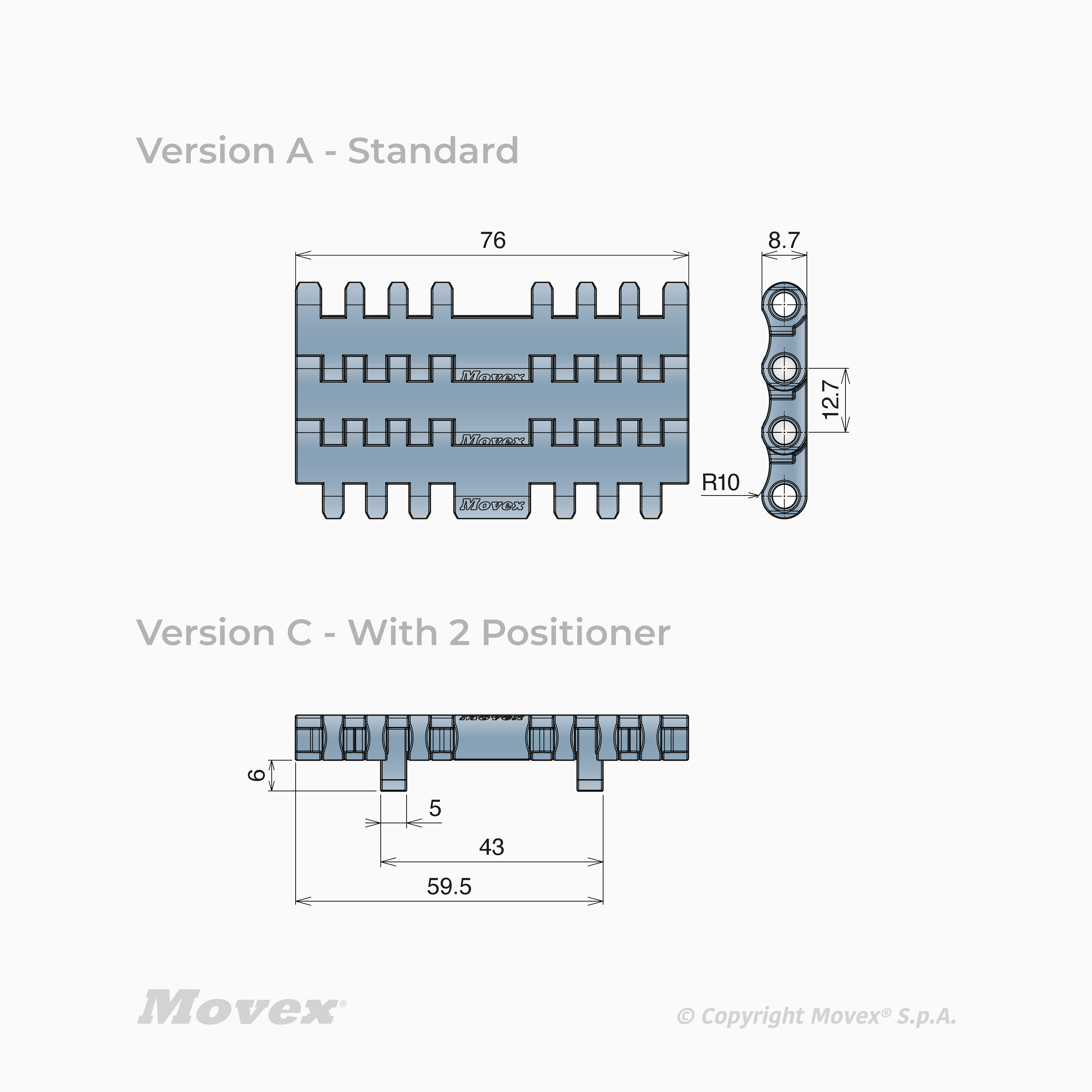

| P5271019300A | 3" (76,2 mm) | LFA - Low friction acetal (01) | A - No positioners | P5271 | 10 mm | 7.8 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|
| P5271019300C | 3" (76,2 mm) | LFA - Low friction acetal (01) | C - 2 Positioners | P5271 | 10 mm | 7.8 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|
| P5271039115A | 1,15" (29,21 mm) | MX - Performance PBT (03) | A - No positioners | P5271 | 10 mm | 7.5 kg/m^2 | POM Black | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | - |
|
| P5271039115C | 1,15" (29,21 mm) | MX - Performance PBT (03) | C - 2 Positioners | P5271 | 10 mm | 7.5 kg/m^2 | POM Black | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max Working Load = 2000 N |
|
| P5271039134A | 1,34" (34,04 mm) | MX - Performance PBT (03) | A - No positioners | P5271 | 10 mm | 7.5 kg/m^2 | POM Black | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | - |
|
| P5271039134C | 1,34" (34,04 mm) | MX - Performance PBT (03) | C - 2 Positioners | P5271 | 10 mm | 7.5 kg/m^2 | POM Black | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max Working Load = 680 N |
|
| P5271039145A | 1,45" (36,83 mm) | MX - Performance PBT (03) | A - No positioners | P5271 | 10 mm | 7.5 kg/m^2 | POM Black | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max Working Load = 945 N |
|
| P5271039145C | 1,45" (36,83 mm) | MX - Performance PBT (03) | C - 2 Positioners | P5271 | 10 mm | 7.5 kg/m^2 | POM Black | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max Working Load = 740 N |
|
| P5271039200A | 2" (50,8 mm) | MX - Performance PBT (03) | A - No positioners | P5271 | 10 mm | 7.5 kg/m^2 | POM Black | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max Working Load = 1300 N |
|
| P5271039200C | 2" (50,8 mm) | MX - Performance PBT (03) | C - 2 Positioners | P5271 | 10 mm | 7.5 kg/m^2 | POM Black | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max Working Load = 1020 N |
|
| P5271039300A | 3" (76,2 mm) | MX - Performance PBT (03) | A - No positioners | P5271 | 10 mm | 7.5 kg/m^2 | POM Black | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max Working Load = 945 N |
|
| P5271039300C | 3" (76,2 mm) | MX - Performance PBT (03) | C - 2 Positioners | P5271 | 10 mm | 7.5 kg/m^2 | POM Black | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max Working Load = 1020 N |
|
| P5271309115A | 1,15" (29,21 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5271 | 10 mm | 7.5 kg/m^2 | POM Black | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | - |
|
| P5271309115C | 1,15" (29,21 mm) | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5271 | 10 mm | 7.5 kg/m^2 | POM Black | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max Working Load = 2000 N |
|
| P5271309134A | 1,34" (34,04 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5271 | 10 mm | 7.5 kg/m^2 | POM Black | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max Working Load = 870 N |
|
| P5271309134C | 1,34" (34,04 mm) | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5271 | 10 mm | 7.5 kg/m^2 | POM Black | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max Working Load = 740 N |
|
| P5271309145A | 1,45" (36,83 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5271 | 10 mm | 7.5 kg/m^2 | POM Black | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max Working Load = 1300 N |
|
| P5271309145C | 1,45" (36,83 mm) | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5271 | 10 mm | 7.5 kg/m^2 | POM Black | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max Working Load = 1020 N |
|
| P5271309200A | 2" (50,8 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5271 | 10 mm | 7.5 kg/m^2 | POM Black | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max Working Load = 600 N |
|
| P5271309200C | 2" (50,8 mm) | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5271 | 10 mm | 7.5 kg/m^2 | POM Black | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max Working Load = 1020 N |
|
| P5271309300A | 3" (76,2 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5271 | 10 mm | 7.5 kg/m^2 | POM Black | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max Working Load = 2000 N |
|
| P5271309300C | 3" (76,2 mm) | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5271 | 10 mm | 7.5 kg/m^2 | POM Black | Patented PinSphere | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max Working Load = 1020 N |
|
