522 Heavy Duty Flat Top
Modular Belts
Description
Description
The new Movex ® 522 HD Flat Top one-track & modular belt is the perfect solution for any type of packaging machinery, from food to beverage industries as well as all the other consumer goods.
The wide range of One-Track belts (6 different widths) is ideal also for folding and gluing machinery, thanks to the high-speed capacity, it generates low noise and vibration, it results quick in maintenance and is a perfect combination of reduced transfers and high working loads. Available versions with positioners assure a correct guidance, minimize side-movements and improve the machine performance.
Available materials are Low Friction Acetal, MX Performance PBT and PFX Extra Performance PBT, able to minimize coefficient of friction and wear over carried products.
Basic features
| Series: | 522 |
|---|---|
| Pitch: | 12.7 mm |
| Thickness: | 8.7 mm |
| Increments: | 50 mm |
| Surface Type: | FT - Flat Top |
| Functionality: | Straight |
| Unit of measure: | Meter |
522 Heavy Duty Flat Top
| Width | Material | Version | Part | Back flex radius | Max working load | Mass | Pin material | Fixation | Box | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| P5271010100A | 100 mm (3,94") | LFA - Low friction acetal (01) | A - No positioners | P5271 | 10 mm | 25500 N/m | 7.8 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|

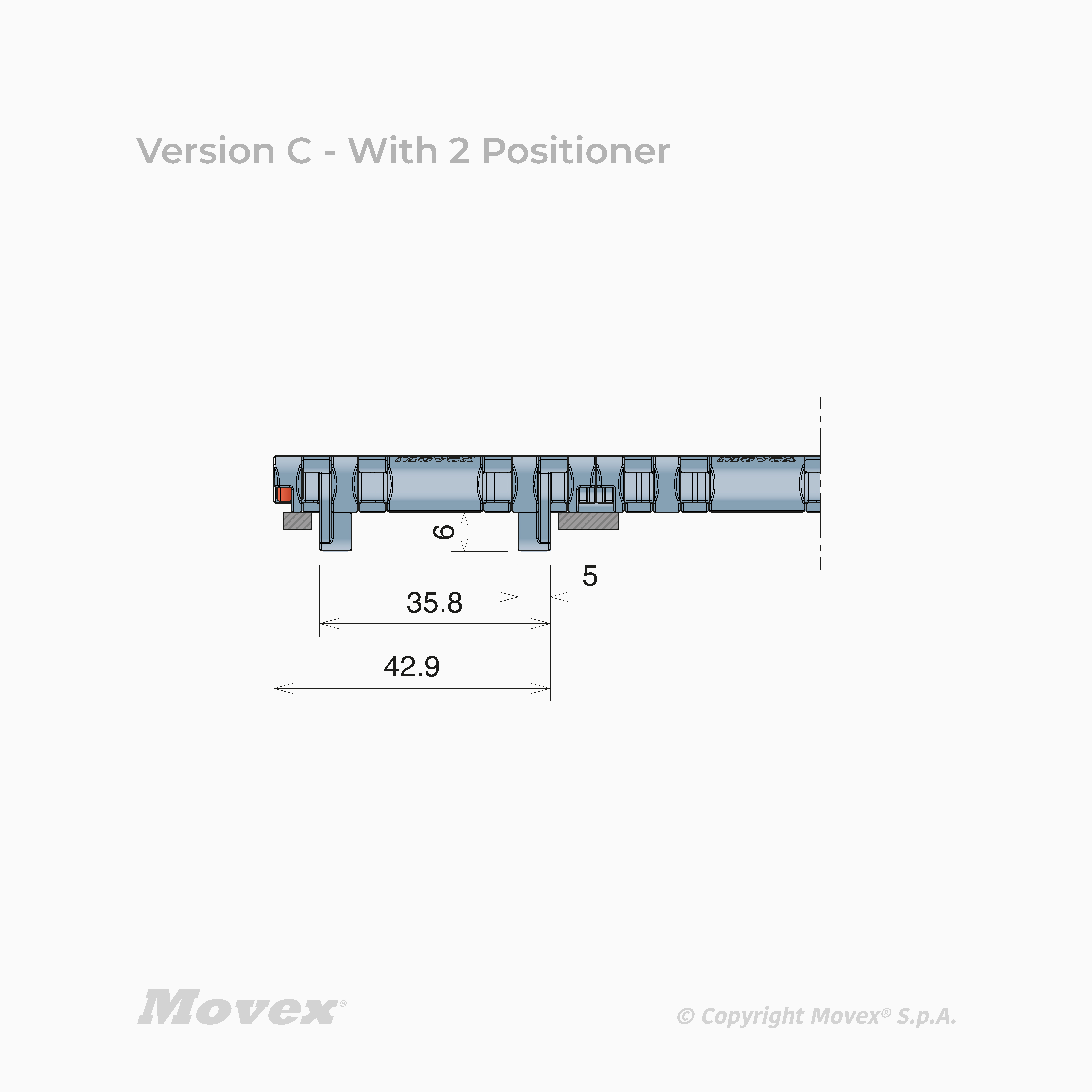

| P5271010100C | 100 mm (3,94") | LFA - Low friction acetal (01) | C - 2 Positioners | P5271 | 10 mm | 25500 N/m | 7.8 kg/m^2 | PBT white | Patented PinSphere | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5271010150A | 150 mm (5,90") | LFA - Low friction acetal (01) | A - No positioners | P5271 | 10 mm | 25500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5271010150C | 150 mm (5,90") | LFA - Low friction acetal (01) | C - 2 Positioners | P5271 | 10 mm | 25500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5271010200A | 200 mm (7,87") | LFA - Low friction acetal (01) | A - No positioners | P5271 | 10 mm | 25500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5271010200C | 200 mm (7,87") | LFA - Low friction acetal (01) | C - 2 Positioners | P5271 | 10 mm | 25500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5271010250A | 250 mm (9,84") | LFA - Low friction acetal (01) | A - No positioners | P5271 | 10 mm | 25500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5271010250C | 250 mm (9,84") | LFA - Low friction acetal (01) | C - 2 Positioners | P5271 | 10 mm | 25500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5271010300A | 300 mm (11,81") | LFA - Low friction acetal (01) | A - No positioners | P5271 | 10 mm | 25500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5271010300C | 300 mm (11,81") | LFA - Low friction acetal (01) | C - 2 Positioners | P5271 | 10 mm | 25500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5271030100A | 100 mm (3,94") | MX - Performance PBT (03) | A - No positioners | P5271 | 10 mm | 20000 N/m | 7.5 kg/m^2 | POM grey | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5271030100C | 100 mm (3,94") | MX - Performance PBT (03) | C - 2 Positioners | P5271 | 10 mm | 20000 N/m | 7.5 kg/m^2 | POM grey | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5271030150A | 150 mm (5,90") | MX - Performance PBT (03) | A - No positioners | P5271 | 10 mm | 20000 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5271030150C | 150 mm (5,90") | MX - Performance PBT (03) | C - 2 Positioners | P5271 | 10 mm | 20000 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5271030200A | 200 mm (7,87") | MX - Performance PBT (03) | A - No positioners | P5271 | 10 mm | 20000 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5271030200C | 200 mm (7,87") | MX - Performance PBT (03) | C - 2 Positioners | P5271 | 10 mm | 20000 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5271030250A | 250 mm (9,84") | MX - Performance PBT (03) | A - No positioners | P5271 | 10 mm | 20000 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5271030250C | 250 mm (9,84") | MX - Performance PBT (03) | C - 2 Positioners | P5271 | 10 mm | 20000 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5271030300A | 300 mm (11,81") | MX - Performance PBT (03) | A - No positioners | P5271 | 10 mm | 20000 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5271030300C | 300 mm (11,81") | MX - Performance PBT (03) | C - 2 Positioners | P5271 | 10 mm | 20000 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5271300100A | 100 mm (3,94") | PFX - Extra Performance PBT (30) | A - No positioners | P5271 | 10 mm | 20000 N/m | 7.5 kg/m^2 | POM grey | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5271300100C | 100 mm (3,94") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5271 | 10 mm | 20000 N/m | 7.5 kg/m^2 | POM grey | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5271300150A | 150 mm (5,90") | PFX - Extra Performance PBT (30) | A - No positioners | P5271 | 10 mm | 20000 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5271300150C | 150 mm (5,90") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5271 | 10 mm | 20000 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5271300200A | 200 mm (7,87") | PFX - Extra Performance PBT (30) | A - No positioners | P5271 | 10 mm | 20000 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5271300200C | 200 mm (7,87") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5271 | 10 mm | 20000 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5271300250A | 250 mm (9,84") | PFX - Extra Performance PBT (30) | A - No positioners | P5271 | 10 mm | 20000 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5271300250C | 250 mm (9,84") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5271 | 10 mm | 20000 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5271300300A | 300 mm (11,81") | PFX - Extra Performance PBT (30) | A - No positioners | P5271 | 10 mm | 20000 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5271300300C | 300 mm (11,81") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5271 | 10 mm | 20000 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
