521 split molded sprocket

521 split molded sprocket

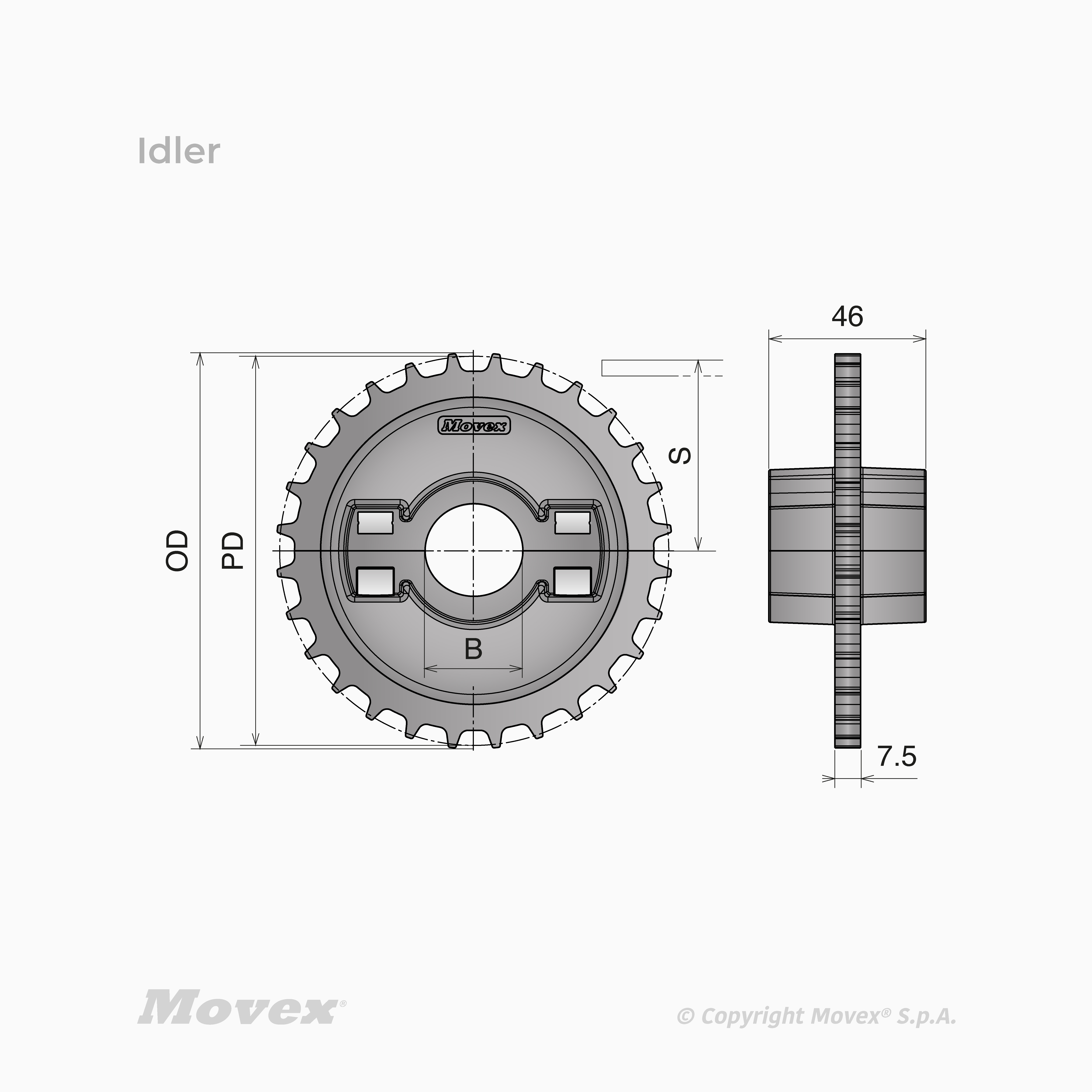

	Z-	Bore	Version	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code	All 24 28 36	All 25 mm 25 x 25 mm 30 mm 30 x 30 mm 35 mm 40 mm 40 x 40 mm	All Drive Idler	All Split	All Molded	All 113.4 mm 145.7 mm 97.3 mm	All 115.4 mm 147.7 mm 99.3 mm	All 44.3 mm 52.4 mm 68.5 mm	All PA - Polyamide reinforced	All -40÷80 °C	All -20÷120 °C	Actions
P163001	24	25 mm	Drive	Split	Molded	97.3 mm	99.3 mm	44.3 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163002	24	30 mm	Drive	Split	Molded	97.3 mm	99.3 mm	44.3 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163003	24	35 mm	Drive	Split	Molded	97.3 mm	99.3 mm	44.3 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163004	24	40 mm	Drive	Split	Molded	97.3 mm	99.3 mm	44.3 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163006	24	25 x 25 mm	Drive	Split	Molded	97.3 mm	99.3 mm	44.3 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163007	24	30 x 30 mm	Drive	Split	Molded	97.3 mm	99.3 mm	44.3 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163008	24	40 x 40 mm	Drive	Split	Molded	97.3 mm	99.3 mm	44.3 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163051	24	25 mm	Idler	Split	Molded	97.3 mm	99.3 mm	44.3 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163052	24	30 mm	Idler	Split	Molded	97.3 mm	99.3 mm	44.3 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163053	24	35 mm	Idler	Split	Molded	97.3 mm	99.3 mm	44.3 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163054	24	40 mm	Idler	Split	Molded	97.3 mm	99.3 mm	44.3 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163101	28	25 mm	Drive	Split	Molded	113.4 mm	115.4 mm	52.4 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163102	28	30 mm	Drive	Split	Molded	113.4 mm	115.4 mm	52.4 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163103	28	35 mm	Drive	Split	Molded	113.4 mm	115.4 mm	52.4 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163104	28	40 mm	Drive	Split	Molded	113.4 mm	115.4 mm	52.4 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163106	28	25 x 25 mm	Drive	Split	Molded	113.4 mm	115.4 mm	52.4 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163107	28	30 x 30 mm	Drive	Split	Molded	113.4 mm	115.4 mm	52.4 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163108	28	40 x 40 mm	Drive	Split	Molded	113.4 mm	115.4 mm	52.4 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163151	28	25 mm	Idler	Split	Molded	113.4 mm	115.4 mm	52.4 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163152	28	30 mm	Idler	Split	Molded	113.4 mm	115.4 mm	52.4 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163153	28	35 mm	Idler	Split	Molded	113.4 mm	115.4 mm	52.4 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163154	28	40 mm	Idler	Split	Molded	113.4 mm	115.4 mm	52.4 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163201	36	25 mm	Drive	Split	Molded	145.7 mm	147.7 mm	68.5 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163202	36	30 mm	Drive	Split	Molded	145.7 mm	147.7 mm	68.5 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163203	36	35 mm	Drive	Split	Molded	145.7 mm	147.7 mm	68.5 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163204	36	40 mm	Drive	Split	Molded	145.7 mm	147.7 mm	68.5 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163206	36	25 x 25 mm	Drive	Split	Molded	145.7 mm	147.7 mm	68.5 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163207	36	30 x 30 mm	Drive	Split	Molded	145.7 mm	147.7 mm	68.5 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163208	36	40 x 40 mm	Drive	Split	Molded	145.7 mm	147.7 mm	68.5 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163251	36	25 mm	Idler	Split	Molded	145.7 mm	147.7 mm	68.5 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163252	36	30 mm	Idler	Split	Molded	145.7 mm	147.7 mm	68.5 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163253	36	35 mm	Idler	Split	Molded	145.7 mm	147.7 mm	68.5 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C
P163254	36	40 mm	Idler	Split	Molded	145.7 mm	147.7 mm	68.5 mm	PA - Polyamide reinforced	-40÷80 °C	-20÷120 °C

•
