521 Flat Top One track Belt
Modular Belts
Description
Basic features
| Series: | 521 |
|---|---|
| Pitch: | 12.7 mm |
| Thickness: | 8.7 mm |
| Increments: | 7,5" - 190,5 mm |
| Surface Type: | FT - Flat Top |
| Functionality: | Straight |
| Unit of measure: | Meter |
521 Flat Top One track Belt
| Width | Material | Version | Part | Back flex radius | Mass | Pin material | Fixation | Box | Max working load | Temperature range dry | Temperature range wet | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||

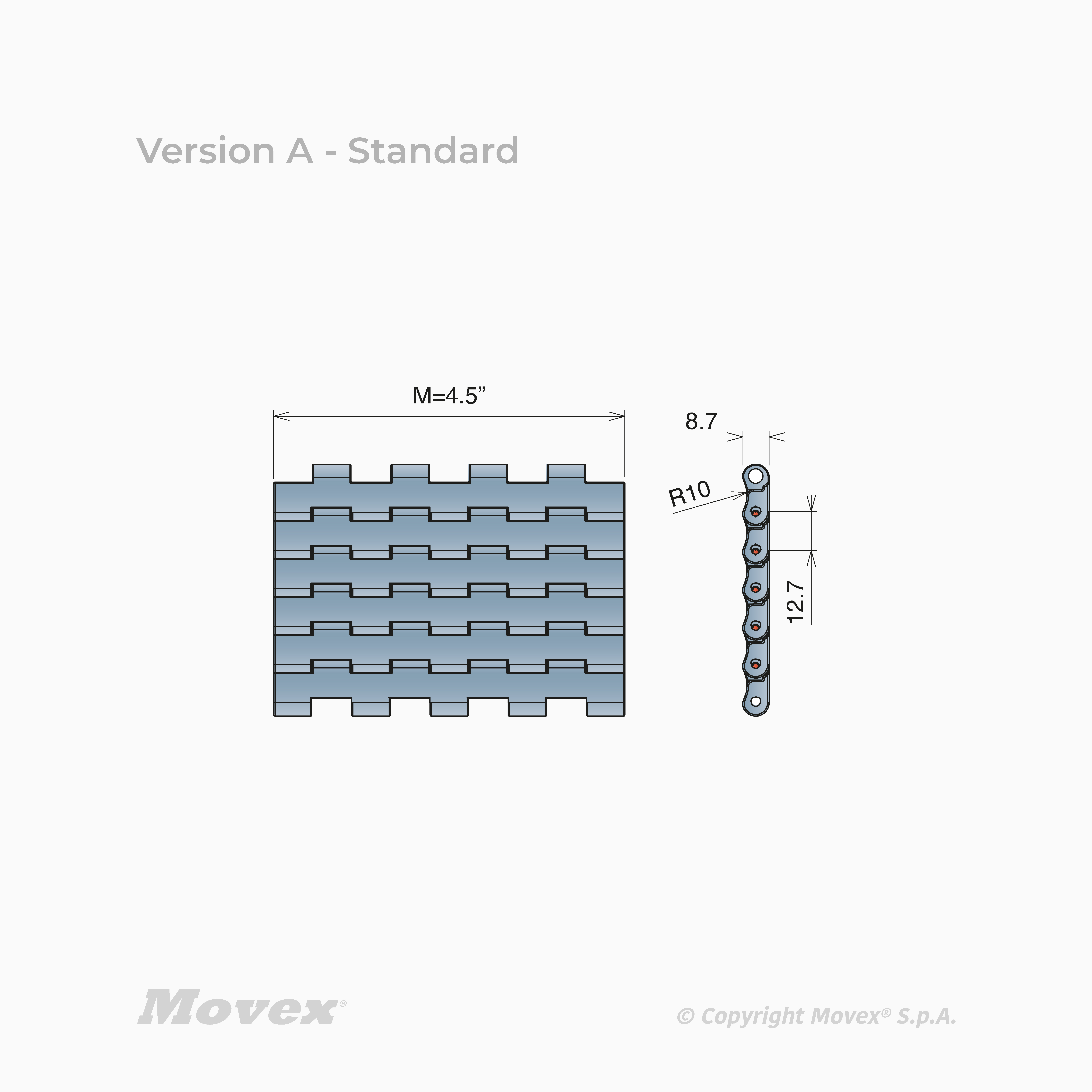

| P5311019450A | 4,5" (114,3 mm) | LFA - Low friction acetal (01) | A - No positioners | P5311 | 10 mm | 8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | Specific Max. Working Load = 2400 N |
|

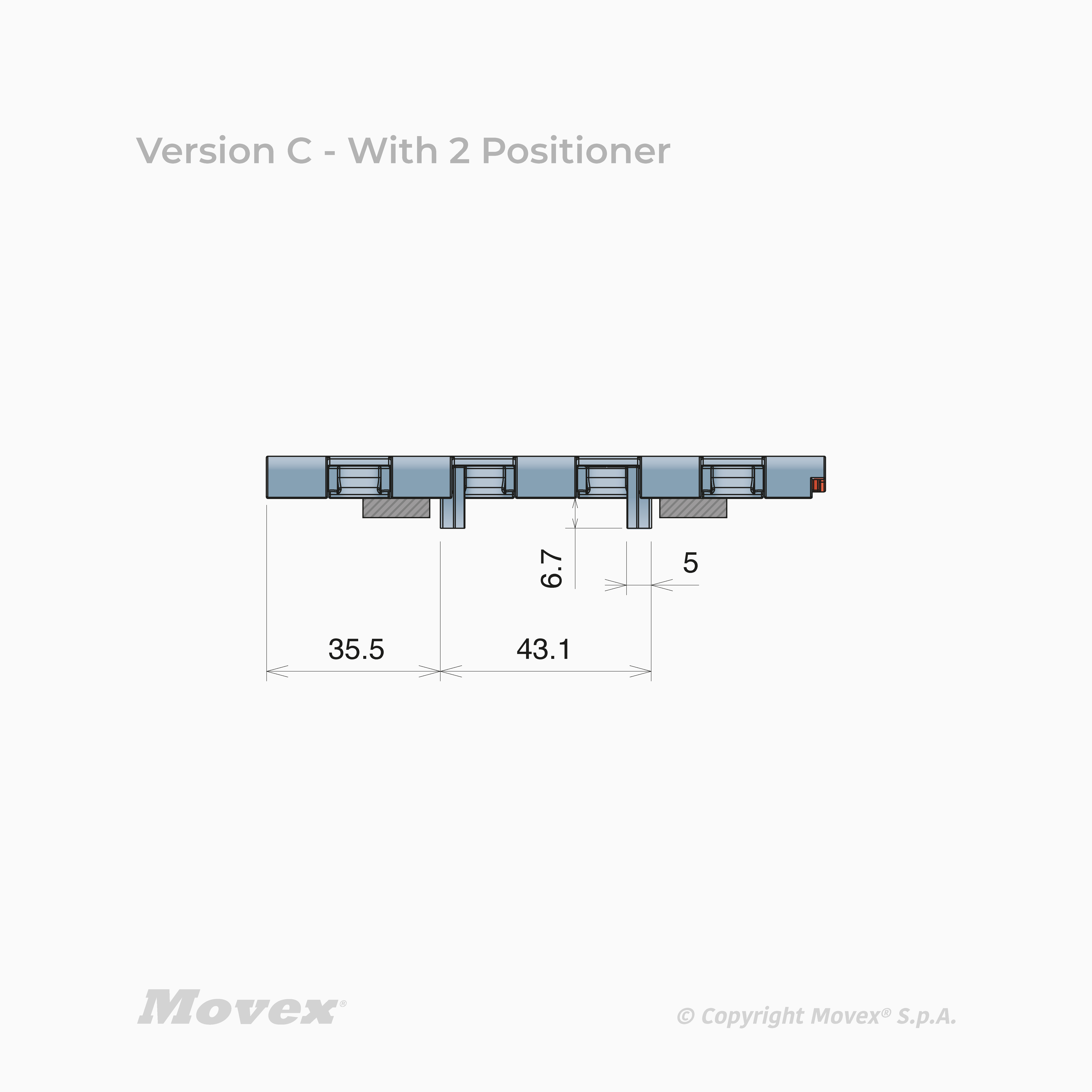

| P5311019450C | 4,5" (114,3 mm) | LFA - Low friction acetal (01) | C - 2 Positioners | P5311 | 10 mm | 8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|

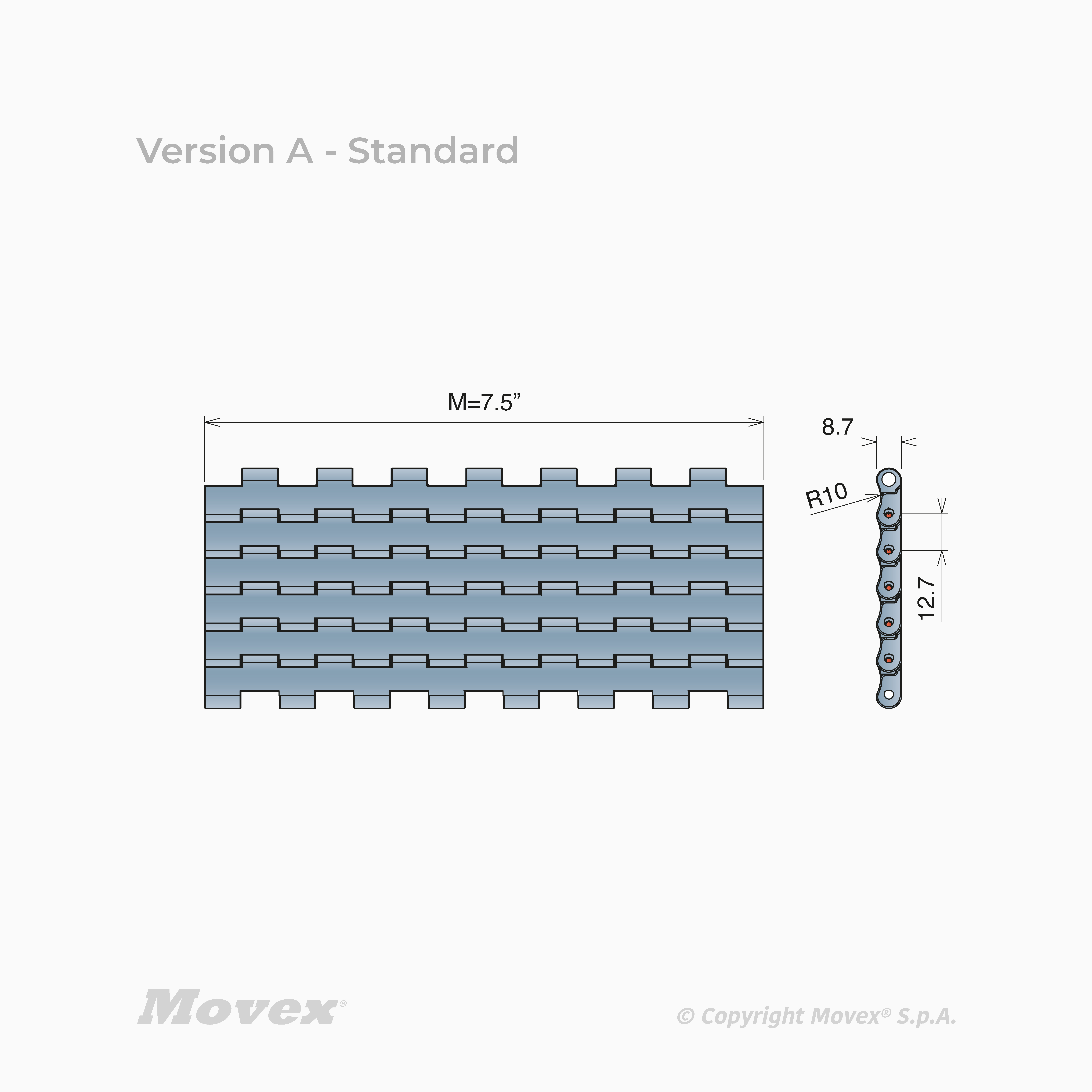

| P5311019750A | 7,5" (190,5 mm) | LFA - Low friction acetal (01) | A - No positioners | P5311 | 10 mm | 8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|

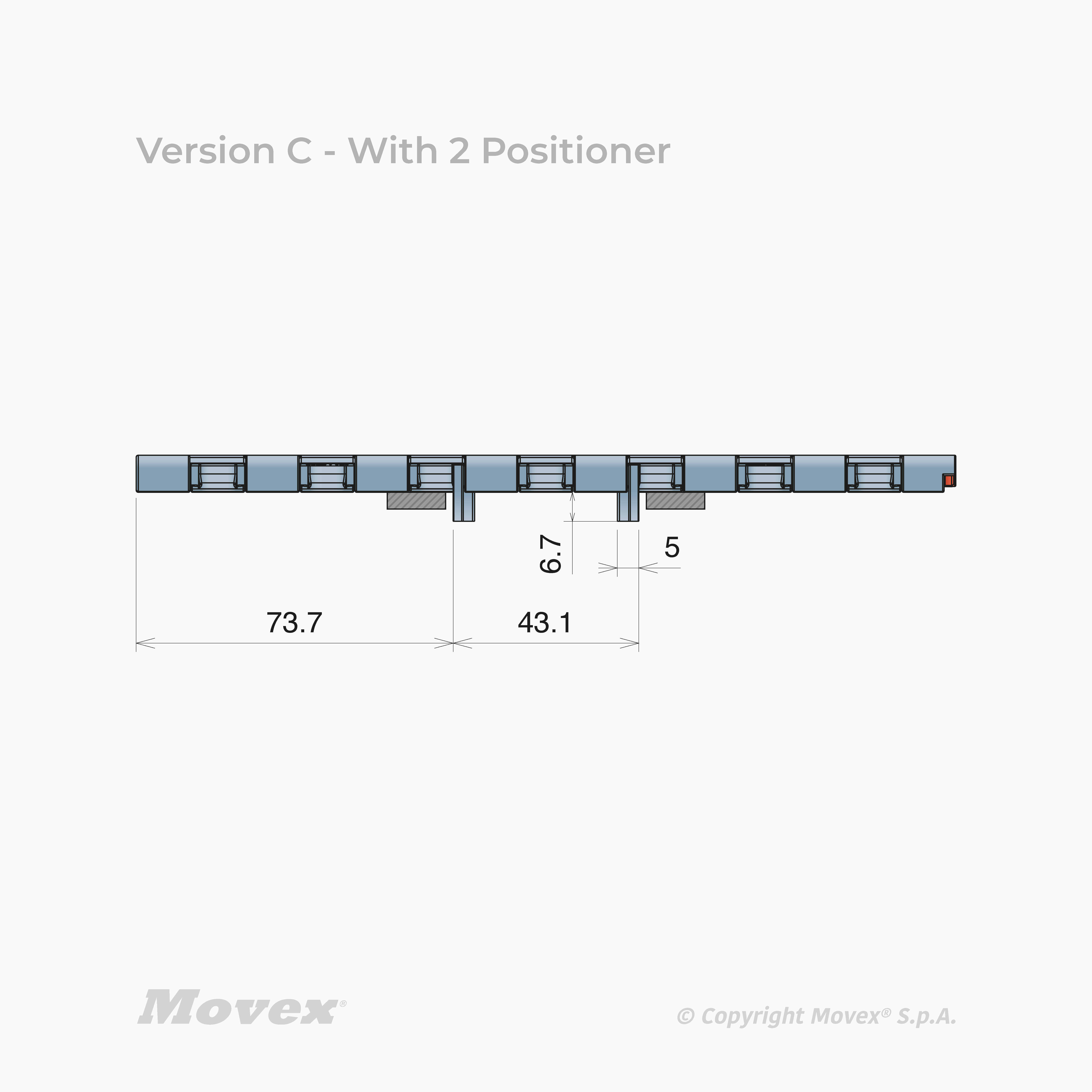

| P5311019750C | 7,5" (190,5 mm) | LFA - Low friction acetal (01) | C - 2 Positioners | P5311 | 10 mm | 8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|
| P5311039450A | 4,5" (114,3 mm) | MX - Performance PBT (03) | A - No positioners | P5311 | 10 mm | 7.8 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max. Working Load = 2400 N |
|
| P5311039450C | 4,5" (114,3 mm) | MX - Performance PBT (03) | C - 2 Positioners | P5311 | 10 mm | 7.8 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max. Working Load = 2400 N |
|
| P5311039750A | 7,5" (190,5 mm) | MX - Performance PBT (03) | A - No positioners | P5311 | 10 mm | 7.8 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max. Working Load = 2400 N |
|
| P5311039750C | 7,5" (190,5 mm) | MX - Performance PBT (03) | C - 2 Positioners | P5311 | 10 mm | 7.8 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max. Working Load = 2400 N |
|
| P5311169450A | 4,5" (114,3 mm) | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5311 | 10 mm | 8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|
| P5311169450C | 4,5" (114,3 mm) | DKM - Aramide Reinforced Acetal (16) | C - 2 Positioners | P5311 | 10 mm | 8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|
| P5311169750A | 7,5" (190,5 mm) | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5311 | 10 mm | 8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|
| P5311169750C | 7,5" (190,5 mm) | DKM - Aramide Reinforced Acetal (16) | C - 2 Positioners | P5311 | 10 mm | 8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|
| P5311179450A | 4,5" (114,3 mm) | MWX - Polyamide Composite (17) | A - No positioners | P5311 | 10 mm | 8.3 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷104 °C | Not suitable °C | - |
|
| P5311179450C | 4,5" (114,3 mm) | MWX - Polyamide Composite (17) | C - 2 Positioners | P5311 | 10 mm | 8.3 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷104 °C | Not suitable °C | - |
|
| P5311179750A | 7,5" (190,5 mm) | MWX - Polyamide Composite (17) | A - No positioners | P5311 | 10 mm | 8.3 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷104 °C | Not suitable °C | - |
|
| P5311179750C | 7,5" (190,5 mm) | MWX - Polyamide Composite (17) | C - 2 Positioners | P5311 | 10 mm | 8.3 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷104 °C | Not suitable °C | Specific Max. Working Load = 2400 N |
|
| P5311259450A | 4,5" (114,3 mm) | MPX - Lubricated Acetal (25) | A - No positioners | P5311 | 10 mm | 8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|
| P5311259450C | 4,5" (114,3 mm) | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5311 | 10 mm | 8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|
| P5311259750A | 7,5" (190,5 mm) | MPX - Lubricated Acetal (25) | A - No positioners | P5311 | 10 mm | 8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | - |
|
| P5311259750C | 7,5" (190,5 mm) | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5311 | 10 mm | 8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷80 °C | -40÷65 °C | Specific Max. Working Load = 2400 N |
|
| P5311309450A | 4,5" (114,3 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5311 | 10 mm | 7.8 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max. Working Load = 2400 N |
|
| P5311309450C | 4,5" (114,3 mm) | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5311 | 10 mm | 7.8 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max. Working Load = 2400 N |
|
| P5311309750A | 7,5" (190,5 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5311 | 10 mm | 7.8 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max. Working Load = 2400 N |
|
| P5311309750C | 7,5" (190,5 mm) | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5311 | 10 mm | 7.8 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | - N/m | -40÷120 °C | -40÷60 °C | Specific Max. Working Load = 2400 N |
|
