521 Flat Top
Modular Belts
Description
Basic features
| Series: | 521 |
|---|---|
| Pitch: | 12.7 mm |
| Thickness: | 8.7 mm |
| Increments: | 3" - 76,2 mm |
| Surface Type: | FT - Flat Top |
| Functionality: | Straight |
| Unit of measure: | Meter |

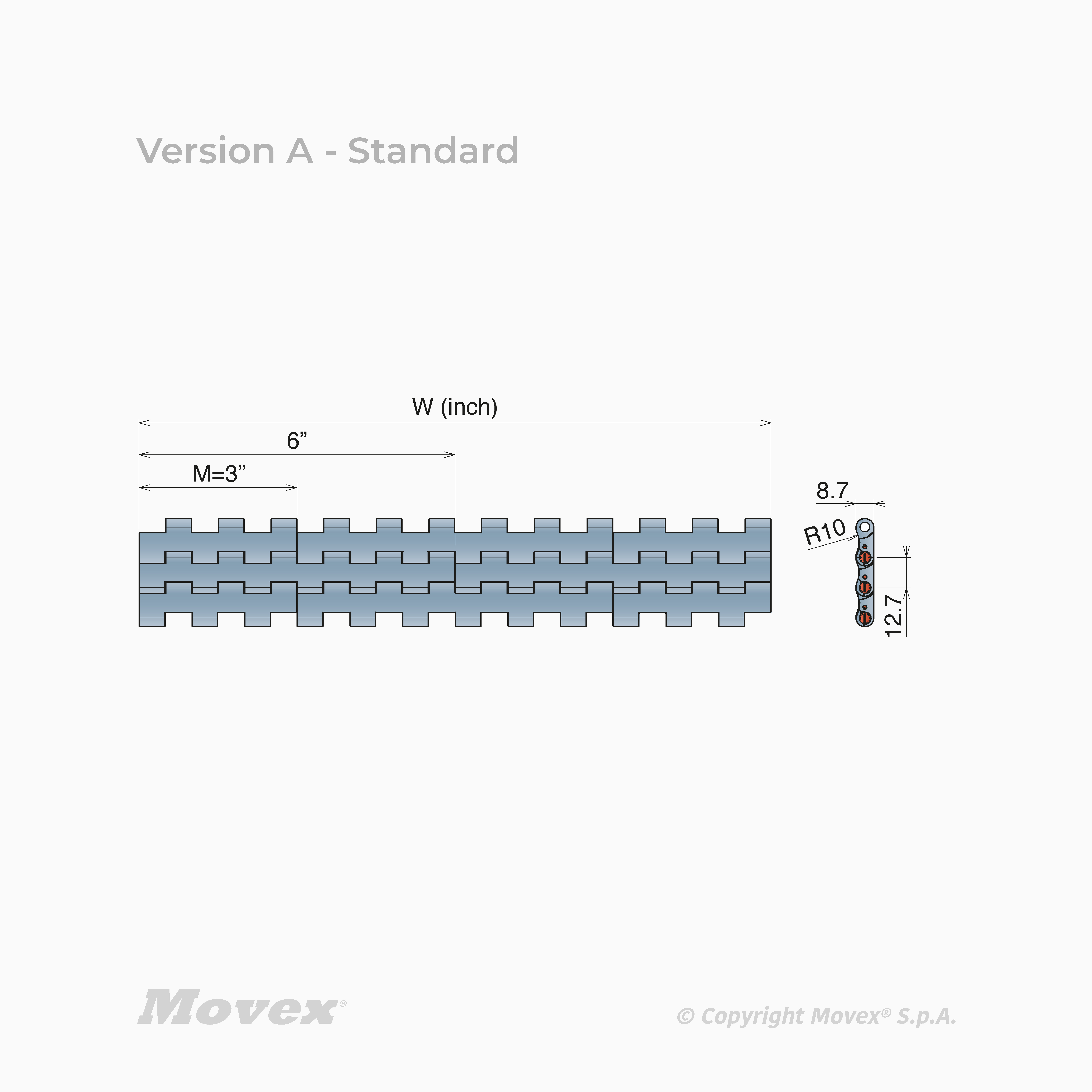

521 Flat Top
| Width | Material | Version | Part | Back flex radius | Max working load | Mass | Pin material | Fixation | Box | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| P5311010003A | 3" (76,2 mm) | LFA - Low friction acetal (01) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5311010006A | 6" (152,4 mm) | LFA - Low friction acetal (01) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5311010009A | 9" (228,6 mm) | LFA - Low friction acetal (01) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5311010012A | 12" (304,8 mm) | LFA - Low friction acetal (01) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5311010015A | 15" (381 mm) | LFA - Low friction acetal (01) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5311010018A | 18" (457,2 mm) | LFA - Low friction acetal (01) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5311010021A | 21" (533,4 mm) | LFA - Low friction acetal (01) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5311010024A | 24" (609,6 mm) | LFA - Low friction acetal (01) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5311010027A | 27" (685,8 mm) | LFA - Low friction acetal (01) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5311010030A | 30" (762 mm) | LFA - Low friction acetal (01) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5311010033A | 33" (838,2 mm) | LFA - Low friction acetal (01) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5311010036A | 36" (914,4 mm) | LFA - Low friction acetal (01) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5311010039A | 39" (990,6 mm) | LFA - Low friction acetal (01) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5311010042A | 42" (1066,8 mm) | LFA - Low friction acetal (01) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5311010045A | 45" (1143 mm) | LFA - Low friction acetal (01) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5311010048A | 48" (1219,2 mm) | LFA - Low friction acetal (01) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5311010051A | 51" (1295,4 mm) | LFA - Low friction acetal (01) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5311010054A | 54" (1371,6 mm) | LFA - Low friction acetal (01) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5311030003A | 3" (76,2 mm) | MX - Performance PBT (03) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5311030006A | 6" (152,4 mm) | MX - Performance PBT (03) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5311030009A | 9" (228,6 mm) | MX - Performance PBT (03) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5311030012A | 12" (304,8 mm) | MX - Performance PBT (03) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5311030015A | 15" (381 mm) | MX - Performance PBT (03) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5311030018A | 18" (457,2 mm) | MX - Performance PBT (03) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5311030021A | 21" (533,4 mm) | MX - Performance PBT (03) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5311030024A | 24" (609,6 mm) | MX - Performance PBT (03) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5311030027A | 27" (685,8 mm) | MX - Performance PBT (03) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5311030030A | 30" (762 mm) | MX - Performance PBT (03) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5311030033A | 33" (838,2 mm) | MX - Performance PBT (03) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5311030036A | 36" (914,4 mm) | MX - Performance PBT (03) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5311030039A | 39" (990,6 mm) | MX - Performance PBT (03) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5311030042A | 42" (1066,8 mm) | MX - Performance PBT (03) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5311030045A | 45" (1143 mm) | MX - Performance PBT (03) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5311030048A | 48" (1219,2 mm) | MX - Performance PBT (03) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5311030051A | 51" (1295,4 mm) | MX - Performance PBT (03) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5311030054A | 54" (1371,6 mm) | MX - Performance PBT (03) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5311160003A | 3" (76,2 mm) | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5311160006A | 6" (152,4 mm) | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5311160009A | 9" (228,6 mm) | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5311160012A | 12" (304,8 mm) | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5311160015A | 15" (381 mm) | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5311160018A | 18" (457,2 mm) | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5311160021A | 21" (533,4 mm) | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5311160024A | 24" (609,6 mm) | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5311160027A | 27" (685,8 mm) | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5311160030A | 30" (762 mm) | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5311160033A | 33" (838,2 mm) | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5311160036A | 36" (914,4 mm) | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C |
|
| P5311160039A | 39" (990,6 mm) | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5311160042A | 42" (1066,8 mm) | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5311160045A | 45" (1143 mm) | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5311160048A | 48" (1219,2 mm) | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5311160051A | 51" (1295,4 mm) | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5311160054A | 54" (1371,6 mm) | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5311170003A | 3" (76,2 mm) | MWX - Polyamide Composite (17) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.3 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C |
|
| P5311170006A | 6" (152,4 mm) | MWX - Polyamide Composite (17) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.3 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C |
|
| P5311170009A | 9" (228,6 mm) | MWX - Polyamide Composite (17) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.3 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C |
|
| P5311170012A | 12" (304,8 mm) | MWX - Polyamide Composite (17) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.3 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5311170015A | 15" (381 mm) | MWX - Polyamide Composite (17) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.3 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5311170018A | 18" (457,2 mm) | MWX - Polyamide Composite (17) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.3 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5311170021A | 21" (533,4 mm) | MWX - Polyamide Composite (17) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.3 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5311170024A | 24" (609,6 mm) | MWX - Polyamide Composite (17) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.3 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5311170027A | 27" (685,8 mm) | MWX - Polyamide Composite (17) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.3 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5311170030A | 30" (762 mm) | MWX - Polyamide Composite (17) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.3 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5311170033A | 33" (838,2 mm) | MWX - Polyamide Composite (17) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.3 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5311170036A | 36" (914,4 mm) | MWX - Polyamide Composite (17) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.3 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5311170039A | 39" (990,6 mm) | MWX - Polyamide Composite (17) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.3 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5311170042A | 42" (1066,8 mm) | MWX - Polyamide Composite (17) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.3 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5311170045A | 45" (1143 mm) | MWX - Polyamide Composite (17) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.3 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5311170048A | 48" (1219,2 mm) | MWX - Polyamide Composite (17) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.3 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5311170051A | 51" (1295,4 mm) | MWX - Polyamide Composite (17) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.3 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5311170054A | 54" (1371,6 mm) | MWX - Polyamide Composite (17) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.3 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5311250003A | 3" (76,2 mm) | MPX - Lubricated Acetal (25) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.9 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C |
|
| P5311250006A | 6" (152,4 mm) | MPX - Lubricated Acetal (25) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.9 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C |
|
| P5311250009A | 9" (228,6 mm) | MPX - Lubricated Acetal (25) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.9 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C |
|
| P5311250012A | 12" (304,8 mm) | MPX - Lubricated Acetal (25) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.9 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5311250015A | 15" (381 mm) | MPX - Lubricated Acetal (25) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.9 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5311250018A | 18" (457,2 mm) | MPX - Lubricated Acetal (25) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.9 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5311250021A | 21" (533,4 mm) | MPX - Lubricated Acetal (25) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.9 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5311250024A | 24" (609,6 mm) | MPX - Lubricated Acetal (25) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.9 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5311250027A | 27" (685,8 mm) | MPX - Lubricated Acetal (25) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.9 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5311250030A | 30" (762 mm) | MPX - Lubricated Acetal (25) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.9 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5311250033A | 33" (838,2 mm) | MPX - Lubricated Acetal (25) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.9 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5311250036A | 36" (914,4 mm) | MPX - Lubricated Acetal (25) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.9 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C |
|
| P5311250039A | 39" (990,6 mm) | MPX - Lubricated Acetal (25) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5311250042A | 42" (1066,8 mm) | MPX - Lubricated Acetal (25) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5311250045A | 45" (1143 mm) | MPX - Lubricated Acetal (25) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5311250048A | 48" (1219,2 mm) | MPX - Lubricated Acetal (25) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5311250051A | 51" (1295,4 mm) | MPX - Lubricated Acetal (25) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5311250054A | 54" (1371,6 mm) | MPX - Lubricated Acetal (25) | A - No positioners | P5311 | 10 mm | 21500 N/m | 8.9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C |
|
| P5311300003A | 3" (76,2 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5311300006A | 6" (152,4 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5311300009A | 9" (228,6 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C |
|
| P5311300012A | 12" (304,8 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5311300015A | 15" (381 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5311300018A | 18" (457,2 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5311300021A | 21" (533,4 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5311300024A | 24" (609,6 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5311300027A | 27" (685,8 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5311300030A | 30" (762 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5311300033A | 33" (838,2 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5311300036A | 36" (914,4 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C |
|
| P5311300039A | 39" (990,6 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5311300042A | 42" (1066,8 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5311300045A | 45" (1143 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5311300048A | 48" (1219,2 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5311300051A | 51" (1295,4 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
| P5311300054A | 54" (1371,6 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P5311 | 10 mm | 17500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C |
|
