520 split machined sprocket

520 split machined sprocket

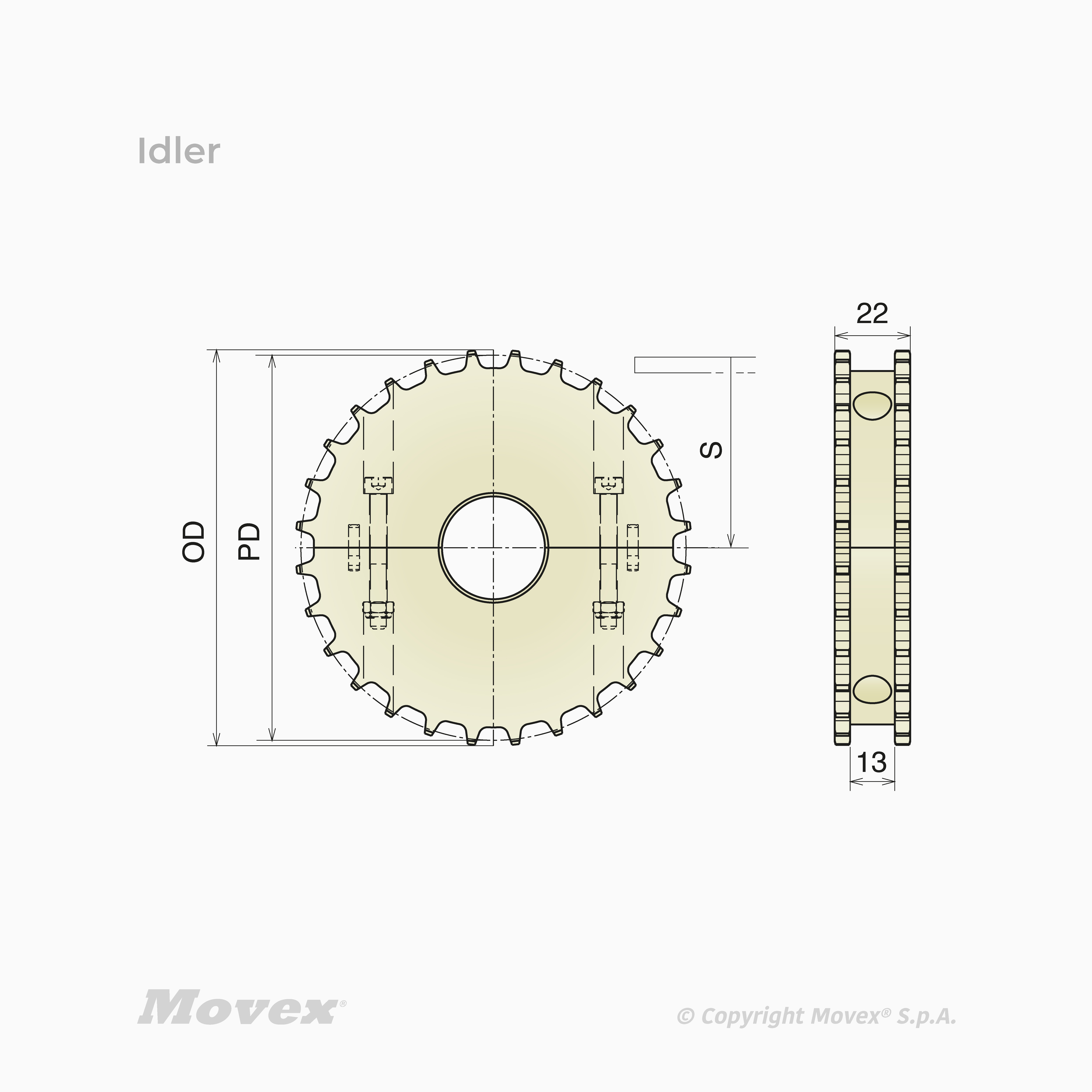

	Z-	Bore	Version	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code	All 28 36 38 40	All 18 mm 25 mm 25 x 25 mm 30 mm 30 x 30 mm 35 mm 40 mm 40 x 40 mm	All Drive Idler	All Split	All Machined	All 113.4 mm 145.7 mm 153.8 mm 161.9 mm	All 115.4 mm 147.7 mm 155.8 mm 163.8 mm	All 52.4 mm 68.5 mm 72.6 mm 76.6 mm	All PA - Polyamide composite	All -40÷80 °C	All -20÷120 °C	Actions
P150101	28	25 mm	Drive	Split	Machined	113.4 mm	115.4 mm	52.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150102	28	30 mm	Drive	Split	Machined	113.4 mm	115.4 mm	52.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150103	28	35 mm	Drive	Split	Machined	113.4 mm	115.4 mm	52.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150104	28	40 mm	Drive	Split	Machined	113.4 mm	115.4 mm	52.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150106	28	25 x 25 mm	Drive	Split	Machined	113.4 mm	115.4 mm	52.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150107	28	30 x 30 mm	Drive	Split	Machined	113.4 mm	115.4 mm	52.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150108	28	40 x 40 mm	Drive	Split	Machined	113.4 mm	115.4 mm	52.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150150	28	18 mm	Idler	Split	Machined	113.4 mm	115.4 mm	52.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150151	28	25 mm	Idler	Split	Machined	113.4 mm	115.4 mm	52.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150152	28	30 mm	Idler	Split	Machined	113.4 mm	115.4 mm	52.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150153	28	35 mm	Idler	Split	Machined	113.4 mm	115.4 mm	52.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150154	28	40 mm	Idler	Split	Machined	113.4 mm	115.4 mm	52.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150201	36	25 mm	Drive	Split	Machined	145.7 mm	147.7 mm	68.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150202	36	30 mm	Drive	Split	Machined	145.7 mm	147.7 mm	68.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150203	36	35 mm	Drive	Split	Machined	145.7 mm	147.7 mm	68.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150204	36	40 mm	Drive	Split	Machined	145.7 mm	147.7 mm	68.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150206	36	25 x 25 mm	Drive	Split	Machined	145.7 mm	147.7 mm	68.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150207	36	30 x 30 mm	Drive	Split	Machined	145.7 mm	147.7 mm	68.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150208	36	40 x 40 mm	Drive	Split	Machined	145.7 mm	147.7 mm	68.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150250	36	18 mm	Idler	Split	Machined	145.7 mm	147.7 mm	68.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150251	36	25 mm	Idler	Split	Machined	145.7 mm	147.7 mm	68.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150252	36	30 mm	Idler	Split	Machined	145.7 mm	147.7 mm	68.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150253	36	35 mm	Idler	Split	Machined	145.7 mm	147.7 mm	68.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150254	36	40 mm	Idler	Split	Machined	145.7 mm	147.7 mm	68.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150301	38	25 mm	Drive	Split	Machined	153.8 mm	155.8 mm	72.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150302	38	30 mm	Drive	Split	Machined	153.8 mm	155.8 mm	72.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150303	38	35 mm	Drive	Split	Machined	153.8 mm	155.8 mm	72.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150304	38	40 mm	Drive	Split	Machined	153.8 mm	155.8 mm	72.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150306	38	25 x 25 mm	Drive	Split	Machined	153.8 mm	155.8 mm	72.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150307	38	30 x 30 mm	Drive	Split	Machined	153.8 mm	155.8 mm	72.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150308	38	40 x 40 mm	Drive	Split	Machined	153.8 mm	155.8 mm	72.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150350	38	18 mm	Idler	Split	Machined	153.8 mm	155.8 mm	72.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150351	38	25 mm	Idler	Split	Machined	153.8 mm	155.8 mm	72.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150352	38	30 mm	Idler	Split	Machined	153.8 mm	155.8 mm	72.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150353	38	35 mm	Idler	Split	Machined	153.8 mm	155.8 mm	72.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150354	38	40 mm	Idler	Split	Machined	153.8 mm	155.8 mm	72.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150401	40	25 mm	Drive	Split	Machined	161.9 mm	163.8 mm	76.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150402	40	30 mm	Drive	Split	Machined	161.9 mm	163.8 mm	76.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150403	40	35 mm	Drive	Split	Machined	161.9 mm	163.8 mm	76.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150404	40	40 mm	Drive	Split	Machined	161.9 mm	163.8 mm	76.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150406	40	25 x 25 mm	Drive	Split	Machined	161.9 mm	163.8 mm	76.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150407	40	30 x 30 mm	Drive	Split	Machined	161.9 mm	163.8 mm	76.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150408	40	40 x 40 mm	Drive	Split	Machined	161.9 mm	163.8 mm	76.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150450	40	18 mm	Idler	Split	Machined	161.9 mm	163.8 mm	76.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150451	40	25 mm	Idler	Split	Machined	161.9 mm	163.8 mm	76.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150452	40	30 mm	Idler	Split	Machined	161.9 mm	163.8 mm	76.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150453	40	35 mm	Idler	Split	Machined	161.9 mm	163.8 mm	76.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P150454	40	40 mm	Idler	Split	Machined	161.9 mm	163.8 mm	76.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C

•
