520 PRO Low Back Pressure
Modular Belts
Description
Description
Movex 520 PRO LBP belt guarantees a 25% less energy consumed.
Lower chain weight and easy rotation of the PATENTED PFX rollers guarantee minimal backline pressure.
It also reduces gaps between the rollers for a more secure operation of the belt.

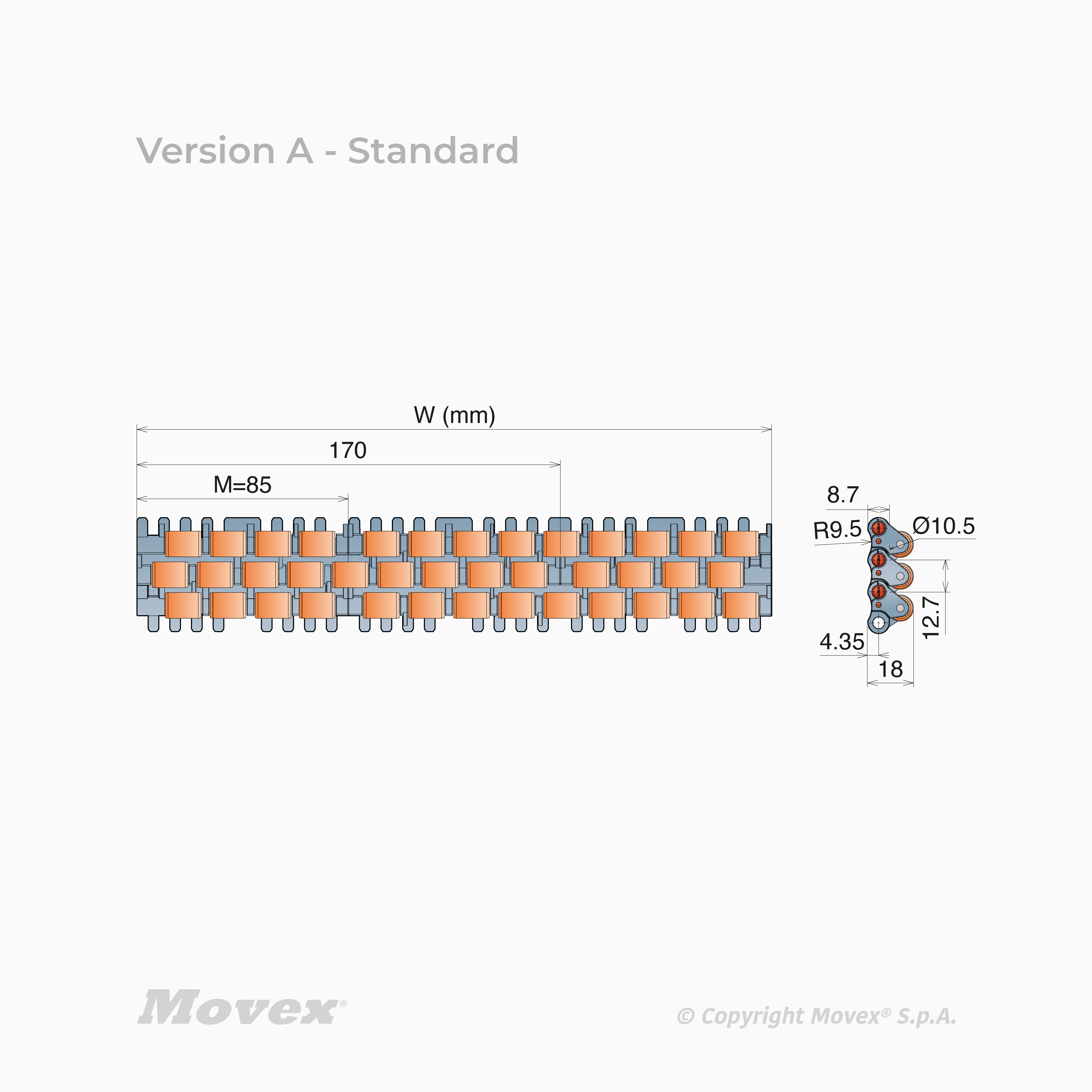

Basic features
| Series: | 520 |
|---|---|
| Pitch: | 12.7 mm |
| Thickness: | 8.7 mm |
| Increments: | 85 mm |
| Surface Type: | LBP - Low Back Pressure |
| Functionality: | Straight |
| Unit of measure: | Meter |
520 PRO Low Back Pressure
| Width | Material | Pin material | Version | Part | Back flex radius | Max working load | Fixation | Box | Mass | Temperature range dry | Temperature range wet | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||
| P5209010085A | 85 mm (3,35") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5209010085B | 85 mm (3,35") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209010085C | 85 mm (3,35") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209010170A | 170 mm (6,69") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | - |
|
| P5209010170B | 170 mm (6,69") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209010170C | 170 mm (6,69") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209010255A | 255 mm (10,04") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | - |
|
| P5209010255B | 255 mm (10,04") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209010255C | 255 mm (10,04") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209010340A | 340 mm (13,39") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | - |
|
| P5209010340B | 340 mm (13,39") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209010340C | 340 mm (13,39") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209010425A | 425 mm (16,73") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | - |
|
| P5209010425B | 425 mm (16,73") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209010425C | 425 mm (16,73") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209010510A | 510 mm (20,08") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | - |
|
| P5209010510B | 510 mm (20,08") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209010510C | 510 mm (20,08") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209010595A | 595 mm (23,43") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | - |
|
| P5209010595B | 595 mm (23,43") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209010595C | 595 mm (23,43") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209010680A | 680 mm (26,77") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | - |
|
| P5209010680B | 680 mm (26,77") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209010680C | 680 mm (26,77") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209010765A | 765 mm (30,12") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | - |
|
| P5209010765B | 765 mm (30,12") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209010765C | 765 mm (30,12") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209010850A | 850 mm (33,46") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | - |
|
| P5209010850B | 850 mm (33,46") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209010850C | 850 mm (33,46") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209010935A | 935 mm (36,81") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209010935B | 935 mm (36,81") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5209 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209010935C | 935 mm (36,81") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209011020A | 1020 mm (40,16") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209011020B | 1020 mm (40,16") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5209 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209011020C | 1020 mm (40,16") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209011105A | 1105 mm (43,50") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209011105B | 1105 mm (43,50") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5209 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209011105C | 1105 mm (43,50") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209011190A | 1190 mm (46,85") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209011190B | 1190 mm (46,85") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5209 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209011190C | 1190 mm (46,85") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209011275A | 1275 mm (50,20") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209011275B | 1275 mm (50,20") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5209 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209011275C | 1275 mm (50,20") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209011360A | 1360 mm (53,54") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209011360B | 1360 mm (53,54") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5209 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209011360C | 1360 mm (53,54") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209011445A | 1445 mm (56,89") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209011445B | 1445 mm (56,89") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5209 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209011445C | 1445 mm (56,89") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209011530A | 1530 mm (60,24") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209011530B | 1530 mm (60,24") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5209 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5209011530C | 1530 mm (60,24") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5209 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5210010085A | 85 mm (3,35") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5210010085B | 85 mm (3,35") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210010085C | 85 mm (3,35") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210010170A | 170 mm (6,69") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5210010170B | 170 mm (6,69") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210010170C | 170 mm (6,69") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210010255A | 255 mm (10,04") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5210010255B | 255 mm (10,04") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210010255C | 255 mm (10,04") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210010340A | 340 mm (13,39") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5210010340B | 340 mm (13,39") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210010340C | 340 mm (13,39") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210010425A | 425 mm (16,73") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5210010425B | 425 mm (16,73") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210010425C | 425 mm (16,73") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 3,33 ft - 1,016 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210010510A | 510 mm (20,08") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5210010510B | 510 mm (20,08") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210010510C | 510 mm (20,08") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210010595A | 595 mm (23,43") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5210010595B | 595 mm (23,43") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210010595C | 595 mm (23,43") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210010680A | 680 mm (26,77") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5210010680B | 680 mm (26,77") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210010680C | 680 mm (26,77") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210010765A | 765 mm (30,12") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5210010765B | 765 mm (30,12") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210010765C | 765 mm (30,12") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210010850A | 850 mm (33,46") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Stainless Steel Pins Patented PFX Rollers - minimized COF Weight Stainless Steel Pin= 19 kg/m 2 |
|
| P5210010850B | 850 mm (33,46") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210010850C | 850 mm (33,46") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | 2,5 ft - 0,762 m | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210010935A | 935 mm (36,81") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210010935B | 935 mm (36,81") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5210 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210010935C | 935 mm (36,81") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210011020A | 1020 mm (40,16") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210011020B | 1020 mm (40,16") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5210 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210011020C | 1020 mm (40,16") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210011105A | 1105 mm (43,50") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210011105B | 1105 mm (43,50") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5210 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210011105C | 1105 mm (43,50") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210011190A | 1190 mm (46,85") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210011190B | 1190 mm (46,85") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5210 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210011190C | 1190 mm (46,85") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210011275A | 1275 mm (50,20") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210011275B | 1275 mm (50,20") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5210 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210011275C | 1275 mm (50,20") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210011360A | 1360 mm (53,54") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210011360B | 1360 mm (53,54") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5210 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210011360C | 1360 mm (53,54") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210011445A | 1445 mm (56,89") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210011445B | 1445 mm (56,89") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5210 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210011445C | 1445 mm (56,89") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210011530A | 1530 mm (60,24") | LFA - Low friction acetal (01) | PBT white | A - No positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210011530B | 1530 mm (60,24") | LFA - Low friction acetal (01) | PBT white | B - 1 Positioner | P5210 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
| P5210011530C | 1530 mm (60,24") | LFA - Low friction acetal (01) | PBT white | C - 2 Positioners | P5210 | 40 mm | 25000 N/m | Snap-in Clip | - | - kg/m^2 | -40÷80 °C | -40÷65 °C | Plastic Pins Patented PFX Rollers - minimized COF Weight Plastic Pin= 15,3 kg/m 2 |
|
