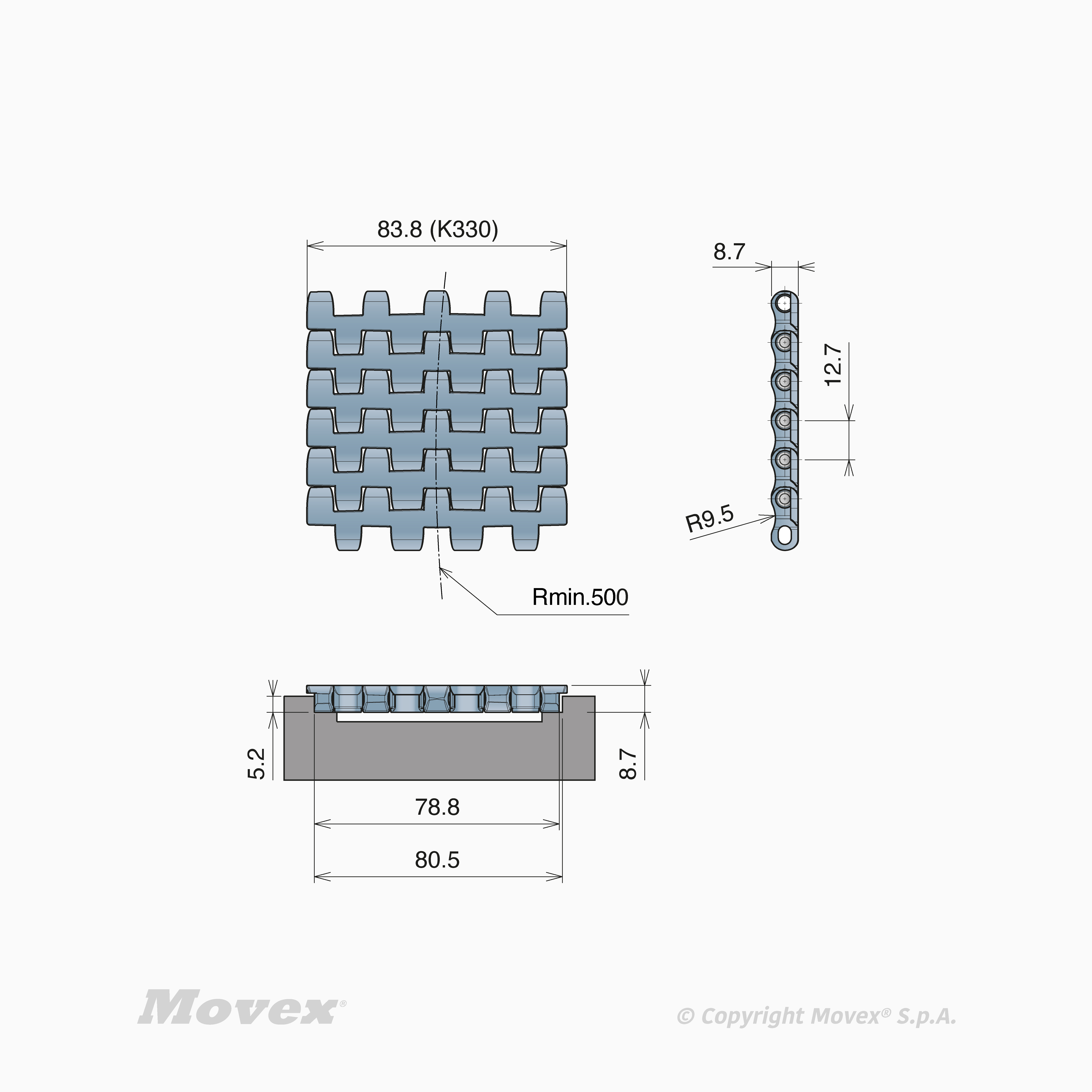

520 Magnetic
Modular Belts
Description
Basic features
| Series: | 520 |
|---|---|
| Pitch: | 12.7 mm |
| Thickness: | 8.7 mm |
| Increments: | 85 mm |
| Surface Type: | FT - Flat Top |
| Functionality: | Side-Flexing |
| Unit of measure: | Meter |
520 Magnetic
| Width | Material | Version | Part | Back flex radius | Pin material | Fixation | Box | Max working load | Mass | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| P1195019330 | 3,30" (83,82 mm) | LFA - Low friction acetal (01) | A - No positioners | P1195 | 15 mm | Ferritic Stainless Steel | Patented PinSphere | 10 ft - 3,048 m | - N/m | - kg/m^2 | -40÷80 °C | -40÷65 °C |
|
| P1195039330 | 3,30" (83,82 mm) | MX - Performance PBT (03) | A - No positioners | P1195 | 15 mm | Ferritic Stainless Steel | Patented PinSphere | 10 ft - 3,048 m | - N/m | - kg/m^2 | -40÷120 °C | -40÷60 °C |
|
| P1195309330 | 3,30" (83,82 mm) | PFX - Extra Performance PBT (30) | A - No positioners | P1195 | 15 mm | Ferritic Stainless Steel | Patented PinSphere | 10 ft - 3,048 m | - N/m | - kg/m^2 | -40÷120 °C | -40÷60 °C |
|
