520 Grip Top
Modular Belts
Description
Description
Modular belt with over-molded high-grip rubber, for inclines, declines or acceleration applications, guaranteeing high performances and superior durability.
Basic features
| Series: | 520 |
|---|---|
| Pitch: | 12.7 mm |
| Thickness: | 8.7 mm |
| Increments: | 85 mm |
| Surface Type: | GT - Grip Top |
| Functionality: | Straight |
| Unit of measure: | Meter |
520 Grip Top
| Width | Material | Version | Part | Back flex radius | Max working load | Mass | Pin material | Fixation | Box | Temperature range dry | Temperature range wet | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||

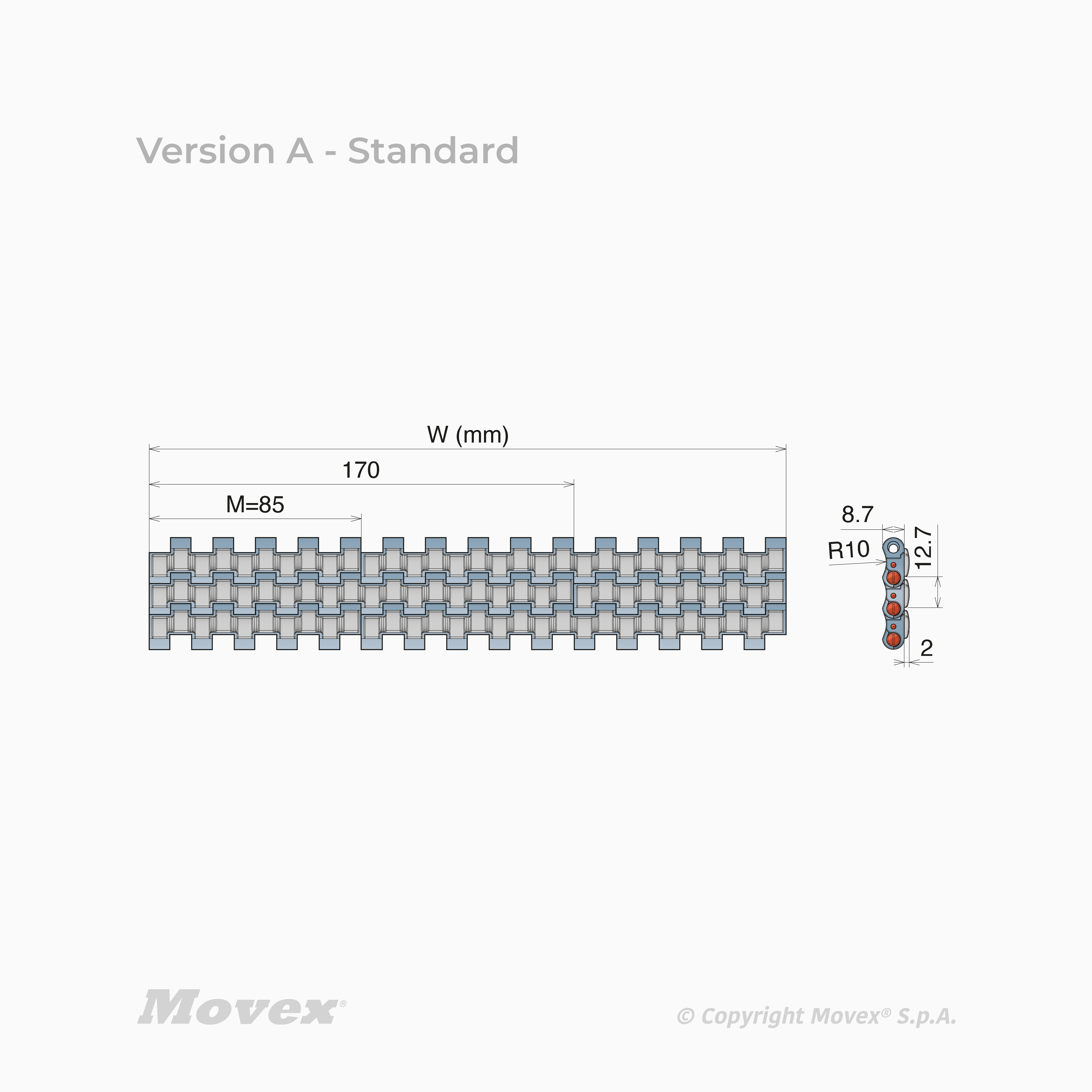

| P5203010085A | 85 mm (3,35") | LFA - Low friction acetal (01) | A - No positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Pigeon blue |
|

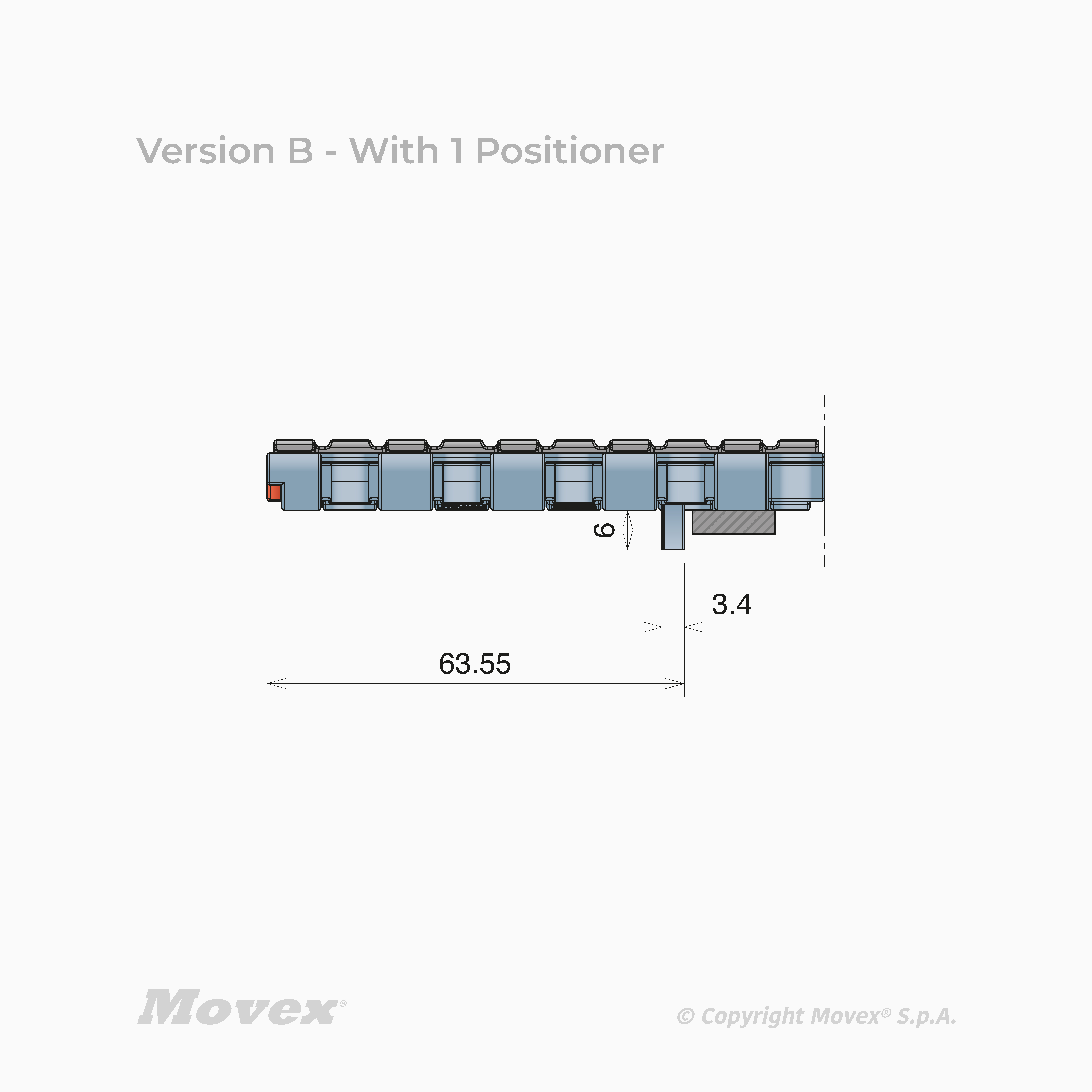

| P5203010085B | 85 mm (3,35") | LFA - Low friction acetal (01) | B - 1 Positioner | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|

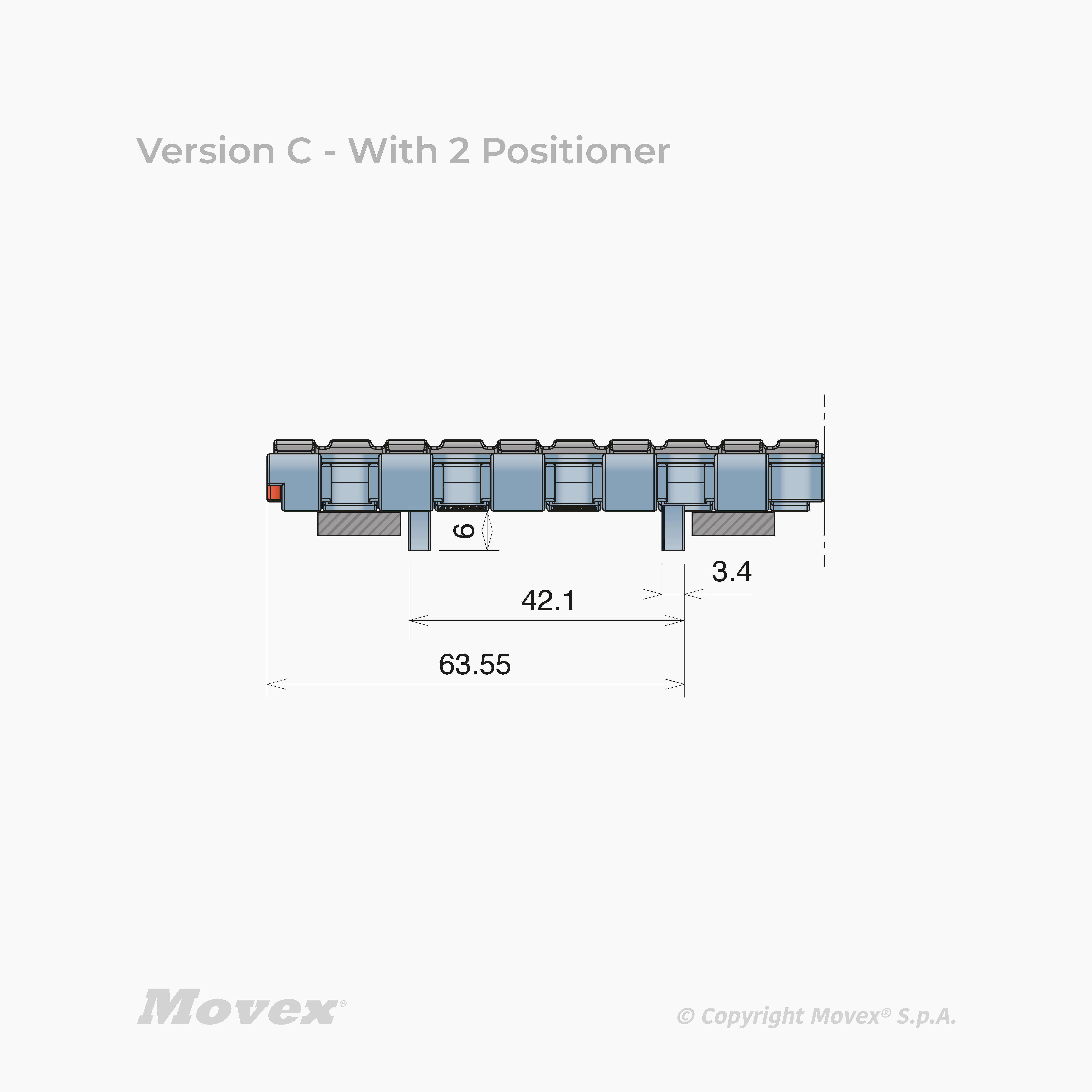

| P5203010085C | 85 mm (3,35") | LFA - Low friction acetal (01) | C - 2 Positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203010170A | 170 mm (6,69") | LFA - Low friction acetal (01) | A - No positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | - |
|
| P5203010170B | 170 mm (6,69") | LFA - Low friction acetal (01) | B - 1 Positioner | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203010170C | 170 mm (6,69") | LFA - Low friction acetal (01) | C - 2 Positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203010255A | 255 mm (10,04") | LFA - Low friction acetal (01) | A - No positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | - |
|
| P5203010255B | 255 mm (10,04") | LFA - Low friction acetal (01) | B - 1 Positioner | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203010255C | 255 mm (10,04") | LFA - Low friction acetal (01) | C - 2 Positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203010340A | 340 mm (13,39") | LFA - Low friction acetal (01) | A - No positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5203010340B | 340 mm (13,39") | LFA - Low friction acetal (01) | B - 1 Positioner | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203010340C | 340 mm (13,39") | LFA - Low friction acetal (01) | C - 2 Positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203010425A | 425 mm (16,73") | LFA - Low friction acetal (01) | A - No positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5203010425B | 425 mm (16,73") | LFA - Low friction acetal (01) | B - 1 Positioner | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203010425C | 425 mm (16,73") | LFA - Low friction acetal (01) | C - 2 Positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203010510A | 510 mm (20,08") | LFA - Low friction acetal (01) | A - No positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - |
|
| P5203010510B | 510 mm (20,08") | LFA - Low friction acetal (01) | B - 1 Positioner | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203010510C | 510 mm (20,08") | LFA - Low friction acetal (01) | C - 2 Positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203010595A | 595 mm (23,43") | LFA - Low friction acetal (01) | A - No positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - |
|
| P5203010595B | 595 mm (23,43") | LFA - Low friction acetal (01) | B - 1 Positioner | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203010595C | 595 mm (23,43") | LFA - Low friction acetal (01) | C - 2 Positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203010680A | 680 mm (26,77") | LFA - Low friction acetal (01) | A - No positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203010680B | 680 mm (26,77") | LFA - Low friction acetal (01) | B - 1 Positioner | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203010680C | 680 mm (26,77") | LFA - Low friction acetal (01) | C - 2 Positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203010765A | 765 mm (30,12") | LFA - Low friction acetal (01) | A - No positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203010765B | 765 mm (30,12") | LFA - Low friction acetal (01) | B - 1 Positioner | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203010765C | 765 mm (30,12") | LFA - Low friction acetal (01) | C - 2 Positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203010850A | 850 mm (33,46") | LFA - Low friction acetal (01) | A - No positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203010850B | 850 mm (33,46") | LFA - Low friction acetal (01) | B - 1 Positioner | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203010850C | 850 mm (33,46") | LFA - Low friction acetal (01) | C - 2 Positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203010935A | 935 mm (36,81") | LFA - Low friction acetal (01) | A - No positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203010935B | 935 mm (36,81") | LFA - Low friction acetal (01) | B - 1 Positioner | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203010935C | 935 mm (36,81") | LFA - Low friction acetal (01) | C - 2 Positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203011020A | 1020 mm (40,16") | LFA - Low friction acetal (01) | A - No positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203011020B | 1020 mm (40,16") | LFA - Low friction acetal (01) | B - 1 Positioner | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203011020C | 1020 mm (40,16") | LFA - Low friction acetal (01) | C - 2 Positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203011105A | 1105 mm (43,50") | LFA - Low friction acetal (01) | A - No positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203011105B | 1105 mm (43,50") | LFA - Low friction acetal (01) | B - 1 Positioner | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203011105C | 1105 mm (43,50") | LFA - Low friction acetal (01) | C - 2 Positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203011190A | 1190 mm (46,85") | LFA - Low friction acetal (01) | A - No positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203011190B | 1190 mm (46,85") | LFA - Low friction acetal (01) | B - 1 Positioner | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203011190C | 1190 mm (46,85") | LFA - Low friction acetal (01) | C - 2 Positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203011275A | 1275 mm (50,20") | LFA - Low friction acetal (01) | A - No positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203011275B | 1275 mm (50,20") | LFA - Low friction acetal (01) | B - 1 Positioner | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203011275C | 1275 mm (50,20") | LFA - Low friction acetal (01) | C - 2 Positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203011360A | 1360 mm (53,54") | LFA - Low friction acetal (01) | A - No positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203011360B | 1360 mm (53,54") | LFA - Low friction acetal (01) | B - 1 Positioner | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203011360C | 1360 mm (53,54") | LFA - Low friction acetal (01) | C - 2 Positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203011445A | 1445 mm (56,89") | LFA - Low friction acetal (01) | A - No positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203011445B | 1445 mm (56,89") | LFA - Low friction acetal (01) | B - 1 Positioner | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203011445C | 1445 mm (56,89") | LFA - Low friction acetal (01) | C - 2 Positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203011530A | 1530 mm (60,24") | LFA - Low friction acetal (01) | A - No positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203011530B | 1530 mm (60,24") | LFA - Low friction acetal (01) | B - 1 Positioner | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203011530C | 1530 mm (60,24") | LFA - Low friction acetal (01) | C - 2 Positioners | P5203 | 20 mm | 21500 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203020085A | 85 mm (3,35") | PP - Polypropylene (02) | A - No positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203020085B | 85 mm (3,35") | PP - Polypropylene (02) | B - 1 Positioner | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020085C | 85 mm (3,35") | PP - Polypropylene (02) | C - 2 Positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020170A | 170 mm (6,69") | PP - Polypropylene (02) | A - No positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203020170B | 170 mm (6,69") | PP - Polypropylene (02) | B - 1 Positioner | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020170C | 170 mm (6,69") | PP - Polypropylene (02) | C - 2 Positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020255A | 255 mm (10,04") | PP - Polypropylene (02) | A - No positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203020255B | 255 mm (10,04") | PP - Polypropylene (02) | B - 1 Positioner | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020255C | 255 mm (10,04") | PP - Polypropylene (02) | C - 2 Positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020340A | 340 mm (13,39") | PP - Polypropylene (02) | A - No positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020340B | 340 mm (13,39") | PP - Polypropylene (02) | B - 1 Positioner | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020340C | 340 mm (13,39") | PP - Polypropylene (02) | C - 2 Positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020425A | 425 mm (16,73") | PP - Polypropylene (02) | A - No positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020425B | 425 mm (16,73") | PP - Polypropylene (02) | B - 1 Positioner | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020425C | 425 mm (16,73") | PP - Polypropylene (02) | C - 2 Positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020510A | 510 mm (20,08") | PP - Polypropylene (02) | A - No positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020510B | 510 mm (20,08") | PP - Polypropylene (02) | B - 1 Positioner | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020510C | 510 mm (20,08") | PP - Polypropylene (02) | C - 2 Positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020595A | 595 mm (23,43") | PP - Polypropylene (02) | A - No positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020595B | 595 mm (23,43") | PP - Polypropylene (02) | B - 1 Positioner | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020595C | 595 mm (23,43") | PP - Polypropylene (02) | C - 2 Positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020680A | 680 mm (26,77") | PP - Polypropylene (02) | A - No positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020680B | 680 mm (26,77") | PP - Polypropylene (02) | B - 1 Positioner | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020680C | 680 mm (26,77") | PP - Polypropylene (02) | C - 2 Positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020765A | 765 mm (30,12") | PP - Polypropylene (02) | A - No positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020765B | 765 mm (30,12") | PP - Polypropylene (02) | B - 1 Positioner | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020765C | 765 mm (30,12") | PP - Polypropylene (02) | C - 2 Positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020850A | 850 mm (33,46") | PP - Polypropylene (02) | A - No positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020850B | 850 mm (33,46") | PP - Polypropylene (02) | B - 1 Positioner | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020850C | 850 mm (33,46") | PP - Polypropylene (02) | C - 2 Positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020935A | 935 mm (36,81") | PP - Polypropylene (02) | A - No positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020935B | 935 mm (36,81") | PP - Polypropylene (02) | B - 1 Positioner | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203020935C | 935 mm (36,81") | PP - Polypropylene (02) | C - 2 Positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203021020A | 1020 mm (40,16") | PP - Polypropylene (02) | A - No positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 2,5 ft - 0,762 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203021020B | 1020 mm (40,16") | PP - Polypropylene (02) | B - 1 Positioner | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 2,5 ft - 0,762 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203021020C | 1020 mm (40,16") | PP - Polypropylene (02) | C - 2 Positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 2,5 ft - 0,762 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203021105A | 1105 mm (43,50") | PP - Polypropylene (02) | A - No positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 2,5 ft - 0,762 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203021105B | 1105 mm (43,50") | PP - Polypropylene (02) | B - 1 Positioner | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 2,5 ft - 0,762 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203021105C | 1105 mm (43,50") | PP - Polypropylene (02) | C - 2 Positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 2,5 ft - 0,762 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203021190A | 1190 mm (46,85") | PP - Polypropylene (02) | A - No positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 2,5 ft - 0,762 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203021190B | 1190 mm (46,85") | PP - Polypropylene (02) | B - 1 Positioner | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 2,5 ft - 0,762 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203021190C | 1190 mm (46,85") | PP - Polypropylene (02) | C - 2 Positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 2,5 ft - 0,762 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203021275A | 1275 mm (50,20") | PP - Polypropylene (02) | A - No positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 2,5 ft - 0,762 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203021275B | 1275 mm (50,20") | PP - Polypropylene (02) | B - 1 Positioner | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 2,5 ft - 0,762 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203021275C | 1275 mm (50,20") | PP - Polypropylene (02) | C - 2 Positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 2,5 ft - 0,762 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203021360A | 1360 mm (53,54") | PP - Polypropylene (02) | A - No positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 2,5 ft - 0,762 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203021360B | 1360 mm (53,54") | PP - Polypropylene (02) | B - 1 Positioner | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 2,5 ft - 0,762 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203021360C | 1360 mm (53,54") | PP - Polypropylene (02) | C - 2 Positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 2,5 ft - 0,762 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203021445A | 1445 mm (56,89") | PP - Polypropylene (02) | A - No positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 2,5 ft - 0,762 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203021445B | 1445 mm (56,89") | PP - Polypropylene (02) | B - 1 Positioner | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 2,5 ft - 0,762 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203021445C | 1445 mm (56,89") | PP - Polypropylene (02) | C - 2 Positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 2,5 ft - 0,762 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203021530A | 1530 mm (60,24") | PP - Polypropylene (02) | A - No positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 2,5 ft - 0,762 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203021530B | 1530 mm (60,24") | PP - Polypropylene (02) | B - 1 Positioner | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 2,5 ft - 0,762 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203021530C | 1530 mm (60,24") | PP - Polypropylene (02) | C - 2 Positioners | P5203 | 20 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 2,5 ft - 0,762 m | 4÷80 °C | 4÷80 °C | Top Rubber- 50 ShA-Pigeon blue |
|
| P5203030085A | 85 mm (3,35") | MX - Performance PBT (03) | A - No positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030085B | 85 mm (3,35") | MX - Performance PBT (03) | B - 1 Positioner | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030085C | 85 mm (3,35") | MX - Performance PBT (03) | C - 2 Positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030170A | 170 mm (6,69") | MX - Performance PBT (03) | A - No positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030170B | 170 mm (6,69") | MX - Performance PBT (03) | B - 1 Positioner | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030170C | 170 mm (6,69") | MX - Performance PBT (03) | C - 2 Positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030255A | 255 mm (10,04") | MX - Performance PBT (03) | A - No positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030255B | 255 mm (10,04") | MX - Performance PBT (03) | B - 1 Positioner | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030255C | 255 mm (10,04") | MX - Performance PBT (03) | C - 2 Positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030340A | 340 mm (13,39") | MX - Performance PBT (03) | A - No positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030340B | 340 mm (13,39") | MX - Performance PBT (03) | B - 1 Positioner | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030340C | 340 mm (13,39") | MX - Performance PBT (03) | C - 2 Positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030425A | 425 mm (16,73") | MX - Performance PBT (03) | A - No positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030425B | 425 mm (16,73") | MX - Performance PBT (03) | B - 1 Positioner | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030425C | 425 mm (16,73") | MX - Performance PBT (03) | C - 2 Positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030510A | 510 mm (20,08") | MX - Performance PBT (03) | A - No positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030510B | 510 mm (20,08") | MX - Performance PBT (03) | B - 1 Positioner | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030510C | 510 mm (20,08") | MX - Performance PBT (03) | C - 2 Positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030595A | 595 mm (23,43") | MX - Performance PBT (03) | A - No positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030595B | 595 mm (23,43") | MX - Performance PBT (03) | B - 1 Positioner | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030595C | 595 mm (23,43") | MX - Performance PBT (03) | C - 2 Positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030680A | 680 mm (26,77") | MX - Performance PBT (03) | A - No positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030680B | 680 mm (26,77") | MX - Performance PBT (03) | B - 1 Positioner | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030680C | 680 mm (26,77") | MX - Performance PBT (03) | C - 2 Positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030765A | 765 mm (30,12") | MX - Performance PBT (03) | A - No positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030765B | 765 mm (30,12") | MX - Performance PBT (03) | B - 1 Positioner | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030765C | 765 mm (30,12") | MX - Performance PBT (03) | C - 2 Positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030850A | 850 mm (33,46") | MX - Performance PBT (03) | A - No positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030850B | 850 mm (33,46") | MX - Performance PBT (03) | B - 1 Positioner | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030850C | 850 mm (33,46") | MX - Performance PBT (03) | C - 2 Positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030935A | 935 mm (36,81") | MX - Performance PBT (03) | A - No positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030935B | 935 mm (36,81") | MX - Performance PBT (03) | B - 1 Positioner | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203030935C | 935 mm (36,81") | MX - Performance PBT (03) | C - 2 Positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203031020A | 1020 mm (40,16") | MX - Performance PBT (03) | A - No positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 2,5 ft - 0,762 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203031020B | 1020 mm (40,16") | MX - Performance PBT (03) | B - 1 Positioner | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 2,5 ft - 0,762 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203031020C | 1020 mm (40,16") | MX - Performance PBT (03) | C - 2 Positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 2,5 ft - 0,762 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203031105A | 1105 mm (43,50") | MX - Performance PBT (03) | A - No positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 2,5 ft - 0,762 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203031105B | 1105 mm (43,50") | MX - Performance PBT (03) | B - 1 Positioner | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 2,5 ft - 0,762 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203031105C | 1105 mm (43,50") | MX - Performance PBT (03) | C - 2 Positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 2,5 ft - 0,762 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203031190A | 1190 mm (46,85") | MX - Performance PBT (03) | A - No positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 2,5 ft - 0,762 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203031190B | 1190 mm (46,85") | MX - Performance PBT (03) | B - 1 Positioner | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 2,5 ft - 0,762 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203031190C | 1190 mm (46,85") | MX - Performance PBT (03) | C - 2 Positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 2,5 ft - 0,762 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203031275A | 1275 mm (50,20") | MX - Performance PBT (03) | A - No positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 2,5 ft - 0,762 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203031275B | 1275 mm (50,20") | MX - Performance PBT (03) | B - 1 Positioner | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 2,5 ft - 0,762 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203031275C | 1275 mm (50,20") | MX - Performance PBT (03) | C - 2 Positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 2,5 ft - 0,762 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203031360A | 1360 mm (53,54") | MX - Performance PBT (03) | A - No positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 2,5 ft - 0,762 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203031360B | 1360 mm (53,54") | MX - Performance PBT (03) | B - 1 Positioner | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 2,5 ft - 0,762 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203031360C | 1360 mm (53,54") | MX - Performance PBT (03) | C - 2 Positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 2,5 ft - 0,762 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203031445A | 1445 mm (56,89") | MX - Performance PBT (03) | A - No positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 2,5 ft - 0,762 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203031445B | 1445 mm (56,89") | MX - Performance PBT (03) | B - 1 Positioner | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 2,5 ft - 0,762 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203031445C | 1445 mm (56,89") | MX - Performance PBT (03) | C - 2 Positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 2,5 ft - 0,762 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203031530A | 1530 mm (60,24") | MX - Performance PBT (03) | A - No positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 2,5 ft - 0,762 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203031530B | 1530 mm (60,24") | MX - Performance PBT (03) | B - 1 Positioner | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 2,5 ft - 0,762 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
| P5203031530C | 1530 mm (60,24") | MX - Performance PBT (03) | C - 2 Positioners | P5203 | 20 mm | 17500 N/m | 9.3 kg/m^2 | POM grey | Snap-in Clip | 2,5 ft - 0,762 m | -40÷120 °C | -40÷60 °C | Top Rubber- 50 ShA-Dark grey |
|
Enquiry Now
To allow us to respond to your enquiry promptly, please provide all required information.
Related Products
-
Nosebars for 520-525 seriesNosebarsView Product -
Nosebars with bearings for 520-525 seriesNosebarsView Product
-
Nosebars with rollers for 520-525 seriesNosebarsView Product
-
One piece for 520-525 seriesNosebarsView Product
-
One piece with rollers for 520-525 seriesNosebarsView Product
-
520 split machined sprocketBelt sprocketsView Product
-
520 split molded sprocketBelt sprocketsView Product
