520 Flush Grid
Modular Belts
Description
Description
Flush Grid modular belts with open surface help draining water and dirt from the running surface.
Basic features
| Series: | 520 |
|---|---|
| Pitch: | 12.7 mm |
| Thickness: | 8.7 mm |
| Increments: | 85 mm |
| Surface Type: | FG - Flush Grid |
| Functionality: | Straight |
| Unit of measure: | Meter |
520 Flush Grid
| Width | Material | Version | Part | Back flex radius | Max working load | Mass | Pin material | Fixation | Box | Temperature range dry | Temperature range wet | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||
| P5202010085A | 85 mm (3,35") | LFA - Low friction acetal (01) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|

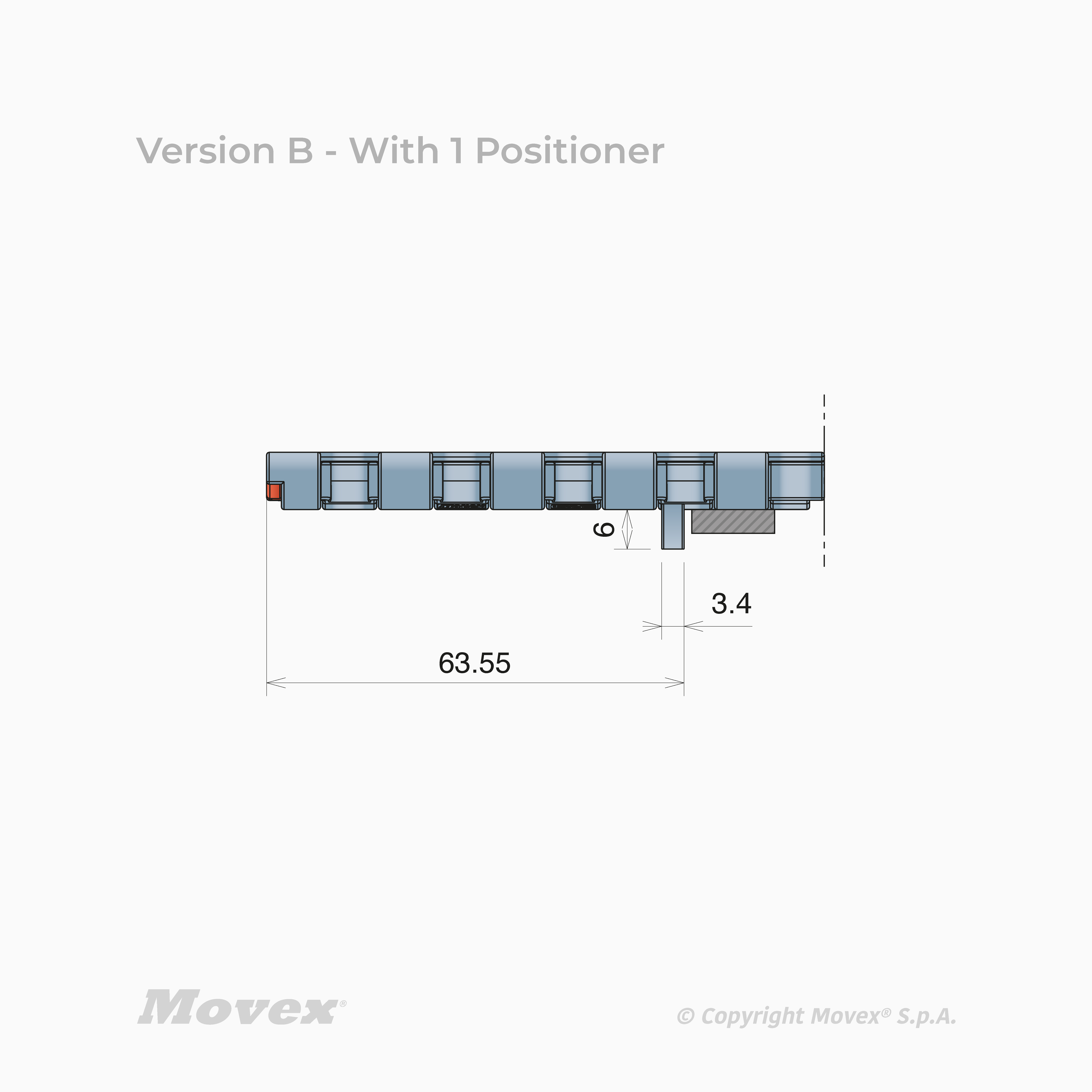

| P5202010085B | 85 mm (3,35") | LFA - Low friction acetal (01) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010085C | 85 mm (3,35") | LFA - Low friction acetal (01) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010170A | 170 mm (6,69") | LFA - Low friction acetal (01) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | - |
|
| P5202010170B | 170 mm (6,69") | LFA - Low friction acetal (01) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010170C | 170 mm (6,69") | LFA - Low friction acetal (01) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010255A | 255 mm (10,04") | LFA - Low friction acetal (01) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | - |
|
| P5202010255B | 255 mm (10,04") | LFA - Low friction acetal (01) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010255C | 255 mm (10,04") | LFA - Low friction acetal (01) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010340A | 340 mm (13,39") | LFA - Low friction acetal (01) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010340B | 340 mm (13,39") | LFA - Low friction acetal (01) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010340C | 340 mm (13,39") | LFA - Low friction acetal (01) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010425A | 425 mm (16,73") | LFA - Low friction acetal (01) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010425B | 425 mm (16,73") | LFA - Low friction acetal (01) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010425C | 425 mm (16,73") | LFA - Low friction acetal (01) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010510A | 510 mm (20,08") | LFA - Low friction acetal (01) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010510B | 510 mm (20,08") | LFA - Low friction acetal (01) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010510C | 510 mm (20,08") | LFA - Low friction acetal (01) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010595A | 595 mm (23,43") | LFA - Low friction acetal (01) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010595B | 595 mm (23,43") | LFA - Low friction acetal (01) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010595C | 595 mm (23,43") | LFA - Low friction acetal (01) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010680A | 680 mm (26,77") | LFA - Low friction acetal (01) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010680B | 680 mm (26,77") | LFA - Low friction acetal (01) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010680C | 680 mm (26,77") | LFA - Low friction acetal (01) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010765A | 765 mm (30,12") | LFA - Low friction acetal (01) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010765B | 765 mm (30,12") | LFA - Low friction acetal (01) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010765C | 765 mm (30,12") | LFA - Low friction acetal (01) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010850A | 850 mm (33,46") | LFA - Low friction acetal (01) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010850B | 850 mm (33,46") | LFA - Low friction acetal (01) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010850C | 850 mm (33,46") | LFA - Low friction acetal (01) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010935A | 935 mm (36,81") | LFA - Low friction acetal (01) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010935B | 935 mm (36,81") | LFA - Low friction acetal (01) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202010935C | 935 mm (36,81") | LFA - Low friction acetal (01) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202011020A | 1020 mm (40,16") | LFA - Low friction acetal (01) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202011020B | 1020 mm (40,16") | LFA - Low friction acetal (01) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202011020C | 1020 mm (40,16") | LFA - Low friction acetal (01) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202011105A | 1105 mm (43,50") | LFA - Low friction acetal (01) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202011105B | 1105 mm (43,50") | LFA - Low friction acetal (01) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202011105C | 1105 mm (43,50") | LFA - Low friction acetal (01) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202011190A | 1190 mm (46,85") | LFA - Low friction acetal (01) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202011190B | 1190 mm (46,85") | LFA - Low friction acetal (01) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202011190C | 1190 mm (46,85") | LFA - Low friction acetal (01) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202011275A | 1275 mm (50,20") | LFA - Low friction acetal (01) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202011275B | 1275 mm (50,20") | LFA - Low friction acetal (01) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202011275C | 1275 mm (50,20") | LFA - Low friction acetal (01) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202011360A | 1360 mm (53,54") | LFA - Low friction acetal (01) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202011360B | 1360 mm (53,54") | LFA - Low friction acetal (01) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202011360C | 1360 mm (53,54") | LFA - Low friction acetal (01) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202011445A | 1445 mm (56,89") | LFA - Low friction acetal (01) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202011445B | 1445 mm (56,89") | LFA - Low friction acetal (01) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202011445C | 1445 mm (56,89") | LFA - Low friction acetal (01) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202011530A | 1530 mm (60,24") | LFA - Low friction acetal (01) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202011530B | 1530 mm (60,24") | LFA - Low friction acetal (01) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202011530C | 1530 mm (60,24") | LFA - Low friction acetal (01) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202020085A | 85 mm (3,35") | PP - Polypropylene (02) | A - No positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020085B | 85 mm (3,35") | PP - Polypropylene (02) | B - 1 Positioner | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020085C | 85 mm (3,35") | PP - Polypropylene (02) | C - 2 Positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020170A | 170 mm (6,69") | PP - Polypropylene (02) | A - No positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020170B | 170 mm (6,69") | PP - Polypropylene (02) | B - 1 Positioner | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020170C | 170 mm (6,69") | PP - Polypropylene (02) | C - 2 Positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020255A | 255 mm (10,04") | PP - Polypropylene (02) | A - No positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020255B | 255 mm (10,04") | PP - Polypropylene (02) | B - 1 Positioner | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020255C | 255 mm (10,04") | PP - Polypropylene (02) | C - 2 Positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020340A | 340 mm (13,39") | PP - Polypropylene (02) | A - No positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020340B | 340 mm (13,39") | PP - Polypropylene (02) | B - 1 Positioner | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020340C | 340 mm (13,39") | PP - Polypropylene (02) | C - 2 Positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020425A | 425 mm (16,73") | PP - Polypropylene (02) | A - No positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020425B | 425 mm (16,73") | PP - Polypropylene (02) | B - 1 Positioner | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020425C | 425 mm (16,73") | PP - Polypropylene (02) | C - 2 Positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020510A | 510 mm (20,08") | PP - Polypropylene (02) | A - No positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020510B | 510 mm (20,08") | PP - Polypropylene (02) | B - 1 Positioner | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020510C | 510 mm (20,08") | PP - Polypropylene (02) | C - 2 Positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020595A | 595 mm (23,43") | PP - Polypropylene (02) | A - No positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020595B | 595 mm (23,43") | PP - Polypropylene (02) | B - 1 Positioner | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020595C | 595 mm (23,43") | PP - Polypropylene (02) | C - 2 Positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020680A | 680 mm (26,77") | PP - Polypropylene (02) | A - No positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020680B | 680 mm (26,77") | PP - Polypropylene (02) | B - 1 Positioner | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020680C | 680 mm (26,77") | PP - Polypropylene (02) | C - 2 Positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020765A | 765 mm (30,12") | PP - Polypropylene (02) | A - No positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020765B | 765 mm (30,12") | PP - Polypropylene (02) | B - 1 Positioner | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020765C | 765 mm (30,12") | PP - Polypropylene (02) | C - 2 Positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020850A | 850 mm (33,46") | PP - Polypropylene (02) | A - No positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020850B | 850 mm (33,46") | PP - Polypropylene (02) | B - 1 Positioner | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020850C | 850 mm (33,46") | PP - Polypropylene (02) | C - 2 Positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020935A | 935 mm (36,81") | PP - Polypropylene (02) | A - No positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020935B | 935 mm (36,81") | PP - Polypropylene (02) | B - 1 Positioner | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202020935C | 935 mm (36,81") | PP - Polypropylene (02) | C - 2 Positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202021020A | 1020 mm (40,16") | PP - Polypropylene (02) | A - No positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202021020B | 1020 mm (40,16") | PP - Polypropylene (02) | B - 1 Positioner | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202021020C | 1020 mm (40,16") | PP - Polypropylene (02) | C - 2 Positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202021105A | 1105 mm (43,50") | PP - Polypropylene (02) | A - No positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202021105B | 1105 mm (43,50") | PP - Polypropylene (02) | B - 1 Positioner | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202021105C | 1105 mm (43,50") | PP - Polypropylene (02) | C - 2 Positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202021190A | 1190 mm (46,85") | PP - Polypropylene (02) | A - No positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202021190B | 1190 mm (46,85") | PP - Polypropylene (02) | B - 1 Positioner | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202021190C | 1190 mm (46,85") | PP - Polypropylene (02) | C - 2 Positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202021275A | 1275 mm (50,20") | PP - Polypropylene (02) | A - No positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202021275B | 1275 mm (50,20") | PP - Polypropylene (02) | B - 1 Positioner | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202021275C | 1275 mm (50,20") | PP - Polypropylene (02) | C - 2 Positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202021360A | 1360 mm (53,54") | PP - Polypropylene (02) | A - No positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202021360B | 1360 mm (53,54") | PP - Polypropylene (02) | B - 1 Positioner | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202021360C | 1360 mm (53,54") | PP - Polypropylene (02) | C - 2 Positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202021445A | 1445 mm (56,89") | PP - Polypropylene (02) | A - No positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202021445B | 1445 mm (56,89") | PP - Polypropylene (02) | B - 1 Positioner | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202021445C | 1445 mm (56,89") | PP - Polypropylene (02) | C - 2 Positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202021530A | 1530 mm (60,24") | PP - Polypropylene (02) | A - No positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202021530B | 1530 mm (60,24") | PP - Polypropylene (02) | B - 1 Positioner | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202021530C | 1530 mm (60,24") | PP - Polypropylene (02) | C - 2 Positioners | P5202 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Open Surface 25 % |
|
| P5202030085A | 85 mm (3,35") | MX - Performance PBT (03) | A - No positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030085B | 85 mm (3,35") | MX - Performance PBT (03) | B - 1 Positioner | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030085C | 85 mm (3,35") | MX - Performance PBT (03) | C - 2 Positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030170A | 170 mm (6,69") | MX - Performance PBT (03) | A - No positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030170B | 170 mm (6,69") | MX - Performance PBT (03) | B - 1 Positioner | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030170C | 170 mm (6,69") | MX - Performance PBT (03) | C - 2 Positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030255A | 255 mm (10,04") | MX - Performance PBT (03) | A - No positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030255B | 255 mm (10,04") | MX - Performance PBT (03) | B - 1 Positioner | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030255C | 255 mm (10,04") | MX - Performance PBT (03) | C - 2 Positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030340A | 340 mm (13,39") | MX - Performance PBT (03) | A - No positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030340B | 340 mm (13,39") | MX - Performance PBT (03) | B - 1 Positioner | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030340C | 340 mm (13,39") | MX - Performance PBT (03) | C - 2 Positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030425A | 425 mm (16,73") | MX - Performance PBT (03) | A - No positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030425B | 425 mm (16,73") | MX - Performance PBT (03) | B - 1 Positioner | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030425C | 425 mm (16,73") | MX - Performance PBT (03) | C - 2 Positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030510A | 510 mm (20,08") | MX - Performance PBT (03) | A - No positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030510B | 510 mm (20,08") | MX - Performance PBT (03) | B - 1 Positioner | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030510C | 510 mm (20,08") | MX - Performance PBT (03) | C - 2 Positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030595A | 595 mm (23,43") | MX - Performance PBT (03) | A - No positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030595B | 595 mm (23,43") | MX - Performance PBT (03) | B - 1 Positioner | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030595C | 595 mm (23,43") | MX - Performance PBT (03) | C - 2 Positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030680A | 680 mm (26,77") | MX - Performance PBT (03) | A - No positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030680B | 680 mm (26,77") | MX - Performance PBT (03) | B - 1 Positioner | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030680C | 680 mm (26,77") | MX - Performance PBT (03) | C - 2 Positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030765A | 765 mm (30,12") | MX - Performance PBT (03) | A - No positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030765B | 765 mm (30,12") | MX - Performance PBT (03) | B - 1 Positioner | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030765C | 765 mm (30,12") | MX - Performance PBT (03) | C - 2 Positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030850A | 850 mm (33,46") | MX - Performance PBT (03) | A - No positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030850B | 850 mm (33,46") | MX - Performance PBT (03) | B - 1 Positioner | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030850C | 850 mm (33,46") | MX - Performance PBT (03) | C - 2 Positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030935A | 935 mm (36,81") | MX - Performance PBT (03) | A - No positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030935B | 935 mm (36,81") | MX - Performance PBT (03) | B - 1 Positioner | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202030935C | 935 mm (36,81") | MX - Performance PBT (03) | C - 2 Positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202031020A | 1020 mm (40,16") | MX - Performance PBT (03) | A - No positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202031020B | 1020 mm (40,16") | MX - Performance PBT (03) | B - 1 Positioner | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202031020C | 1020 mm (40,16") | MX - Performance PBT (03) | C - 2 Positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202031105A | 1105 mm (43,50") | MX - Performance PBT (03) | A - No positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202031105B | 1105 mm (43,50") | MX - Performance PBT (03) | B - 1 Positioner | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202031105C | 1105 mm (43,50") | MX - Performance PBT (03) | C - 2 Positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202031190A | 1190 mm (46,85") | MX - Performance PBT (03) | A - No positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202031190B | 1190 mm (46,85") | MX - Performance PBT (03) | B - 1 Positioner | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202031190C | 1190 mm (46,85") | MX - Performance PBT (03) | C - 2 Positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202031275A | 1275 mm (50,20") | MX - Performance PBT (03) | A - No positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202031275B | 1275 mm (50,20") | MX - Performance PBT (03) | B - 1 Positioner | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202031275C | 1275 mm (50,20") | MX - Performance PBT (03) | C - 2 Positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202031360A | 1360 mm (53,54") | MX - Performance PBT (03) | A - No positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202031360B | 1360 mm (53,54") | MX - Performance PBT (03) | B - 1 Positioner | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202031360C | 1360 mm (53,54") | MX - Performance PBT (03) | C - 2 Positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202031445A | 1445 mm (56,89") | MX - Performance PBT (03) | A - No positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202031445B | 1445 mm (56,89") | MX - Performance PBT (03) | B - 1 Positioner | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202031445C | 1445 mm (56,89") | MX - Performance PBT (03) | C - 2 Positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202031530A | 1530 mm (60,24") | MX - Performance PBT (03) | A - No positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202031530B | 1530 mm (60,24") | MX - Performance PBT (03) | B - 1 Positioner | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202031530C | 1530 mm (60,24") | MX - Performance PBT (03) | C - 2 Positioners | P5202 | 10 mm | 17500 N/m | 7.2 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Open Surface 25 % |
|
| P5202160085A | 85 mm (3,35") | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160085B | 85 mm (3,35") | DKM - Aramide Reinforced Acetal (16) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160085C | 85 mm (3,35") | DKM - Aramide Reinforced Acetal (16) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160170A | 170 mm (6,69") | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160170B | 170 mm (6,69") | DKM - Aramide Reinforced Acetal (16) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160170C | 170 mm (6,69") | DKM - Aramide Reinforced Acetal (16) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160255A | 255 mm (10,04") | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160255B | 255 mm (10,04") | DKM - Aramide Reinforced Acetal (16) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160255C | 255 mm (10,04") | DKM - Aramide Reinforced Acetal (16) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160340A | 340 mm (13,39") | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160340B | 340 mm (13,39") | DKM - Aramide Reinforced Acetal (16) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160340C | 340 mm (13,39") | DKM - Aramide Reinforced Acetal (16) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160425A | 425 mm (16,73") | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160425B | 425 mm (16,73") | DKM - Aramide Reinforced Acetal (16) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160425C | 425 mm (16,73") | DKM - Aramide Reinforced Acetal (16) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160510A | 510 mm (20,08") | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160510B | 510 mm (20,08") | DKM - Aramide Reinforced Acetal (16) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160510C | 510 mm (20,08") | DKM - Aramide Reinforced Acetal (16) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160595A | 595 mm (23,43") | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160595B | 595 mm (23,43") | DKM - Aramide Reinforced Acetal (16) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160595C | 595 mm (23,43") | DKM - Aramide Reinforced Acetal (16) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160680A | 680 mm (26,77") | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160680B | 680 mm (26,77") | DKM - Aramide Reinforced Acetal (16) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160680C | 680 mm (26,77") | DKM - Aramide Reinforced Acetal (16) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160765A | 765 mm (30,12") | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160765B | 765 mm (30,12") | DKM - Aramide Reinforced Acetal (16) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160765C | 765 mm (30,12") | DKM - Aramide Reinforced Acetal (16) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160850A | 850 mm (33,46") | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160850B | 850 mm (33,46") | DKM - Aramide Reinforced Acetal (16) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160850C | 850 mm (33,46") | DKM - Aramide Reinforced Acetal (16) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160935A | 935 mm (36,81") | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160935B | 935 mm (36,81") | DKM - Aramide Reinforced Acetal (16) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202160935C | 935 mm (36,81") | DKM - Aramide Reinforced Acetal (16) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202161020A | 1020 mm (40,16") | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202161020B | 1020 mm (40,16") | DKM - Aramide Reinforced Acetal (16) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202161020C | 1020 mm (40,16") | DKM - Aramide Reinforced Acetal (16) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202161105A | 1105 mm (43,50") | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202161105B | 1105 mm (43,50") | DKM - Aramide Reinforced Acetal (16) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202161105C | 1105 mm (43,50") | DKM - Aramide Reinforced Acetal (16) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202161190A | 1190 mm (46,85") | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202161190B | 1190 mm (46,85") | DKM - Aramide Reinforced Acetal (16) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202161190C | 1190 mm (46,85") | DKM - Aramide Reinforced Acetal (16) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202161275A | 1275 mm (50,20") | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202161275B | 1275 mm (50,20") | DKM - Aramide Reinforced Acetal (16) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202161275C | 1275 mm (50,20") | DKM - Aramide Reinforced Acetal (16) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202161360A | 1360 mm (53,54") | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202161360B | 1360 mm (53,54") | DKM - Aramide Reinforced Acetal (16) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202161360C | 1360 mm (53,54") | DKM - Aramide Reinforced Acetal (16) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202161445A | 1445 mm (56,89") | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202161445B | 1445 mm (56,89") | DKM - Aramide Reinforced Acetal (16) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202161445C | 1445 mm (56,89") | DKM - Aramide Reinforced Acetal (16) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202161530A | 1530 mm (60,24") | DKM - Aramide Reinforced Acetal (16) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202161530B | 1530 mm (60,24") | DKM - Aramide Reinforced Acetal (16) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202161530C | 1530 mm (60,24") | DKM - Aramide Reinforced Acetal (16) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202170085A | 85 mm (3,35") | MWX - Polyamide Composite (17) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170085B | 85 mm (3,35") | MWX - Polyamide Composite (17) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170085C | 85 mm (3,35") | MWX - Polyamide Composite (17) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170170A | 170 mm (6,69") | MWX - Polyamide Composite (17) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170170B | 170 mm (6,69") | MWX - Polyamide Composite (17) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170170C | 170 mm (6,69") | MWX - Polyamide Composite (17) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170255A | 255 mm (10,04") | MWX - Polyamide Composite (17) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170255B | 255 mm (10,04") | MWX - Polyamide Composite (17) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170255C | 255 mm (10,04") | MWX - Polyamide Composite (17) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170340A | 340 mm (13,39") | MWX - Polyamide Composite (17) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170340B | 340 mm (13,39") | MWX - Polyamide Composite (17) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170340C | 340 mm (13,39") | MWX - Polyamide Composite (17) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170425A | 425 mm (16,73") | MWX - Polyamide Composite (17) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170425B | 425 mm (16,73") | MWX - Polyamide Composite (17) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170425C | 425 mm (16,73") | MWX - Polyamide Composite (17) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170510A | 510 mm (20,08") | MWX - Polyamide Composite (17) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170510B | 510 mm (20,08") | MWX - Polyamide Composite (17) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170510C | 510 mm (20,08") | MWX - Polyamide Composite (17) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170595A | 595 mm (23,43") | MWX - Polyamide Composite (17) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170595B | 595 mm (23,43") | MWX - Polyamide Composite (17) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170595C | 595 mm (23,43") | MWX - Polyamide Composite (17) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170680A | 680 mm (26,77") | MWX - Polyamide Composite (17) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170680B | 680 mm (26,77") | MWX - Polyamide Composite (17) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170680C | 680 mm (26,77") | MWX - Polyamide Composite (17) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170765A | 765 mm (30,12") | MWX - Polyamide Composite (17) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170765B | 765 mm (30,12") | MWX - Polyamide Composite (17) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170765C | 765 mm (30,12") | MWX - Polyamide Composite (17) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170850A | 850 mm (33,46") | MWX - Polyamide Composite (17) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170850B | 850 mm (33,46") | MWX - Polyamide Composite (17) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170850C | 850 mm (33,46") | MWX - Polyamide Composite (17) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170935A | 935 mm (36,81") | MWX - Polyamide Composite (17) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170935B | 935 mm (36,81") | MWX - Polyamide Composite (17) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202170935C | 935 mm (36,81") | MWX - Polyamide Composite (17) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202171020A | 1020 mm (40,16") | MWX - Polyamide Composite (17) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202171020B | 1020 mm (40,16") | MWX - Polyamide Composite (17) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202171020C | 1020 mm (40,16") | MWX - Polyamide Composite (17) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202171105A | 1105 mm (43,50") | MWX - Polyamide Composite (17) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202171105B | 1105 mm (43,50") | MWX - Polyamide Composite (17) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202171105C | 1105 mm (43,50") | MWX - Polyamide Composite (17) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202171190A | 1190 mm (46,85") | MWX - Polyamide Composite (17) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202171190B | 1190 mm (46,85") | MWX - Polyamide Composite (17) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202171190C | 1190 mm (46,85") | MWX - Polyamide Composite (17) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202171275A | 1275 mm (50,20") | MWX - Polyamide Composite (17) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202171275B | 1275 mm (50,20") | MWX - Polyamide Composite (17) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202171275C | 1275 mm (50,20") | MWX - Polyamide Composite (17) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202171360A | 1360 mm (53,54") | MWX - Polyamide Composite (17) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202171360B | 1360 mm (53,54") | MWX - Polyamide Composite (17) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202171360C | 1360 mm (53,54") | MWX - Polyamide Composite (17) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202171445A | 1445 mm (56,89") | MWX - Polyamide Composite (17) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202171445B | 1445 mm (56,89") | MWX - Polyamide Composite (17) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202171445C | 1445 mm (56,89") | MWX - Polyamide Composite (17) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202171530A | 1530 mm (60,24") | MWX - Polyamide Composite (17) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202171530B | 1530 mm (60,24") | MWX - Polyamide Composite (17) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202171530C | 1530 mm (60,24") | MWX - Polyamide Composite (17) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷104 °C | Not suitable °C | Open Surface 25 % |
|
| P5202230085A | 85 mm (3,35") | LFB - Low friction acetal (Blue) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230085B | 85 mm (3,35") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230085C | 85 mm (3,35") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230170A | 170 mm (6,69") | LFB - Low friction acetal (Blue) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230170B | 170 mm (6,69") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230170C | 170 mm (6,69") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230255A | 255 mm (10,04") | LFB - Low friction acetal (Blue) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230255B | 255 mm (10,04") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230255C | 255 mm (10,04") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230340A | 340 mm (13,39") | LFB - Low friction acetal (Blue) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230340B | 340 mm (13,39") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230340C | 340 mm (13,39") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230425A | 425 mm (16,73") | LFB - Low friction acetal (Blue) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230425B | 425 mm (16,73") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230425C | 425 mm (16,73") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230510A | 510 mm (20,08") | LFB - Low friction acetal (Blue) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230510B | 510 mm (20,08") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230510C | 510 mm (20,08") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230595A | 595 mm (23,43") | LFB - Low friction acetal (Blue) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230595B | 595 mm (23,43") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230595C | 595 mm (23,43") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230680A | 680 mm (26,77") | LFB - Low friction acetal (Blue) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230680B | 680 mm (26,77") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230680C | 680 mm (26,77") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230765A | 765 mm (30,12") | LFB - Low friction acetal (Blue) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230765B | 765 mm (30,12") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230765C | 765 mm (30,12") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230850A | 850 mm (33,46") | LFB - Low friction acetal (Blue) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230850B | 850 mm (33,46") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230850C | 850 mm (33,46") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230935A | 935 mm (36,81") | LFB - Low friction acetal (Blue) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230935B | 935 mm (36,81") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202230935C | 935 mm (36,81") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202231020A | 1020 mm (40,16") | LFB - Low friction acetal (Blue) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202231020B | 1020 mm (40,16") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202231020C | 1020 mm (40,16") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202231105A | 1105 mm (43,50") | LFB - Low friction acetal (Blue) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202231105B | 1105 mm (43,50") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202231105C | 1105 mm (43,50") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202231190A | 1190 mm (46,85") | LFB - Low friction acetal (Blue) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202231190B | 1190 mm (46,85") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202231190C | 1190 mm (46,85") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202231275A | 1275 mm (50,20") | LFB - Low friction acetal (Blue) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202231275B | 1275 mm (50,20") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202231275C | 1275 mm (50,20") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202231360A | 1360 mm (53,54") | LFB - Low friction acetal (Blue) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202231360B | 1360 mm (53,54") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202231360C | 1360 mm (53,54") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202231445A | 1445 mm (56,89") | LFB - Low friction acetal (Blue) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202231445B | 1445 mm (56,89") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202231445C | 1445 mm (56,89") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202231530A | 1530 mm (60,24") | LFB - Low friction acetal (Blue) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202231530B | 1530 mm (60,24") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202231530C | 1530 mm (60,24") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250085A | 85 mm (3,35") | MPX - Lubricated Acetal (25) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250085B | 85 mm (3,35") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250085C | 85 mm (3,35") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250170A | 170 mm (6,69") | MPX - Lubricated Acetal (25) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250170B | 170 mm (6,69") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250170C | 170 mm (6,69") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250255A | 255 mm (10,04") | MPX - Lubricated Acetal (25) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250255B | 255 mm (10,04") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250255C | 255 mm (10,04") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250340A | 340 mm (13,39") | MPX - Lubricated Acetal (25) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250340B | 340 mm (13,39") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250340C | 340 mm (13,39") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250425A | 425 mm (16,73") | MPX - Lubricated Acetal (25) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250425B | 425 mm (16,73") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250425C | 425 mm (16,73") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250510A | 510 mm (20,08") | MPX - Lubricated Acetal (25) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250510B | 510 mm (20,08") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250510C | 510 mm (20,08") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250595A | 595 mm (23,43") | MPX - Lubricated Acetal (25) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250595B | 595 mm (23,43") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250595C | 595 mm (23,43") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250680A | 680 mm (26,77") | MPX - Lubricated Acetal (25) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250680B | 680 mm (26,77") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250680C | 680 mm (26,77") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250765A | 765 mm (30,12") | MPX - Lubricated Acetal (25) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250765B | 765 mm (30,12") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250765C | 765 mm (30,12") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250850A | 850 mm (33,46") | MPX - Lubricated Acetal (25) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250850B | 850 mm (33,46") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250850C | 850 mm (33,46") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250935A | 935 mm (36,81") | MPX - Lubricated Acetal (25) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250935B | 935 mm (36,81") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202250935C | 935 mm (36,81") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202251020A | 1020 mm (40,16") | MPX - Lubricated Acetal (25) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202251020B | 1020 mm (40,16") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202251020C | 1020 mm (40,16") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202251105A | 1105 mm (43,50") | MPX - Lubricated Acetal (25) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202251105B | 1105 mm (43,50") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202251105C | 1105 mm (43,50") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202251190A | 1190 mm (46,85") | MPX - Lubricated Acetal (25) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202251190B | 1190 mm (46,85") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202251190C | 1190 mm (46,85") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202251275A | 1275 mm (50,20") | MPX - Lubricated Acetal (25) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202251275B | 1275 mm (50,20") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202251275C | 1275 mm (50,20") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202251360A | 1360 mm (53,54") | MPX - Lubricated Acetal (25) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202251360B | 1360 mm (53,54") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202251360C | 1360 mm (53,54") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202251445A | 1445 mm (56,89") | MPX - Lubricated Acetal (25) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202251445B | 1445 mm (56,89") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202251445C | 1445 mm (56,89") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202251530A | 1530 mm (60,24") | MPX - Lubricated Acetal (25) | A - No positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202251530B | 1530 mm (60,24") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
| P5202251530C | 1530 mm (60,24") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5202 | 10 mm | 21500 N/m | 7.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Open Surface 25 % |
|
Enquiry Now
To allow us to respond to your enquiry promptly, please provide all required information.
Related Products
-
Nosebars for 520-525 seriesNosebarsView Product -
Nosebars with bearings for 520-525 seriesNosebarsView Product
-
Nosebars with rollers for 520-525 seriesNosebarsView Product
-
One piece for 520-525 seriesNosebarsView Product
-
One piece with rollers for 520-525 seriesNosebarsView Product
-
520 split machined sprocketBelt sprocketsView Product
-
520 split molded sprocketBelt sprocketsView Product
