520 Flat Top
Modular Belts
Description
Description
Movex 520 series is the most common in the market, ideal for any type of application, thanks to its versatility
Basic features
| Series: | 520 |
|---|---|
| Pitch: | 12.7 mm |
| Thickness: | 8.7 mm |
| Increments: | 85 mm |
| Surface Type: | FT - Flat Top |
| Functionality: | Straight |
| Unit of measure: | Meter |
520 Flat Top
| Width | Material | Version | Part | Back flex radius | Max working load | Mass | Pin material | Fixation | Box | Temperature range dry | Temperature range wet | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||

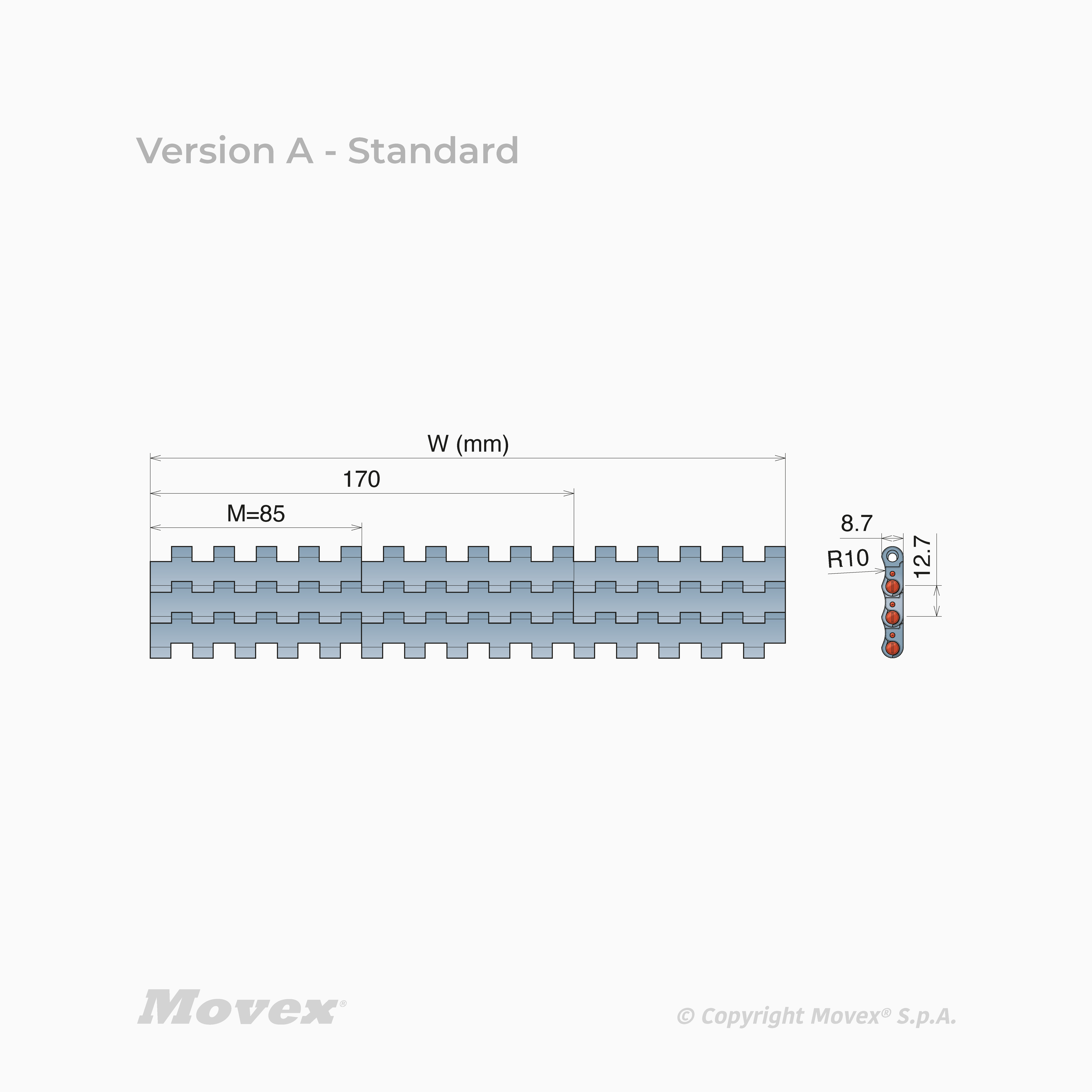

| P5201010085A | 85 mm (3,35") | LFA - Low friction acetal (01) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|

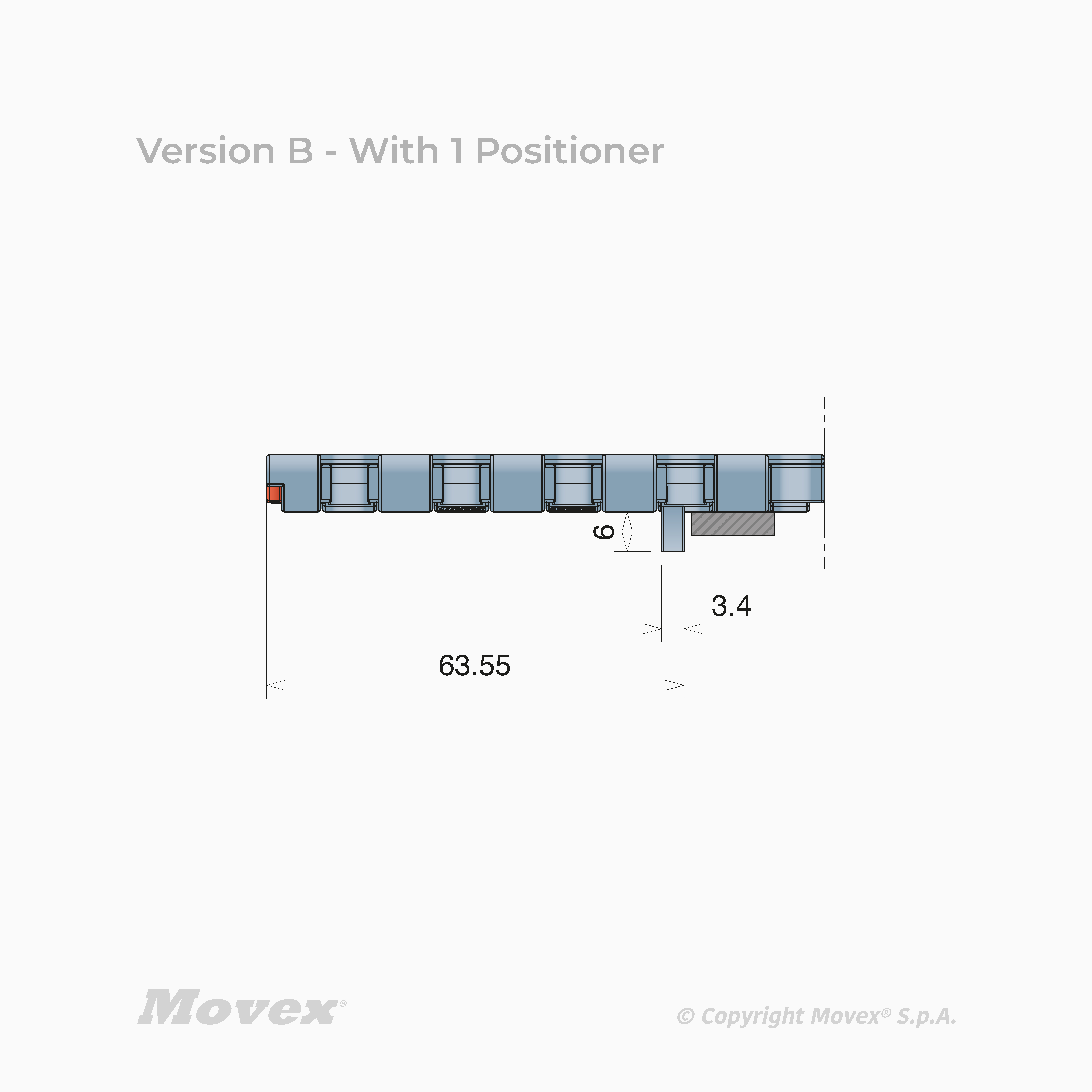

| P5201010085B | 85 mm (3,35") | LFA - Low friction acetal (01) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201010085C | 85 mm (3,35") | LFA - Low friction acetal (01) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201010170A | 170 mm (6,69") | LFA - Low friction acetal (01) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | - |
|
| P5201010170B | 170 mm (6,69") | LFA - Low friction acetal (01) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201010170C | 170 mm (6,69") | LFA - Low friction acetal (01) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201010255A | 255 mm (10,04") | LFA - Low friction acetal (01) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | - |
|
| P5201010255B | 255 mm (10,04") | LFA - Low friction acetal (01) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201010255C | 255 mm (10,04") | LFA - Low friction acetal (01) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201010340A | 340 mm (13,39") | LFA - Low friction acetal (01) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5201010340B | 340 mm (13,39") | LFA - Low friction acetal (01) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201010340C | 340 mm (13,39") | LFA - Low friction acetal (01) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201010425A | 425 mm (16,73") | LFA - Low friction acetal (01) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5201010425B | 425 mm (16,73") | LFA - Low friction acetal (01) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201010425C | 425 mm (16,73") | LFA - Low friction acetal (01) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201010510A | 510 mm (20,08") | LFA - Low friction acetal (01) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5201010510B | 510 mm (20,08") | LFA - Low friction acetal (01) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201010510C | 510 mm (20,08") | LFA - Low friction acetal (01) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201010595A | 595 mm (23,43") | LFA - Low friction acetal (01) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201010595B | 595 mm (23,43") | LFA - Low friction acetal (01) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201010595C | 595 mm (23,43") | LFA - Low friction acetal (01) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201010680A | 680 mm (26,77") | LFA - Low friction acetal (01) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201010680B | 680 mm (26,77") | LFA - Low friction acetal (01) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201010680C | 680 mm (26,77") | LFA - Low friction acetal (01) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201010765A | 765 mm (30,12") | LFA - Low friction acetal (01) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201010765B | 765 mm (30,12") | LFA - Low friction acetal (01) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201010765C | 765 mm (30,12") | LFA - Low friction acetal (01) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201010850A | 850 mm (33,46") | LFA - Low friction acetal (01) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201010850B | 850 mm (33,46") | LFA - Low friction acetal (01) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201010850C | 850 mm (33,46") | LFA - Low friction acetal (01) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201010935A | 935 mm (36,81") | LFA - Low friction acetal (01) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201010935B | 935 mm (36,81") | LFA - Low friction acetal (01) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201010935C | 935 mm (36,81") | LFA - Low friction acetal (01) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201011020A | 1020 mm (40,16") | LFA - Low friction acetal (01) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201011020B | 1020 mm (40,16") | LFA - Low friction acetal (01) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201011020C | 1020 mm (40,16") | LFA - Low friction acetal (01) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201011105A | 1105 mm (43,50") | LFA - Low friction acetal (01) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201011105B | 1105 mm (43,50") | LFA - Low friction acetal (01) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201011105C | 1105 mm (43,50") | LFA - Low friction acetal (01) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201011190A | 1190 mm (46,85") | LFA - Low friction acetal (01) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201011190B | 1190 mm (46,85") | LFA - Low friction acetal (01) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201011190C | 1190 mm (46,85") | LFA - Low friction acetal (01) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201011275A | 1275 mm (50,20") | LFA - Low friction acetal (01) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201011275B | 1275 mm (50,20") | LFA - Low friction acetal (01) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201011275C | 1275 mm (50,20") | LFA - Low friction acetal (01) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201011360A | 1360 mm (53,54") | LFA - Low friction acetal (01) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201011360B | 1360 mm (53,54") | LFA - Low friction acetal (01) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201011360C | 1360 mm (53,54") | LFA - Low friction acetal (01) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201011445A | 1445 mm (56,89") | LFA - Low friction acetal (01) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201011445B | 1445 mm (56,89") | LFA - Low friction acetal (01) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201011445C | 1445 mm (56,89") | LFA - Low friction acetal (01) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201011530A | 1530 mm (60,24") | LFA - Low friction acetal (01) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201011530B | 1530 mm (60,24") | LFA - Low friction acetal (01) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201011530C | 1530 mm (60,24") | LFA - Low friction acetal (01) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201020085A | 85 mm (3,35") | PP - Polypropylene (02) | A - No positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020085B | 85 mm (3,35") | PP - Polypropylene (02) | B - 1 Positioner | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020085C | 85 mm (3,35") | PP - Polypropylene (02) | C - 2 Positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020170A | 170 mm (6,69") | PP - Polypropylene (02) | A - No positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020170B | 170 mm (6,69") | PP - Polypropylene (02) | B - 1 Positioner | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020170C | 170 mm (6,69") | PP - Polypropylene (02) | C - 2 Positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020255A | 255 mm (10,04") | PP - Polypropylene (02) | A - No positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020255B | 255 mm (10,04") | PP - Polypropylene (02) | B - 1 Positioner | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020255C | 255 mm (10,04") | PP - Polypropylene (02) | C - 2 Positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020340A | 340 mm (13,39") | PP - Polypropylene (02) | A - No positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020340B | 340 mm (13,39") | PP - Polypropylene (02) | B - 1 Positioner | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020340C | 340 mm (13,39") | PP - Polypropylene (02) | C - 2 Positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020425A | 425 mm (16,73") | PP - Polypropylene (02) | A - No positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020425B | 425 mm (16,73") | PP - Polypropylene (02) | B - 1 Positioner | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020425C | 425 mm (16,73") | PP - Polypropylene (02) | C - 2 Positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020510A | 510 mm (20,08") | PP - Polypropylene (02) | A - No positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020510B | 510 mm (20,08") | PP - Polypropylene (02) | B - 1 Positioner | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020510C | 510 mm (20,08") | PP - Polypropylene (02) | C - 2 Positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020595A | 595 mm (23,43") | PP - Polypropylene (02) | A - No positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020595B | 595 mm (23,43") | PP - Polypropylene (02) | B - 1 Positioner | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020595C | 595 mm (23,43") | PP - Polypropylene (02) | C - 2 Positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020680A | 680 mm (26,77") | PP - Polypropylene (02) | A - No positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020680B | 680 mm (26,77") | PP - Polypropylene (02) | B - 1 Positioner | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020680C | 680 mm (26,77") | PP - Polypropylene (02) | C - 2 Positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020765A | 765 mm (30,12") | PP - Polypropylene (02) | A - No positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020765B | 765 mm (30,12") | PP - Polypropylene (02) | B - 1 Positioner | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020765C | 765 mm (30,12") | PP - Polypropylene (02) | C - 2 Positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020850A | 850 mm (33,46") | PP - Polypropylene (02) | A - No positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020850B | 850 mm (33,46") | PP - Polypropylene (02) | B - 1 Positioner | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020850C | 850 mm (33,46") | PP - Polypropylene (02) | C - 2 Positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020935A | 935 mm (36,81") | PP - Polypropylene (02) | A - No positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020935B | 935 mm (36,81") | PP - Polypropylene (02) | B - 1 Positioner | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201020935C | 935 mm (36,81") | PP - Polypropylene (02) | C - 2 Positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201021020A | 1020 mm (40,16") | PP - Polypropylene (02) | A - No positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201021020B | 1020 mm (40,16") | PP - Polypropylene (02) | B - 1 Positioner | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201021020C | 1020 mm (40,16") | PP - Polypropylene (02) | C - 2 Positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201021105A | 1105 mm (43,50") | PP - Polypropylene (02) | A - No positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201021105B | 1105 mm (43,50") | PP - Polypropylene (02) | B - 1 Positioner | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201021105C | 1105 mm (43,50") | PP - Polypropylene (02) | C - 2 Positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201021190A | 1190 mm (46,85") | PP - Polypropylene (02) | A - No positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201021190B | 1190 mm (46,85") | PP - Polypropylene (02) | B - 1 Positioner | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201021190C | 1190 mm (46,85") | PP - Polypropylene (02) | C - 2 Positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201021275A | 1275 mm (50,20") | PP - Polypropylene (02) | A - No positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201021275B | 1275 mm (50,20") | PP - Polypropylene (02) | B - 1 Positioner | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201021275C | 1275 mm (50,20") | PP - Polypropylene (02) | C - 2 Positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201021360A | 1360 mm (53,54") | PP - Polypropylene (02) | A - No positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201021360B | 1360 mm (53,54") | PP - Polypropylene (02) | B - 1 Positioner | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201021360C | 1360 mm (53,54") | PP - Polypropylene (02) | C - 2 Positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201021445A | 1445 mm (56,89") | PP - Polypropylene (02) | A - No positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201021445B | 1445 mm (56,89") | PP - Polypropylene (02) | B - 1 Positioner | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201021445C | 1445 mm (56,89") | PP - Polypropylene (02) | C - 2 Positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201021530A | 1530 mm (60,24") | PP - Polypropylene (02) | A - No positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201021530B | 1530 mm (60,24") | PP - Polypropylene (02) | B - 1 Positioner | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201021530C | 1530 mm (60,24") | PP - Polypropylene (02) | C - 2 Positioners | P5201 | 10 mm | 13000 N/m | 7.5 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷104 °C | 4÷104 °C | Reinforced positioner |
|
| P5201030085A | 85 mm (3,35") | MX - Performance PBT (03) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030085B | 85 mm (3,35") | MX - Performance PBT (03) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030085C | 85 mm (3,35") | MX - Performance PBT (03) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030170A | 170 mm (6,69") | MX - Performance PBT (03) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030170B | 170 mm (6,69") | MX - Performance PBT (03) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030170C | 170 mm (6,69") | MX - Performance PBT (03) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030255A | 255 mm (10,04") | MX - Performance PBT (03) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030255B | 255 mm (10,04") | MX - Performance PBT (03) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030255C | 255 mm (10,04") | MX - Performance PBT (03) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030340A | 340 mm (13,39") | MX - Performance PBT (03) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030340B | 340 mm (13,39") | MX - Performance PBT (03) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030340C | 340 mm (13,39") | MX - Performance PBT (03) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030425A | 425 mm (16,73") | MX - Performance PBT (03) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030425B | 425 mm (16,73") | MX - Performance PBT (03) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030425C | 425 mm (16,73") | MX - Performance PBT (03) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030510A | 510 mm (20,08") | MX - Performance PBT (03) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030510B | 510 mm (20,08") | MX - Performance PBT (03) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030510C | 510 mm (20,08") | MX - Performance PBT (03) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030595A | 595 mm (23,43") | MX - Performance PBT (03) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030595B | 595 mm (23,43") | MX - Performance PBT (03) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030595C | 595 mm (23,43") | MX - Performance PBT (03) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030680A | 680 mm (26,77") | MX - Performance PBT (03) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030680B | 680 mm (26,77") | MX - Performance PBT (03) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030680C | 680 mm (26,77") | MX - Performance PBT (03) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030765A | 765 mm (30,12") | MX - Performance PBT (03) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030765B | 765 mm (30,12") | MX - Performance PBT (03) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030765C | 765 mm (30,12") | MX - Performance PBT (03) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030850A | 850 mm (33,46") | MX - Performance PBT (03) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030850B | 850 mm (33,46") | MX - Performance PBT (03) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030850C | 850 mm (33,46") | MX - Performance PBT (03) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030935A | 935 mm (36,81") | MX - Performance PBT (03) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030935B | 935 mm (36,81") | MX - Performance PBT (03) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201030935C | 935 mm (36,81") | MX - Performance PBT (03) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201031020A | 1020 mm (40,16") | MX - Performance PBT (03) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201031020B | 1020 mm (40,16") | MX - Performance PBT (03) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201031020C | 1020 mm (40,16") | MX - Performance PBT (03) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201031105A | 1105 mm (43,50") | MX - Performance PBT (03) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201031105B | 1105 mm (43,50") | MX - Performance PBT (03) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201031105C | 1105 mm (43,50") | MX - Performance PBT (03) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201031190A | 1190 mm (46,85") | MX - Performance PBT (03) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201031190B | 1190 mm (46,85") | MX - Performance PBT (03) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201031190C | 1190 mm (46,85") | MX - Performance PBT (03) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201031275A | 1275 mm (50,20") | MX - Performance PBT (03) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201031275B | 1275 mm (50,20") | MX - Performance PBT (03) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201031275C | 1275 mm (50,20") | MX - Performance PBT (03) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201031360A | 1360 mm (53,54") | MX - Performance PBT (03) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201031360B | 1360 mm (53,54") | MX - Performance PBT (03) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201031360C | 1360 mm (53,54") | MX - Performance PBT (03) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201031445A | 1445 mm (56,89") | MX - Performance PBT (03) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201031445B | 1445 mm (56,89") | MX - Performance PBT (03) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201031445C | 1445 mm (56,89") | MX - Performance PBT (03) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201031530A | 1530 mm (60,24") | MX - Performance PBT (03) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201031530B | 1530 mm (60,24") | MX - Performance PBT (03) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201031530C | 1530 mm (60,24") | MX - Performance PBT (03) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201230085A | 85 mm (3,35") | LFB - Low friction acetal (Blue) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230085B | 85 mm (3,35") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230085C | 85 mm (3,35") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230170A | 170 mm (6,69") | LFB - Low friction acetal (Blue) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230170B | 170 mm (6,69") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230170C | 170 mm (6,69") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230255A | 255 mm (10,04") | LFB - Low friction acetal (Blue) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230255B | 255 mm (10,04") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230255C | 255 mm (10,04") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230340A | 340 mm (13,39") | LFB - Low friction acetal (Blue) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230340B | 340 mm (13,39") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230340C | 340 mm (13,39") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230425A | 425 mm (16,73") | LFB - Low friction acetal (Blue) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230425B | 425 mm (16,73") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230425C | 425 mm (16,73") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230510A | 510 mm (20,08") | LFB - Low friction acetal (Blue) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230510B | 510 mm (20,08") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230510C | 510 mm (20,08") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230595A | 595 mm (23,43") | LFB - Low friction acetal (Blue) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230595B | 595 mm (23,43") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230595C | 595 mm (23,43") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230680A | 680 mm (26,77") | LFB - Low friction acetal (Blue) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230680B | 680 mm (26,77") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230680C | 680 mm (26,77") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230765A | 765 mm (30,12") | LFB - Low friction acetal (Blue) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230765B | 765 mm (30,12") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230765C | 765 mm (30,12") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230850A | 850 mm (33,46") | LFB - Low friction acetal (Blue) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230850B | 850 mm (33,46") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230850C | 850 mm (33,46") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230935A | 935 mm (36,81") | LFB - Low friction acetal (Blue) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230935B | 935 mm (36,81") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201230935C | 935 mm (36,81") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201231020A | 1020 mm (40,16") | LFB - Low friction acetal (Blue) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201231020B | 1020 mm (40,16") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201231020C | 1020 mm (40,16") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201231105A | 1105 mm (43,50") | LFB - Low friction acetal (Blue) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201231105B | 1105 mm (43,50") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201231105C | 1105 mm (43,50") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201231190A | 1190 mm (46,85") | LFB - Low friction acetal (Blue) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201231190B | 1190 mm (46,85") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201231190C | 1190 mm (46,85") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201231275A | 1275 mm (50,20") | LFB - Low friction acetal (Blue) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201231275B | 1275 mm (50,20") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201231275C | 1275 mm (50,20") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201231360A | 1360 mm (53,54") | LFB - Low friction acetal (Blue) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201231360B | 1360 mm (53,54") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201231360C | 1360 mm (53,54") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201231445A | 1445 mm (56,89") | LFB - Low friction acetal (Blue) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201231445B | 1445 mm (56,89") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201231445C | 1445 mm (56,89") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201231530A | 1530 mm (60,24") | LFB - Low friction acetal (Blue) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201231530B | 1530 mm (60,24") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201231530C | 1530 mm (60,24") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250085A | 85 mm (3,35") | MPX - Lubricated Acetal (25) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250085B | 85 mm (3,35") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250085C | 85 mm (3,35") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250170A | 170 mm (6,69") | MPX - Lubricated Acetal (25) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250170B | 170 mm (6,69") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250170C | 170 mm (6,69") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250255A | 255 mm (10,04") | MPX - Lubricated Acetal (25) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250255B | 255 mm (10,04") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250255C | 255 mm (10,04") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250340A | 340 mm (13,39") | MPX - Lubricated Acetal (25) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250340B | 340 mm (13,39") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250340C | 340 mm (13,39") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250425A | 425 mm (16,73") | MPX - Lubricated Acetal (25) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250425B | 425 mm (16,73") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250425C | 425 mm (16,73") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250510A | 510 mm (20,08") | MPX - Lubricated Acetal (25) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250510B | 510 mm (20,08") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250510C | 510 mm (20,08") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250595A | 595 mm (23,43") | MPX - Lubricated Acetal (25) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250595B | 595 mm (23,43") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250595C | 595 mm (23,43") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250680A | 680 mm (26,77") | MPX - Lubricated Acetal (25) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250680B | 680 mm (26,77") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250680C | 680 mm (26,77") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250765A | 765 mm (30,12") | MPX - Lubricated Acetal (25) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250765B | 765 mm (30,12") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250765C | 765 mm (30,12") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250850A | 850 mm (33,46") | MPX - Lubricated Acetal (25) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250850B | 850 mm (33,46") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250850C | 850 mm (33,46") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250935A | 935 mm (36,81") | MPX - Lubricated Acetal (25) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250935B | 935 mm (36,81") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201250935C | 935 mm (36,81") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201251020A | 1020 mm (40,16") | MPX - Lubricated Acetal (25) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201251020B | 1020 mm (40,16") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201251020C | 1020 mm (40,16") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201251105A | 1105 mm (43,50") | MPX - Lubricated Acetal (25) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201251105B | 1105 mm (43,50") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201251105C | 1105 mm (43,50") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201251190A | 1190 mm (46,85") | MPX - Lubricated Acetal (25) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201251190B | 1190 mm (46,85") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201251190C | 1190 mm (46,85") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201251275A | 1275 mm (50,20") | MPX - Lubricated Acetal (25) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201251275B | 1275 mm (50,20") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201251275C | 1275 mm (50,20") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201251360A | 1360 mm (53,54") | MPX - Lubricated Acetal (25) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201251360B | 1360 mm (53,54") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201251360C | 1360 mm (53,54") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201251445A | 1445 mm (56,89") | MPX - Lubricated Acetal (25) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201251445B | 1445 mm (56,89") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201251445C | 1445 mm (56,89") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201251530A | 1530 mm (60,24") | MPX - Lubricated Acetal (25) | A - No positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201251530B | 1530 mm (60,24") | MPX - Lubricated Acetal (25) | B - 1 Positioner | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201251530C | 1530 mm (60,24") | MPX - Lubricated Acetal (25) | C - 2 Positioners | P5201 | 10 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Reinforced positioner |
|
| P5201300085A | 85 mm (3,35") | PFX - Extra Performance PBT (30) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300085B | 85 mm (3,35") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300085C | 85 mm (3,35") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300170A | 170 mm (6,69") | PFX - Extra Performance PBT (30) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300170B | 170 mm (6,69") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300170C | 170 mm (6,69") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300255A | 255 mm (10,04") | PFX - Extra Performance PBT (30) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300255B | 255 mm (10,04") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300255C | 255 mm (10,04") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300340A | 340 mm (13,39") | PFX - Extra Performance PBT (30) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300340B | 340 mm (13,39") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300340C | 340 mm (13,39") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300425A | 425 mm (16,73") | PFX - Extra Performance PBT (30) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300425B | 425 mm (16,73") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300425C | 425 mm (16,73") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300510A | 510 mm (20,08") | PFX - Extra Performance PBT (30) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300510B | 510 mm (20,08") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300510C | 510 mm (20,08") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300595A | 595 mm (23,43") | PFX - Extra Performance PBT (30) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300595B | 595 mm (23,43") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300595C | 595 mm (23,43") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300680A | 680 mm (26,77") | PFX - Extra Performance PBT (30) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300680B | 680 mm (26,77") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300680C | 680 mm (26,77") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300765A | 765 mm (30,12") | PFX - Extra Performance PBT (30) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300765B | 765 mm (30,12") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300765C | 765 mm (30,12") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300850A | 850 mm (33,46") | PFX - Extra Performance PBT (30) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300850B | 850 mm (33,46") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300850C | 850 mm (33,46") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300935A | 935 mm (36,81") | PFX - Extra Performance PBT (30) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300935B | 935 mm (36,81") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201300935C | 935 mm (36,81") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201301020A | 1020 mm (40,16") | PFX - Extra Performance PBT (30) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201301020B | 1020 mm (40,16") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201301020C | 1020 mm (40,16") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201301105A | 1105 mm (43,50") | PFX - Extra Performance PBT (30) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201301105B | 1105 mm (43,50") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201301105C | 1105 mm (43,50") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201301190A | 1190 mm (46,85") | PFX - Extra Performance PBT (30) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201301190B | 1190 mm (46,85") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201301190C | 1190 mm (46,85") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201301275A | 1275 mm (50,20") | PFX - Extra Performance PBT (30) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201301275B | 1275 mm (50,20") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201301275C | 1275 mm (50,20") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201301360A | 1360 mm (53,54") | PFX - Extra Performance PBT (30) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201301360B | 1360 mm (53,54") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201301360C | 1360 mm (53,54") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201301445A | 1445 mm (56,89") | PFX - Extra Performance PBT (30) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201301445B | 1445 mm (56,89") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201301445C | 1445 mm (56,89") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201301530A | 1530 mm (60,24") | PFX - Extra Performance PBT (30) | A - No positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201301530B | 1530 mm (60,24") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
| P5201301530C | 1530 mm (60,24") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5201 | 10 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Reinforced positioner |
|
Enquiry Now
To allow us to respond to your enquiry promptly, please provide all required information.
Related Products
-
Nosebars for 520-525 seriesNosebarsView Product -
Nosebars with bearings for 520-525 seriesNosebarsView Product
-
Nosebars with rollers for 520-525 seriesNosebarsView Product
-
One piece for 520-525 seriesNosebarsView Product
-
One piece with rollers for 520-525 seriesNosebarsView Product
-
520 split machined sprocketBelt sprocketsView Product
-
520 split molded sprocketBelt sprocketsView Product
