512 split machined sprocket + SS Guide rings
Chain sprockets
Description
Basic features
| Series: | 512 |
|---|---|
| Pitch: | 25.4 mm |
| Unit of measure: | Ea |
| Box: | - |

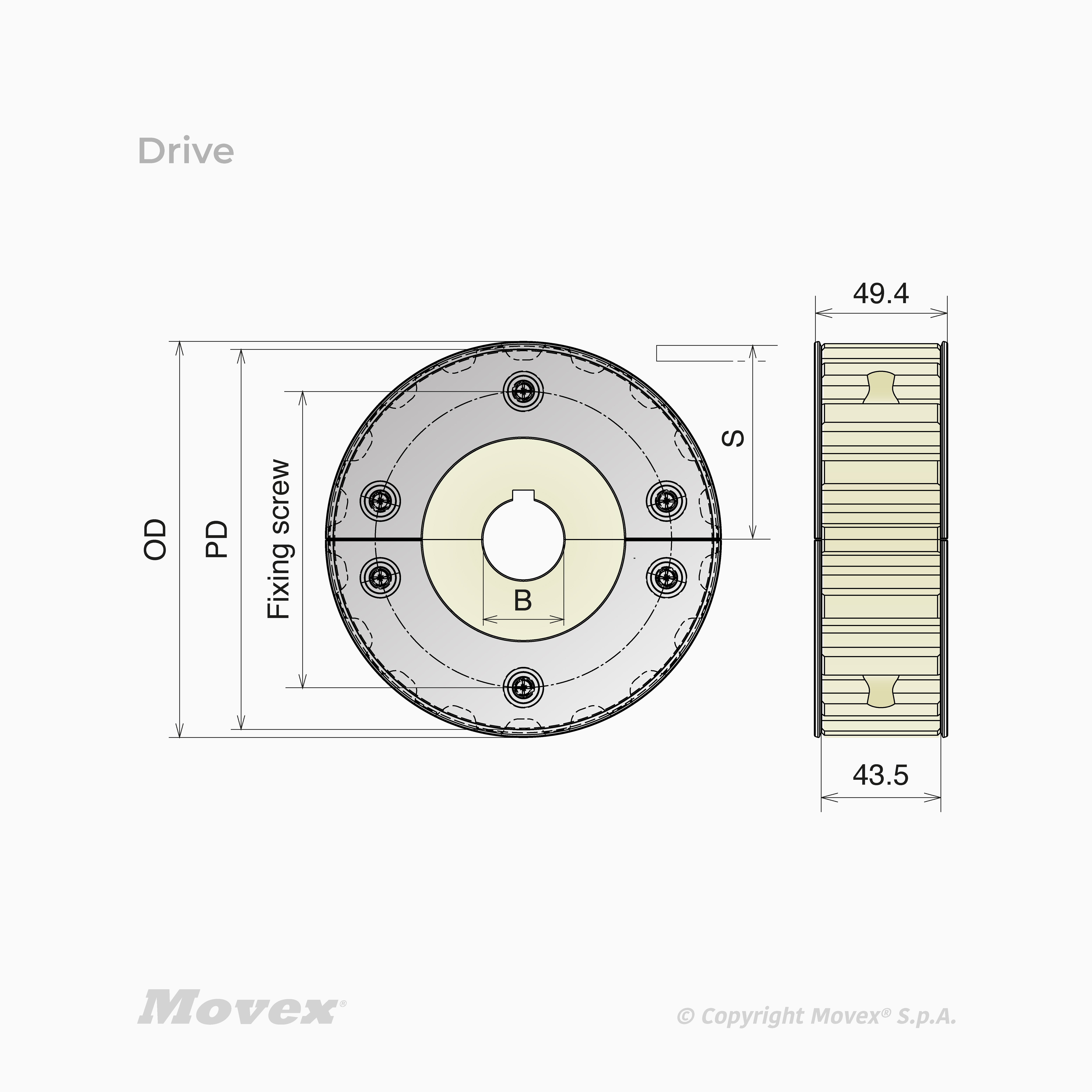

512 split machined sprocket + SS Guide rings
| Z- | Bore |
Version | Type | Execution | Pitch diameter | Outer diameter | S dimension | Material | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| P57601G | 18 | 25 mm | Drive + Guide rings | Split | Machined | 146.3 mm | 147 mm | 76.4 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P57602G | 18 | 30 mm | Drive + Guide rings | Split | Machined | 146.3 mm | 147 mm | 76.4 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P57603G | 18 | 35 mm | Drive + Guide rings | Split | Machined | 146.3 mm | 147 mm | 76.4 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P57604G | 18 | 40 mm | Drive + Guide rings | Split | Machined | 146.3 mm | 147 mm | 76.4 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
