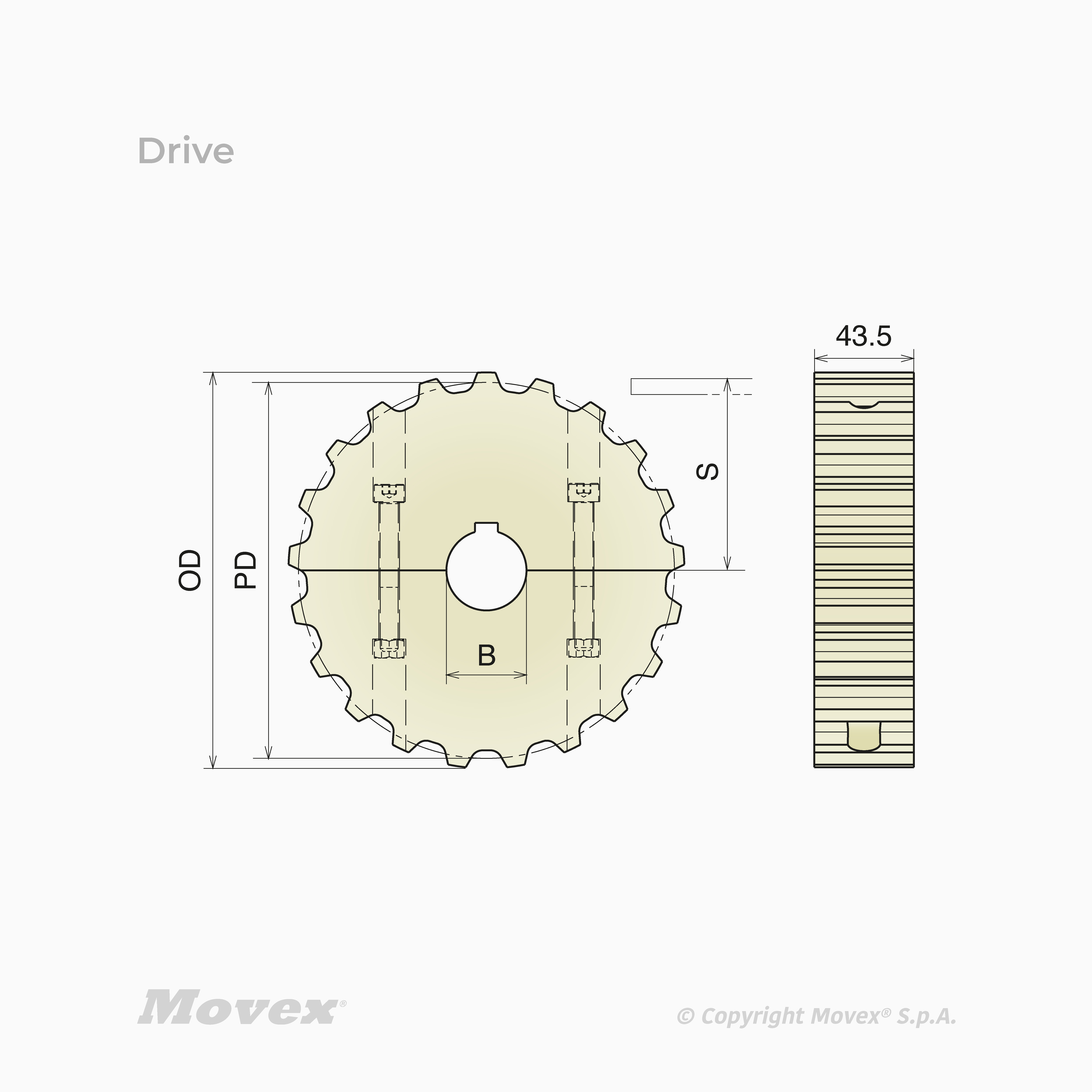

512 split machined sprocket

512 split machined sprocket

	Z-	Bore	Version	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code	All 13 15 17 18 19 21 23 25	All 18 mm 25 mm 30 mm 35 mm 40 mm	All Drive Idler	All Split	All Machined	All 108 mm 124 mm 138.2 mm 146.3 mm 154.3 mm 170.4 mm 186.5 mm 202.7 mm	All 106.1 mm 122.2 mm 138.2 mm 146.4 mm 155.7 mm 173 mm 190 mm 204 mm	All 104.6 mm 57.2 mm 65.2 mm 72.3 mm 76.4 mm 80.4 mm 88.4 mm 96.5 mm	All PA - Polyamide composite	All -40÷80 °C	All -20÷120 °C	Actions
P55701	13	25 mm	Drive	Split	Machined	108 mm	106.1 mm	57.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55702	13	30 mm	Drive	Split	Machined	108 mm	106.1 mm	57.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55703	13	35 mm	Drive	Split	Machined	108 mm	106.1 mm	57.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55704	13	40 mm	Drive	Split	Machined	108 mm	106.1 mm	57.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55750	13	18 mm	Idler	Split	Machined	108 mm	106.1 mm	57.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55751	13	25 mm	Idler	Split	Machined	108 mm	106.1 mm	57.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55752	13	30 mm	Idler	Split	Machined	108 mm	106.1 mm	57.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55753	13	35 mm	Idler	Split	Machined	108 mm	106.1 mm	57.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55754	13	40 mm	Idler	Split	Machined	108 mm	106.1 mm	57.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55801	15	25 mm	Drive	Split	Machined	124 mm	122.2 mm	65.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55802	15	30 mm	Drive	Split	Machined	124 mm	122.2 mm	65.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55803	15	35 mm	Drive	Split	Machined	124 mm	122.2 mm	65.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55804	15	40 mm	Drive	Split	Machined	124 mm	122.2 mm	65.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55850	15	18 mm	Idler	Split	Machined	124 mm	122.2 mm	65.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55851	15	25 mm	Idler	Split	Machined	124 mm	122.2 mm	65.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55852	15	30 mm	Idler	Split	Machined	124 mm	122.2 mm	65.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55853	15	35 mm	Idler	Split	Machined	124 mm	122.2 mm	65.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55854	15	40 mm	Idler	Split	Machined	124 mm	122.2 mm	65.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55901	17	25 mm	Drive	Split	Machined	138.2 mm	138.2 mm	72.3 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55902	17	30 mm	Drive	Split	Machined	138.2 mm	138.2 mm	72.3 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55903	17	35 mm	Drive	Split	Machined	138.2 mm	138.2 mm	72.3 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55904	17	40 mm	Drive	Split	Machined	138.2 mm	138.2 mm	72.3 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55950	17	18 mm	Idler	Split	Machined	138.2 mm	138.2 mm	72.3 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55951	17	25 mm	Idler	Split	Machined	138.2 mm	138.2 mm	72.3 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55952	17	30 mm	Idler	Split	Machined	138.2 mm	138.2 mm	72.3 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55953	17	35 mm	Idler	Split	Machined	138.2 mm	138.2 mm	72.3 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55954	17	40 mm	Idler	Split	Machined	138.2 mm	138.2 mm	72.3 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56001	18	25 mm	Drive	Split	Machined	146.3 mm	146.4 mm	76.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56002	18	30 mm	Drive	Split	Machined	146.3 mm	146.4 mm	76.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56003	18	35 mm	Drive	Split	Machined	146.3 mm	146.4 mm	76.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56004	18	40 mm	Drive	Split	Machined	146.3 mm	146.4 mm	76.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56050	18	18 mm	Idler	Split	Machined	146.3 mm	146.4 mm	76.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56051	18	25 mm	Idler	Split	Machined	146.3 mm	146.4 mm	76.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56052	18	30 mm	Idler	Split	Machined	146.3 mm	146.4 mm	76.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56053	18	35 mm	Idler	Split	Machined	146.3 mm	146.4 mm	76.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56054	18	40 mm	Idler	Split	Machined	146.3 mm	146.4 mm	76.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56101	19	25 mm	Drive	Split	Machined	154.3 mm	155.7 mm	80.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56102	19	30 mm	Drive	Split	Machined	154.3 mm	155.7 mm	80.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56103	19	35 mm	Drive	Split	Machined	154.3 mm	155.7 mm	80.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56104	19	40 mm	Drive	Split	Machined	154.3 mm	155.7 mm	80.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56150	19	18 mm	Idler	Split	Machined	154.3 mm	155.7 mm	80.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56151	19	25 mm	Idler	Split	Machined	154.3 mm	155.7 mm	80.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56152	19	30 mm	Idler	Split	Machined	154.3 mm	155.7 mm	80.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56153	19	35 mm	Idler	Split	Machined	154.3 mm	155.7 mm	80.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56154	19	40 mm	Idler	Split	Machined	154.3 mm	155.7 mm	80.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56201	21	25 mm	Drive	Split	Machined	170.4 mm	173 mm	88.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56202	21	30 mm	Drive	Split	Machined	170.4 mm	173 mm	88.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56203	21	35 mm	Drive	Split	Machined	170.4 mm	173 mm	88.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56204	21	40 mm	Drive	Split	Machined	170.4 mm	173 mm	88.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56250	21	18 mm	Idler	Split	Machined	170.4 mm	173 mm	88.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56251	21	25 mm	Idler	Split	Machined	170.4 mm	173 mm	88.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56252	21	30 mm	Idler	Split	Machined	170.4 mm	173 mm	88.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56253	21	35 mm	Idler	Split	Machined	170.4 mm	173 mm	88.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56254	21	40 mm	Idler	Split	Machined	170.4 mm	173 mm	88.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56301	23	25 mm	Drive	Split	Machined	186.5 mm	190 mm	96.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56302	23	30 mm	Drive	Split	Machined	186.5 mm	190 mm	96.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56303	23	35 mm	Drive	Split	Machined	186.5 mm	190 mm	96.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56304	23	40 mm	Drive	Split	Machined	186.5 mm	190 mm	96.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56350	23	18 mm	Idler	Split	Machined	186.5 mm	190 mm	96.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56351	23	25 mm	Idler	Split	Machined	186.5 mm	190 mm	96.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56352	23	30 mm	Idler	Split	Machined	186.5 mm	190 mm	96.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56353	23	35 mm	Idler	Split	Machined	186.5 mm	190 mm	96.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56354	23	40 mm	Idler	Split	Machined	186.5 mm	190 mm	96.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56401	25	25 mm	Drive	Split	Machined	202.7 mm	204 mm	104.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56402	25	30 mm	Drive	Split	Machined	202.7 mm	204 mm	104.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56403	25	35 mm	Drive	Split	Machined	202.7 mm	204 mm	104.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56404	25	40 mm	Drive	Split	Machined	202.7 mm	204 mm	104.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56450	25	18 mm	Idler	Split	Machined	202.7 mm	204 mm	104.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56451	25	25 mm	Idler	Split	Machined	202.7 mm	204 mm	104.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56452	25	30 mm	Idler	Split	Machined	202.7 mm	204 mm	104.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56453	25	35 mm	Idler	Split	Machined	202.7 mm	204 mm	104.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P56454	25	40 mm	Idler	Split	Machined	202.7 mm	204 mm	104.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C

•
