260 M Flush Grid
Chain-belts
Description
Basic features
| Series: | 240XE-260-261 |
|---|---|
| Pitch: | 25.4 mm |
| Thickness: | 8.7 mm |
| Surface Type: | FG - Flush Grid |
| Functionality: | Side Flex MAGNETIC |
| Unit of measure: | Meter |

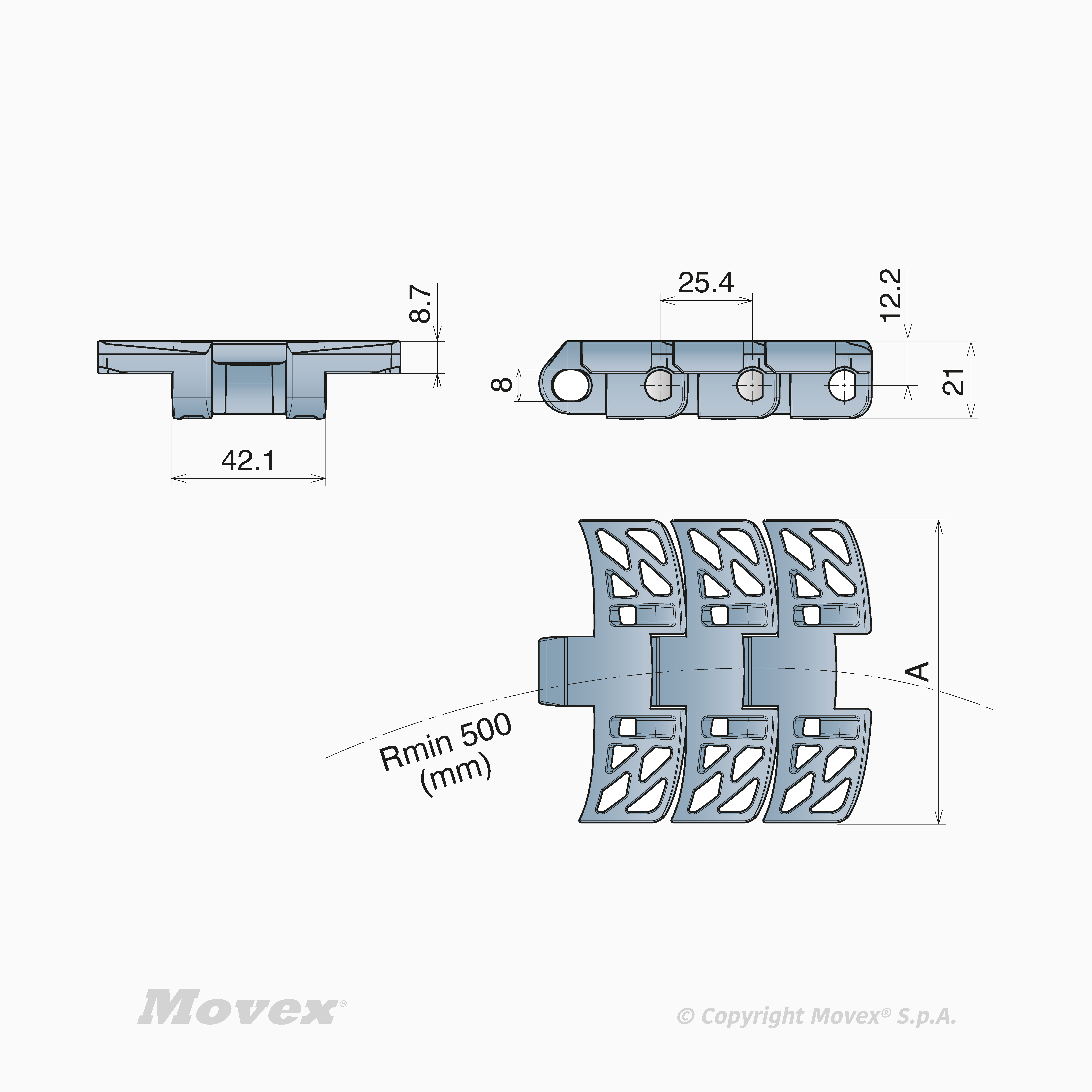

260 M Flush Grid
| Width | Material | Part | Back flex radius | Sideflexing radius min | Mass | Pin material | Box | Max working load | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| P11540103 | K 330 - 83,8 mm | LFA - Low Friction Acetal (01) | P1154 | 130 mm | 500 mm | 1.62 kg/m | Ferritic Stainless Steel | 10 ft - 3,048 m | 2000 N |
|
| P11540105 | K 450 - 114,3 mm | LFA - Low Friction Acetal (01) | P1154 | 130 mm | 500 mm | 2.13 kg/m | Ferritic Stainless Steel | 10 ft - 3,048 m | 2000 N |
|
| P11540303 | K 330 - 83,8 mm | MX - Performance PBT (03) | P1154 | 130 mm | 500 mm | 1.62 kg/m | Ferritic Stainless Steel | 10 ft - 3,048 m | 1600 N |
|
| P11540305 | K 450 - 114,3 mm | MX - Performance PBT (03) | P1154 | 130 mm | 500 mm | 2.13 kg/m | Ferritic Stainless Steel | 10 ft - 3,048 m | 1600 N |
|
| P11542303 | K 330 - 83,8 mm | LFB - Low friction Acetal (23) | P1154 | 130 mm | 500 mm | 1.62 kg/m | Ferritic Stainless Steel | 10 ft - 3,048 m | 2000 N |
|
| P11542305 | K 450 - 114,3 mm | LFB - Low friction Acetal (23) | P1154 | 130 mm | 500 mm | 2.13 kg/m | Ferritic Stainless Steel | 10 ft - 3,048 m | 2000 N |
|
| P11543003 | K 330 - 83,8 mm | PFX - Extra Performance PBT (30) | P1154 | 130 mm | 500 mm | 1.52 kg/m | Ferritic Stainless Steel | 10 ft - 3,048 m | 1600 N |
|
| P11543005 | K 450 - 114,3 mm | PFX - Extra Performance PBT (30) | P1154 | 130 mm | 500 mm | 2.03 kg/m | Ferritic Stainless Steel | 10 ft - 3,048 m | 1600 N |
|
