1863 TAB Flat Top
Plastic chains
Description
Description
Basic features
| Series: | 1843-1863-1873-1874-1883 |
|---|---|
| Pitch: | 25.4 mm |
| Thickness: | 4 mm |
| Surface Type: | FT - Flat Top |
| Functionality: | Side Flex TAB |
| Unit of measure: | Meter |

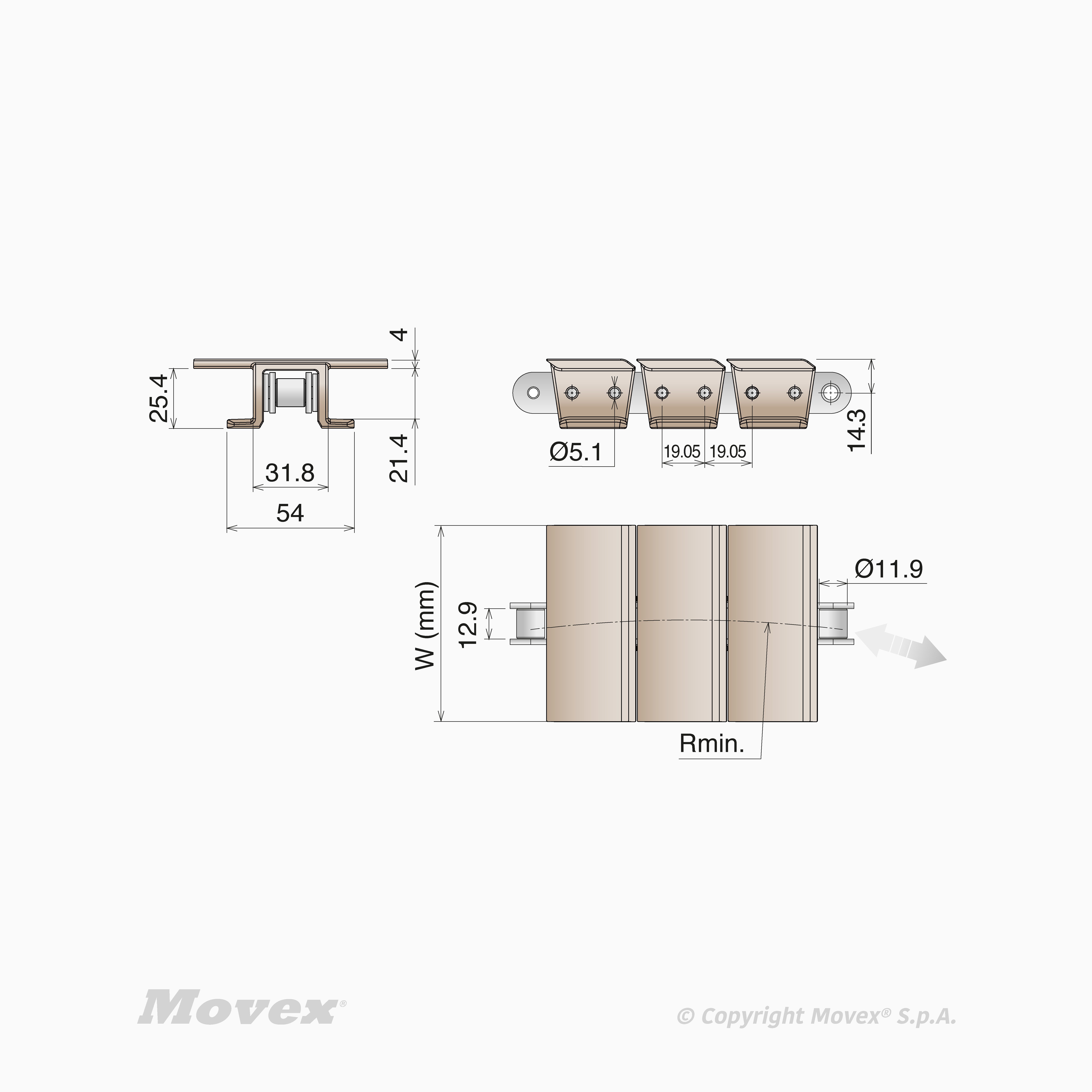

1863 TAB Flat Top
| Width | Material | Part | Back flex radius | Sideflexing radius min | Mass | Roller chain | Box | Max working load | Surface finish | Surface Flatness | Polished Hinge | Rubber width (B) | Rubber type | Rubber color | Rubber hardness ShA | Pin material | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||||||
| P11420102 | K 325 - 82,5 mm | LF - Low friction acetal (01) | P1142 | 150 mm | 355 mm | 2 kg/m | C45 | 10 ft - 3,048 m | 4500 N | mm | mm | mm |
|
|||||
| P11420122 | K 225 - 57,2 mm | LF - Low friction acetal (01) | P1142 | 150 mm | 355 mm | 1.9 kg/m | C45 | 10 ft - 3,048 m | 4500 N | mm | mm | mm |
|
|||||
| P11420302 | K 325 - 82,5 mm | MX - Performance PBT (03) | P1142 | 150 mm | 355 mm | 2 kg/m | C45 | 10 ft - 3,048 m | 4500 N | mm | mm | mm |
|
|||||
| P11420322 | K 225 - 57,2 mm | MX - Performance PBT (03) | P1142 | 150 mm | 355 mm | 1.9 kg/m | C45 | 10 ft - 3,048 m | 4500 N | mm | mm | mm |
|
|||||
| P11430102 | K 325 - 82,5 mm | LF - Low friction acetal (01) | P1143 | 150 mm | 355 mm | 2 kg/m | Stainless Steel | 10 ft - 3,048 m | 3500 N | mm | mm | mm |
|
|||||
| P11430122 | K 225 - 57,2 mm | LF - Low friction acetal (01) | P1143 | 150 mm | 355 mm | 1.9 kg/m | Stainless Steel | 10 ft - 3,048 m | 3500 N | mm | mm | mm |
|
|||||
| P11430302 | K 325 - 82,5 mm | MX - Performance PBT (03) | P1143 | 150 mm | 355 mm | 2 kg/m | Stainless Steel | 10 ft - 3,048 m | 3500 N | mm | mm | mm |
|
|||||
| P11430322 | K 225 - 57,2 mm | MX - Performance PBT (03) | P1143 | 150 mm | 355 mm | 1.9 kg/m | Stainless Steel | 10 ft - 3,048 m | 3500 N | mm | mm | mm |
|
