1706 Flat Top
Plastic chains
Description
Basic features
| Series: | Crate conveyor 600-1400-1701-1706 |
|---|---|
| Pitch: | 50 mm |
| Thickness: | 24 mm |
| Surface Type: | FT - Flat Top |
| Functionality: | Side Flex |
| Unit of measure: | Meter |

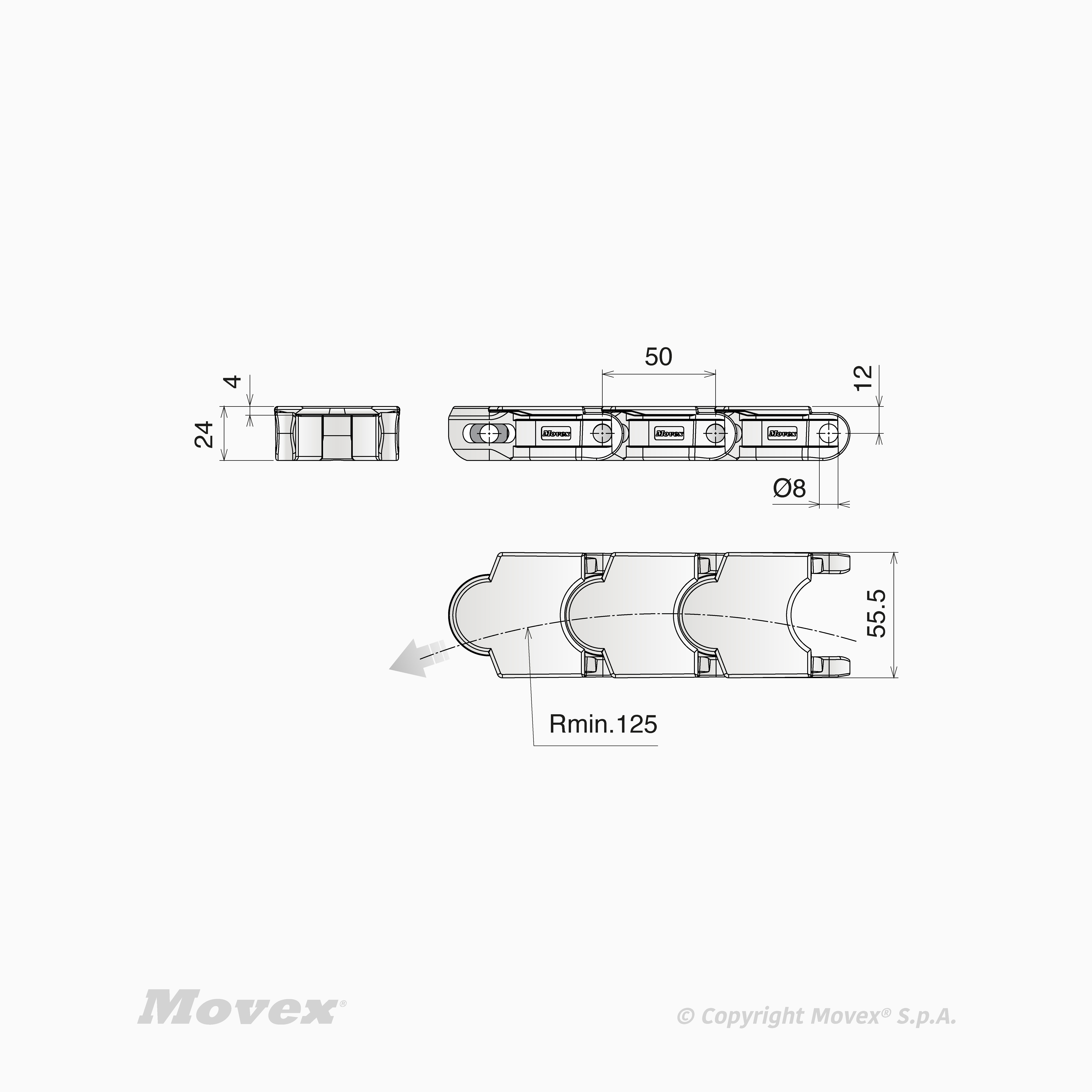

1706 Flat Top
| Width | Material | Part | Back flex radius | Sideflexing radius min | Mass | Pin material | Box | Max working load | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| P11720300 | K 219 - 55,5 mm | MX - Performance PBT (03) | P1172 | 80 mm | 125 mm | 1.35 kg/m | Stainless steel | 10 ft - 3,050 m | 1900 N |
|
| P11720400 | K 219 - 55,5 mm | LFN - Low Friction Acetal (04) | P1172 | 80 mm | 125 mm | 1.35 kg/m | Stainless steel | 10 ft - 3,050 m | 2300 N |
|
