1701 TAB OPF Flat Top
Plastic chains
Description
Basic features

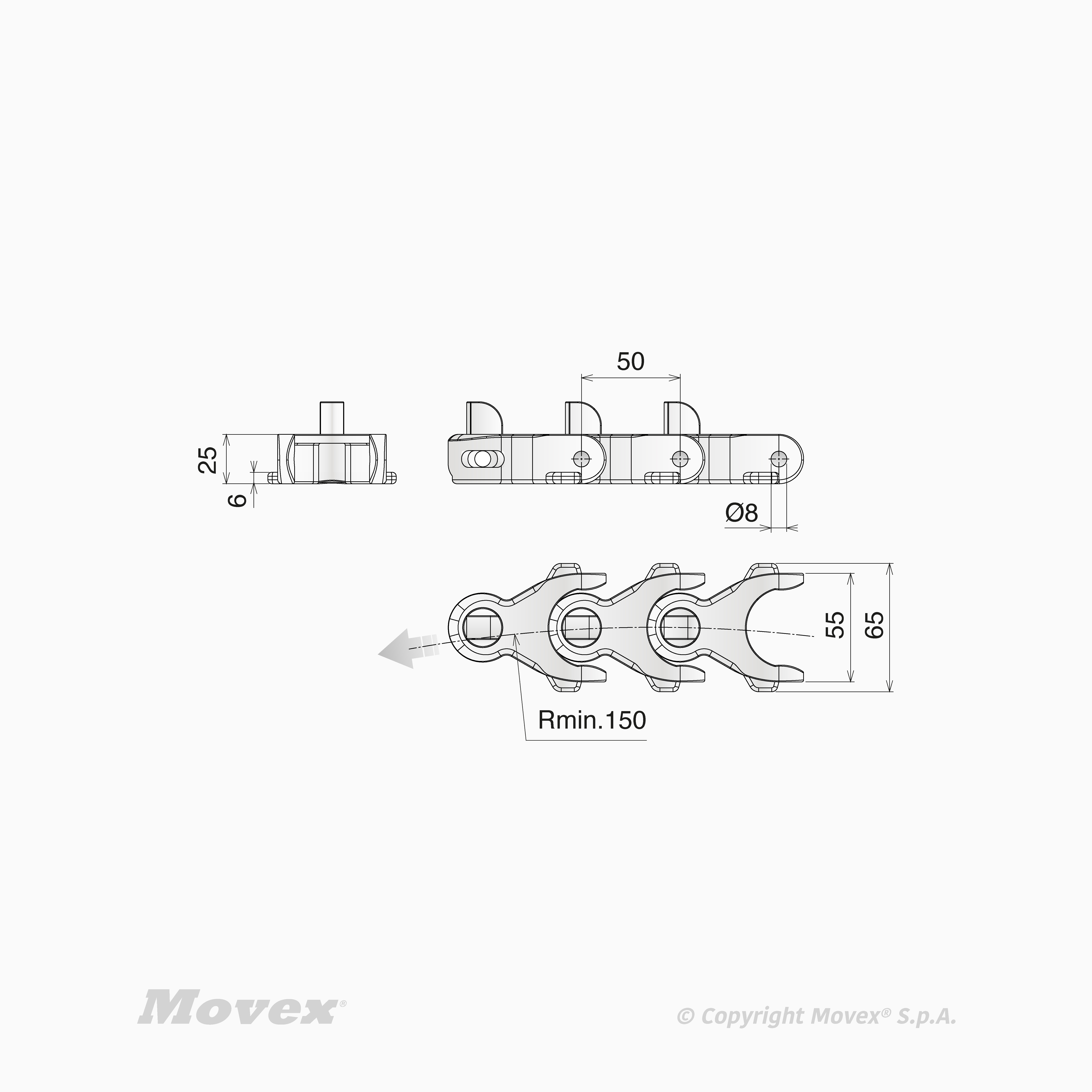

| Series: | Crate conveyor 600-1400-1701-1706 |
|---|---|
| Pitch: | 50 mm |
| Thickness: | 25 mm |
| Surface Type: | FT - Flat Top |
| Functionality: | Side Flex TAB |
| Unit of measure: | Meter |
1701 TAB OPF Flat Top
| Width | Material | Part | Back flex radius | Sideflexing radius min | Mass | Pin material | Additional Specification | Box | Max working load | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||

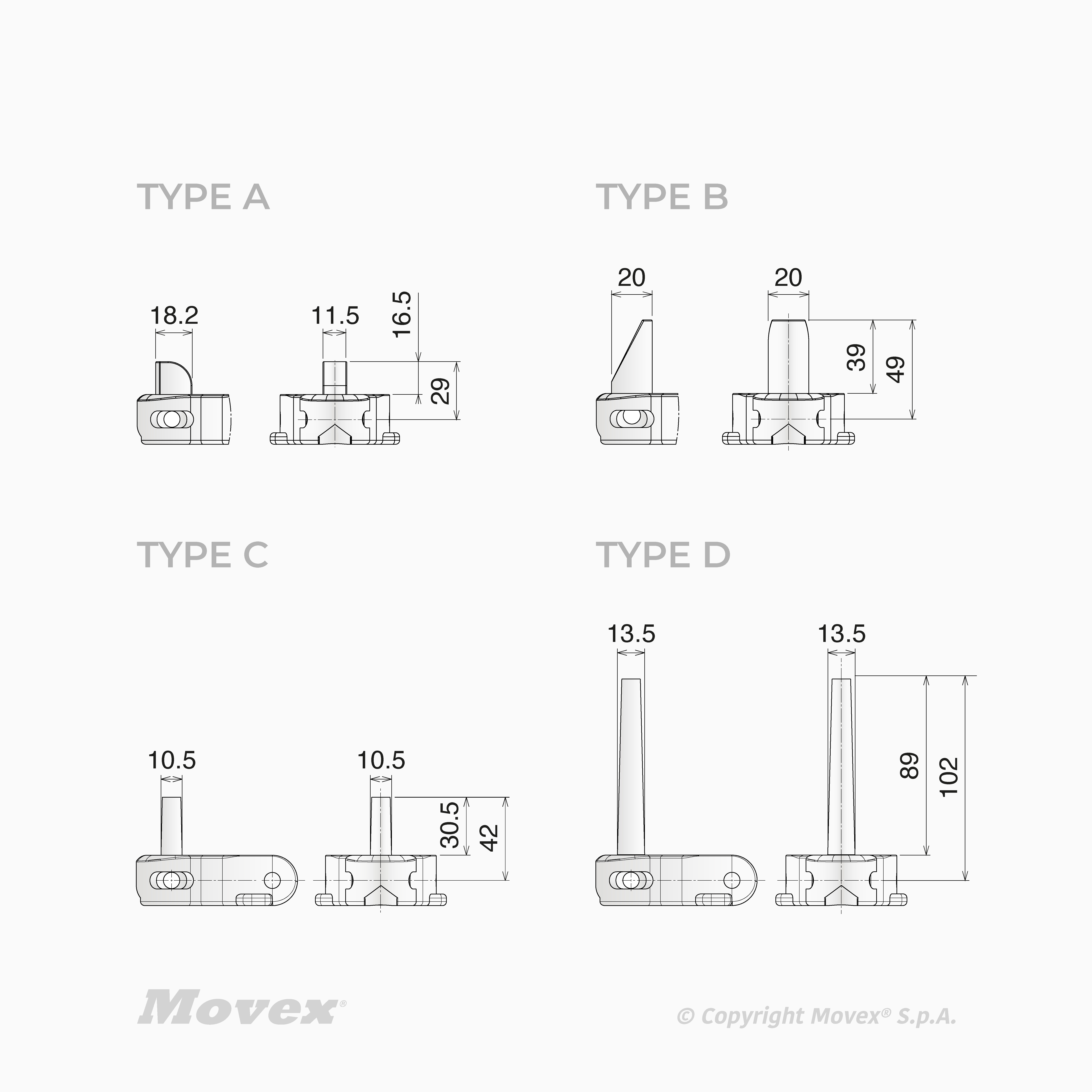

| P11360400-FA | K 217 - 55,0 mm | LFN - Low Friction Acetal (04) | P1136 | 100 mm | 150 mm | 1.6 kg/m | Stainless steel | OPF - Type A | 10 ft - 3,050 m | 2700 N |
|
| P11360400-FB | K 217 - 55,0 mm | LFN - Low Friction Acetal (04) | P1136 | 100 mm | 150 mm | 1.6 kg/m | Stainless steel | OPF - Type B | 10 ft - 3,050 m | 2700 N |
|
| P11360400-FC | K 217 - 55,0 mm | LFN - Low Friction Acetal (04) | P1136 | 100 mm | 150 mm | 2 kg/m | Stainless steel | OPF - Type C | 10 ft - 3,050 m | 2700 N |
|
| P11360400-FD | K 217 - 55,0 mm | LFN - Low Friction Acetal (04) | P1136 | 120 mm | 150 mm | 2.3 kg/m | Stainless steel | OPF - Type D | 10 ft - 3,050 m | 2700 N |
|
